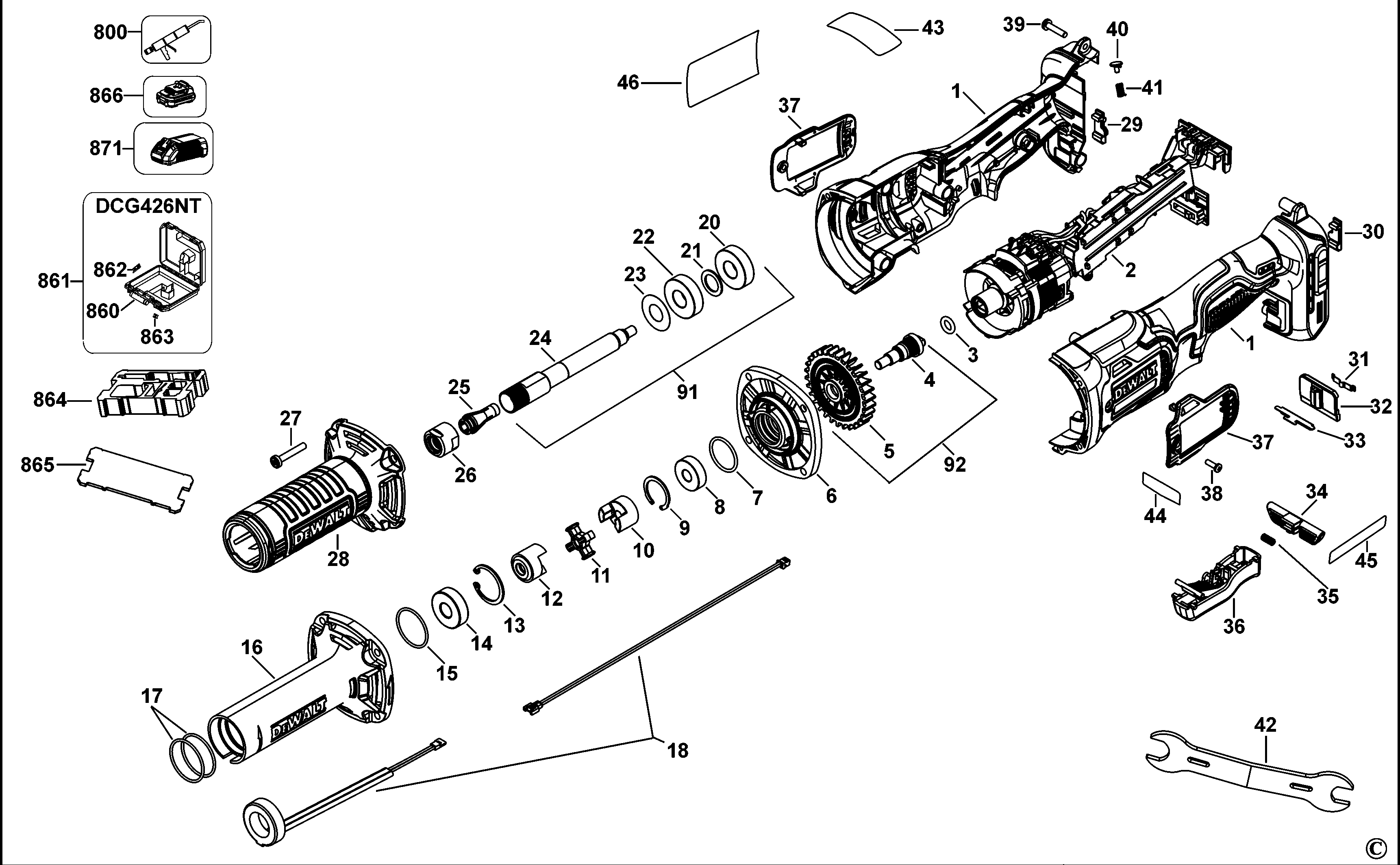

DCG426 DIE GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	N464397	1	CLAMSHELL SET			XJ
2	N545146	1	MOTOR SA	18V BRUSHLESS		XJ
3	N511068	1	O RING			XJ
4	N480257	1	SHAFT			XJ
5	N349500	1	FAN			XJ
6	N283650	1	STATOR			XJ
7	N119639	1	O RING			XJ
8	N175104	1	BEARING			XJ
9	N286522	1	RING			XJ
10	N275349	1	COUPLING			XJ
11	N275347	1	DRIVER			XJ
12	N275349	1	COUPLING			XJ
13	N184706	1	RETAINER			XJ
14	605040-17	1	BEARING BALL			XJ
15	N308579	1	O RING			XJ
16	N490647	1	NOSE			XJ
17	N398026	2	O RING			XJ
18	N494120	1	LED LIGHT			XJ
20	878190	1	BEARING			XJ
21	N403100	1	WASHER			XJ
22	605040-20	1	BEARING	12 x 28 x 8mm		XJ
23	638229-00	1	WASHER			XJ
24	N499547	1	OUTPUT SHAFT			XJ
25	N382457	1	COLLET			XJ
26	N382458	1	NUT			XJ
27	N354900	4	SCREW			XJ
28	N489771	1	COVER			XJ
29	N438438	1	INSERT			XJ
30	N438439	1	INSERT			XJ
31	N599474	1	DETENT			XJ
32	N046201	1	SELECTOR			XJ
33	N467560	1	PLATE			XJ
34	N464399	1	BUTTON LOCK-OFF			XJ
35	N165498	1	SPRING			XJ
36	N368300	1	TRIGGER			XJ
37	N486699	2	COVER			XJ
38	N042665	2	SCREW			XJ
39	330019-03	7	SCREW			XJ
40	N122099	1	BLOCK			XJ
41	N461735	1	SPRING			XJ
42	N332459	2	SPANNER			XJ
43	N306579	1	LABEL			XJ
44	N504130	1	LABEL			XJ
45	N504129	1	BRAND LABEL	18V		XJ
46	N514690	1	RATING PLATE	EURO	DCG426N	XJ
91	N523773	1	OUTPUT SHAFT SA			XJ
92	N523943	1	FAN SA			XJ
860	H1400196008	1	HANDLE			XJ
862	H1500082520	2	LATCH			XJ
863	P910190	2	LATCH			XJ
864	N499331	1	INSERT			XJ
865	N483180	1	INSERT			XJ
