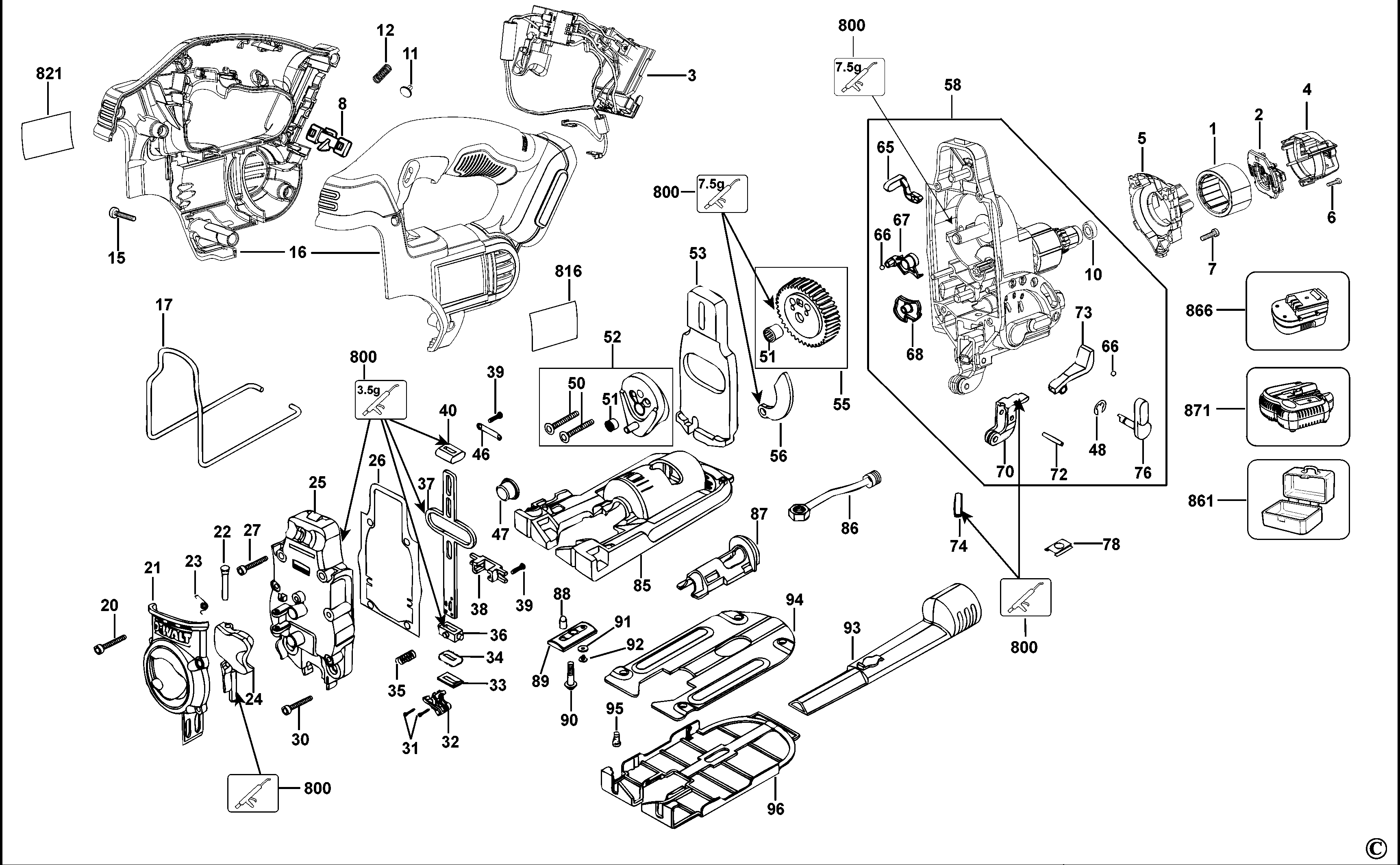

DCS332 CORDLESS JIGSAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N230576 | 1 | MAGNET | 26mm | GB | ||
| 2 | N012060 | 1 | BRUSHPLATE | GB |  |
||
| 3 | N165194 | 1 | ELECTRONIC & SWITCH | GB |  |
||
| 4 | N093117 | 1 | BRUSH HOLDER | GB | |
||
| 5 | N394566 | 1 | ADAPTOR | GB | |
||
| 6 | 330065-27 | 3 | SCREW | M3.5 X 30 TX15 | GB | |
|
| 7 | 330045-15 | 3 | SCREW | GB | |
||
| 8 | N060864 | 1 | BUTTON LOCK-OFF | GB | |
||
| 10 | N110357 | 1 | BEARING | GB | |
||
| 11 | N122099 | 1 | BLOCK | GB | |
||
| 12 | N119679 | 1 | SPRING | GB | |
||
| 15 | 330019-03 | 9 | SCREW | GB | |
||
| 16 | N165199 | 1 | CLAMSHELL PAIR | 14.4v; 18v | GB | |
|
| 17 | 581269-00 | 1 | GUARD | GB | |
||
| 20 | 324006-00 | 4 | SCREW | GB | |
||
| 21 | 581577-00 | 1 | CASTING | GB | |
||
| 22 | 584627-00 | 1 | PIN | GB | |
||
| 23 | 581418-00 | 1 | SPRING | GB | |
||
| 24 | 589055-00 | 1 | ACTUATOR | GB | |
||
| 25 | N142821 | 1 | GEARCASE COVER | 14.4 | GB | |
|
| 26 | N444301 | 1 | GASKET | GB | |
||
| 27 | 330045-09 | 2 | SCREW | M4x30 T20 MTLTHDFMG | GB | |
|
| 30 | 330045-06 | 2 | SCREW | GB | |
||
| 31 | 582837-00 | 1 | BOLT | GB | |
||
| 32 | N127658 | 1 | BLADE CLAMP | GB | |
||
| 33 | 582262-00 | 1 | HOLDER | GB | |
||
| 34 | 582263-00 | 1 | FELT SEAL | GB | |
||
| 35 | 586646-00 | 1 | SPRING | GB | |
||
| 36 | 490330-00 | 1 | BEARING | GB | |
||
| 37 | 589013-00 | 1 | SHAFT | GB | |
||
| 38 | 582260-00 | 1 | SUPPORT BEARING | GB | |
||
| 39 | 324006-00 | 4 | SCREW | GB | |
||
| 40 | 490329-00 | 1 | BEARING | GB | |
||
| 46 | 582261-00 | 1 | CLAMP | GB | |
||
| 47 | 582257-00 | 1 | DRIVE ROLLER | GB | |
||
| 48 | 571181-00 | 1 | CLIP | GB | |
||
| 50 | N541247 | 2 | SCREW | GB | |
||
| 51 | 330004-02 | 2 | BEARING NEEDLE | GB | |
||
| 52 | N527424 | 1 | CRANK KIT | GB | |
||
| 53 | 589012-00 | 1 | COUNTERWEIGHT | GB | |
||
| 55 | N527431 | 1 | GEAR SA | Spur | GB | |
|
| 56 | 581247-00 | 1 | ACTUATOR | GB | |
||
| 58 | N381427 | 1 | GEARCASE SA | 14.4V | GB | |
|
| 65 | 581255-05 | 1 | LEVER | GB | |
||
| 66 | 326467-00 | 2 | DETENT | GB | |
||
| 67 | 582830-05 | 1 | BODY | GB | |
||
| 68 | 582831-00 | 1 | BAFFLE | GB | |
||
| 70 | 589056-00 | 1 | SUPPORT BRACKET | GB | |
||
| 72 | 330041-29 | 1 | PIN | GB | |
||
| 73 | 584450-00 | 1 | NOZZLE | GB | |
||
| 74 | 330041-49 | 1 | PIN | GB | |
||
| 76 | 581257-01 | 1 | LEVER | PENDULUM (CORDLESS) | GB | |
|
| 78 | N089310 | 1 | SPRING CLIP | GB | |
||
| 85 | 581263-00 | 1 | SHOE | GB | |
||
| 86 | 493248-00 | 1 | LEVER | GB | |
||
| 87 | 581266-00 | 1 | ADAPTOR | GB | |
||
| 88 | 584686-00 | 1 | PLUNGER | GB | |
||
| 89 | 496996-00 | 1 | CLAMP | GB | |
||
| 90 | 582826-00 | 1 | BOLT | GB | |
||
| 91 | 582828-00 | 1 | WASHER | M5 x 4.5 x 1.5 Thk | GB | |
|
| 92 | 582827-00 | 1 | BOLT | GB | |
||
| 93 | 581281-00 | 1 | VACUUM ADAPTOR | GB | |
||
| 94 | 581264-00 | 1 | SOLE PLATE | GB | |
||
| 95 | N056875 | 4 | SCREW TORX | M4x10 | GB | |
|
| 96 | 581268-00 | 1 | SOLE PLATE | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 816 | N137254 | 1 | BRAND LABEL | 14.4v | GB | |
|
| 821 | N489243 | 1 | RATING LABEL | GB | |
||
| 861 | 581580-03 | 1 | KITBOX | GB | |
||
| 866 | N394622 | 1 | BATTERY 14.4V - 5.0AH - 72WH | Li-Ion - DCB144-XJ | DCS332M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
