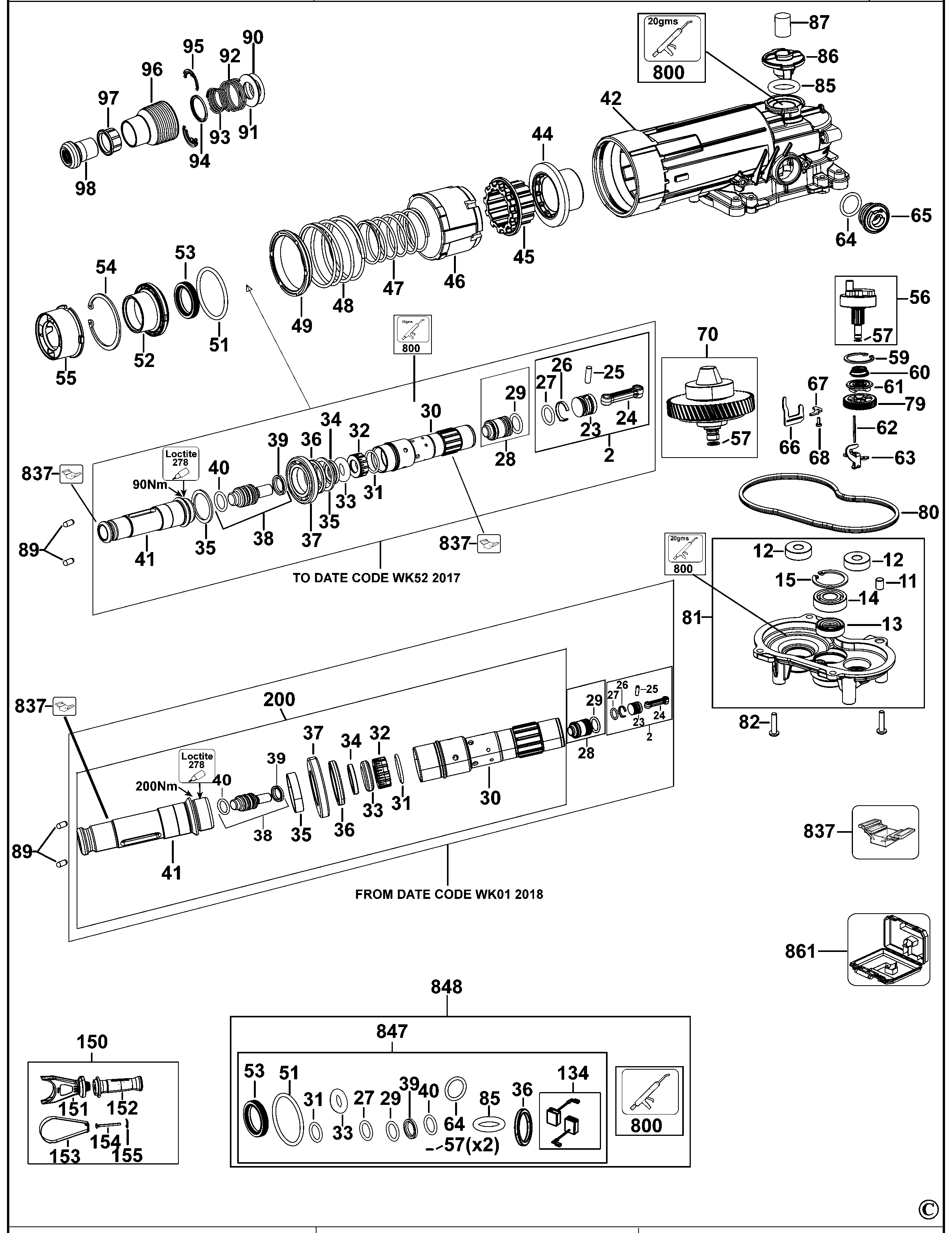

D25481 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N491963 | 1 | ARMATURE 230V | GB |  |
||
| 2 | N491979 | 1 | PISTON SA | GB | |
||
| 8 | 330003-60 | 1 | BEARING | GB | |
||
| 9 | N466979 | 1 | MAGNET | GB | |
||
| 11 | 327575-00 | 1 | SLEEVE | GB | |
||
| 12 | N110358 | 2 | BEARING | GB | |
||
| 13 | N495599 | 1 | SEAL | GB | |
||
| 14 | 577745-01 | 1 | BEARING,BALL | GB | |
||
| 15 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | GB | |
|
| 23 | N406776 | 1 | PISTON | 5KG D26 | GB | |
|
| 24 | N922659 | 1 | CON ROD | GB | |
||
| 25 | N446699 | 1 | PIN | GB | |
||
| 26 | N446701 | 1 | PISTON RING | GB | |||
| 27 | N487314 | 1 | O RING | GB | |
||
| 28 | N491986 | 1 | RAM SA | 26MM | GB | |
|
| 29 | N487314 | 1 | O RING | GB | |
||
| 30 | N571916 | 1 | SPINDLE SA | TO DCODE WK52 2017 | GB | |
|
| 30 | N571895 | 1 | SPINDLE SA | 5KG SDS MAX | FROM DCODE WK01 2018 | GB | |
| 31 | N410350 | 1 | O RING | GB | |
||
| 32 | N431706 | 1 | BUSH | GB | |
||
| 33 | N410349 | 1 | O RING | 16ID x 8 | GB | |
|
| 34 | N431708 | 1 | WASHER | REBOUND | GB | |
|
| 35 | N545367 | 1 | SPACER | FROM DCODE WK01 2018 | GB | |
|
| 35 | N440708 | 2 | WASHER | SPINDLE, 35x45x2.2mm | TO DCODE WK52 2017 | GB | |
| 36 | N504457 | 1 | DAMPER | FROM DCODE WK01 2018 | GB | |
|
| 36 | N504457 | 1 | DAMPER | TO DCODE WK52 2017 | GB | |
|
| 37 | N536109 | 1 | BEARING | FROM DCODE WK01 2018 | GB | |
|
| 37 | N446368 | 1 | BEARING | TO DCODE WK52 2017 | GB | |
|
| 38 | N492498 | 1 | BEAT PIECE | 5KG | GB | |
|
| 39 | N244259 | 1 | SEAL | GB | |
||
| 40 | N487314 | 1 | O RING | GB | |
||
| 41 | N571916 | 1 | SPINDLE SA | TO DCODE WK52 2017 | GB | |
|
| 41 | N571895 | 1 | SPINDLE SA | 5KG SDS MAX | FROM DCODE WK01 2018 | GB | |
| 42 | N506088 | 1 | HOUSING SA | PKG'D N406216 | GB | |
|
| 44 | N410187 | 1 | BEVEL GEAR | GB | |
||
| 45 | N410188 | 1 | SLEEVE | GB | |
||
| 46 | N433094 | 1 | SLEEVE | LOCKING | GB | |
|
| 47 | N437808 | 1 | SPRING | SHIFTING SLEEVE | GB | |
|
| 48 | N437814 | 1 | SPRING | GB | |
||
| 49 | N460603 | 1 | SUPPORT | GB | |
||
| 51 | N432556 | 1 | O RING | 54x4 | GB | |
|
| 52 | N526257 | 1 | SLEEVE | GB | |
||
| 53 | 327141-00 | 1 | SEAL | GB | |
||
| 54 | N532870 | 1 | CIRCLIP | GB | |
||
| 55 | N439579 | 1 | CAP | GB | |
||
| 56 | N492496 | 1 | CRANKSHAFT | PKG'D N406217 | GB | |
|
| 57 | 323711-26 | 2 | O RING | GB | |
||
| 59 | N432869 | 1 | CIRCLIP | JS40 | GB | |
|
| 60 | N571701 | 1 | SPRING | GB | |
||
| 61 | N406228 | 1 | SLEEVE | CRANK | GB | |
|
| 62 | N450900 | 1 | PIN | 3x40 | GB | |
|
| 63 | N422799 | 1 | SELECTOR FORK | GB | |
||
| 64 | N553858 | 1 | O RING | 16 X 2.65 | GB | |
|
| 65 | N435997 | 1 | ECCENTRIC | GB | |
||
| 66 | N422798 | 1 | PLATE | DRILL MODE | GB | |
|
| 67 | N422797 | 1 | PLATE | GUIDING | GB | |
|
| 68 | N445171 | 1 | SCREW | GB | |
||
| 70 | N492837 | 1 | CLUTCH SA | PKG'D N410179 | GB | |
|
| 71 | N435623 | 1 | BAFFLE FAN | GB |  |
||
| 76 | N433780 | 1 | HOUSING MOTOR | GB | |
||
| 77 | N449094 | 1 | COVER BEARING | GB | |
||
| 78 | N492847 | 1 | FIELD 230V | GB | |
||
| 79 | N492874 | 1 | GEAR | PKGD N406225 | GB | |
|
| 80 | N422796 | 1 | GASKET | MAIN HOUSING | GB | |
|
| 81 | N491766 | 1 | HOUSING GEAR SA | PKGD N410355 | GB | |
|
| 82 | 324007-11 | 8 | SCREW | M5 X 18 | GB | |
|
| 83 | N444425 | 2 | BRUSH SPRING | GB | |
||
| 84 | N448156 | 1 | COIL | GB | |
||
| 85 | N504436 | 1 | O RING | 18x4.5 | GB | |
|
| 86 | N452721 | 1 | CAP | GB | |
||
| 87 | N395554 | 1 | FELT | GB | |
||
| 89 | 325878-00 | 2 | ROLLER | GB | |
||
| 90 | N038151 | 1 | FELT | GB | |
||
| 91 | N465749 | 1 | WASHER | 29x55x1.8 | GB | |
|
| 92 | 323395-06 | 1 | SPRING | GB | |
||
| 93 | 487118-00 | 1 | SPRING | GB | |
||
| 94 | N464690 | 1 | GUIDE | GUIDE | GB | |
|
| 95 | N468172 | 2 | LOCKING PIN | GB | |
||
| 96 | N464913 | 1 | SLEEVE | INCL. WASHER | GB | |
|
| 97 | 326575-01 | 1 | COLLAR | GB | |
||
| 98 | N465586 | 1 | LIP SEAL | GB | |
||
| 99 | N429783 | 1 | COVER | GB | |
||
| 104 | N431333 | 1 | SIDE RH | GB | |
||
| 105 | N431397 | 1 | SIDE LH | GB | |||
| 106 | N445171 | 3 | SCREW | GB | |
||
| 107 | N464282 | 1 | SELECTOR SA | MODE CHANGE | GB | |
|
| 108 | 330065-08 | 14 | SCREW | M4x18 T20 | GB | |
|
| 109 | N452043 | 1 | BELLOWS | LOWER | GB | |
|
| 110 | N452385 | 1 | SET OF LEAD WIRES | GB | |
||
| 111 | N452042 | 1 | BELLOWS | GB | |
||
| 112 | N152623 | 1 | STOP | GB | |
||
| 113 | N492860 | 1 | CLAMSHELL SET | GB | |
||
| 114 | N410113 | 1 | CORDSET | GB | GB | |
|
| 115 | N467530 | 1 | SWITCH | GB | |
||
| 116 | 821070 | 1 | CORD CLAMP | GB | |
||
| 118 | 587114-01 | 1 | TRIGGER | GB | |
||
| 119 | N159443 | 1 | AXIS | GB | |
||
| 120 | N106188 | 1 | SPRING COMPRESSION | GB | |
||
| 121 | 323091-01 | 1 | CORD PROTECTOR | GB | |
||
| 123 | 324007-11 | 2 | SCREW | M5 X 18 | GB | |
|
| 125 | N438602 | 1 | END CAP | GB | |
||
| 126 | N438601 | 1 | CLAMSHELL | GB | |
||
| 127 | N492852 | 1 | CONTROL MODULE SA | 230V | GB | |
|
| 128 | N449848 | 1 | BRACKET | GB | |
||
| 129 | N371839 | 2 | SCREW | M4x22 PLSTC THDFMG | GB | |
|
| 130 | N450546 | 1 | LEAD SA | GB | |
||
| 132 | 324007-11 | 4 | SCREW | M5 X 18 | GB | |
|
| 133 | 330065-10 | 2 | SCREW | GB | |
||
| 134 | N492849 | 1 | BRUSH PAIR 230V | GB | |
||
| 135 | N450097 | 2 | BRUSHBOX SA | GB | |
||
| 136 | N086775 | 5 | SCREW | GB | |
||
| 150 | N466680 | 1 | HANDLE SIDE SA | GB | |||
| 151 | N466673 | 1 | CLAMP | GB | |
||
| 152 | N505367 | 1 | HANDLE SA | GB | |||
| 153 | N466679 | 1 | CLAMP | GB | |
||
| 154 | N466678 | 1 | BOLT | GB | |
||
| 155 | N466677 | 1 | WASHER CLAMP | GB | |
||
| 160 | N196274 | 1 | LABEL | PERFORM & PROTECT | GB | |
|
| 200 | N571916 | 1 | SPINDLE SA | FROM DCODE WK01 2018 | GB | |
|
| 800 | 578970-04 | 1 | GREASE | 80g | GB | |
|
| 821 | N495320 | 1 | RATING PLATE | GB | GB | ||
| 837 | 1003961-99 | 1 | S.T.SUPPORT PLATE | 5KG | GB | |
|
| 837 | 1003965-99 | 1 | S.T.SEAL FITTING TOOL | GB | |
||
| 837 | 1003966-99 | 1 | S.T.LIP SEAL REMOVER | 5KG HAMMERS | GB | |
|
| 837 | 1003964-99 | 1 | S.T.SEAL FITTING TOOL | GB | |
||
| 837 | 1003962-99 | 1 | S.T.DIS-ASSEMBLY JIG | SDS MAX | GB | |
|
| 847 | N513606 | 1 | SERVICE KIT 230V | HV | TO DCODE WK52-2017 | GB | |
| 847 | N680320 | 1 | SERVICE KIT 230V | HV | FROM DCODE WK01-2018 | GB | |
| 848 | 1004727-66 | 1 | SERVICE KIT 230V | 230V | TO DCODE WK52-2017 | GB | |
| 861 | N469730 | 1 | KITBOX | GB | |
