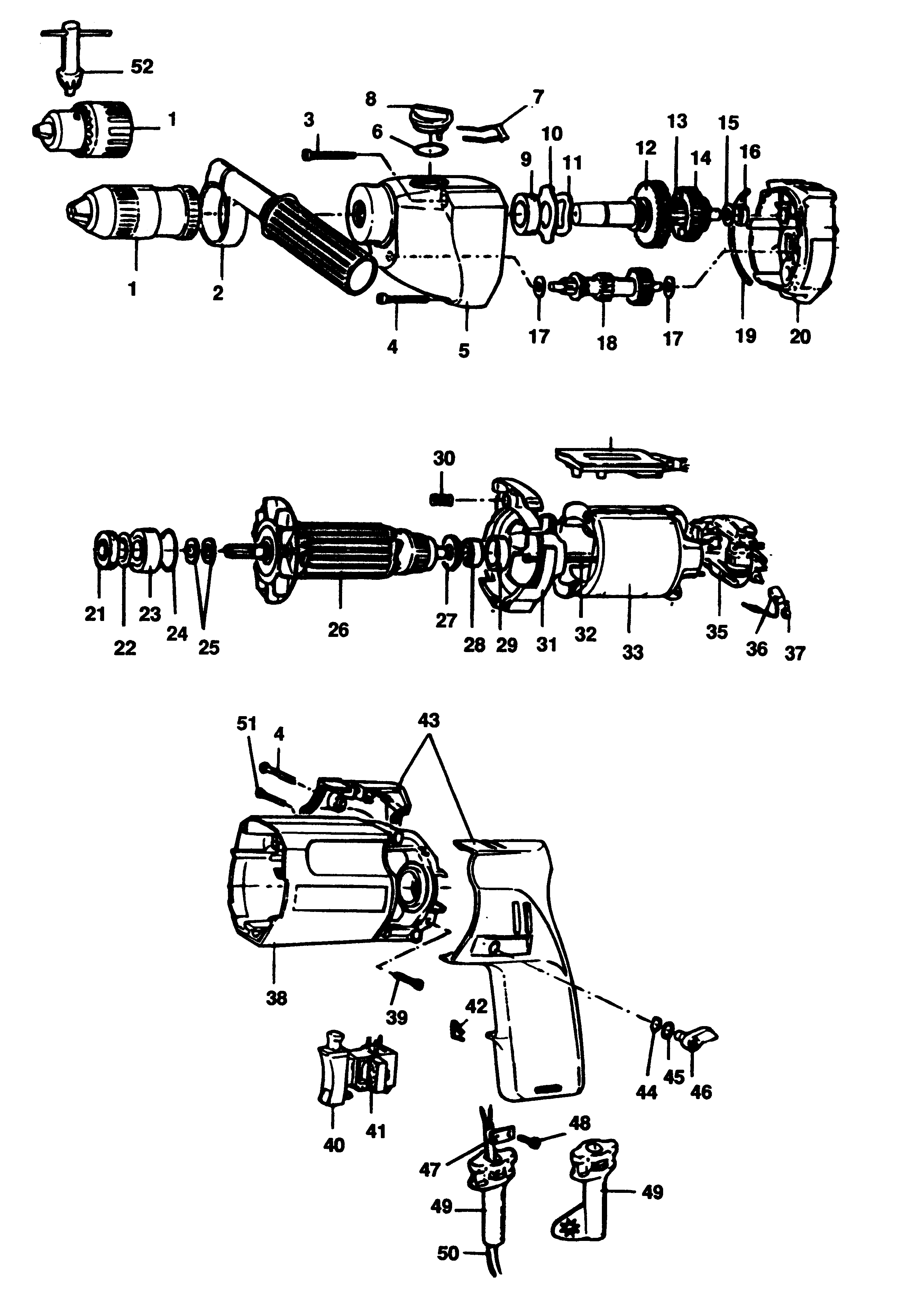

P1229 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 930019 | 1 | CHUCK | P1229 | XJ |  |
|
| 2 | 930281 | 1 | HANDLE SA | XJ | |
||
| 3 | 930082-01 | 2 | SCREW | XJ |  |
||
| 4 | 931297-00 | 2 | SCREW | XJ | |
||
| 5 | 932783 | 1 | GEARCASE SA | XJ | |||
| 6 | 932517 | 1 | SEAL | XJ | |
||
| 7 | 932513 | 1 | SPRING | XJ | |
||
| 9 | 930041 | 1 | BEARING | XJ | |
||
| 10 | 930113 | 1 | RETAINING PLATE | XJ | |
||
| 11 | 930114 | 1 | WASHER SPRING | XJ | |
||
| 13 | 930194 | 1 | SHAFT | XJ | |
||
| 14 | 932585 | 1 | CHUCK & SPINDLE SA | XJ | |
||
| 15 | 930115 | 1 | WASHER | XJ | |
||
| 16 | 930017-00 | 1 | WASHER | XJ | |
||
| 17 | 930102-00 | 2 | WASHER | XJ | |
||
| 18 | 931778 | 1 | GEAR & PINION SA | XJ | |
||
| 19 | 930032 | 1 | SEAL | XJ | |
||
| 20 | 932891 | 1 | GEARCASE COVER SA | XJ | |
||
| 21 | 930033 | 1 | WASHER | XJ | |
||
| 22 | 930104 | 1 | WASHER | XJ | |
||
| 23 | 330003-06 | 1 | BEARING | FR 1229 ONLY | XJ | |
|
| 23 | 330003-07 | 1 | BEARING | ALL MKTS EXCEPT FR | XJ | |
|
| 24 | 930039 | 1 | SEAL | XJ | |
||
| 25 | 930106 | 2 | WASHER | XJ | |
||
| 26 | 930154 | 1 | ARMATURE | XJ | |
||
| 27 | 930051 | 1 | SPACER | P1229 | XJ | |
|
| 28 | 330003-02 | 1 | BEARING | XJ | |
||
| 29 | 930275-00 | 1 | SLEEVE | P1224 | XJ | |
|
| 29 | 930029-00 | 1 | HOLDER BEARING | FR 1229 ONLY | XJ | |
|
| 30 | 932757 | 1 | SPRING | XJ | |
||
| 31 | 930806 | 1 | BAFFLE | XJ | |
||
| 32 | 930077-00 | 2 | SCREW | XJ | |
||
| 33 | 868629-02 | 1 | FIELD | P1229 | XJ | |
|
| 33 | 930155 | 1 | FIELD | P1224 | XJ | |
|
| 34 | 930552 | 1 | ELECTRONIC 220V | P1224 | XJ | |
|
| 34 | 930183 | 1 | ELECTRONIC 240V | P1229 | XJ | |
|
| 35 | 930167-00 | 1 | BRUSH PLATE SA | XJ | |
||
| 36 | 930151-00 | 2 | BRUSH 220V | FR 1229 ONLY | XJ | |
|
| 36 | 939539-01 | 2 | BRUSH CUT OFF | ALL MKTS EXCEPT FR | XJ | |
|
| 37 | 930090-00 | 2 | BRUSH SPRING | XJ | |
||
| 39 | 930284-01 | 1 | SCREW | XJ | |
||
| 40 | 934161 | 1 | SWITCH | P1224 | XJ | |
|
| 40 | 934161 | 1 | SWITCH | P1229 | XJ | |
|
| 41 | 930026 | 1 | FOAM | XJ | |
||
| 42 | 930187 | 1 | CONNECTOR | XJ | |
||
| 43 | 930209 | 1 | HANDLE SA | P1224 | XJ | |
|
| 43 | 930209 | 1 | HANDLE SA | P1229 | XJ | |
|
| 43 | 930210 | 1 | HANDLE SA | FR 1229 ONLY | XJ | |
|
| 44 | 930095 | 1 | CLIP | P1224 | XJ | |
|
| 45 | 930110 | 1 | WASHER | P1224 | XJ | |
|
| 46 | 932785 | 1 | LEVER | P1224 | XJ | |
|
| 47 | 930103-00 | 1 | CORD CLAMP | XJ | |
||
| 48 | 930276 | 2 | SCREW | XJ | |
||
| 49 | 732456 | 1 | CORD PROTECTOR | P1224 | XJ | |
|
| 49 | 930040 | 1 | CORD PROTECTOR | P1229 | XJ | |
|
| 49 | 930040 | 1 | CORD PROTECTOR | FR 1229 ONLY | XJ | |
|
| 50 | 930216 | 1 | CABLE | ALL MKTS EXCEPT FR | XJ | ||
| 50 | 938109 | 1 | CABLE | FR 1229 ONLY | XJ | |
|
| 51 | 930079-01 | 3 | SCREW | XJ | |
||
| 52 | 930016 | 1 | CHUCK KEY | P1224 | XJ | |
