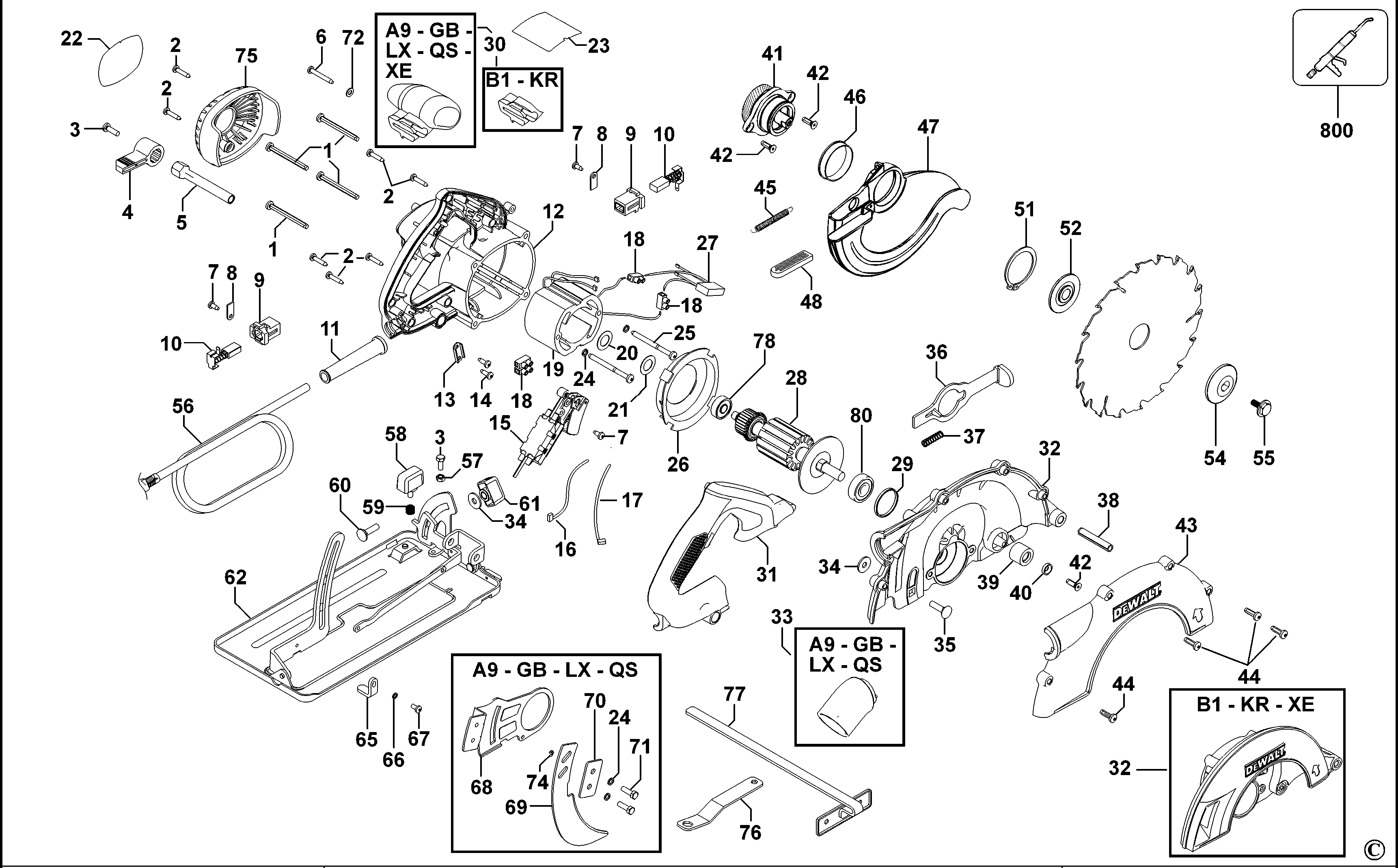

D23620 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596862-00 | 4 | SCREW | M5 x 55mm | GB |  |
|
| 2 | 1002003-00 | 7 | SCREW | M4 x 20mm | GB | |
|
| 3 | 1002005-00 | 2 | SCREW | GB | |
||
| 4 | 1002007-00 | 1 | LEVER | GB | |
||
| 5 | 1002008-00 | 1 | LOCK PIN | GB | |
||
| 6 | 1002018-00 | 1 | SCREW | 4.2 x 32mm | GB | |
|
| 7 | 596863-00 | 3 | SCREW | 4.2 x 9.5mm | GB | |
|
| 8 | 1002009-00 | 2 | CLAMP | GB | |
||
| 9 | 1002010-00 | 2 | BRUSH HOLDER | GB | |
||
| 10 | 1002011-00 | 2 | BRUSH 230V | GB | |
||
| 11 | 1002024-00 | 1 | CORD PROTECTOR | GB | |
||
| 12 | 1002014-00 | 1 | HOUSING MOTOR | GB | |
||
| 13 | 1002020-00 | 1 | CORD CLAMP | GB | |
||
| 14 | 596873-00 | 2 | SCREW | M4 x 12mm | GB | |
|
| 15 | 1002017-00 | 1 | SWITCH LOCK OFF | GB | |
||
| 16 | 1002015-00 | 1 | LEADWIRE | GB | |
||
| 17 | 1002016-00 | 1 | LEADWIRE | GB | |
||
| 18 | 1002019-00 | 4 | TERMINAL BLOCK | GB | |
||
| 19 | 1002482-00 | 1 | FIELD 230V | GB | |
||
| 20 | 1002028-00 | 1 | SEAL | GB | |
||
| 21 | 1002029-00 | 1 | WASHER | GB | |
||
| 22 | 1002483-00 | 1 | BRAND LABEL | GB | |
||
| 23 | 1002502-00 | 1 | RATING PLATE | GB | |
||
| 24 | 1002026-00 | 4 | WASHER SPRING | 5mm | GB | |
|
| 25 | 1002027-00 | 2 | SCREW | M5 x 60mm | GB | |
|
| 26 | 1002038-00 | 1 | BAFFLE FAN | GB | |
||
| 27 | 1002013-00 | 1 | CAPACITOR | GB | |
||
| 28 | 1002485-00 | 1 | ARMATURE 230V | GB | |
||
| 29 | 1002048-00 | 1 | O RING | GB | |
||
| 30 | 1002030-00 | 1 | HANDLE SA | GB | |
||
| 31 | 1002025-00 | 1 | HANDLE COVER | GB | |
||
| 32 | 1002486-00 | 1 | GEARCASE SA | GB | |
||
| 33 | 1002043-00 | 1 | ADAPTOR | GB | |
||
| 34 | 1002036-00 | 2 | WASHER | 6mm | GB | |
|
| 35 | 1002053-00 | 1 | BOLT | GB | |
||
| 36 | 1002047-00 | 1 | SPANNER | GB | |
||
| 37 | 1002045-00 | 1 | SPRING | GB | |
||
| 38 | 1002044-00 | 1 | PIN | GB | |
||
| 39 | 596897-00 | 1 | STOP | GB | |
||
| 40 | 596898-00 | 1 | WASHER | GB | |
||
| 41 | 1002487-00 | 1 | GEAR SA | GB | |
||
| 42 | 596899-00 | 3 | SCREW | M4 x 12mm | GB | |
|
| 43 | 1002488-00 | 1 | GUARD COVER | GB | |
||
| 44 | 596907-00 | 4 | SCREW | M5 x 14 | GB | |
|
| 45 | 596912-00 | 1 | SPRING | GB | |
||
| 46 | 596911-00 | 1 | SLEEVE | GB | |
||
| 47 | 1002489-00 | 1 | GUARD LOWER | GB | |
||
| 48 | 1002050-00 | 1 | SLEEVE | GB | |
||
| 51 | 596915-00 | 1 | CIRCLIP | 42mm | GB | |
|
| 52 | 1002490-00 | 1 | INNER FLANGE | GB | |
||
| 54 | 1002491-00 | 1 | OUTER FLANGE | GB | |
||
| 55 | 596919-00 | 1 | BLADE BOLT | GB | |
||
| 56 | 597549-00 | 1 | CORDSET | GB | |
||
| 57 | 1002492-00 | 1 | NUT | 5mm | GB | |
|
| 58 | 596923-00 | 1 | SCREW WING | GB | |
||
| 59 | 596922-00 | 1 | SPRING | GB | |
||
| 60 | 596925-00 | 1 | SCREW | GB | |
||
| 61 | 596924-00 | 1 | WING NUT | GB | |
||
| 62 | 1002493-00 | 1 | SHOE SA | GB | |
||
| 65 | 597545-00 | 1 | SUPPORT | GB | |
||
| 66 | 597546-00 | 1 | WASHER | 4mm | GB | |
|
| 67 | 597547-00 | 1 | SCREW | M4 x 8mm | GB | |
|
| 68 | 1002494-00 | 1 | SUPPORT | GB | |
||
| 69 | 1002495-00 | 1 | RIVING KNIFE | GB | |
||
| 70 | 1002496-00 | 1 | CLAMP | GB | |
||
| 71 | 596906-00 | 2 | SCREW | M5 x 16mm | GB | |
|
| 72 | 1002022-00 | 1 | WASHER | 4mm | GB | |
|
| 74 | 1002497-00 | 1 | CIRCLIP | 3mm | GB | |
|
| 75 | 1002006-00 | 1 | END CAP | GB | |
||
| 76 | 1002066-00 | 1 | WRENCH SPECIAL | GB | |
||
| 77 | 1002067-00 | 1 | RIP FENCE | GB | |
||
| 78 | 1002498-00 | 1 | BEARING | 608-2RD | GB | |
|
| 80 | 1002499-00 | 1 | BEARING | 6200-2RS | GB | |
|
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | 8 grams | GB |  |
