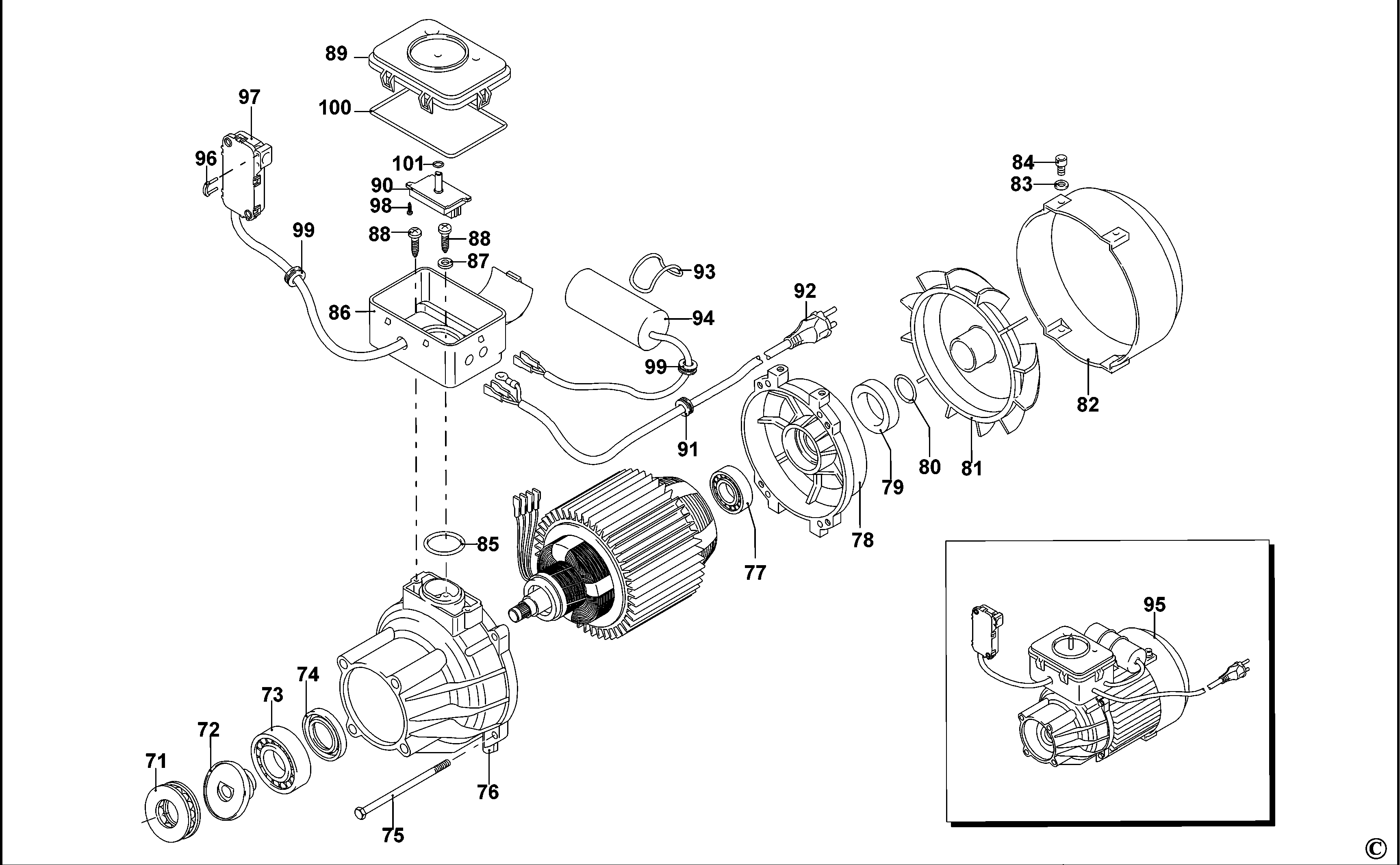

DXPW002(A)E PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004713-64 | 1 | GUARD | GB |  |
||
| 2 | 1004713-59 | 1 | HANDLE SA | GB | |
||
| 3 | 1004712-13 | 13 | SCREW | GB | |
||
| 4 | 1004713-65 | 1 | GUARD | GB | |
||
| 5 | 1004713-66 | 2 | GUARD | GB | |
||
| 6 | 1004727-70 | 2 | SCREW | GB | |
||
| 7 | 1004714-02 | 2 | WHEEL | GB |  |
||
| 8 | 1004710-66 | 1 | HOSE | Detergent | GB | |
|
| 9 | 1004727-78 | 1 | BASE SA | GB | |
||
| 10 | 1004710-89 | 1 | FILTER | GB | |
||
| 11 | 1004713-63 | 1 | GUARD | GB | |
||
| 12 | 1004714-03 | 1 | DOOR | GB | |
||
| 13 | 1004712-42 | 1 | SCREW | GB | |
||
| 14 | 1004711-58 | 1 | WASHER | GB | |
||
| 15 | 1004710-69 | 1 | HOSE SA | GB | |
||
| 16 | 1004713-84 | 1 | GUARD | GB | |
||
| 17 | 1004713-68 | 1 | BRACKET | GB | |
||
| 18 | 1004712-34 | 4 | SCREW | GB | |
||
| 19 | 1004713-67 | 1 | BRACKET | GB | |
||
| 20 | 1004712-00 | 1 | SCREW | GB | |
||
| 21 | 1004714-09 | 1 | GLAND | GB | |
||
| 22 | 1004700-77 | 1 | COUPLING SA | GB | |
||
| 23 | 1004713-83 | 1 | SPACER | GB | |
||
| 24 | 1004712-12 | 1 | SCREW | GB | |
||
| 25 | 1004713-60 | 1 | CASING | GB | |
||
| 26 | 1004713-73 | 1 | KNOB | GB | |
||
| 27 | 1004713-62 | 1 | GUARD | GB | |
||
| 28 | 1004714-01 | 1 | GUARD | GB | |
||
| 29 | 1004713-61 | 1 | GUARD | GB | |
||
| 30 | 1004714-17 | 2 | SCREW | GB | |
||
| 31 | 1004714-16 | 2 | FOOT | GB | |
||
| 32 | 1004710-14 | 1 | PLUG | GB | |
||
| 33 | 1004712-81 | 1 | HEAD | GB | |
||
| 34 | 1004709-97 | 3 | SCREW | GB | |
||
| 35 | 1004710-05 | 1 | O RING | GB | |
||
| 36 | 1004713-54 | 1 | PIPE | FITTING | GB | |
|
| 37 | 1004709-90 | 5 | O RING | GB | |
||
| 38 | 1004713-53 | 1 | PIPE | Fitting | GB | |
|
| 39 | 1004709-78 | 1 | O RING | GB | |
||
| 40 | 1004712-74 | 6 | VALVE | COMPLETE VALVE | GB | ||
| 41 | 1004712-18 | 6 | SEAL | GB | |
||
| 42 | 1004709-93 | 3 | O RING | GB | |
||
| 43 | 1004712-69 | 3 | BUSHING | GB | |
||
| 44 | 1004712-68 | 3 | BUSHING | GB | |
||
| 45 | 1004711-74 | 3 | SEAL | GB | |
||
| 46 | 1004712-82 | 4 | SCREW | GB | |
||
| 47 | 1004712-76 | 1 | GUIDE | GB | |
||
| 48 | 1004712-87 | 3 | SPRING | GB | |
||
| 49 | 1004712-67 | 3 | PISTON | GB | |
||
| 50 | 1004712-64 | 3 | LOCK | GB | |
||
| 51 | 1004712-65 | 1 | PLUG | GB | |
||
| 52 | 1004712-66 | 1 | SCREW | GB | |
||
| 53 | 1004712-90 | 1 | SPRING SA | GB | |
||
| 54 | 1004710-43 | 1 | O RING | GB | |
||
| 55 | 1004712-92 | 1 | O RING | GB | |
||
| 56 | 1004712-77 | 1 | PIPE | GB | |
||
| 57 | 1004711-70 | 1 | SPRING | GB | |
||
| 58 | 1004710-50 | 1 | BALL | GB | |
||
| 59 | 1004709-78 | 1 | O RING | GB | |
||
| 60 | 1004711-96 | 1 | COUPLING | GB | |
||
| 61 | 1004711-49 | 1 | O RING | GB | |
||
| 62 | 1004712-85 | 1 | SHUTTER | GB | |
||
| 63 | 1004713-55 | 1 | SPRING | GB | |
||
| 64 | 1004710-00 | 2 | O RING | GB | |
||
| 65 | 3700200 | 1 | VALVE | GB | |
||
| 66 | 2901260 | 1 | HEAD SA | GB | |
||
| 67 | 1004708-87 | 1 | VALVE KIT | A; | GB | |
|
| 68 | 1004708-88 | 1 | PISTON KIT | B; | GB | |
|
| 69 | 1004709-23 | 1 | SEALS KIT | C; | GB | |
|
| 70 | 1004730-87 | 1 | GASKET SET | F; | GB | |
|
| 71 | 1004712-78 | 1 | BEARING | GB | |
||
| 72 | 1004712-88 | 1 | PLATE | GB | |
||
| 73 | 1004711-81 | 1 | BEARING | GB | |
||
| 74 | 1004711-52 | 1 | SEAL | GB | |
||
| 75 | 1004712-36 | 4 | SCREW | GB | |
||
| 76 | 1004712-75 | 1 | BODY | PUMP BODY | GB | |
|
| 77 | 1004711-53 | 1 | BEARING | GB | |
||
| 78 | 1004711-45 | 1 | COVER | GB | |
||
| 79 | 1004711-54 | 1 | SEAL | GB | |
||
| 80 | 1004709-75 | 1 | O RING | GB | |
||
| 81 | 1004711-48 | 1 | FAN | GB | |
||
| 82 | 1004714-15 | 1 | CONVEYOR | GB | |
||
| 83 | 1004711-73 | 2 | WASHER | GB | |
||
| 84 | 1004711-51 | 2 | SCREW | GB | |
||
| 85 | 1004709-87 | 1 | O RING | GB | |
||
| 86 | 1004712-32 | 1 | BOX | GB | |
||
| 87 | 1004710-65 | 1 | WASHER | GB | |
||
| 88 | 1004712-03 | 3 | SCREW | GB | |
||
| 89 | 1004714-13 | 1 | COVER | GB | |
||
| 90 | 1004712-80 | 1 | SWITCH | GB | |
||
| 91 | 1004712-04 | 1 | GLAND | GB | |
||
| 93 | 1004712-35 | 1 | O RING | GB | |
||
| 94 | 1004711-95 | 1 | CAPACITOR | GB | |
||
| 95 | 1004709-48 | 1 | MOTOR | GB | |
||
| 96 | 1004712-09 | 1 | FORK | GB | |
||
| 97 | 1004729-44 | 1 | TERMINAL BOX | TSS BOX SA | GB | |
|
| 98 | 1004712-01 | 2 | SCREW | GB | |
||
| 99 | 1004711-55 | 2 | GLAND | GB | |
||
| 100 | 1004712-17 | 1 | O RING | GB | |
||
| 101 | 1004709-71 | 1 | O RING | GB | |
||
| 102 | 1004709-16 | 1 | HANDLE SA | MV2008 | GB | |
|
| 103 | 1004709-18 | 1 | EXTENSION | GB | |
||
| 104 | 1004712-02 | 2 | O RING | GB | |
||
| 105 | 1004714-04 | 1 | HOSE | 8M - High Pressure | GB | |
|
| 106 | 1004709-73 | 1 | O RING | GB | |
||
| 107 | 1004710-62 | 1 | O RING | GB | |
||
| 108 | 1004712-06 | 1 | WASHER | GB | |
||
| 109 | 1004712-05 | 1 | SPRING | GB | |
||
| 110 | 1004712-08 | 1 | PIN | GB | |
||
| 111 | 1004709-81 | 1 | O RING | GB | |
||
| 112 | 1004710-43 | 1 | O RING | GB | |
||
| 113 | 1004711-06 | 1 | BOLT | GB | |
||
| 114 | 1004709-35 | 1 | KIT | TSS Retro Kit | GB | |
