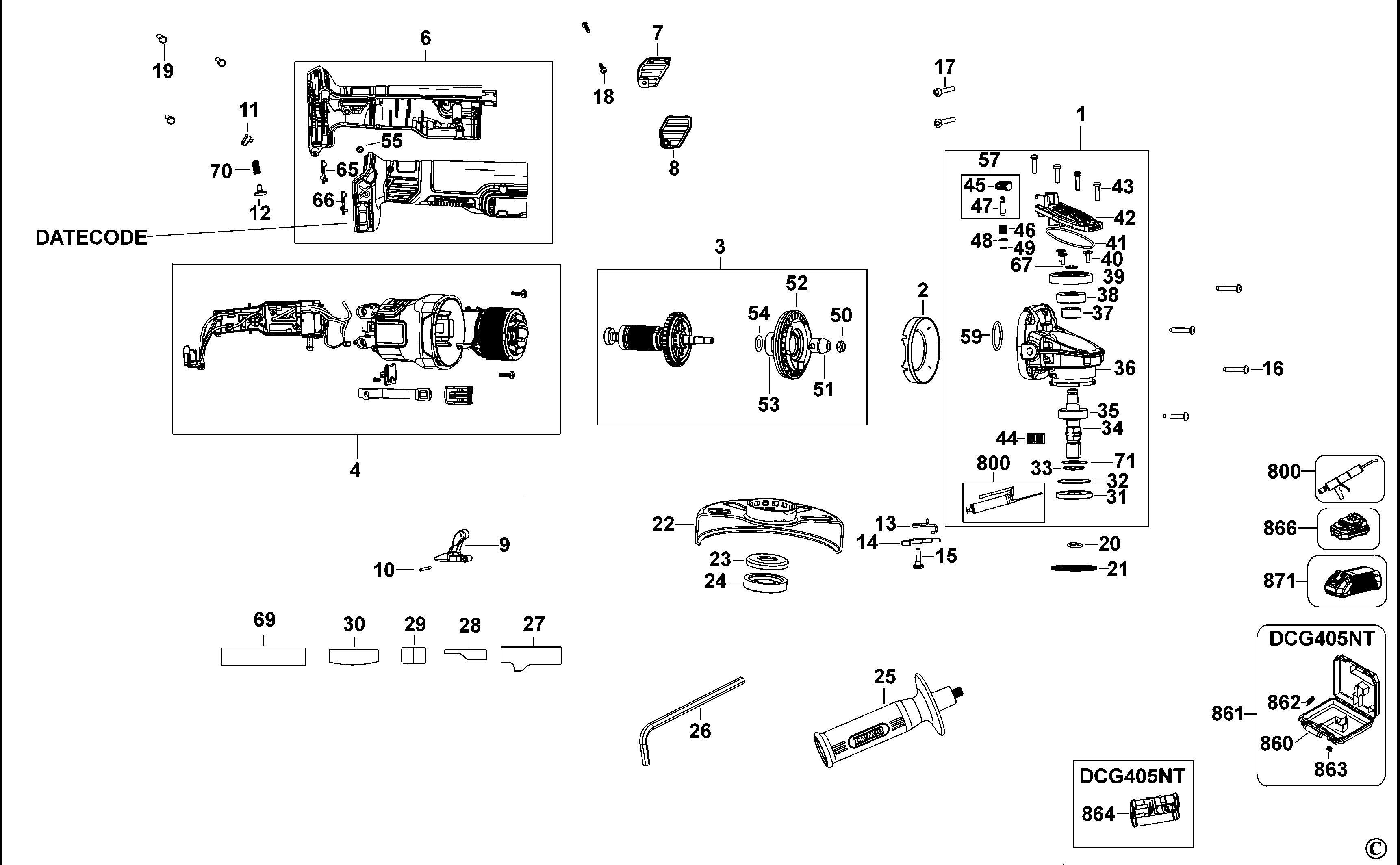

DCG405 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N509540 | 1 | GEARCASE SA | GB |  |
||
| 2 | N478435 | 1 | BAFFLE | GB | |
||
| 3 | N537673 | 1 | ROTOR SA | GB | |
||
| 4 | N551810 | 1 | MOTOR & SWITCH SA | GB | |
||
| 6 | N534719 | 1 | CLAMSHELL SET | GB |  |
||
| 7 | N493573 | 1 | COVER | GB | |
||
| 8 | N493572 | 1 | COVER | GB | |
||
| 9 | N497112 | 1 | LEVER | GB | |
||
| 10 | N489903 | 1 | PIN | GB | |
||
| 11 | N467560 | 1 | PLATE | GB | |
||
| 12 | N122099 | 1 | BLOCK | GB | |
||
| 13 | N105579 | 1 | SPRING | GB | |
||
| 14 | N136731 | 1 | LEVER | GB | |
||
| 15 | N137733 | 1 | SCREW | GB | |
||
| 16 | 330065-31 | 4 | PLASTIC SCREW | GB | |
||
| 17 | 330065-33 | 2 | SCREW | GB | |
||
| 18 | N042665 | 2 | SCREW | GB | |
||
| 19 | 90611830 | 3 | SCREW | GB | |
||
| 20 | N420261 | 1 | O RING | GB | |
||
| 21 | N135116 | 1 | WASHER SPRING | GB | |
||
| 22 | N501323 | 1 | GUARD | GB | |
||
| 23 | 391969-00 | 1 | INNER FLANGE | GB | |
||
| 24 | N484250 | 1 | OUTER FLANGE | GB | |
||
| 25 | N421925 | 1 | SIDE HANDLE | GB | |
||
| 26 | N107295 | 1 | HEX KEY | 6 mm | GB | |
|
| 27 | N499035 | 1 | RATING PLATE | EURO | GB | |
|
| 28 | N499164 | 1 | LABEL | BRUSHLESS | GB | |
|
| 29 | N499037 | 1 | LABEL | BRAKE | GB | |
|
| 30 | N602440 | 1 | LABEL | GB | |
||
| 31 | N487316 | 1 | WASHER | GB | |
||
| 32 | N451305 | 1 | WASHER SPRING | GB | |
||
| 33 | N474213 | 1 | SPACER | GB | |
||
| 34 | N487315 | 1 | SPINDLE | GB | |
||
| 35 | N150961 | 1 | BEARING | GB | |
||
| 36 | N134203 | 1 | GEARCASE | GB | |
||
| 37 | N095815 | 1 | SLEEVE | GB | |
||
| 38 | N150961 | 1 | BEARING | GB | |
||
| 39 | N097361 | 1 | GEAR | GB | |
||
| 40 | N118088 | 3 | SCREW | GB | |
||
| 41 | N094024 | 1 | O RING | GB | |
||
| 42 | N116180 | 1 | GEARCASE COVER | GB | |
||
| 43 | N122904 | 4 | SCREW | GB | |
||
| 44 | N489769 | 1 | PLUG | GB | |
||
| 45 | N126105 | 1 | BUTTON | GB | |
||
| 46 | N092954 | 1 | SPRING | GB | |
||
| 47 | N114592 | 1 | SPINDLE LOCK | GB | |
||
| 48 | N447838 | 1 | WASHER | GB | |
||
| 49 | N094012 | 1 | O RING | GB | |
||
| 50 | 604484-00 | 1 | NUT | GB | |
||
| 51 | N095840 | 1 | PINION | GB | |
||
| 52 | N478436 | 1 | STATOR | GB | |
||
| 53 | N214432 | 1 | BEARING | GB | |
||
| 54 | N213812 | 1 | WASHER | GB | |
||
| 55 | 330021-11 | 2 | STOP NUT | GB | |
||
| 57 | N181767 | 1 | SPINDLE LOCK | GB | |
||
| 59 | N119639 | 1 | O RING | GB | |
||
| 65 | N438439 | 1 | INSERT | GB | |
||
| 66 | N438438 | 1 | INSERT | GB | |
||
| 67 | 444793-00 | 1 | CIRCLIP | GB | |
||
| 69 | N520387 | 1 | WARNING LABEL | GB | |
||
| 70 | N461735 | 1 | SPRING | GB | |
||
| 71 | 638229-00 | 1 | WASHER | GB | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 860 | H1400196008 | 2 | HANDLE | DCG405NT | GB | ||
| 861 | N279261 | 1 | KITBOX | DCG405NT | GB | |
|
| 862 | H1500082520 | 2 | LATCH | DCG405NT | GB | ||
| 863 | P910190 | 2 | LATCH | DCG405NT | GB | |
|
| 864 | N505549 | 1 | INSERT | DCG405NT | GB | |
|
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCG405P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | DCG405P2 | GB | |
