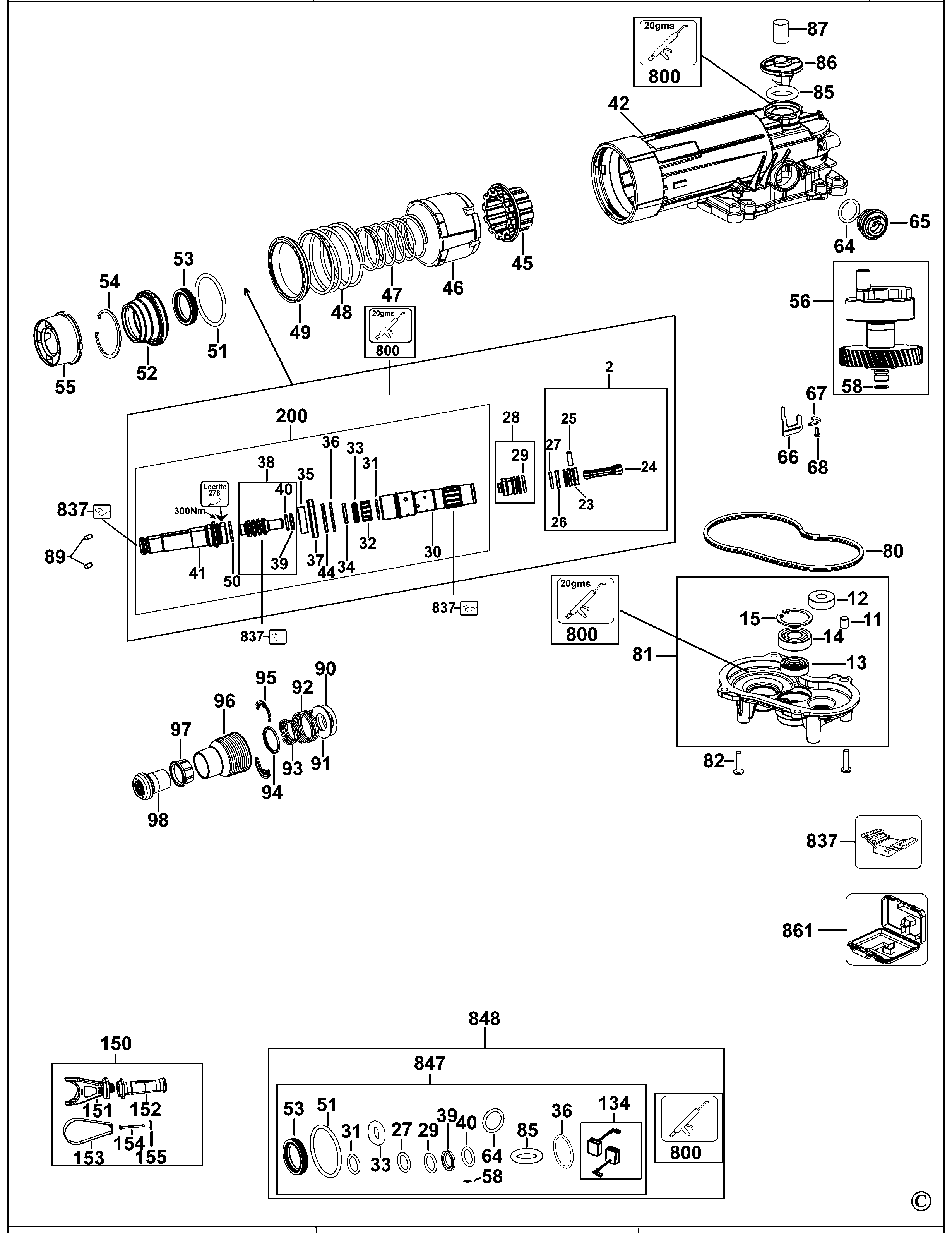

D25810 CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N491976 | 1 | ARMATURE 120V | LX |  |
||
| 2 | N492871 | 1 | PISTON SA | LX | |
||
| 8 | 330003-60 | 1 | BEARING | LX | |
||
| 9 | N466979 | 1 | MAGNET | LX | |
||
| 11 | 327575-00 | 1 | SLEEVE | LX | |
||
| 12 | N110358 | 1 | BEARING | LX | |
||
| 13 | N495599 | 1 | SEAL | LX | |
||
| 14 | 577745-01 | 1 | BEARING,BALL | LX | |
||
| 15 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | LX | |
|
| 23 | N444288 | 1 | PISTON | LX | |
||
| 24 | N922659 | 1 | CON ROD | LX | |
||
| 25 | N446699 | 1 | PIN | LX | |
||
| 26 | N446701 | 1 | PISTON RING | LX | |||
| 27 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | LX | |
|
| 28 | N492863 | 1 | RAM SA | 5KG D28 | LX | |
|
| 29 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | LX | |
|
| 30 | N567968 | 1 | SPINDLE SA | SDS MAX | LX | |
|
| 31 | N474624 | 1 | O RING | 27 X 2.6 | LX | |
|
| 32 | N922656 | 1 | BUSH | LX | |
||
| 33 | N460601 | 1 | DAMPER | LX | |
||
| 34 | N462095 | 1 | WASHER | LX | |
||
| 35 | N539518 | 1 | SPACER | LX | |
||
| 36 | N559339 | 2 | WASHER | LX | |
||
| 37 | N526259 | 1 | BEARING | LX | |
||
| 38 | N492872 | 1 | BEAT PIECE | 5KG CHIPPER | LX | |
|
| 39 | N244259 | 1 | SEAL | LX | |
||
| 40 | N487314 | 1 | O RING | LX | |
||
| 41 | N567968 | 1 | SPINDLE SA | SDS MAX | LX | |
|
| 42 | N506091 | 1 | HOUSING SA | CHIPPER | LX | |
|
| 44 | N559339 | 1 | WASHER | LX | |
||
| 45 | N445599 | 1 | SLEEVE | LX | |
||
| 46 | N433094 | 1 | SLEEVE | LOCKING | LX | |
|
| 47 | N437808 | 1 | SPRING | SHIFTING SLEEVE | LX | |
|
| 48 | N437814 | 1 | SPRING | LX | |
||
| 49 | N460603 | 1 | SUPPORT | LX | |
||
| 50 | N539527 | 1 | RETAINER | LX | |
||
| 51 | N432556 | 1 | O RING | 54x4 | LX | |
|
| 52 | N526257 | 1 | SLEEVE | LX | |
||
| 53 | N446361 | 2 | O RING | 35 X 4 | LX | |
|
| 54 | N532870 | 1 | CIRCLIP | LX | |
||
| 55 | N464914 | 1 | CAP | LX | |
||
| 56 | N492873 | 1 | CRANKSHAFT | 5KG CHIPPER | LX | |
|
| 58 | 323711-26 | 1 | O RING | LX | |
||
| 64 | N553858 | 1 | O RING | 16 X 2.65 | LX | |
|
| 65 | N435997 | 1 | ECCENTRIC | LX | |
||
| 66 | N422798 | 1 | PLATE | DRILL MODE | LX | |
|
| 67 | N422797 | 1 | PLATE | GUIDING | LX | |
|
| 68 | N445171 | 1 | SCREW | LX | |
||
| 71 | N435623 | 1 | BAFFLE FAN | LX |  |
||
| 76 | N433780 | 1 | HOUSING MOTOR | LX | |
||
| 77 | N449094 | 1 | COVER BEARING | LX | |
||
| 78 | N492848 | 1 | FIELD 120V | LX | |
||
| 80 | N422796 | 1 | GASKET | MAIN HOUSING | LX | |
|
| 81 | N492875 | 1 | GEARCASE SA | 5KG CHIPPER | LX | |
|
| 82 | 324007-11 | 8 | SCREW | M5 X 18 | LX | |
|
| 83 | N444425 | 2 | BRUSH SPRING | LX | |
||
| 84 | N448156 | 1 | COIL | LX | |
||
| 85 | N504436 | 1 | O RING | 18x4.5 | LX | |
|
| 86 | N452721 | 1 | CAP | LX | |
||
| 87 | N395554 | 1 | FELT | LX | |
||
| 89 | 325878-00 | 2 | ROLLER | LX | |
||
| 90 | N038151 | 1 | FELT | LX | |
||
| 91 | N465749 | 1 | WASHER | 29x55x1.8 | LX | |
|
| 92 | 323395-06 | 1 | SPRING | LX | |
||
| 93 | 487118-00 | 1 | SPRING | LX | |
||
| 94 | N464690 | 1 | GUIDE | GUIDE | LX | |
|
| 95 | N468172 | 2 | LOCKING PIN | LX | |
||
| 96 | N464913 | 1 | SLEEVE | INCL. WASHER | LX | |
|
| 97 | 326575-01 | 1 | COLLAR | LX | |
||
| 98 | N465586 | 1 | LIP SEAL | LX | |
||
| 99 | N429783 | 1 | COVER | LX | |
||
| 104 | N463364 | 1 | SIDE RH | LX | |
||
| 105 | N452497 | 1 | SIDE LH | LX | |||
| 106 | N445171 | 3 | SCREW | LX | |
||
| 107 | N464282 | 1 | SELECTOR SA | MODE CHANGE | LX | |
|
| 108 | 330065-08 | 14 | SCREW | M4x18 T20 | LX | |
|
| 109 | N452043 | 1 | BELLOWS | LOWER | LX | |
|
| 110 | N452385 | 1 | SET OF LEAD WIRES | LX | |
||
| 111 | N452042 | 1 | BELLOWS | LX | |
||
| 112 | N152623 | 1 | STOP | LX | |
||
| 113 | N492860 | 1 | CLAMSHELL SET | LX | |
||
| 114 | N469359 | 1 | CORDSET | LX | LX | |
|
| 115 | N467531 | 1 | SWITCH | LX | |
||
| 116 | 821070 | 1 | CORD CLAMP | LX | |
||
| 118 | 488065-01 | 1 | TRIGGER | LX | |
||
| 119 | N159443 | 1 | AXIS | LX | |
||
| 120 | N106188 | 1 | SPRING COMPRESSION | LX | |
||
| 121 | 323091-01 | 1 | CORD PROTECTOR | LX | |
||
| 123 | 324007-11 | 2 | SCREW | M5 X 18 | LX | |
|
| 125 | N438602 | 1 | END CAP | LX | |
||
| 126 | N438601 | 1 | CLAMSHELL | LX | |
||
| 127 | N492876 | 1 | CONTROL MODULE SA | 115V | LX | |
|
| 128 | N449848 | 1 | BRACKET | LX | |
||
| 129 | N371839 | 2 | SCREW | M4x22 PLSTC THDFMG | LX | |
|
| 130 | N450546 | 1 | LEAD SA | LX | |
||
| 132 | 324007-11 | 4 | SCREW | M5 X 18 | LX | |
|
| 133 | 330065-10 | 2 | SCREW | LX | |
||
| 134 | N492850 | 1 | BRUSH PAIR 120V | LX | |
||
| 135 | N450097 | 2 | BRUSHBOX SA | LX | |
||
| 136 | N086775 | 5 | SCREW | LX | |
||
| 150 | N466680 | 1 | HANDLE SIDE SA | LX | |||
| 151 | N466673 | 1 | CLAMP | LX | |
||
| 152 | N505367 | 1 | HANDLE SA | LX | |||
| 153 | N466679 | 1 | CLAMP | LX | |
||
| 154 | N466678 | 1 | BOLT | LX | |
||
| 155 | N466677 | 1 | WASHER CLAMP | LX | |
||
| 160 | N196274 | 1 | LABEL | PERFORM & PROTECT | LX | |
|
| 200 | N687564 | 1 | SPINDLE SA | SDS MAX CHIPPER | LX | |
|
| 800 | 578970-04 | 1 | GREASE | 80g | LX | |
|
| 821 | N495325 | 1 | RATING PLATE | LX | LX | ||
| 837 | 1003961-99 | 1 | S.T.SUPPORT PLATE | 5KG | LX | |
|
| 837 | 1003965-99 | 1 | S.T.SEAL FITTING TOOL | LX | |
||
| 837 | 1003966-99 | 1 | S.T.LIP SEAL REMOVER | 5KG HAMMERS | LX | |
|
| 837 | 1003964-99 | 1 | S.T.SEAL FITTING TOOL | LX | |
||
| 837 | 1003962-99 | 1 | S.T.DIS-ASSEMBLY JIG | SDS MAX | LX | |
|
| 847 | N513621 | 1 | SERVICE KIT 115V | LV | LX | |
|
| 848 | 1004727-69 | 1 | SERVICE KIT 115V | 115V | LX | |
|
| 861 | N469730 | 1 | KITBOX | LX | |
