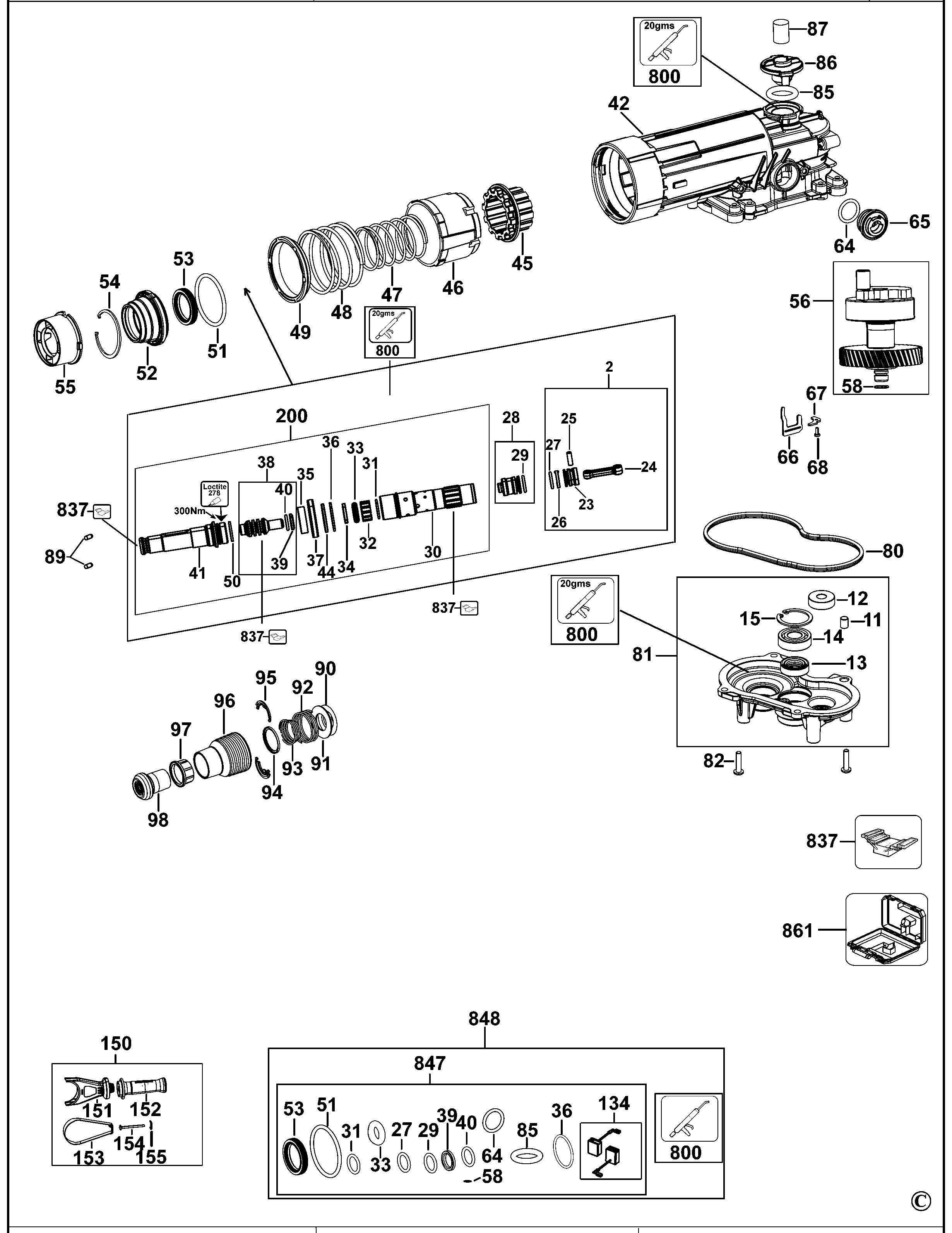

D25810 CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N491963 | 1 | ARMATURE 230V | GB |  |
||
| 1 | 144461-00 | 1 | SCREW.TEMP | GB |  |
||
| 2 | N492871 | 1 | PISTON SA | GB | |
||
| 2 | 6010058-18 | 1 | SWITCH | SWITCH (TWO SPEED) | BLADE H1E,H1F,H1G | GB | |
| 5 | 325928-00 | 1 | GUIDE | GB | |||
| 6 | 567832-00 | 1 | BEARING | BLADE H1,A,B,C,D | GB | |
|
| 7 | 560489-00 | 1 | SPRING | GB | |
||
| 8 | 330003-60 | 1 | BEARING | GB | |
||
| 8 | 1003297-00 | 1 | SWITCH | GB | |||
| 9 | N466979 | 1 | MAGNET | GB | |
||
| 11 | 327575-00 | 1 | SLEEVE | GB | |
||
| 11 | 325928-00 | 1 | GUIDE | BUILT PRE 1996 | GB | ||
| 12 | N110358 | 1 | BEARING | GB | |
||
| 12 | 833876 | 9 | ELEMENT | GB | |||
| 13 | N495599 | 1 | SEAL | GB | |
||
| 14 | 577745-01 | 1 | BEARING,BALL | GB | |
||
| 14 | 6010113-06 | 5 | COVER | COVER REAR | BUILT FROM 1996 | GB | |
| 14 | 849256 | 5 | SCREW | BUILT PRE 1996 | GB | |
|
| 15 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | GB | |
|
| 15 | 845510 | 2 | CLIP | GB | |
||
| 16 | 829193-07 | 1 | CABLE & PLUG | GB | |
||
| 17 | 833876 | 3 | ELEMENT | GB | |||
| 19 | 6010027-20 | 1 | ATTACHMENT | WHISKING ATTACHMENT | GB | |
|
| 20 | 590698-00 | 1 | CLAMP OUTER | GB | |
||
| 21 | 806165-04 | 2 | FIELD | GB | |
||
| 22 | 378189 | 2 | GEAR & SPINDLE SA | GB | |
||
| 23 | N444288 | 1 | PISTON | GB | |
||
| 24 | N922659 | 1 | CON ROD | GB | |
||
| 24 | 806618 | 1 | BUTTON RELEASE | GB | |
||
| 25 | N446699 | 1 | PIN | GB | |
||
| 26 | N922676 | 1 | PISTON RING | GB | |
||
| 26 | 935840 | 2 | GEAR SA | GB | |
||
| 27 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | GB | |
|
| 27 | 860077-01 | 2 | WASHER | GB | |
||
| 28 | N492863 | 1 | RAM SA | 5KG D28 | GB | |
|
| 28 | 279805-00 | 2 | SPINDLE | GB | |
||
| 29 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | GB | |
|
| 29 | 935014 | 6 | GEARBOX SA | GB | |
||
| 30 | N567968 | 1 | SPINDLE SA | SDS MAX | GB | |
|
| 30 | 6010081-01 | 6 | BODY | TOP | GB | |
|
| 31 | N474624 | 1 | O RING | 27 X 2.6 | GB | |
|
| 31 | 378965-10 | 1 | FRAME | GB | |
||
| 32 | N922656 | 1 | BUSH | GB | |
||
| 32 | 379368 | 4 | SUPPORT | GB | |
||
| 33 | N460601 | 1 | DAMPER | GB | |
||
| 33 | 934538 | 1 | BRUSH | GB | |||
| 34 | N462095 | 1 | WASHER | GB | |
||
| 34 | 560469-00 | 1 | RUBBER PAD | GB | |
||
| 35 | N539518 | 1 | SPACER | GB | |
||
| 35 | 568276-00 | 1 | CORDSET (EURO) | GB | |
||
| 36 | N559339 | 2 | WASHER | GB | |
||
| 36 | 730633 | 1 | GRIP | GB | |
||
| 37 | N526259 | 1 | BEARING | GB | |
||
| 37 | 817606 | 1 | PARTS PACK EF | GB | |||
| 38 | N492872 | 1 | BEAT PIECE | 5KG CHIPPER | GB | |
|
| 38 | 569090-00 | 1 | SPRING | GB | |||
| 39 | N244259 | 1 | SEAL | GB | |
||
| 39 | 567827-00 | 1 | WASHER LOCK | GB | |
||
| 40 | N487314 | 1 | O RING | GB | |
||
| 40 | 328531-49 | 2 | BLADEDRUM SA | GB | |||
| 41 | N567968 | 1 | SPINDLE SA | SDS MAX | GB | |
|
| 42 | N506091 | 1 | HOUSING SA | CHIPPER | GB | |
|
| 42 | 859180 | 1 | SCREW | GB | |
||
| 44 | N559339 | 1 | WASHER | GB | |
||
| 45 | N445599 | 1 | SLEEVE | GB | |
||
| 46 | N433094 | 1 | SLEEVE | LOCKING | GB | |
|
| 47 | N437808 | 1 | SPRING | SHIFTING SLEEVE | GB | |
|
| 48 | N437814 | 1 | SPRING | GB | |
||
| 49 | N460603 | 1 | SUPPORT | GB | |
||
| 50 | N539527 | 1 | RETAINER | GB | |
||
| 51 | N432556 | 1 | O RING | 54x4 | GB | |
|
| 52 | N526257 | 1 | SLEEVE | GB | |
||
| 53 | N446361 | 2 | O RING | 35 X 4 | GB | |
|
| 54 | N532870 | 1 | CIRCLIP | GB | |
||
| 55 | N464914 | 1 | CAP | GB | |
||
| 56 | N492873 | 1 | CRANKSHAFT | 5KG CHIPPER | GB | |
|
| 58 | 323711-26 | 1 | O RING | GB | |
||
| 64 | N553858 | 1 | O RING | 16 X 2.65 | GB | |
|
| 65 | N435997 | 1 | ECCENTRIC | GB | |
||
| 66 | N422798 | 1 | PLATE | DRILL MODE | GB | |
|
| 67 | N422797 | 1 | PLATE | GUIDING | GB | |
|
| 68 | N445171 | 1 | SCREW | GB | |
||
| 71 | N435623 | 1 | BAFFLE FAN | GB | |
||
| 76 | N433780 | 1 | HOUSING MOTOR | GB | |
||
| 77 | N449094 | 1 | COVER BEARING | GB | |
||
| 78 | N492847 | 1 | FIELD 230V | GB | |
||
| 80 | N422796 | 1 | GASKET | MAIN HOUSING | GB | |
|
| 81 | N492875 | 1 | GEARCASE SA | 5KG CHIPPER | GB | |
|
| 82 | 324007-11 | 8 | SCREW | M5 X 18 | GB | |
|
| 83 | N444425 | 2 | BRUSH SPRING | GB | |
||
| 84 | N448156 | 1 | COIL | GB | |
||
| 85 | N504436 | 1 | O RING | 18x4.5 | GB | |
|
| 86 | N452721 | 1 | CAP | GB | |
||
| 87 | N395554 | 1 | FELT | GB | |
||
| 89 | 325878-00 | 2 | ROLLER | GB | |
||
| 90 | N038151 | 1 | FELT | GB | |
||
| 91 | N465749 | 1 | WASHER | 29x55x1.8 | GB | |
|
| 92 | 323395-06 | 1 | SPRING | GB | |
||
| 93 | 487118-00 | 1 | SPRING | GB | |
||
| 94 | N464690 | 1 | GUIDE | GUIDE | GB | |
|
| 95 | N468172 | 2 | LOCKING PIN | GB | |
||
| 96 | N464913 | 1 | SLEEVE | INCL. WASHER | GB | |
|
| 97 | 326575-01 | 1 | COLLAR | GB | |
||
| 98 | N465586 | 1 | LIP SEAL | GB | |
||
| 99 | N429783 | 1 | COVER | GB | |
||
| 104 | N463364 | 1 | SIDE RH | GB | |
||
| 105 | N452497 | 1 | SIDE LH | GB | |||
| 106 | N445171 | 3 | SCREW | GB | |
||
| 107 | N464282 | 1 | SELECTOR SA | MODE CHANGE | GB | |
|
| 108 | 330065-08 | 14 | SCREW | M4x18 T20 | GB | |
|
| 109 | N452043 | 1 | BELLOWS | LOWER | GB | |
|
| 110 | N452385 | 1 | SET OF LEAD WIRES | GB | |
||
| 111 | N452042 | 1 | BELLOWS | GB | |
||
| 112 | N152623 | 1 | STOP | GB | |
||
| 113 | N492860 | 1 | CLAMSHELL SET | GB | |
||
| 114 | N410113 | 1 | CORDSET | GB | GB | |
|
| 115 | N467531 | 1 | SWITCH | GB | |
||
| 116 | 821070 | 1 | CORD CLAMP | GB | |
||
| 118 | 488065-01 | 1 | TRIGGER | GB | |
||
| 119 | N159443 | 1 | AXIS | GB | |
||
| 120 | N106188 | 1 | SPRING COMPRESSION | GB | |
||
| 121 | 323091-01 | 1 | CORD PROTECTOR | GB | |
||
| 123 | 324007-11 | 2 | SCREW | M5 X 18 | GB | |
|
| 125 | N438602 | 1 | END CAP | GB | |
||
| 126 | N438601 | 1 | CLAMSHELL | GB | |
||
| 127 | N492877 | 1 | CONTROL MODULE SA | 230V | GB | |
|
| 128 | N449848 | 1 | BRACKET | GB | |
||
| 129 | N371839 | 2 | SCREW | M4x22 PLSTC THDFMG | GB | |
|
| 130 | N450546 | 1 | LEAD SA | GB | |
||
| 132 | 324007-11 | 4 | SCREW | M5 X 18 | GB | |
|
| 133 | 330065-10 | 2 | SCREW | GB | |
||
| 134 | N492849 | 1 | BRUSH PAIR 230V | GB | |
||
| 135 | N450097 | 2 | BRUSHBOX SA | GB | |
||
| 136 | N086775 | 5 | SCREW | GB | |
||
| 150 | N466680 | 1 | HANDLE SIDE SA | GB | |||
| 151 | N466673 | 1 | CLAMP | GB | |
||
| 152 | N505367 | 1 | HANDLE SA | GB | |||
| 153 | N466679 | 1 | CLAMP | GB | |
||
| 154 | N466678 | 1 | BOLT | GB | |
||
| 155 | N466677 | 1 | WASHER CLAMP | GB | |
||
| 160 | N196274 | 1 | LABEL | PERFORM & PROTECT | GB | |
|
| 200 | N687564 | 1 | SPINDLE SA | SDS MAX CHIPPER | GB | |
|
| 800 | 578970-04 | 1 | GREASE | 80g | GB | |
|
| 821 | N495324 | 1 | RATING PLATE | GB | GB | ||
| 837 | 1003961-99 | 1 | S.T.SUPPORT PLATE | 5KG | GB | |
|
| 837 | 1003965-99 | 1 | S.T.SEAL FITTING TOOL | GB | |
||
| 837 | 1003966-99 | 1 | S.T.LIP SEAL REMOVER | 5KG HAMMERS | GB | |
|
| 837 | 1003964-99 | 1 | S.T.SEAL FITTING TOOL | GB | |
||
| 837 | 1003962-99 | 1 | S.T.DIS-ASSEMBLY JIG | SDS MAX | GB | |
|
| 847 | N513646 | 1 | SERVICE KIT 230V | HV | GB | |
|
| 848 | 1004727-68 | 1 | SERVICE KIT 230V | 230V | GB | |
|
| 861 | N469730 | 1 | KITBOX | GB | |
||
| 881 | 6010064-02 | 1 | COVER | LOWER COVER | GB | ||
| 883 | 172990-00 | 1 | BULB | GB | |
