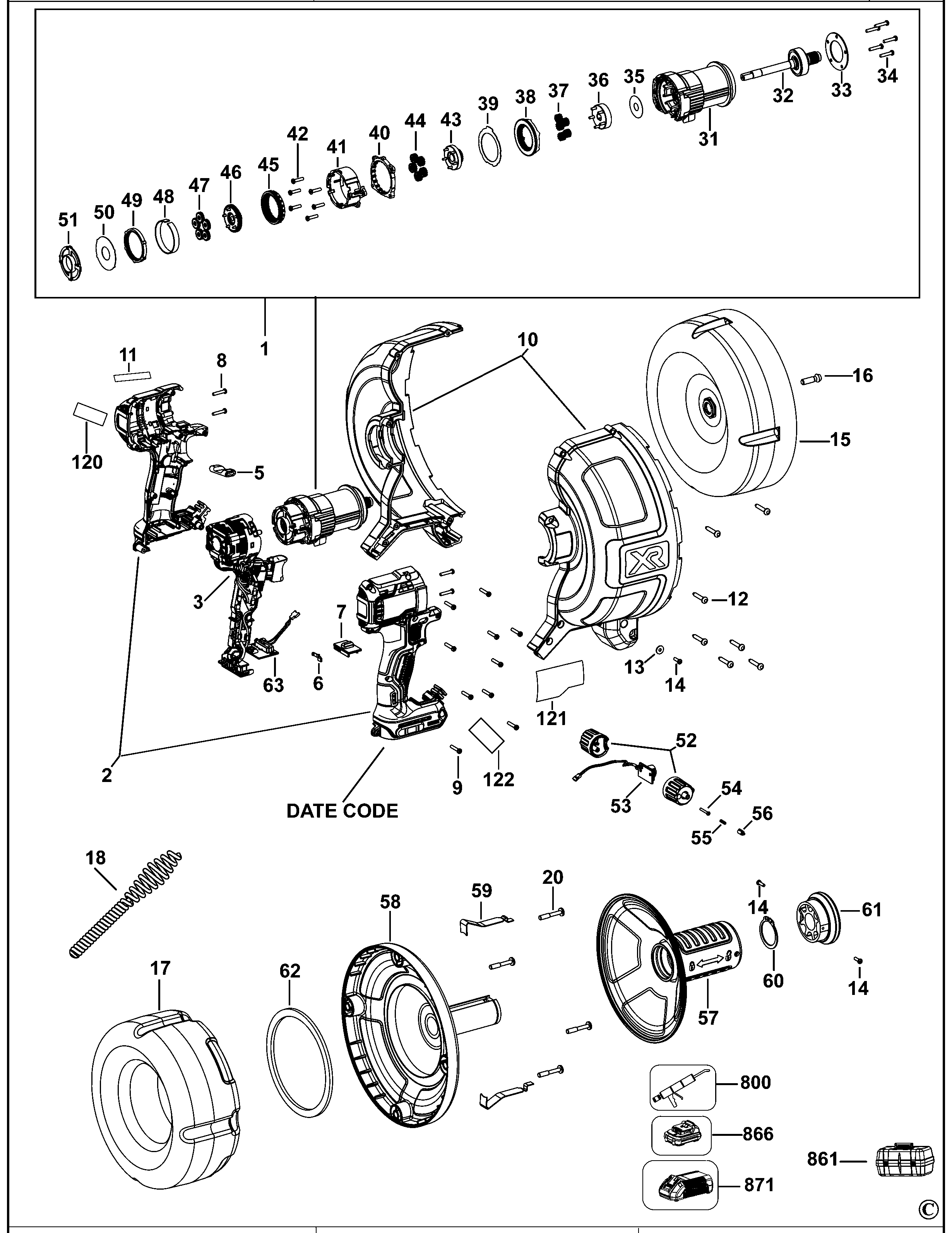

DCD200 DRAIN AUGER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N510180 | 1 | TRANSMISSION SA | GB |  |
||
| 2 | N467251 | 1 | CLAMSHELL SET | GB | |
||
| 3 | N510183 | 1 | MOTOR & SWITCH SA | 18V | GB | |
|
| 5 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 6 | N392855 | 1 | DETENT | GB | |
||
| 7 | N393603 | 1 | SELECTOR | GB | |
||
| 8 | N377990 | 4 | SCREW | GB | |
||
| 9 | 682211-00 | 10 | SCREW | GB | |
||
| 10 | N522966 | 1 | CLAMSHELL SET | GB | |
||
| 11 | N439416 | 1 | LABEL | GB | |
||
| 12 | 330065-31 | 7 | PLASTIC SCREW | GB | |
||
| 13 | N467070 | 1 | WASHER | 10 X3.5X0.9 | GB | |
|
| 14 | 330065-25 | 3 | SCREW | GB | |
||
| 15 | N510198 | 1 | DRUM SA | OUTER | GB | |
|
| 16 | N092854 | 1 | SCREW | GB | |
||
| 17 | N517384 | 1 | DRUM SA | INNER | GB | |
|
| 18 | N468723 | 1 | CABLE SA | 5/8" X 25' - DCD2005 | GB | |
|
| 20 | N470828 | 4 | SCREW | M5 X 0.8 | GB | |
|
| 31 | N510234 | 1 | GEARCASE | GB | |
||
| 32 | N510208 | 1 | SPINDLE SA | GB | |
||
| 33 | N468104 | 1 | PLATE | GB | |
||
| 34 | 682211-00 | 5 | SCREW | GB | |
||
| 35 | N090435 | 1 | WASHER | GB | |
||
| 36 | N510383 | 1 | CARRIER SA | GB | |
||
| 37 | N031083 | 5 | GEAR | GB | |
||
| 38 | N078410 | 1 | GEAR | GB | |
||
| 39 | N032409 | 1 | WASHER | GB | |
||
| 40 | N400715 | 1 | RING | GB | |
||
| 41 | N400716 | 1 | GEARCASE | GB | |
||
| 42 | N075506 | 6 | SCREW | GB | |
||
| 43 | N122400 | 1 | CARRIER SA | GB | |
||
| 44 | N031080 | 5 | GEAR | GB | |
||
| 45 | N031079 | 1 | GEAR | GB | |
||
| 46 | N124371 | 1 | CARRIER SA | GB | |
||
| 47 | N030999 | 5 | GEAR | GB | |
||
| 48 | N473859 | 1 | ADAPTOR | GB | |
||
| 49 | N030988 | 1 | GEAR | GB | |
||
| 50 | N063567 | 1 | PLATE | GB | |
||
| 51 | N396641 | 1 | ADAPTOR | GB | |
||
| 52 | N479576 | 1 | HOUSING | LED | GB | |
|
| 53 | N476860 | 1 | LED | GB |  |
||
| 54 | N039795 | 1 | SCREW | GB | |
||
| 55 | N467002 | 1 | SPRING | GB | |
||
| 56 | N467001 | 1 | PLUNGER | GB | |
||
| 57 | N510239 | 1 | HANDLE | GB | |
||
| 58 | N464902 | 1 | COVER | DRUM | GB | |
|
| 59 | N464891 | 2 | CLAMP | GB | |
||
| 60 | N475709 | 1 | CIRCLIP | GB | |
||
| 61 | N464896 | 1 | NOSE | GB | |
||
| 62 | N476615 | 1 | FOAM | GB | |
||
| 63 | N488564 | 1 | SPEED REGULATOR | GB | |
||
| 120 | N298039 | 1 | LABEL | GB | |
||
| 121 | N495893 | 1 | RATING PLATE | GB | |
||
| 122 | N495948 | 1 | LABEL | 18V LED | GB | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 861 | N500566 | 1 | KITBOX | GB | |
||
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
