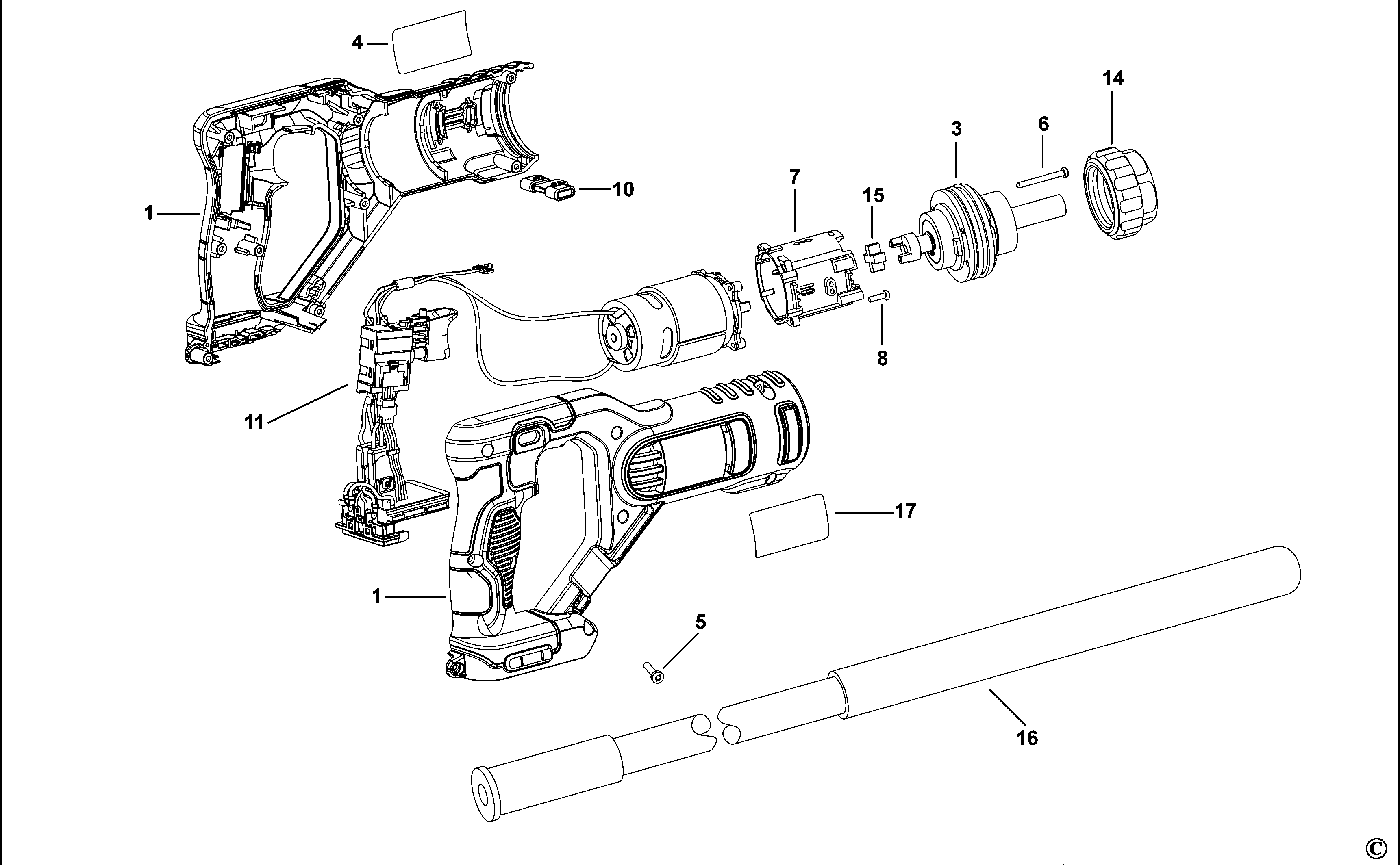

DCE531 CONCRETE VIBRATING POKER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N441906 | 1 | CLAMSHELL SET | XJ |  |
||
| 2 | 6010058-18 | 1 | SWITCH | SWITCH (TWO SPEED) | BLADE H1E,H1F,H1G | XJ |  |
| 3 | N391358 | 1 | BEARING HOUSING | XJ | |
||
| 4 | N472466 | 1 | BRAND LABEL | XJ | |
||
| 5 | 330019-00 | 9 | SCREW | M3x16 T10 PLASTITE | XJ | |
|
| 5 | 325928-00 | 1 | GUIDE | XJ | |||
| 6 | 330019-39 | 4 | SCREW | XJ | |
||
| 6 | 567832-00 | 1 | BEARING | BLADE H1,A,B,C,D | XJ | |
|
| 7 | 798701-00 | 1 | GEARCASE | XJ | |
||
| 8 | 098091-10 | 4 | SCREW | XJ | |
||
| 8 | 1003297-00 | 1 | SWITCH | XJ | |||
| 10 | N427394 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 11 | N488429 | 1 | MOTOR SA | XJ | |
||
| 11 | 325928-00 | 1 | GUIDE | BUILT BEFORE 1996 | XJ | ||
| 12 | 833876 | 9 | ELEMENT | XJ | |||
| 14 | 629580-00 | 1 | NUT | XJ | |
||
| 14 | 6010113-06 | 5 | COVER | COVER REAR | BUILT FROM 1996 | XJ | |
| 14 | 849256 | 5 | SCREW | BUILT BEFORE 1996 | XJ | |
|
| 15 | 631319-00 | 1 | INSERT | XJ | |
||
| 15 | 328531-49 | 2 | BLADEDRUM SA | XJ | |||
| 16 | 631433-00 | 1 | VIBRATOR | XJ | |
||
| 16 | 829193-07 | 1 | CABLE & PLUG | XJ | |
||
| 17 | N465374 | 1 | RATING PLATE | DCE531N | XJ | ||
| 17 | 833876 | 3 | ELEMENT | XJ | |||
| 19 | 6010027-20 | 1 | ATTACHMENT | WHISKING ATTACHMENT | XJ | |
|
| 20 | 590698-00 | 1 | CLAMP OUTER | XJ | |
||
| 21 | 806165-04 | 2 | FIELD | XJ | |
||
| 22 | 378189 | 2 | GEAR & SPINDLE SA | XJ | |
||
| 24 | 560450-00 | 1 | SPRING | XJ | |
||
| 25 | 817592 | 1 | SWITCHBOX SA | XJ | |||
| 26 | 935840 | 2 | GEAR SA | XJ | |
||
| 27 | 860077-01 | 2 | WASHER | XJ | |
||
| 28 | 279805-00 | 2 | SPINDLE | XJ | |
||
| 29 | 935014 | 6 | GEARBOX SA | XJ | |
||
| 30 | 6010081-01 | 6 | BODY | TOP | XJ | |
|
| 31 | 378965-10 | 1 | FRAME | XJ | |
||
| 32 | 379368 | 4 | SUPPORT | XJ | |
||
| 33 | 934538 | 1 | BRUSH | XJ |
