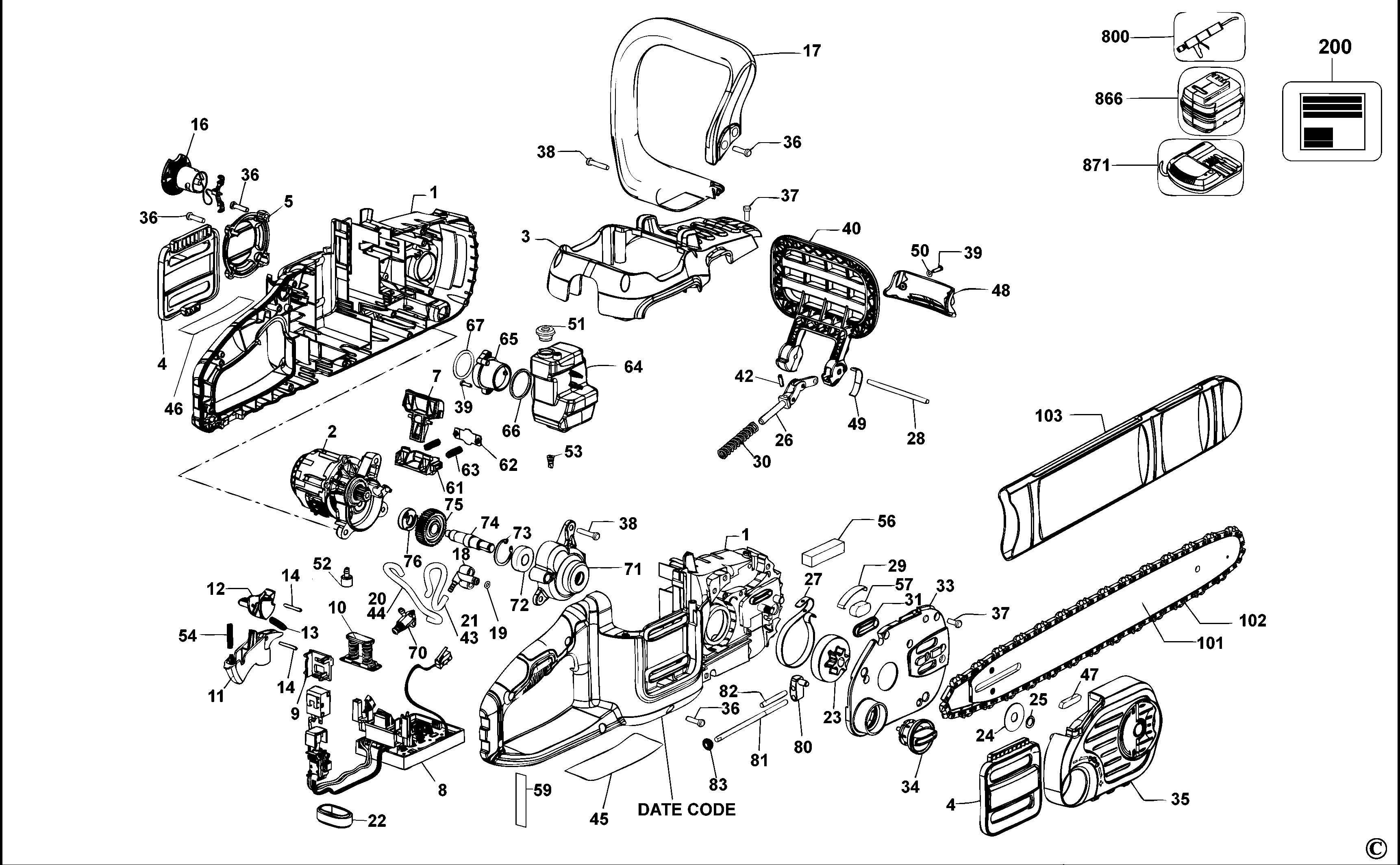

DCM585 CHAINSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90619964 | 1 | HOUSING SA | XJ |  |
||
| 2 | 90612950 | 1 | MOTOR SA & MOUNT | XJ | |
||
| 3 | 90620684 | 1 | HOUSING | XJ | |
||
| 4 | 90617820 | 2 | COVER | XJ | |
||
| 5 | N513784 | 1 | END CAP | XJ |  |
||
| 7 | 90606556 | 1 | BUTTON | XJ | |
||
| 8 | 90619645 | 1 | MODULE | XJ | |
||
| 9 | 90605114 | 1 | SWITCH | XJ | |
||
| 10 | 90605769 | 1 | EJECTOR | XJ | |
||
| 11 | 90613570 | 1 | TRIGGER | XJ | |
||
| 12 | 90613569 | 1 | LEVER LOCK | XJ | |
||
| 13 | 90620179 | 1 | SPRING | XJ | |
||
| 14 | 5119820-00 | 2 | PIN | XJ | |
||
| 16 | 90618141 | 1 | CAP | XJ | |
||
| 17 | 90630455 | 1 | HANDLE | XJ | |
||
| 18 | 90104269 | 1 | PLUG | XJ | |
||
| 19 | 90104270 | 1 | O RING | XJ | |
||
| 20 | 90609541 | 1 | TUBE | XJ | |
||
| 21 | 90609542 | 1 | TUBE | XJ | |
||
| 22 | 90617047 | 1 | GROMMET | XJ | |
||
| 23 | 90618228 | 1 | SPROCKET | XJ | |
||
| 24 | 90618229 | 1 | WASHER | XJ | |
||
| 25 | 90624303 | 1 | RING | XJ | |
||
| 26 | 90619644 | 1 | BRAKE SA | XJ | |
||
| 27 | 90618523 | 1 | STRAP | XJ | |
||
| 28 | 90618528 | 1 | PIN | XJ | |
||
| 29 | 90621730 | 1 | LEAF SPRING | XJ | |
||
| 30 | 90609777 | 1 | SPRING | XJ | |
||
| 31 | 90618051 | 1 | SEAL | XJ | |
||
| 33 | 90609778 | 1 | COVER | XJ | |
||
| 34 | 90617753 | 1 | KNOB | XJ | |
||
| 35 | N723753 | 1 | COVER | XJ | |
||
| 36 | 330019-13 | 16 | SCREW | M4X19 T20 | XJ | |
|
| 37 | 330019-11 | 12 | SCREW | M4.55x13 T20 | XJ | |
|
| 38 | 330019-14 | 5 | SCREW | XJ | |
||
| 39 | 330019-28 | 6 | SCREW | XJ | |
||
| 40 | 90609587 | 1 | GUARD | XJ | |
||
| 42 | 90627301 | 1 | SPIROL PIN | XJ | |
||
| 43 | 90620845 | 1 | SPRING | XJ | |
||
| 44 | 90620889 | 1 | SPRING | XJ | |
||
| 45 | 90641933 | 1 | LABEL | XJ | |
||
| 46 | 90641932 | 1 | RATING LABEL | XJ | |
||
| 47 | 90622086 | 1 | SEAL | XJ | |
||
| 48 | 90622146 | 1 | CAP | XJ | |
||
| 49 | 90622670 | 1 | LEAF SPRING | XJ | |
||
| 50 | 90625146 | 2 | WASHER | XJ | |
||
| 51 | 90104259 | 1 | SEAL | XJ | |
||
| 52 | 90622705 | 1 | FILTER SA | XJ | |
||
| 53 | 90618295 | 1 | VALVE | SA | XJ | |
|
| 54 | 90623323 | 1 | SPRING COMPRESSION | XJ | |
||
| 56 | 90625339 | 1 | FOAM | XJ | |
||
| 57 | 90625343 | 1 | FOAM | XJ | |
||
| 61 | 90606555 | 1 | LATCH | XJ | |
||
| 62 | 90607453 | 1 | SUPPORT | XJ | |
||
| 63 | 90606558 | 2 | SPRING | XJ | |
||
| 64 | 90618137 | 1 | TANK | XJ | |
||
| 65 | 90618138 | 1 | ADAPTOR | XJ | |
||
| 66 | 90618142 | 1 | SEAL | XJ | |
||
| 67 | 90618339 | 1 | O RING | XJ | |
||
| 70 | 90624557 | 1 | PUMP SA | XJ | |
||
| 71 | 90612949 | 1 | GEARCASE | XJ | |
||
| 72 | N150961 | 1 | BEARING | XJ | |
||
| 73 | 90551022 | 1 | RING | XJ | |
||
| 74 | 90612955 | 1 | SPINDLE | XJ | |||
| 75 | 90618517 | 1 | GEAR | XJ | |
||
| 76 | 90594615 | 1 | CAM | XJ | |
||
| 80 | 90619596 | 1 | PIN | M5 | DC < 2018-04 | XJ | |
| 80 | N558327 | 1 | CLAMP SA | M6 | DC > 2018-05 | XJ | |
| 80 | 000000-00 | 1 | NO LONGER AVAILABLE | DC < 2018-04 | XJ | ||
| 81 | N555910 | 1 | PIN | M6 | DC > 2018-05 | XJ | |
| 82 | 90617662 | 1 | SHAFT | XJ | |||
| 83 | 90617659 | 2 | GEAR | XJ | |
||
| 101 | N594320 | 1 | GUIDE | XJ | |
||
| 102 | N594321 | 1 | CHAIN | XJ | |
||
| 103 | 90619707 | 1 | SHEATH | XJ | |
||
| 200 | 90641932 | 1 | RATING LABEL | DCM585N | XJ | |
|
| 866 | N517081 | 1 | BATTERY 36V - 6.0AH - 216KW | Li-Ion - DCB496 | XJ | |
