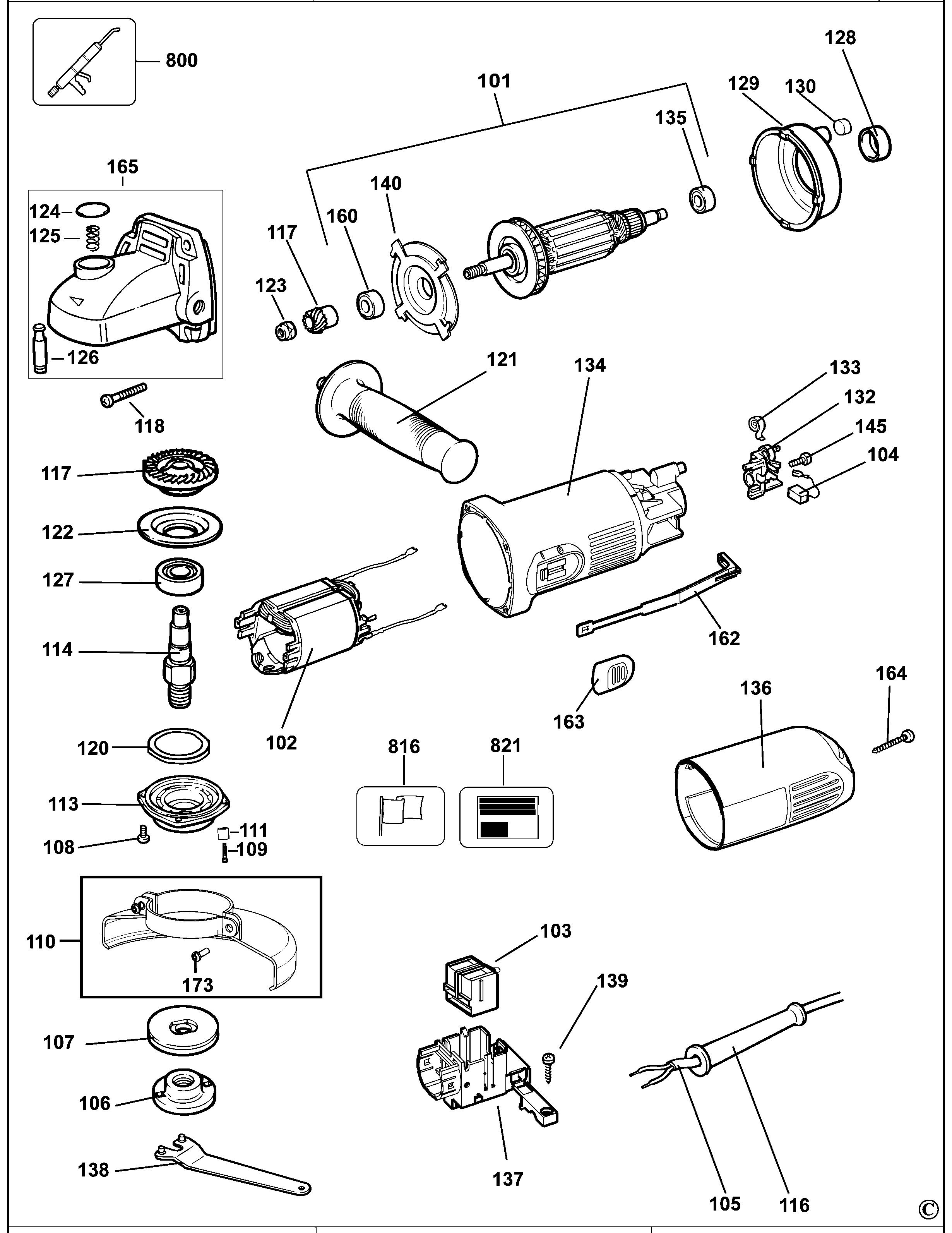

DWE4015 SMALL ANGLE GRINDER Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 103 | 945614-01 | 1 | SWITCH | XJ |  |
||
| 104 | N489912 | 1 | BRUSH PAIR SA | 230V | XJ | |
|
| 106 | 401678-05 | 1 | OUTER FLANGE | XJ | |
||
| 107 | 391969-00 | 1 | INNER FLANGE | XJ | |
||
| 108 | 330045-46 | 3 | SCREW | XJ | |
||
| 109 | 330045-08 | 1 | SCREW | XJ | |
||
| 110 | N504650 | 1 | GUARD SA | XJ | |
||
| 111 | N471807 | 1 | STOP RUBBER | XJ | |
||
| 113 | N468108 | 1 | GEARCASE COVER | XJ | |
||
| 114 | N318739 | 1 | SPINDLE | XJ | |
||
| 116 | N918736 | 1 | CORD PROTECTOR | XJ | |
||
| 117 | 661243-00 | 1 | GEAR & PINION | XJ | |
||
| 118 | 562097-01 | 4 | SCREW | XJ | |
||
| 120 | 641893-00 | 1 | FELT SEAL | XJ | |
||
| 121 | 562211-00 | 1 | HANDLE SIDE SA | XJ |  |
||
| 122 | 945299-00 | 1 | FLANGE | XJ | |
||
| 123 | 945292-00 | 1 | NUT | XJ | |
||
| 124 | 944575-00 | 1 | BUTTON | XJ | |
||
| 125 | 562210-00 | 1 | SPRING | XJ | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | XJ | |
||
| 127 | 605040-22 | 1 | BEARING | XJ | |
||
| 128 | 641823-00 | 1 | SLEEVE | XJ | |
||
| 129 | 401623-00 | 1 | BAFFLE | XJ | |
||
| 130 | 949638-01 | 2 | BUFFER | XJ | |
||
| 132 | N616539 | 2 | BRUSH HOLDER SA | XJ | |
||
| 133 | 562204-00 | 2 | SPRING | XJ | |
||
| 134 | 609299-00 | 1 | FIELDCASE | XJ | |
||
| 135 | 605040-03 | 1 | BEARING BALL | XJ | |
||
| 136 | 394938-06 | 1 | END CAP | XJ | |
||
| 137 | N312079 | 1 | SWITCH SUPPORT | XJ | |
||
| 138 | 401680-00 | 1 | WRENCH | XJ | |
||
| 139 | 562097-05 | 1 | SCREW | XJ | |
||
| 140 | 401622-01 | 1 | FLANGE | XJ | |
||
| 145 | 562097-00 | 2 | SCREW | XJ | |
||
| 160 | N110359 | 1 | BEARING | XJ | |
||
| 162 | 611737-01 | 1 | LINK | XJ | |
||
| 163 | 569624-01 | 1 | BUTTON | XJ | |
||
| 164 | 562097-13 | 1 | SCREW | XJ | |
||
| 165 | N505369 | 1 | GEARCASE SA | XJ | |
||
| 173 | 49203052 | 1 | SCREW | XJ | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XJ | |
|
| 816 | 946194-00 | 1 | BRAND LABEL | XJ | |
