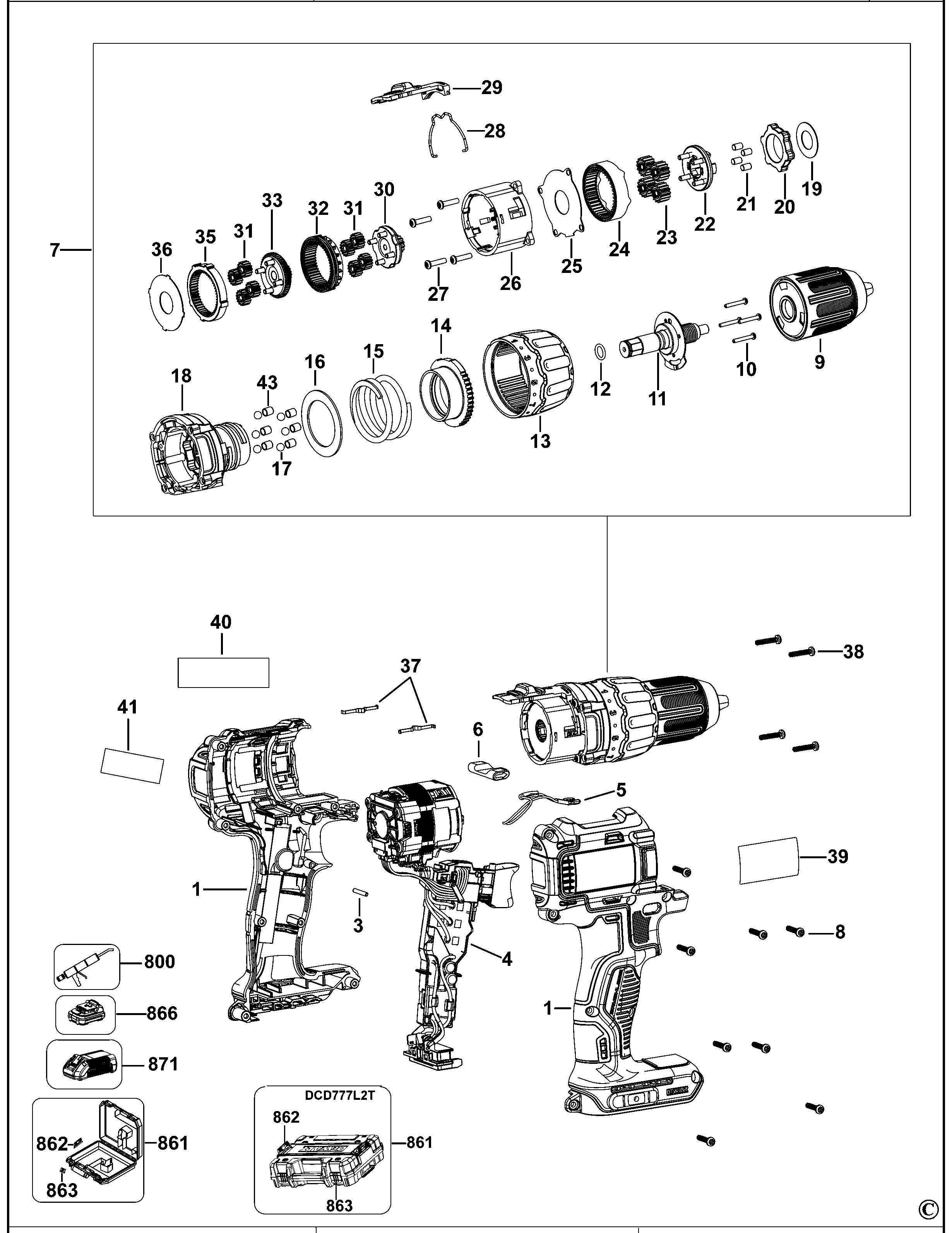

DCD777 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N459083 | 1 | CLAMSHELL SET | GB |  |
||
| 3 | N071836 | 1 | ROLL PIN | GB | |
||
| 4 | N493868 | 1 | MOTOR & SWITCH SA | GB | |||
| 5 | N459095 | 1 | LED | GB | |
||
| 6 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 7 | N472976 | 1 | GEARBOX SA | GB | |
||
| 8 | N463678 | 12 | SCREW | GB | |
||
| 9 | N472497 | 1 | CHUCK | GB | |
||
| 10 | N039795 | 4 | SCREW | GB | |
||
| 11 | N495304 | 1 | SPINDLE SA | GB | |
||
| 12 | N475306 | 1 | O RING | GB | |
||
| 13 | N459098 | 1 | COLLAR | GB | |
||
| 14 | N459099 | 1 | NUT | GB | |
||
| 15 | N459442 | 1 | SPRING | GB | |
||
| 16 | N459455 | 1 | WASHER | GB | |
||
| 17 | 386690-00 | 6 | BALL | STEEL, 5MM | GB | |
|
| 18 | N463692 | 1 | CLUTCH HOUSING KIT | GB | |
||
| 19 | N459467 | 1 | WASHER | GB | |
||
| 20 | N455056 | 1 | RING | GB | |
||
| 21 | N456078 | 4 | PIN | GB | |
||
| 22 | N495305 | 1 | CARRIER SA | GB | |
||
| 23 | N459597 | 4 | GEAR | GB | |
||
| 24 | N459268 | 1 | RING | GB | |
||
| 25 | N459449 | 1 | PLATE | GB | |
||
| 26 | N459094 | 1 | GEARCASE | GB | |
||
| 27 | N075506 | 4 | SCREW | GB | |
||
| 28 | N459273 | 1 | WIRE STEEL | GB | |
||
| 29 | N459102 | 1 | SELECTOR | GB |  |
||
| 30 | N495306 | 1 | CARRIER SA | GB | |
||
| 31 | N215916 | 8 | GEAR | GB | |
||
| 32 | N462062 | 1 | RING | GB | |
||
| 33 | N495307 | 1 | CARRIER SA | GB | |
||
| 35 | N463849 | 1 | RING | GB | |
||
| 36 | N225458 | 1 | PLATE | GB | |
||
| 37 | N014681 | 2 | LEAF SPRING | GB | |
||
| 38 | N474504 | 4 | SCREW | GB | |
||
| 39 | N491258 | 1 | RATING PLATE | EURO | GB | |
|
| 40 | N492026 | 1 | BRAND LABEL | GB | |
||
| 41 | N298039 | 1 | LABEL | GB | |
||
| 43 | N482398 | 6 | PIN | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 861 | N442425 | 1 | KITBOX | DCD777M2T | GB | |
|
| 861 | N442424 | 1 | KITBOX | GB | |
||
| 861 | N526408 | 1 | KITBOX | 5S1P T-STAK | DCD777L2T | GB | |
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 862 | H1500082008 | 2 | LATCH | DCD777L2T-M2T | GB | ||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 863 | P910190 | 2 | LATCH | DCD777L2T-M2T | GB | |
|
| 866 | N565824 | 1 | BATTERY 18V - 3.0AH - 54WH | Li-Ion - DCB187-XJ | DCD777-L2T | GB | |
| 866 | N379111 | 1 | BATTERY 18V - 1.3AH | Li-Ion - DCB185-XJ | DCD777-C2 | GB | |
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | DCD777-S2 + D2 | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCD777-L2 | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCD777-M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
