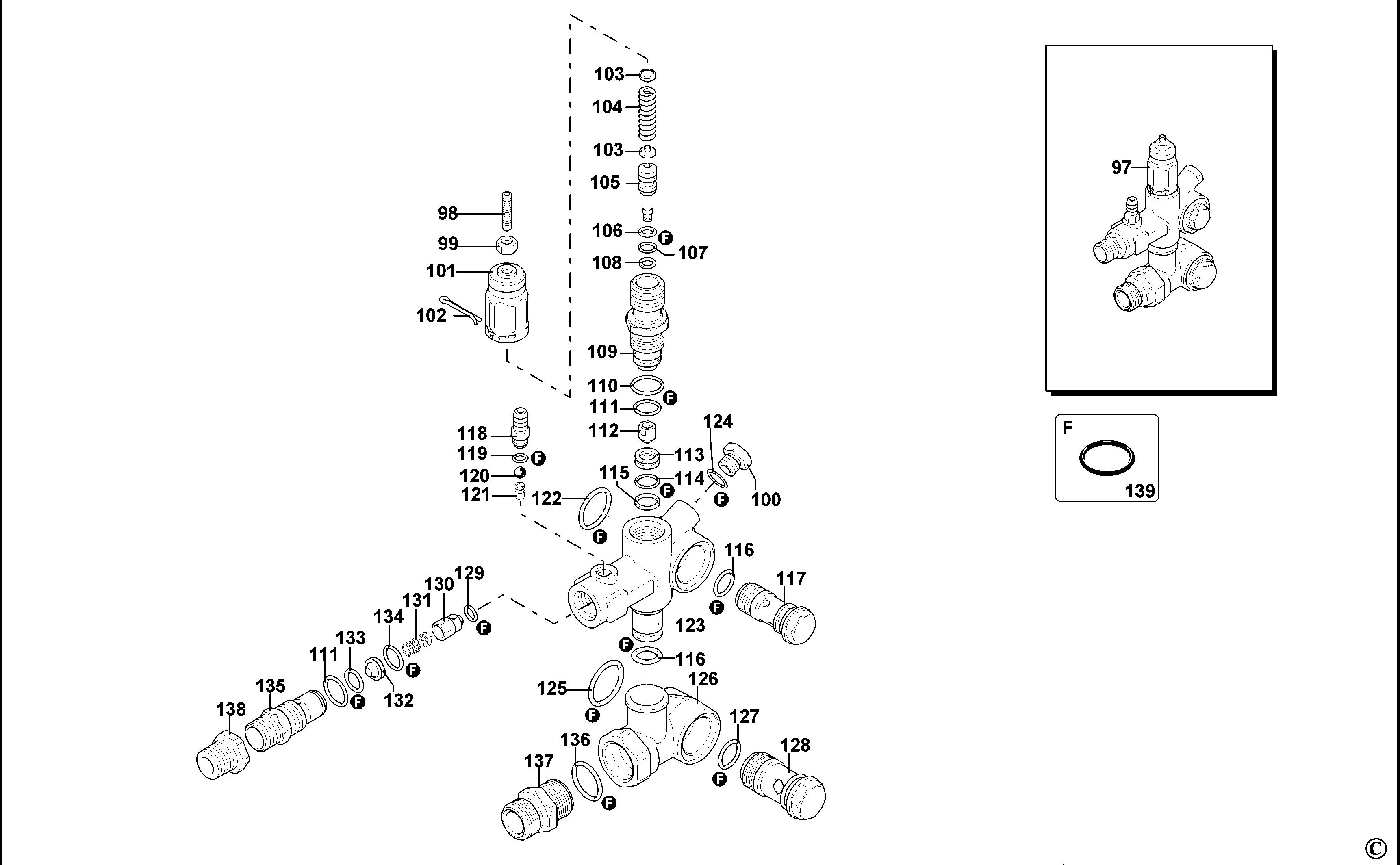

DXPW009E PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004712-12 | 1 | SCREW | XJ |  |
||
| 1 | 578278-10 | 1 | HANDLE COVER | XJ |  |
||
| 2 | 1004712-13 | 1 | SCREW | XJ | |
||
| 2 | 140117100 | 1 | SCREW | XJ | |
||
| 3 | 1004712-40 | 1 | KNOB | XJ | |
||
| 3 | 806730-09 | 1 | CLAMSHELL | XJ | |||
| 4 | 1004713-86 | 1 | SUPPORT | XJ | |
||
| 4 | 325405-00 | 1 | RETAINER | XJ | |
||
| 5 | 1004713-78 | 1 | GUARD | XJ | |
||
| 5 | 6010027-23 | 1 | BODY | UPPER | XJ | |
|
| 6 | 1004709-62 | 1 | SCREW | XJ | |
||
| 6 | 569070-00 | 1 | EXTRACTOR | Juice | XJ | |
|
| 7 | 1004709-65 | 1 | WASHER | XJ | |
||
| 7 | 6010028-04 | 1 | COVER | XJ | |
||
| 8 | 1004712-19 | 1 | NUT | XJ | |
||
| 8 | 6010028-03 | 1 | MOTOR 220V | XJ | |
||
| 9 | 1004710-30 | 1 | SCREW | XJ | |
||
| 9 | 379009 | 1 | GUARD | XJ | |
||
| 10 | 1004710-70 | 1 | HOSE | XJ | |
||
| 10 | 6010167-02 | 2 | COVER HOUSING | XJ | |||
| 11 | 1004710-89 | 1 | FILTER | XJ | |
||
| 11 | 90626849 | 1 | SPRING | XJ | |
||
| 12 | 1004710-68 | 1 | HOSE SA | XJ | |
||
| 13 | 1004712-94 | 1 | NUT | XJ | |
||
| 14 | 1004710-83 | 1 | FILTER | XJ | |
||
| 15 | 1004713-77 | 1 | GUARD | XJ | |
||
| 15 | 140112400 | 1 | NUT | XJ | |
||
| 16 | 1004713-75 | 1 | HANDLE | XJ | |
||
| 16 | 805965-04 | 1 | BRAND LABEL | XJ | |
||
| 17 | 1004713-64 | 1 | GUARD | XJ | |
||
| 17 | 157103800 | 4 | BAG DUST SA | XJ | |
||
| 18 | 1004713-65 | 1 | GUARD | XJ | |
||
| 19 | 1004713-85 | 1 | CARRIER | XJ | |
||
| 20 | 1004713-76 | 1 | GUARD | XJ | |
||
| 21 | 1004714-12 | 1 | KNOB | XJ | |
||
| 22 | 1004714-01 | 1 | GUARD | XJ | |
||
| 23 | 1004709-02 | 1 | MOTOR | Refer Manual Service | XJ | |
|
| 24 | 1004709-52 | 1 | CAP | XJ | |
||
| 25 | 1004713-89 | 1 | WHEEL | XJ | |
||
| 26 | 1004713-87 | 1 | FRAME | XJ | |
||
| 27 | 1004710-34 | 1 | NUT | XJ | |
||
| 28 | 1004713-80 | 1 | GUARD | XJ | |
||
| 29 | 1004713-79 | 1 | GUARD | XJ | |
||
| 30 | 1004713-81 | 1 | DAMPER | XJ | |
||
| 31 | 1004709-68 | 1 | SCREW | XJ | |
||
| 32 | 1004713-90 | 1 | SPACER | XJ | |
||
| 33 | 1004709-66 | 1 | SCREW | XJ | |
||
| 34 | 1004713-88 | 1 | FRAME | XJ | |
||
| 35 | 1004712-15 | 1 | HOSE | XJ | |
||
| 36 | 1004710-20 | 1 | PLUG | XJ | |
||
| 37 | 1004710-22 | 1 | O RING | XJ | |
||
| 38 | 1004710-19 | 1 | VALVE | XJ | |
||
| 39 | 1004710-01 | 1 | SCREW | XJ | |
||
| 40 | 1004711-35 | 1 | WASHER | XJ | |
||
| 41 | 1004713-25 | 1 | HEAD | XJ | |
||
| 42 | 1004709-60 | 1 | O RING | XJ | |
||
| 43 | 1004709-53 | 1 | VALVE | XJ | |
||
| 44 | 1004709-90 | 1 | O RING | XJ | |
||
| 45 | 1004711-91 | 1 | PLUG | XJ | |
||
| 46 | 1004711-34 | 1 | PRESSURE GAUGE | XJ | |
||
| 47 | 1004713-38 | 1 | RING | XJ | |
||
| 48 | 1004712-53 | 1 | RING | XJ | |
||
| 49 | 1004710-95 | 1 | SEAL | XJ | |
||
| 50 | 1004713-14 | 1 | RING | XJ | |
||
| 51 | 1004713-29 | 1 | GUIDE | XJ | |
||
| 52 | 1004713-15 | 1 | GASKET | XJ | |
||
| 53 | 1004713-16 | 1 | RING | XJ | |
||
| 54 | 1004709-92 | 1 | O RING | XJ | |
||
| 55 | 1004713-28 | 1 | GUIDE | XJ | |
||
| 56 | 1004710-53 | 1 | NUT | XJ | |
||
| 57 | 1004710-52 | 1 | WASHER | XJ | |
||
| 58 | 1004711-78 | 1 | PISTON | XJ | |
||
| 59 | 1004710-51 | 1 | PLATE | XJ | |
||
| 60 | 1004710-57 | 1 | SEAL | XJ | |
||
| 61 | 1004713-18 | 1 | PUMP SA | XJ | |
||
| 62 | 1004710-10 | 1 | PLUG | XJ | |
||
| 63 | 1004709-78 | 1 | O RING | XJ | |
||
| 64 | 1004713-22 | 1 | PISTON | XJ | |
||
| 65 | 1004713-23 | 1 | PIN | XJ | |
||
| 66 | 1004713-21 | 1 | CON ROD | XJ | |
||
| 67 | 1004709-86 | 1 | O RING | XJ | |
||
| 68 | 1004713-20 | 1 | COVER | XJ | |
||
| 69 | 1004713-08 | 1 | SCREW | XJ | |
||
| 70 | 1004710-05 | 1 | O RING | XJ | |
||
| 71 | 1004710-14 | 1 | PLUG | XJ | |
||
| 72 | 1004710-48 | 1 | SCREW | XJ | |
||
| 73 | 1004713-01 | 1 | SUPPORT | XJ | |
||
| 74 | 1004710-15 | 1 | O RING | XJ | |
||
| 75 | 1004710-59 | 1 | RING | XJ | |
||
| 76 | 1004727-74 | 1 | LEVEL | XJ | |
||
| 77 | 1004709-85 | 1 | O RING | XJ | |
||
| 78 | 1004709-63 | 1 | RING | XJ | |
||
| 79 | 1004711-93 | 1 | BEARING | XJ | |
||
| 80 | 1004710-42 | 1 | RING | XJ | |
||
| 81 | 1004713-40 | 1 | HEAD SA | XJ | |
||
| 82 | 1004709-08 | 1 | PUMP SA | XJ | |
||
| 83 | 1004713-37 | 1 | SHAFT | XJ | |
||
| 84 | 1004710-04 | 1 | SCREW | XJ | |
||
| 85 | 1004713-32 | 1 | BEARING | XJ | |
||
| 86 | 1004713-36 | 1 | O RING | XJ | |
||
| 87 | 1004713-33 | 1 | RING | XJ | |
||
| 88 | 1004713-31 | 1 | FLANGE | XJ | |
||
| 89 | 1004709-96 | 1 | SCREW | XJ | |
||
| 90 | 1004708-81 | 1 | VALVE KIT | XJ | |
||
| 91 | 1004708-91 | 1 | PISTON KIT | XJ | |
||
| 92 | 1004709-33 | 1 | SEALS KIT | XJ | |
||
| 93 | 1004709-34 | 1 | SEALS KIT | XJ | |
||
| 94 | 1004709-32 | 1 | GASKET SET | XJ | |
||
| 95 | 1004708-86 | 1 | KIT | XJ | |
||
| 97 | 1004709-10 | 1 | VALVE | XJ | |
||
| 98 | 1004712-72 | 1 | SCREW | XJ | |
||
| 99 | 1004710-34 | 1 | NUT | XJ | |
||
| 100 | 1004713-51 | 1 | PLUG | XJ | |
||
| 101 | 1004712-45 | 1 | INSERT | XJ | |
||
| 102 | 1004712-46 | 1 | PIN | XJ | |
||
| 103 | 1004711-87 | 1 | PLATE | XJ | |
||
| 104 | 1004712-59 | 1 | SPRING | XJ | |
||
| 105 | 1004712-58 | 1 | PISTON | XJ | |
||
| 106 | 1004712-21 | 1 | O RING | XJ | |
||
| 107 | 1004709-88 | 1 | O RING | XJ | |
||
| 108 | 1004712-52 | 1 | RING | XJ | |
||
| 109 | 1004712-60 | 1 | GUIDE | XJ | |
||
| 110 | 1004710-49 | 1 | O RING | XJ | |
||
| 111 | 1004709-75 | 2 | O RING | XJ | |
||
| 112 | 1004712-20 | 1 | SHUTTER | XJ | |
||
| 113 | 1004712-62 | 1 | Seat | XJ | |
||
| 114 | 1004709-91 | 1 | O RING | XJ | |
||
| 115 | 1004712-61 | 1 | RING | XJ | |
||
| 116 | 1004709-69 | 1 | O RING | XJ | |
||
| 117 | 1004711-61 | 1 | SCREW | XJ | |
||
| 118 | 1004711-96 | 1 | COUPLING | XJ | |
||
| 119 | 1004709-78 | 1 | O RING | XJ | |
||
| 120 | 1004710-50 | 1 | BALL | XJ | |
||
| 121 | 1004711-70 | 1 | SPRING | XJ | |
||
| 122 | 1004712-22 | 1 | O RING | XJ | |
||
| 123 | 1004713-47 | 1 | VALVE BODY | XJ | |
||
| 124 | 1004709-81 | 1 | O RING | XJ | |
||
| 125 | 1004711-65 | 1 | O RING | XJ | |
||
| 126 | 1004713-48 | 1 | BODY | XJ | |
||
| 127 | 1004710-11 | 1 | O RING | XJ | |
||
| 128 | 1004712-23 | 1 | SCREW | XJ | |
||
| 129 | 1004712-14 | 1 | O RING | XJ | |
||
| 130 | 1004712-50 | 1 | SHUTTER | XJ | |
||
| 131 | 1004712-51 | 1 | SPRING | XJ | |
||
| 132 | 1004712-49 | 1 | INSERT | XJ | |
||
| 133 | 1004711-57 | 1 | O RING | XJ | |
||
| 134 | 1004712-56 | 1 | O RING | XJ | |
||
| 135 | 1004712-54 | 1 | COUPLING | XJ | |
||
| 136 | 1004709-77 | 1 | O RING | XJ | |
||
| 137 | 1004713-46 | 1 | COUPLING | XJ | |
||
| 138 | 1004710-45 | 1 | COUPLING | XJ | |
||
| 139 | 1004709-40 | 1 | GASKET SET | XJ | |
||
| 140 | 1004709-17 | 1 | HANDLE SA | XJ | |
||
| 141 | 1004772-35 | 1 | EXTENSION | XJ | |
||
| 142 | 1004712-02 | 1 | O RING | XJ | |
||
| 143 | 1004714-11 | 1 | HOSE | XJ | |
||
| 144 | 1004709-73 | 1 | O RING | XJ | |
||
| 145 | 1004708-96 | 1 | NOZZLE | XJ | |
||
| 305 | 1004719-43 | 1 | EXTENSION | Optional | XJ | |
|
| 307 | 1004719-45 | 1 | EXTENSION | Optional | XJ | |
|
| 308 | 1004719-46 | 1 | EXTENSION | Optional | XJ | |
|
| 311 | 1004719-49 | 1 | EXTENSION | Optional | XJ | |
|
| 312 | 1004719-50 | 1 | NOZZLE | Optional | XJ | |
|
| 315 | 1004719-53 | 1 | NOZZLE | Optional | XJ | |
|
| 318 | 1004719-56 | 1 | BRUSH | Optional | XJ | |
|
| 322 | 1004719-60 | 1 | HEAD SA | Optional | XJ | |
|
| 323 | 1004719-61 | 1 | HOSE | Optional | XJ | |
|
| 324 | 1004719-62 | 1 | HOSE | Optional | XJ | |
|
| 325 | 1004719-63 | 1 | COUPLING | Optional | XJ | |
|
| 326 | 1004719-64 | 1 | COUPLING | Optional | XJ | |
|
| 327 | 1004719-65 | 1 | EXTENSION | Optional | XJ | |
|
| 328 | 1004719-66 | 1 | EXTENSION | Optional | XJ | |
|
| 329 | 1004719-67 | 1 | EXTENSION | Optional | XJ | |
|
| 330 | 1004719-68 | 1 | EXTENSION | Optional | XJ | |
|
| 331 | 1004719-69 | 1 | EXTENSION | Optional | XJ | |
|
| 332 | 1004719-70 | 1 | HANDLE SA | Optional | XJ | |
|
| 334 | 1004719-72 | 1 | HOSE | Optional | XJ | |
|
| 816 | 379684 | 1 | CABLE CLAMP | XJ | |
