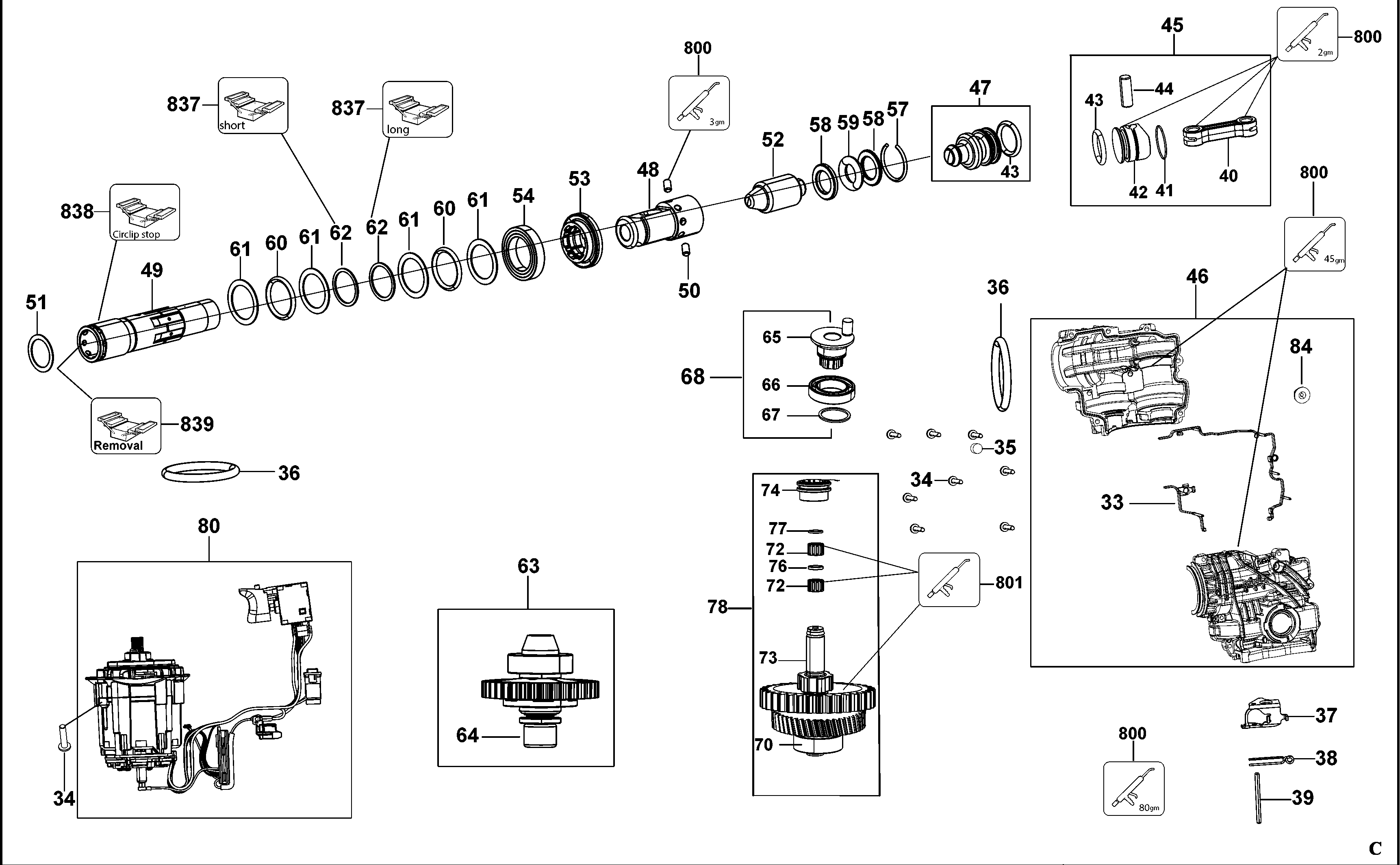

DCH293 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | XJ |  |
||
| 2 | 579212-00 | 1 | RING | XJ | |
||
| 3 | N910599 | 1 | TUBE | XJ | |
||
| 4 | 583890-00 | 1 | BALL | XJ | |
||
| 5 | 578387-00 | 1 | WASHER | XJ | |
||
| 6 | 871690 | 1 | SPRING | XJ | |
||
| 7 | N461446 | 1 | HOUSING FRONT | XJ | |
||
| 8 | N152623 | 1 | STOP | XJ | |
||
| 9 | N106188 | 1 | SPRING COMPRESSION | XJ | |
||
| 10 | N106221-01 | 1 | BELLOWS | XJ | |
||
| 11 | N466949 | 1 | HANDLE SA | PAIR | XJ | |
|
| 12 | N431292 | 1 | BAR | F/R | XJ | |
|
| 13 | N438439 | 1 | INSERT | XJ | |
||
| 14 | N438438 | 1 | INSERT | XJ | |
||
| 15 | N400082 | 1 | SPRING | XJ | |
||
| 16 | N094649 | 1 | PLATE | XJ | |
||
| 17 | N122099 | 1 | BLOCK | XJ | |
||
| 18 | N119679 | 1 | SPRING | XJ | |
||
| 19 | N427167 | 1 | BELLOWS | XJ | |
||
| 20 | N461796 | 1 | END CAP | XJ | |
||
| 21 | N461797 | 1 | END CAP | XJ | |
||
| 22 | N159443 | 1 | AXIS | XJ | |
||
| 23 | N467007 | 1 | MOTOR HOUSING SA | PAIR | XJ | |
|
| 24 | N461541 | 1 | HOOK | Belt | XJ | |
|
| 25 | N400130 | 1 | SCREW | M5x8 | XJ | |
|
| 26 | 330019-20 | 4 | SCREW | XJ |  |
||
| 27 | 330019-80 | 17 | SCREW | XJ | |
||
| 28 | N445349 | 1 | LED LIGHT | XJ | |
||
| 29 | N452980 | 1 | INDICATOR | XJ | |
||
| 30 | 656183-00 | 1 | LENS | XJ | |
||
| 31 | N267567 | 1 | SELECTOR SA | Black | XJ | |
|
| 33 | N433272 | 1 | SEAL SA | XJ | |
||
| 34 | 324006-15 | 12 | SCREW | XJ | |
||
| 35 | N038257 | 1 | FELT | XJ | |
||
| 36 | N423558 | 2 | O RING | O-RING 43x3.5 | XJ | |
|
| 37 | N431392 | 1 | PLATE | Switch | XJ | |
|
| 38 | N663642 | 1 | SPRING | XJ | |
||
| 39 | N433763 | 1 | PIN | XJ | |
||
| 40 | N390874 | 1 | CON ROD | XJ | |
||
| 41 | N517447 | 1 | O RING | 19X1 | XJ | |
|
| 42 | N510098 | 1 | PISTON | XJ | |||
| 43 | N394408 | 2 | O RING | 17x3 | XJ | |
|
| 44 | N123257 | 1 | PIN | XJ | |
||
| 45 | N505552 | 1 | PISTON KIT | XJ | |
||
| 46 | N616792 | 1 | GEARCASE SA | XJ | |
||
| 47 | N505553 | 1 | RAM SA | XJ | |
||
| 48 | N783458 | 1 | SPINDLE | XJ | |
||
| 49 | N561701 | 1 | SPINDLE | XJ | |
||
| 50 | N468472 | 8 | PIN | 4X6 | XJ | |
|
| 51 | N467014 | 1 | RETAINER | XJ | |
||
| 52 | N459693 | 1 | BEAT PIECE | XJ | |
||
| 53 | N406771 | 1 | BEVEL GEAR | XJ | |
||
| 54 | 479478-00 | 1 | BEARING,BALL | 6906 | XJ | |
|
| 57 | N413186 | 1 | CIRCLIP | 23x2 | XJ | |
|
| 58 | N502900 | 1 | WASHER | XJ | |
||
| 58 | N502900 | 1 | WASHER | XJ | |
||
| 59 | N412168 | 1 | O RING | 12x5 | XJ | |
|
| 60 | N421627 | 2 | O RING | 30X4 | XJ | |
|
| 61 | N395027 | 4 | WASHER | XJ | |
||
| 62 | N422601 | 2 | CIRCLIP | XJ | |
||
| 63 | N605730 | 1 | CLUTCH SA | XJ | |
||
| 64 | 330004-06 | 1 | BEARING NEEDLE | XJ | |
||
| 65 | N452829 | 1 | CRANKSHAFT | XJ | |
||
| 66 | N427179 | 1 | BEARING | XJ | |
||
| 67 | N453028 | 1 | CLIP | XJ | |
||
| 68 | N505555 | 1 | CRANKSHAFT | 3KG | XJ | |
|
| 70 | N110358 | 1 | BEARING | XJ | |
||
| 72 | N427177 | 2 | BEARING CAGE | XJ | |
||
| 73 | N513678 | 1 | GEAR SA | XJ | |
||
| 74 | N264669 | 1 | COLLAR | XJ | |
||
| 76 | N433668 | 1 | BUSH | XJ | |
||
| 77 | 323763-10 | 1 | LOCKING RING | 8; | XJ | |
|
| 78 | N593071 | 1 | TRANSMISSION SA | XJ | |
||
| 81 | N186764 | 2 | RUBBER PAD | 4.5x8.0mm | XJ | |
|
| 82 | N413662 | 1 | HANDLE SIDE SA | XJ | |
||
| 83 | 798846-02 | 1 | DEPTH STOP | XJ | |
||
| 84 | N374339 | 1 | INSERT | XJ | |
||
| 106 | N415919 | 1 | LABEL | 20v Brushless | XJ | |
|
| 800 | 578970-04 | 1 | GREASE | 80g | XJ | |
|
| 800 | 578970-06 | 1 | GREASE 150 GMS | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 801 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XJ | |
|
| 837 | 1003968-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | Long | XJ | |
| 837 | 1003969-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | Short | XJ | |
| 838 | 1003967-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | LimitStop | XJ | |
| 839 | 1003970-99 | 1 | S.T.DIS-ASSEMBLY JIG | 3KG | Piston+Ram Removal | XJ | |
| 862 | N481998 | 1 | INSERT | KITBOX | XJ | |
