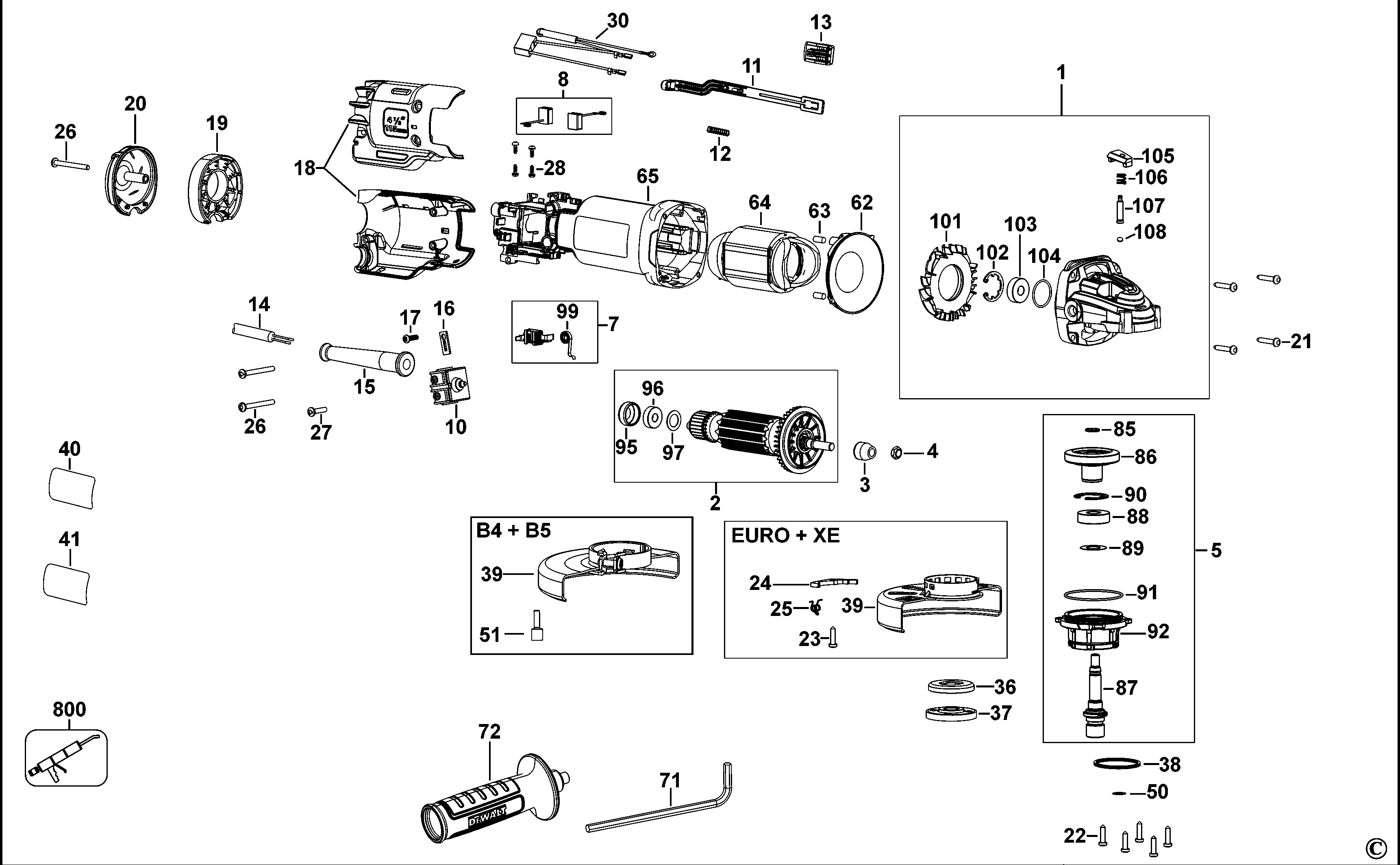

DWE4215 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N483617 | 1 | GEARCASE SA | GB | |||
| 3 | N423537 | 1 | PINION | 10T | GB |  |
|
| 4 | N372039 | 1 | NUT | M7 | GB | |
|
| 7 | N413349 | 2 | BRUSHBOX SA | GB | |
||
| 10 | N396008 | 1 | SWITCH | GB | |
||
| 11 | N437742 | 1 | LINK | GB | |||
| 12 | N093410 | 1 | SPRING | GB | |
||
| 13 | N097844 | 1 | BUTTON | GB | |
||
| 17 | 330065-06 | 1 | SCREW | GB | |
||
| 19 | N401671 | 1 | DUST PORT | GB | |||
| 20 | N400902 | 1 | END CAP | GB | |
||
| 21 | N371839 | 4 | SCREW | M4x22 PLSTC THDFMG | GB | |
|
| 22 | 330045-06 | 5 | SCREW | GB | |
||
| 24 | N637725 | 1 | LEVER | GB | |
||
| 25 | N465886 | 1 | SPRING | GB | |
||
| 26 | N389438 | 3 | SCREW | M4x40 PLSTC THD FMG | GB | |
|
| 27 | 330065-09 | 1 | SCREW | GB | |
||
| 28 | 593478-00 | 4 | SCREW | M3 X 8 | GB |  |
|
| 36 | 391969-00 | 1 | INNER FLANGE | GB | |
||
| 37 | N419748 | 1 | OUTER FLANGE | M14 | GB | |
|
| 38 | N135116 | 1 | WASHER SPRING | GB | |
||
| 39 | N487790 | 1 | GUARD | GB | |
||
| 40 | N403730 | 1 | BRAND LABEL | GB | |
||
| 50 | N420261 | 1 | O RING | GB | |
||
| 62 | N399419 | 1 | BAFFLE FAN | GB | |
||
| 63 | 949638-02 | 2 | DAMPER | GB | |
||
| 65 | N390640 | 1 | FIELDCASE | GB | |
||
| 71 | N107295 | 1 | HEX KEY | 6 mm | GB | |
|
| 85 | 444793-00 | 1 | CIRCLIP | GB | |
||
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | GB | |
|
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | GB | |
|
| 87 | N163702 | 1 | SPINDLE | M14 | GB | |
|
| 88 | 605040-24 | 1 | BEARING | GB | |
||
| 89 | N400478 | 1 | WASHER | GB | |
||
| 90 | N481950 | 1 | RETAINER | GB | |
||
| 91 | N307625 | 1 | O RING | GB | |
||
| 92 | N441765 | 1 | GEARCASE COVER | GB | |
||
| 95 | 641823-00 | 1 | SLEEVE | GB | |
||
| 96 | N130916 | 1 | BEARING | GB | |
||
| 97 | N324400 | 1 | WASHER | GB | |
||
| 99 | N273780 | 2 | SPRING | GB | |
||
| 101 | N401958 | 1 | DEFLECTOR | GB | |
||
| 102 | N453031 | 1 | RETAINER | GB | |
||
| 103 | N175104 | 1 | BEARING | GB | |
||
| 104 | N119639 | 1 | O RING | GB | |
||
| 105 | N278899 | 1 | BUTTON | SPINDLE | GB | |
|
| 106 | N263579 | 1 | SPRING | GB | |
||
| 107 | N481683 | 1 | LOCK PIN | GB | |
||
| 108 | N263699 | 1 | O RING | GB | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
