DXPW003E PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004713-64 | 1 | GUARD | GB |  |
||
| 2 | 1004713-59 | 1 | HANDLE SA | GB | |
||
| 3 | 1004712-13 | 17 | SCREW | GB | |
||
| 4 | 1004713-65 | 1 | GUARD | GB | |
||
| 5 | 1004713-66 | 2 | GUARD | GB | |
||
| 6 | 1004710-89 | 1 | FILTER | GB | |
||
| 7 | 1004714-02 | 2 | WHEEL | GB |  |
||
| 8 | 1004727-71 | 1 | PLATE | GB | |
||
| 9 | 1004727-78 | 1 | BASE SA | GB | |
||
| 10 | 1004710-69 | 1 | HOSE SA | GB | |
||
| 11 | 1004713-63 | 1 | GUARD | GB | |
||
| 12 | 1004714-03 | 1 | DOOR | GB | |
||
| 13 | 1004712-42 | 4 | SCREW | GB | |
||
| 14 | 1004711-58 | 4 | WASHER | GB | |
||
| 15 | 1004712-40 | 1 | KNOB | GB | |
||
| 16 | 1004713-84 | 1 | GUARD | GB | |
||
| 17 | 1004713-72 | 1 | BRACKET | GB | |
||
| 18 | 1004713-08 | 4 | SCREW | GB | |
||
| 19 | 1004713-71 | 1 | BRACKET | GB | |
||
| 20 | 1004712-00 | 1 | SCREW | GB | |
||
| 21 | 1004714-09 | 1 | GLAND | GB | |
||
| 22 | 1004700-77 | 1 | COUPLING SA | GB | |
||
| 23 | 1004713-83 | 1 | SPACER | GB | |
||
| 24 | 1004712-12 | 4 | SCREW | GB | |
||
| 25 | 1004713-69 | 1 | CASING | GB | |
||
| 26 | 1004713-73 | 1 | KNOB | GB | |
||
| 27 | 1004713-62 | 1 | GUARD | GB | |
||
| 28 | 1004714-01 | 1 | GUARD | GB | |
||
| 29 | 1004713-70 | 1 | GUARD | GB | |
||
| 30 | 1004714-17 | 2 | SCREW | GB | |
||
| 31 | 1004714-16 | 2 | FOOT | GB | |
||
| 32 | 1004756-83 | 1 | HOSE SA | Detergent | GB | |
|
| 32 | 1004710-66 | 1 | HOSE | Detergent | GB | |
|
| 33 | 1004710-45 | 1 | COUPLING | GB | |
||
| 34 | 1004712-71 | 1 | O RING | GB | |
||
| 35 | 1004712-86 | 1 | VALVE | GB | |
||
| 36 | 1004710-00 | 2 | O RING | GB | |
||
| 37 | 1004713-55 | 1 | SPRING | GB | |
||
| 38 | 1004712-85 | 1 | SHUTTER | GB | |
||
| 39 | 1004711-49 | 1 | O RING | GB | |
||
| 40 | 1004711-13 | 1 | HEAD | GB | |
||
| 41 | 1004758-77 | 6 | VALVE | GB | |
||
| 42 | 1004712-44 | 1 | COUPLING | GB | |
||
| 43 | 1004711-56 | 6 | O RING | GB | |
||
| 44 | 1004711-05 | 3 | PLUG | GB | |
||
| 45 | 1004711-04 | 6 | FORK | GB | |
||
| 46 | 1004710-08 | 4 | SCREW | GB | |
||
| 47 | 1004709-82 | 1 | PLUG | GB | |
||
| 48 | 1004711-96 | 1 | COUPLING | GB | |
||
| 49 | 1004710-93 | 1 | Seat | GB | |
||
| 50 | 1004709-81 | 1 | O RING | GB | |
||
| 51 | 1004711-46 | 1 | PISTON | GB | |
||
| 52 | 1004712-07 | 1 | PISTON | GB | |
||
| 53 | 1004710-38 | 1 | O RING | GB | |
||
| 54 | 1004709-81 | 1 | O RING | GB | |
||
| 55 | 1004710-41 | 1 | RING | GB | |
||
| 56 | 1004710-05 | 1 | O RING | GB | |
||
| 57 | 1004709-90 | 1 | O RING | GB | |
||
| 58 | 1004711-07 | 1 | GUIDE | GB | |
||
| 59 | 1004710-96 | 1 | PLATE | GB | |
||
| 60 | 1004711-47 | 1 | SPRING | GB | |
||
| 61 | 1004711-87 | 1 | PLATE | GB | |
||
| 62 | 1004710-36 | 1 | PIN | GB | |
||
| 63 | 1004711-08 | 1 | INSERT | GB | |
||
| 64 | 1004711-90 | 1 | SCREW | GB | |
||
| 65 | 1004710-34 | 1 | NUT | GB | |
||
| 66 | 1004710-98 | 1 | PLUG | GB | |
||
| 67 | 1004711-10 | 1 | O RING | GB | |
||
| 68 | 1004711-09 | 1 | PLUG | GB | |
||
| 69 | 1004712-48 | 1 | O RING | GB | |
||
| 70 | 1004713-15 | 3 | GASKET | GB | |
||
| 71 | 1004709-92 | 3 | O RING | GB | |
||
| 72 | 1004711-15 | 3 | GUIDE | GB | |
||
| 73 | 1004710-56 | 3 | SEAL | Water | GB | |
|
| 74 | 1004711-03 | 3 | RING | GB | |
||
| 75 | 1004711-00 | 1 | BODY | Pump | GB | |
|
| 76 | 1004711-16 | 1 | BUSHING | GB | |
||
| 77 | 1004710-33 | 1 | O RING | GB | |
||
| 78 | 1004711-01 | 1 | COVER | GB | |
||
| 79 | 1004710-60 | 8 | SCREW | GB | |
||
| 80 | 1004710-16 | 1 | O RING | GB | |
||
| 81 | 1004711-18 | 1 | PLUG | GB | |
||
| 82 | 1004710-09 | 1 | KEY | GB | |
||
| 83 | 1004710-90 | 1 | BEARING | GB | |
||
| 84 | 1004709-80 | 1 | RING | GB | |
||
| 85 | 1004709-56 | 1 | RING | GB | |
||
| 86 | 1004710-91 | 1 | RING | GB | |
||
| 87 | 1004710-79 | 3 | CON ROD | GB | |
||
| 88 | 1004710-81 | 3 | PIN | GB | |
||
| 89 | 1004710-80 | 3 | PISTON | GB | |
||
| 90 | 1004710-57 | 3 | SEAL | GB | |
||
| 91 | 1004709-81 | 3 | O RING | GB | |
||
| 92 | 1004710-87 | 3 | PLATE | GB | |
||
| 93 | 1004710-94 | 3 | PISTON | GB | |
||
| 94 | 1004710-88 | 3 | WASHER | GB | |
||
| 95 | 1004710-07 | 3 | SCREW | GB | |
||
| 96 | 1004755-70 | 1 | SHAFT SA | GB | |
||
| 97 | 1004710-43 | 1 | O RING | GB | |
||
| 98 | 1004709-81 | 1 | O RING | GB | |
||
| 99 | 1004712-08 | 1 | PIN | GB | |
||
| 100 | 1004712-05 | 1 | SPRING | GB | |
||
| 101 | 1004712-06 | 1 | WASHER | GB | |
||
| 102 | 1004710-62 | 1 | O RING | GB | |
||
| 103 | 1004711-06 | 1 | BOLT | GB | |
||
| 104 | 1004709-35 | 1 | KIT | TSS Retro Kit | GB | |
|
| 105 | 1004711-70 | 1 | SPRING | GB | |
||
| 106 | 1004710-50 | 1 | BALL | GB | |
||
| 107 | 1004709-78 | 1 | O RING | GB | |
||
| 109 | 1004756-84 | 1 | PUMP SA | GB | |
||
| 110 | 1004756-85 | 1 | HEAD SA | GB | |
||
| 111 | 1004709-36 | 1 | VALVE KIT | GB | |
||
| 112 | 1004711-11 | 3 | PLUG | GB | |
||
| 113 | 1004713-91 | 1 | KNOB | GB | |
||
| 114 | 1004713-16 | 1 | RING | GB | |
||
| 115 | 1004711-17 | 1 | COUPLING | GB | |
||
| 116 | 1004744-77 | 1 | O RING | GB | |
||
| 117 | 1004713-92 | 1 | PLUG | GB | |
||
| 118 | 1004756-86 | 1 | PLUG | GB | |
||
| 119 | 1004756-87 | 1 | COUPLING | GB | |
||
| 120 | 1004756-88 | 2 | CLAMP | GB | |
||
| 121 | 1004756-90 | 1 | PLUG | GB | |
||
| 123 | 1004757-73 | 1 | VALVE KIT | GB | |
||
| 124 | 1004708-90 | 1 | PISTON KIT | B; | GB | |
|
| 125 | 1004709-37 | 1 | SEALS KIT | C; | GB | |
|
| 126 | 1004709-44 | 1 | SEALS KIT | D; | GB | |
|
| 127 | 1004756-89 | 1 | GASKET SET | F; | GB | |
|

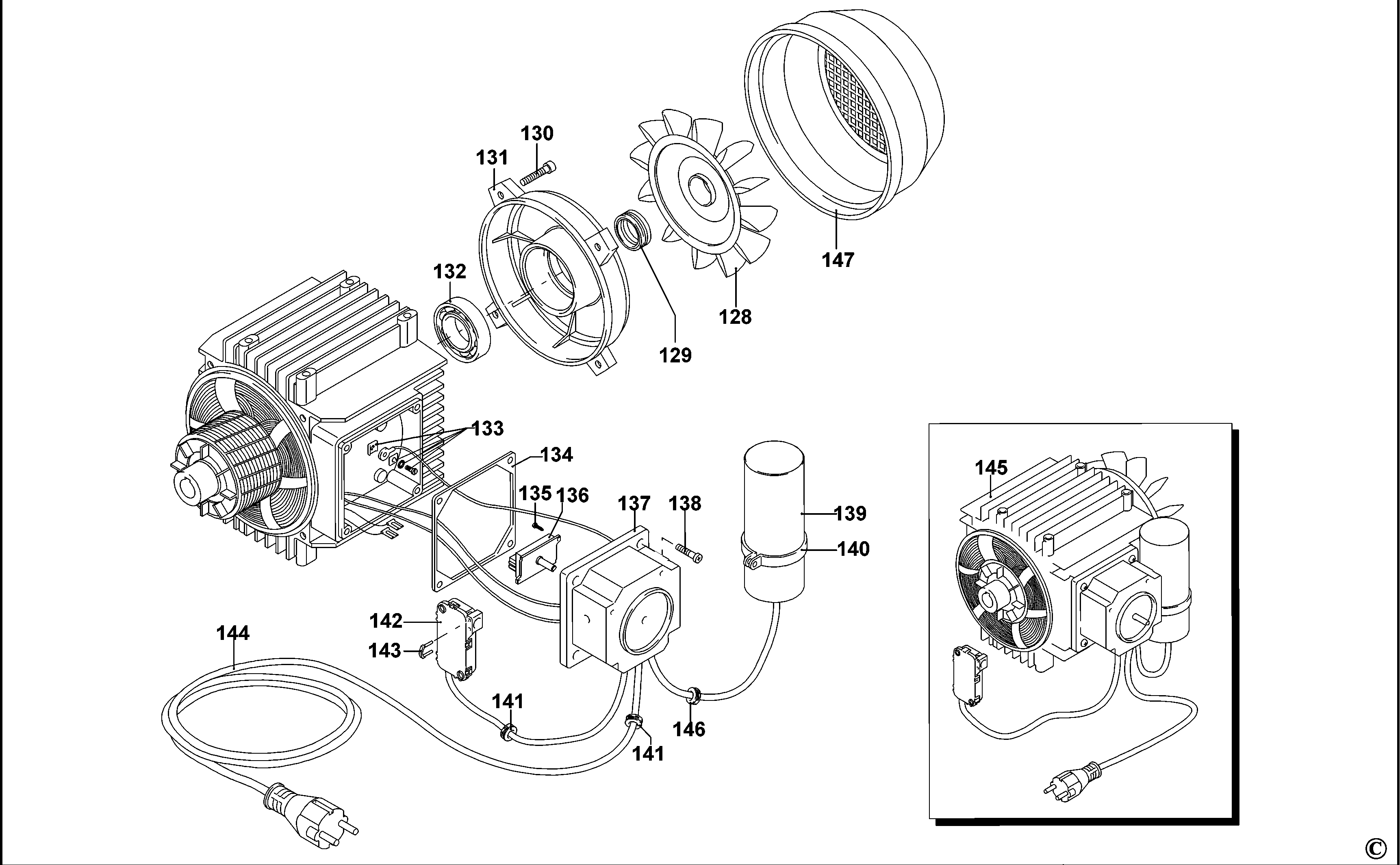

| 128 | 1004710-55 | 1 | FAN | GB | |
||
| 129 | 1004710-85 | 1 | SEAL | GB | |
||
| 130 | 1004711-14 | 4 | SCREW | GB | |
||
| 131 | 1004711-12 | 1 | SHIELD | GB | |
||
| 132 | 1004710-84 | 1 | BEARING | GB | |
||
| 133 | 1004710-67 | 1 | CLAMP | GB | |
||
| 134 | 1004710-86 | 1 | GASKET | GB | |
||
| 135 | 1004712-01 | 2 | SCREW | GB | |
||
| 136 | 1004712-80 | 1 | SWITCH | GB | |
||
| 137 | 1004729-46 | 1 | TERMINAL BOX | GB | |
||
| 138 | 1004710-64 | 4 | SCREW | GB | |
||
| 139 | 1004711-95 | 1 | CAPACITOR | GB | |
||
| 140 | 1004711-97 | 1 | CLAMP | GB | |
||
| 141 | 1004712-04 | 2 | GLAND | GB | |
||
| 142 | 1004729-46 | 1 | TERMINAL BOX | GB | |
||
| 143 | 1004712-09 | 1 | FORK | GB | |
||
| 144 | 1004727-77 | 1 | CORDSET | GB | |
||
| 145 | 1004756-91 | 1 | MOTOR SA | GB | |
||
| 146 | 1004711-55 | 1 | GLAND | GB | |
||
| 147 | 1004710-92 | 1 | COVER | GB | |
||
| 148 | 1004709-16 | 1 | HANDLE SA | MV2008 | GB | |
|
| 149 | 1004709-20 | 1 | EXTENSION | GB | |
||
| 150 | 1004712-02 | 2 | O RING | GB | |
||
| 151 | 1004714-04 | 1 | HOSE | 8M - High Pressure | GB | |
|
| 152 | 1004709-73 | 1 | O RING | GB | |
||
| 302 | 1004719-40 | 1 | EXTENSION | + Rotary Nozzle | Optional | GB | |
| 307 | 1004719-45 | 1 | EXTENSION | Optional | GB | |
|
| 308 | 1004719-46 | 1 | EXTENSION | Optional | GB | |
|
| 309 | 1004719-47 | 1 | EXTENSION | Sand blasting Kit | Optional | GB | |
| 312 | 1004719-50 | 1 | NOZZLE | Optional | GB | |
|
| 314 | 1004719-52 | 1 | NOZZLE | Optional | GB | |
|
| 318 | 1004719-56 | 1 | BRUSH | Optional | GB | |
|
| 321 | 1004719-59 | 1 | HEAD SA | Optional | GB | |
|
| 323 | 1004719-61 | 1 | HOSE | Optional | GB | |
|
| 324 | 1004719-62 | 1 | HOSE | Optional | GB | |
|
| 325 | 1004719-63 | 1 | COUPLING | Optional | GB | |
|
| 326 | 1004719-64 | 1 | COUPLING | Optional | GB | |
|
| 327 | 1004719-65 | 1 | EXTENSION | Optional | GB | |
|
| 328 | 1004719-66 | 1 | EXTENSION | Optional | GB | |
|
| 329 | 1004719-67 | 1 | EXTENSION | Optional | GB | |
|
| 330 | 1004719-68 | 1 | EXTENSION | Optional | GB | |
|
| 331 | 1004719-69 | 1 | EXTENSION | Optional | GB | |
|
| 333 | 1004719-71 | 1 | HOSE | 10m 1/4" | Optional | GB | |
