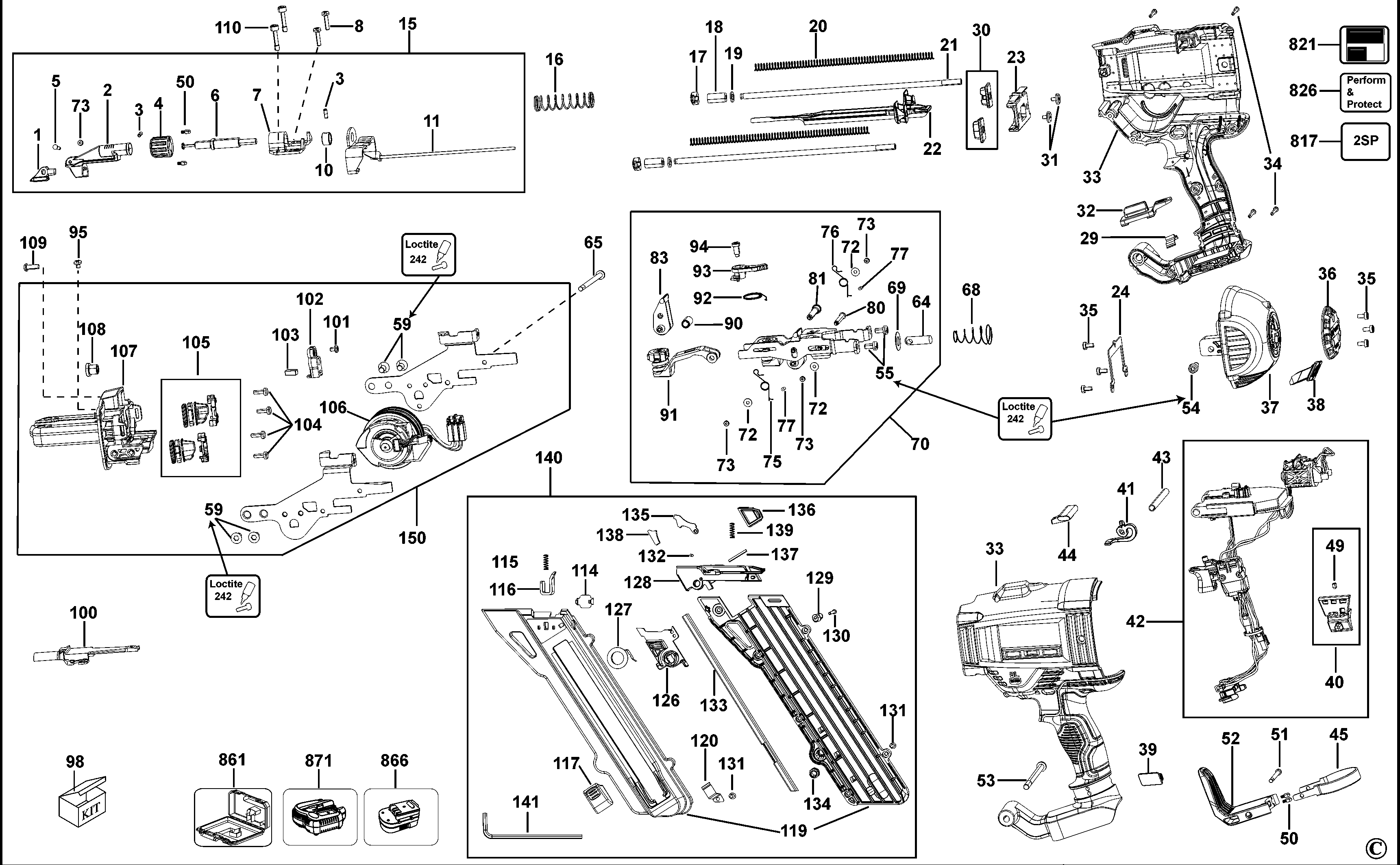

DCN693 CORDLESS NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N324439 | 1 | TIP | GB |  |
||
| 2 | N324459 | 1 | ADJUSTER | GB | |
||
| 3 | N153045 | 2 | ROLL PIN | GB | |
||
| 4 | N402075 | 1 | ADJUSTER DEPTH | GB | |
||
| 5 | N330659 | 1 | PIN | GB | |
||
| 6 | N392751 | 1 | SHAFT | GB | |
||
| 7 | N034374 | 1 | SUPPORT | GB | |
||
| 8 | N432422 | 2 | SCREW | GB | |
||
| 10 | N044294 | 1 | SLEEVE | GB | |
||
| 11 | N380152 | 1 | TRIP SA | GB | |
||
| 15 | N469513 | 1 | DEPTH STOP SA | GB | |
||
| 16 | N061508 | 1 | SPRING | GB | |
||
| 17 | N192671 | 2 | CAP | GB | |
||
| 18 | N088831 | 2 | BUMPER | GB | |
||
| 19 | N088833 | 2 | WASHER | GB | |
||
| 20 | N233943 | 1 | SPRING COMPRESSION | INCL. 2 SPRINGS | GB | |
|
| 21 | N036350 | 2 | RAIL | GB | |
||
| 22 | N469512 | 1 | PROFILE | GB | |
||
| 23 | N422047 | 1 | CAP | GB | |||
| 24 | N121870 | 1 | PLATE | GB | |
||
| 29 | N087259 | 1 | DETENT | GB | |
||
| 30 | N469514 | 1 | BUMPER | Bumper Left + Right | GB | |
|
| 31 | N088832 | 2 | SCREW | GB | |
||
| 32 | N389062 | 1 | BUTTON | 2 Sp | GB | |
|
| 33 | N233946 | 1 | HOUSING PAIR | Inc 32 | GB | |
|
| 34 | 330019-24 | 8 | SCREW | GB | |
||
| 35 | N123731 | 6 | SCREW | GB | |
||
| 36 | N365479 | 1 | COVER | GB | |
||
| 37 | N397360 | 1 | END CAP | Black | GB | |
|
| 38 | N130853 | 1 | WINDOW | LED | GB | |
|
| 39 | N150581 | 1 | CAP | GB | |
||
| 40 | N512746 | 1 | ELECTRONIC & SWITCH | GB | |
||
| 41 | N055786 | 1 | ACTUATOR | GB | |
||
| 42 | N473346 | 1 | ELECTRONIC SA | GB |  |
||
| 42 | N512747 | 1 | ELECTRONIC & SWITCH | GB | |
||
| 43 | N439401 | 1 | SPACER | FRAME STAND-OFF | GB | |
|
| 44 | N039287 | 1 | SWITCH LOCK OFF | GB | |
||
| 45 | N080411 | 1 | CLAMP | GB | |
||
| 49 | N380148 | 1 | DETENT | GB | |
||
| 50 | 326467-00 | 4 | DETENT | GB | |
||
| 51 | N093728 | 1 | SCREW | GB | |
||
| 52 | N080410 | 1 | HOOK | GB | |
||
| 53 | N123751 | 1 | SCREW | GB | |
||
| 54 | N093611 | 2 | SCREW | GB | |
||
| 55 | N093608 | 2 | SCREW | M5x8 MACHINE | GB | |
|
| 59 | N477247 | 1 | SCREW | GB | |
||
| 64 | N126788 | 1 | PIN | GB | |
||
| 65 | N093607 | 1 | SCREW | M5x75 | GB | |
|
| 68 | N219872 | 1 | SPRING | GB | |
||
| 69 | N114861 | 1 | WASHER | GB | |
||
| 70 | N473189 | 1 | AXIS & CARRIAGE SA | GB | |
||
| 72 | 330016-25 | 3 | WASHER | GB | |
||
| 73 | 391814-00 | 3 | GROMMET | GB | |
||
| 75 | N613043 | 1 | SPRING LH | GB | |
||
| 75 | N613043 | 1 | SPRING LH | GB | |
||
| 76 | N231398 | 1 | SPRING RH | RH | GB | ||
| 77 | N235059 | 2 | ISOLATOR | GB | |
||
| 80 | N083553 | 1 | PIN | GB | |
||
| 81 | N034920 | 1 | PIN | GB | |
||
| 83 | N233950 | 1 | ROLLER SA | GB | |
||
| 90 | N259819 | 1 | SLEEVE | GB | |
||
| 91 | N234259 | 1 | BEAM | GB | |
||
| 92 | N086806 | 1 | SPRING TORSION | GB | |
||
| 93 | N086157 | 1 | LEVER | GB | |
||
| 94 | N113536 | 1 | SCREW | GB | |
||
| 95 | N123971 | 1 | SCREW | GB | |
||
| 98 | N473973 | 1 | SERVICE KIT | Maintance Kit | GB | |
|
| 100 | N469515 | 1 | INSERT | GB | |
||
| 101 | 949894-06 | 1 | SCREW | GB | |
||
| 102 | N390881 | 1 | HOLDER | GB | |
||
| 103 | N089554 | 1 | MAGNET | GB | |
||
| 104 | 324006-01 | 4 | SCREW | GB | |
||
| 105 | N472113 | 1 | BUMPER | Kit | GB | |
|
| 106 | N473974 | 1 | MOTOR SA | Brushless | GB | |
|
| 107 | N481055 | 1 | CASTING | GB | |
||
| 108 | N061668 | 1 | BUSHING | GB | |
||
| 109 | 330019-11 | 2 | SCREW | M4.55x13 T20 | GB | |
|
| 110 | N061605 | 2 | SCREW | GB | |
||
| 114 | N034726 | 1 | RETAINER | GB | |
||
| 115 | N061545 | 1 | SPRING COMPRESSION | GB | |
||
| 116 | N307220 | 1 | LOCKING DEVICE | GB | |
||
| 117 | N061505 | 1 | LATCH BUTTON | GB | |
||
| 119 | N472115 | 1 | HOUSING | GB | |
||
| 120 | N114100 | 1 | LEVER LOCK | GB | |
||
| 126 | N331500 | 1 | PUSHER | GB | |
||
| 127 | N128653 | 1 | SPRING SA | GB | |
||
| 128 | N326139 | 1 | MAGAZINE INTERFACE | GB | |
||
| 129 | N061506 | 1 | INSERT | GB | |
||
| 130 | 330019-62 | 1 | SCREW | GB | |
||
| 131 | 330065-06 | 3 | SCREW | GB | |
||
| 132 | N383366 | 1 | PIN | GB | |
||
| 133 | N365856 | 1 | LINER | GB | |
||
| 133 | N034743 | 1 | LINER | GB | |
||
| 134 | 397893-00 | 1 | NUT | GB | |||
| 135 | N401907 | 1 | LIFTER | GB | |
||
| 135 | N401907 | 1 | LIFTER | GB | |
||
| 136 | N359639 | 1 | SUPPORT | GB | |
||
| 137 | 590312-00 | 1 | PIN | GB | |
||
| 138 | N401903 | 1 | SHOCK ABSORBER | GB | |
||
| 139 | N395189 | 1 | SPRING | GB | |
||
| 140 | N472116 | 1 | MAGAZINE | GB | |
||
| 141 | N061664 | 1 | HEX KEY | GB | |
||
| 150 | N475499 | 1 | MOTOR SA & MOUNT | GB | |
||
| 817 | N363160 | 2 | BRAND LABEL | 2SP | GB | |
|
| 821 | N429684 | 1 | RATING LABEL | GB | |
||
| 826 | N207832 | 1 | LABEL | P&P | GB | |
|
| 861 | N665736 | 1 | KITBOX | GB | |
||
| 866 | N394624 | 2 | BATTERY 18V - 5.0AH - 90WH | DCN693P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
