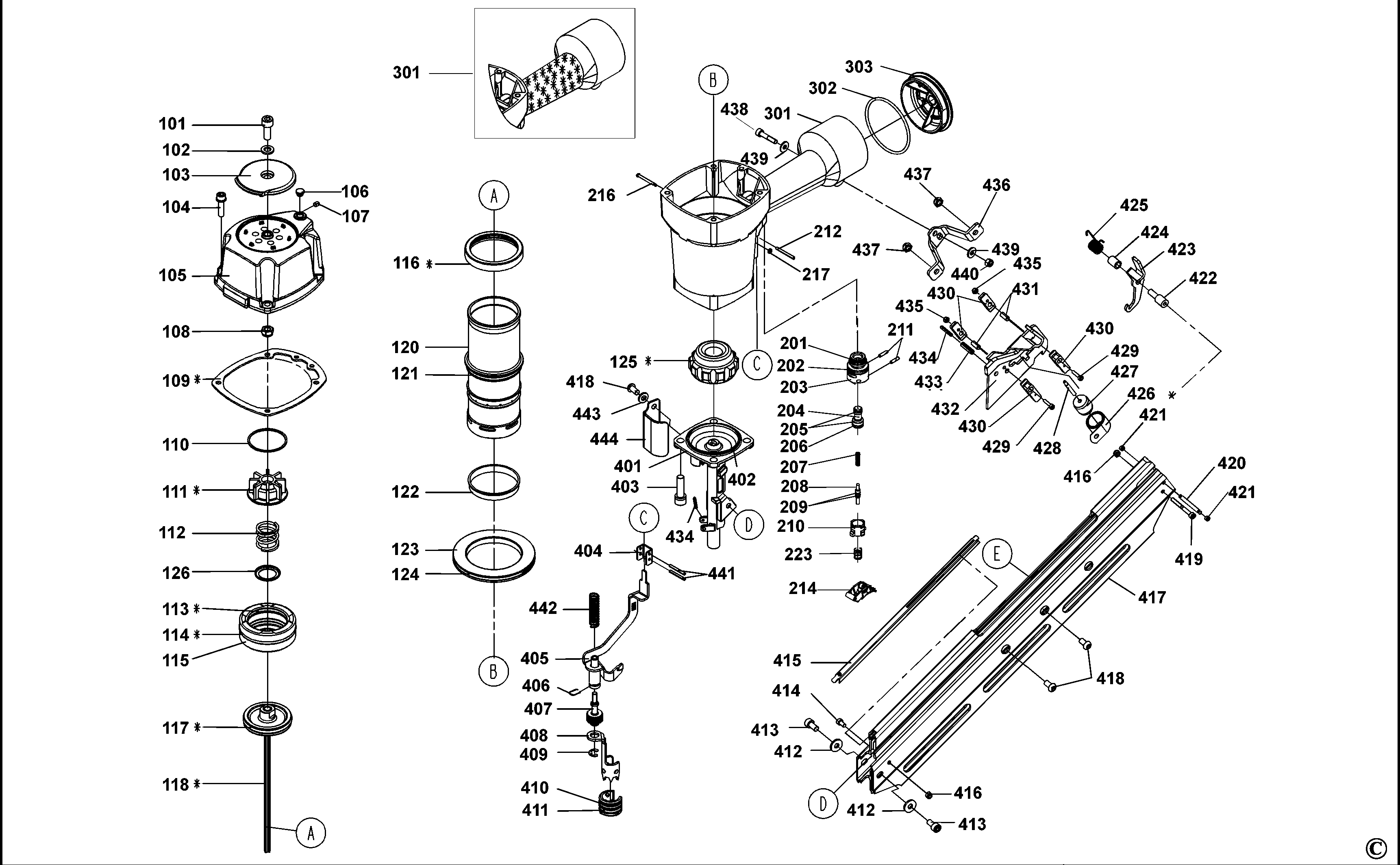

DPN10033 BRAD NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 2040101-05020 | 1 | BOLT | XJ |  |
||
| 102 | 2040202-06010 | 1 | WASHER | XJ | |
||
| 103 | 11371-0370001 | 1 | DEFLECTOR | XJ | |
||
| 104 | 2040100-04020 | 4 | BOLT | XJ | |
||
| 105 | 11369-037T302 | 1 | CAP | XJ | |
||
| 106 | 1135S-0350001 | 1 | GROMMET | XJ | |
||
| 107 | 2040104-03010 | 1 | GRUB SCREW | XJ | |
||
| 108 | 2040500-05010 | 1 | LOCK NUT | XJ | |
||
| 109 | 11302-0370001 | 1 | GASKET | XJ |  |
||
| 110 | 11380-0374701 | 1 | SEAL | XJ | |
||
| 111 | 11370-0370001 | 1 | SEAL | XJ | |
||
| 112 | 11360-0354701 | 1 | SPRING COMPRESSION | XJ | |
||
| 113 | 2041108-05040 | 1 | O RING | XJ | |
||
| 114 | 2041108-07010 | 1 | O RING | XJ | |
||
| 115 | 11368-0370004 | 1 | PISTON | XJ | |
||
| 116 | 11399-0370004 | 1 | COLLAR | XJ | |
||
| 117 | 2041108-06030 | 1 | O RING | XJ | |
||
| 118 | 11204-0870001 | 1 | DRIVER | XJ | |
||
| 120 | 11320-0370007 | 1 | CYLINDER | XJ | |
||
| 121 | 2041101-06010 | 1 | O RING | XJ | |
||
| 122 | 11322-0370002 | 1 | RING | XJ | |
||
| 123 | 11321-0370001 | 1 | SPACER | XJ | |
||
| 124 | 2041101-09010 | 1 | O RING | XJ | |
||
| 125 | 11327-0370001 | 1 | BUMPER | XJ | |
||
| 126 | 11381-0864701 | 1 | WASHER | XJ | |
||
| 201 | 2041104-02020 | 1 | O RING | XJ | |
||
| 202 | 2041104-02030 | 1 | O RING | XJ | |
||
| 203 | 11374-0084701 | 1 | CAP | XJ | |
||
| 204 | 1133S-0250002 | 1 | PLUNGER | XJ | |
||
| 205 | 2041100-01070 | 2 | O RING | XJ | |
||
| 206 | 2041100-01030 | 1 | O RING | XJ | |
||
| 207 | 11376-0254701 | 1 | SPRING | XJ | |
||
| 208 | 11375-0084701 | 1 | PLUNGER | XJ | |
||
| 209 | 2041102-01030 | 2 | O RING | XJ | |
||
| 210 | 11373-0084701 | 1 | HEAD | XJ | |
||
| 211 | 2040400-05060 | 2 | PIN | XJ | |
||
| 212 | 2040400-05160 | 2 | PIN | XJ | |
||
| 214 | 11224-1113701 | 1 | TRIGGER | XJ | |
||
| 216 | 11318-0464701 | 1 | PIN | XJ | |
||
| 217 | 9R189935 | 1 | RETAINER | XJ | |
||
| 223 | 11376-0370001 | 1 | SPRING | XJ | |
||
| 301 | 11230-037T201 | 1 | BODY | XJ | |
||
| 302 | 2041106-07010 | 1 | O RING | XJ | |
||
| 303 | 11346-0371304 | 1 | END CAP | XJ | |
||
| 401 | 11382-0874703 | 1 | NOSE | XJ | |
||
| 402 | 2041104-07010 | 1 | O RING | XJ | |
||
| 403 | 2040100-05010 | 4 | BOLT | XJ | |
||
| 404 | 11338-0874701 | 1 | GUIDE | XJ | |
||
| 405 | 11332-0874703 | 1 | SAFETY KEY | XJ | |
||
| 406 | 1131C-0830001 | 1 | RING | XJ | |
||
| 407 | 11249-0640001 | 1 | ADAPTOR | XJ | |
||
| 408 | 11331-0374705 | 1 | BRACKET | XJ | |
||
| 409 | 2040302-26010 | 1 | CIRCLIP | XJ | |
||
| 410 | 11339-0374701 | 1 | CASING | XJ | |
||
| 411 | 1131G-0374701 | 1 | RING | XJ | |
||
| 412 | 2040202-04010 | 2 | WASHER | XJ | |
||
| 413 | 2040101-04020 | 2 | BOLT | XJ | |
||
| 414 | 2040101-02030 | 1 | BOLT | XJ | |
||
| 415 | 11396-0644709 | 1 | BRACKET | XJ | |
||
| 416 | 2040500-02010 | 2 | LOCK NUT | XJ | |
||
| 417 | 11389-0874701 | 1 | MAGAZINE | XJ | |
||
| 418 | 2040102-04010 | 3 | BOLT | XJ | |
||
| 419 | 2040101-02141 | 1 | BOLT | XJ | |
||
| 420 | 1132E-0374701 | 1 | PIN | XJ | |
||
| 421 | 1135H-0250001 | 2 | RING | XJ | |
||
| 422 | 1133V-0354702 | 1 | SPACER | XJ | |
||
| 423 | 11343-0354701 | 1 | LATCH | XJ | |
||
| 424 | 11398-0350001 | 1 | BUSHING | XJ | |
||
| 425 | 1132F-0354701 | 1 | SPRING | XJ | |
||
| 426 | 11372-0350001 | 1 | SPRING | XJ | |
||
| 427 | 11386-0370001 | 1 | ROLLER | XJ | |
||
| 428 | 11385-0604701 | 1 | ROLLPIN | XJ | |
||
| 429 | 2040101-01020 | 2 | BOLT | XJ | |
||
| 430 | 1133W-0370001 | 4 | BEARING | XJ | |
||
| 431 | 11329-0354701 | 2 | PIN | XJ | |
||
| 432 | 11247-0874701 | 1 | PUSHER | XJ | |
||
| 433 | 2040400-08100 | 1 | PIN | XJ | |
||
| 434 | 2040400-05100 | 2 | PIN | XJ | |
||
| 435 | 2040500-01010 | 2 | LOCK NUT | XJ | |
||
| 436 | 11323-0874702 | 1 | BRACKET | XJ | |
||
| 437 | 2040500-04010 | 2 | LOCK NUT | XJ | |
||
| 438 | 2040101-03161 | 1 | BOLT | XJ | |
||
| 439 | 2040202-03010 | 2 | WASHER | XJ | |
||
| 440 | 2040500-03020 | 1 | LOCK NUT | XJ | |
||
| 441 | 2040400-05130 | 2 | PIN | XJ | |
||
| 442 | 11337-0874701 | 1 | SPRING | XJ | |
||
| 443 | 2040201-04010 | 1 | WASHER | XJ | |
||
| 444 | 1137A-0874701 | 1 | COVER | XJ | |
