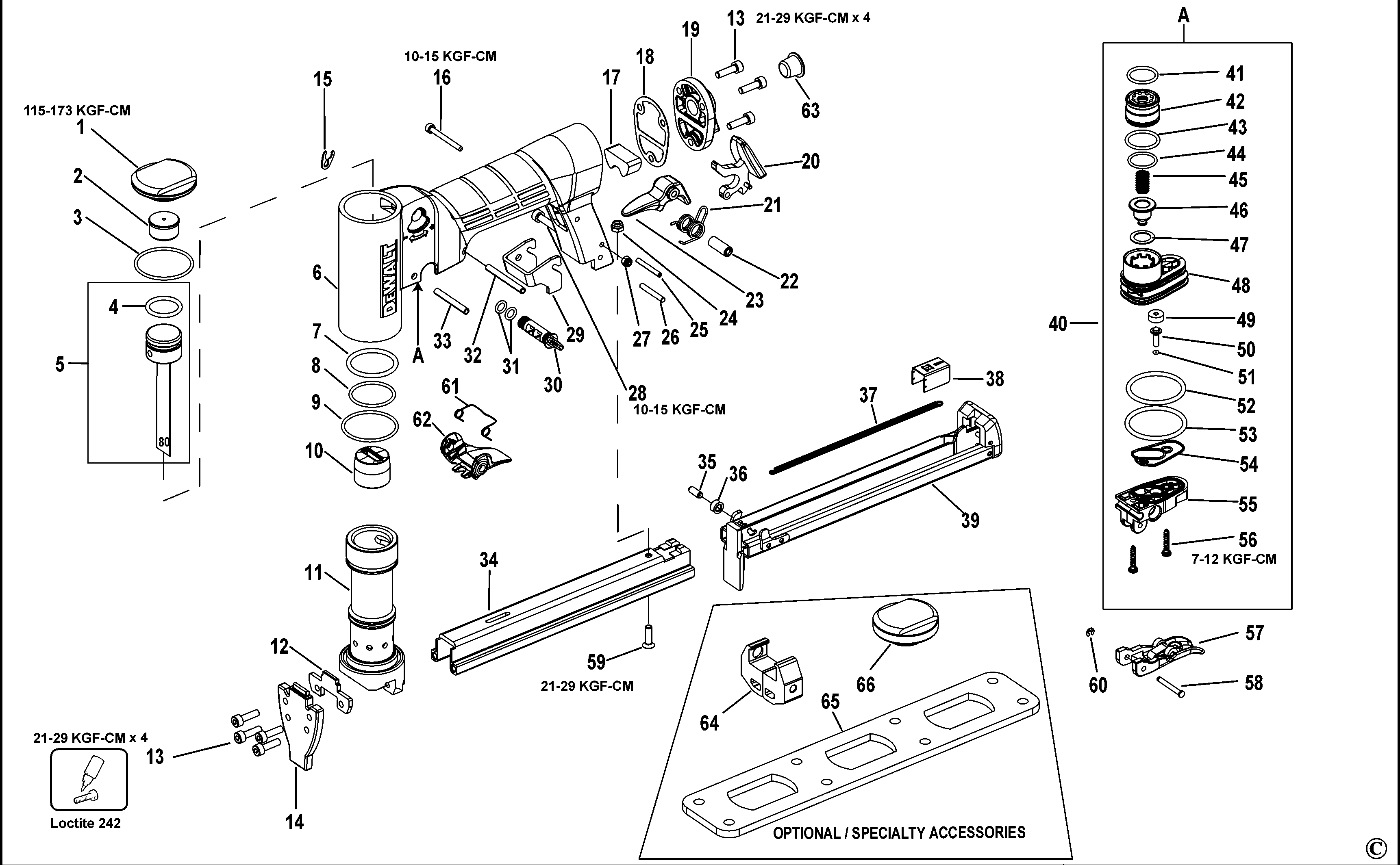

DPS8016 STAPLER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 174288 | 1 | CAP | XJ |  |
||
| 2 | 174289 | 1 | BUMPER | XJ | |
||
| 3 | 100353 | 1 | O RING | XJ | |
||
| 4 | 174308 | 1 | O RING | XJ | |
||
| 5 | 177715 | 1 | DRIVER SA | Inc 4 | XJ | |
|
| 6 | 9R209585 | 1 | FRAME | XJ | |
||
| 7 | 174309 | 1 | O RING | 1.049x0.103 | XJ | |
|
| 8 | 174310 | 1 | O RING | XJ | |
||
| 9 | 1FA0026 | 1 | O RING | XJ | |
||
| 10 | 174100 | 1 | BUMPER | XJ | |
||
| 11 | 174098 | 1 | SLEEVE | XJ | |
||
| 12 | 174099 | 1 | GUIDE | XJ | |
||
| 13 | 174306 | 7 | BOLT | M4 x 0.7 x 14mm | XJ | |
|
| 14 | 174263 | 1 | NOSE | XJ | |
||
| 15 | 174290 | 1 | RETAINER | XJ | |
||
| 16 | 174274 | 1 | SCREW | XJ | |
||
| 17 | 174266 | 1 | Muffler | XJ | |
||
| 18 | 174295 | 1 | GASKET | XJ | |
||
| 19 | 174296 | 1 | END CAP | XJ | |
||
| 20 | 174273 | 1 | LATCH | XJ | |
||
| 21 | 174301 | 1 | SPRING TORSION | XJ | |
||
| 22 | 174302 | 1 | SPRING | XJ | |
||
| 23 | 174297 | 1 | LATCH | XJ | |
||
| 24 | MHE4070-100 | 1 | NUT | XJ | |
||
| 25 | 174303 | 1 | PIN | XJ | |
||
| 26 | 174326 | 1 | PIN | M3x22 | XJ | |
|
| 27 | MHE3050-100 | 1 | NUT | XJ | |
||
| 28 | MSC4070-10 | 1 | SCREW | XJ | |
||
| 29 | 174264 | 1 | STOP PLATE | XJ | |
||
| 30 | 174287 | 1 | VALVE | XJ | |
||
| 31 | 174311 | 2 | O RING | XJ | |
||
| 32 | 9R209569 | 1 | ROLL PIN | M4x35mm | XJ | |
|
| 33 | 174305 | 1 | PIN | XJ | |
||
| 34 | 177729 | 1 | MAGAZINE | XJ | |
||
| 35 | 177740 | 1 | PIN | XJ | |
||
| 36 | 174293 | 1 | ROLLER | XJ | |
||
| 37 | 174291 | 1 | SPRING | XJ | |
||
| 38 | 177723 | 1 | PUSHER | XJ | |
||
| 39 | 177707 | 1 | SLIDER SA | XJ | |
||
| 40 | TVA13 | 1 | VALVE | XJ | |
||
| 41 | 86459 | 1 | O RING | XJ | |
||
| 42 | 174278 | 1 | VALVE | XJ | |
||
| 43 | 174312 | 1 | O RING | XJ | |
||
| 44 | 102163 | 1 | O RING | XJ | |
||
| 45 | 174280 | 1 | SPRING COMPRESSION | XJ | |
||
| 46 | 174279 | 1 | SEAL | XJ | |
||
| 47 | 174281 | 1 | WASHER | XJ | |
||
| 48 | 174277 | 1 | HOUSING | XJ |  |
||
| 49 | 174282 | 1 | SEAL | XJ | |
||
| 50 | 174283 | 1 | SHAFT | XJ | |
||
| 51 | 174313 | 1 | O RING | XJ | |
||
| 52 | 108467 | 1 | O RING | XJ | |
||
| 53 | 100817 | 1 | O RING | XJ | |
||
| 54 | 174284 | 1 | SEAL | XJ | |
||
| 55 | 174276 | 1 | HOUSING | XJ | |
||
| 56 | 174285 | 2 | SCREW | M3 x 16mm | XJ | |
|
| 57 | 174269 | 1 | TRIGGER | SA | XJ | |
|
| 58 | 174268 | 1 | PIN | XJ | |
||
| 59 | 174307 | 1 | SCREW | XJ | |
||
| 60 | 174298 | 1 | RETAINER | E; | XJ | |
|
| 61 | 9R199781 | 1 | SPRING TORSION | XJ | |
||
| 62 | 9R209571 | 1 | TRIGGER | 2nd | XJ | |
|
| 63 | 86352 | 1 | PLUG | XJ | |
||
| 64 | 174267 | 1 | GAUGE | XJ | |
||
| 65 | 174322 | 1 | WRENCH SPECIAL | XJ | |
||
| 66 | 174323 | 1 | CAP | XJ | |
