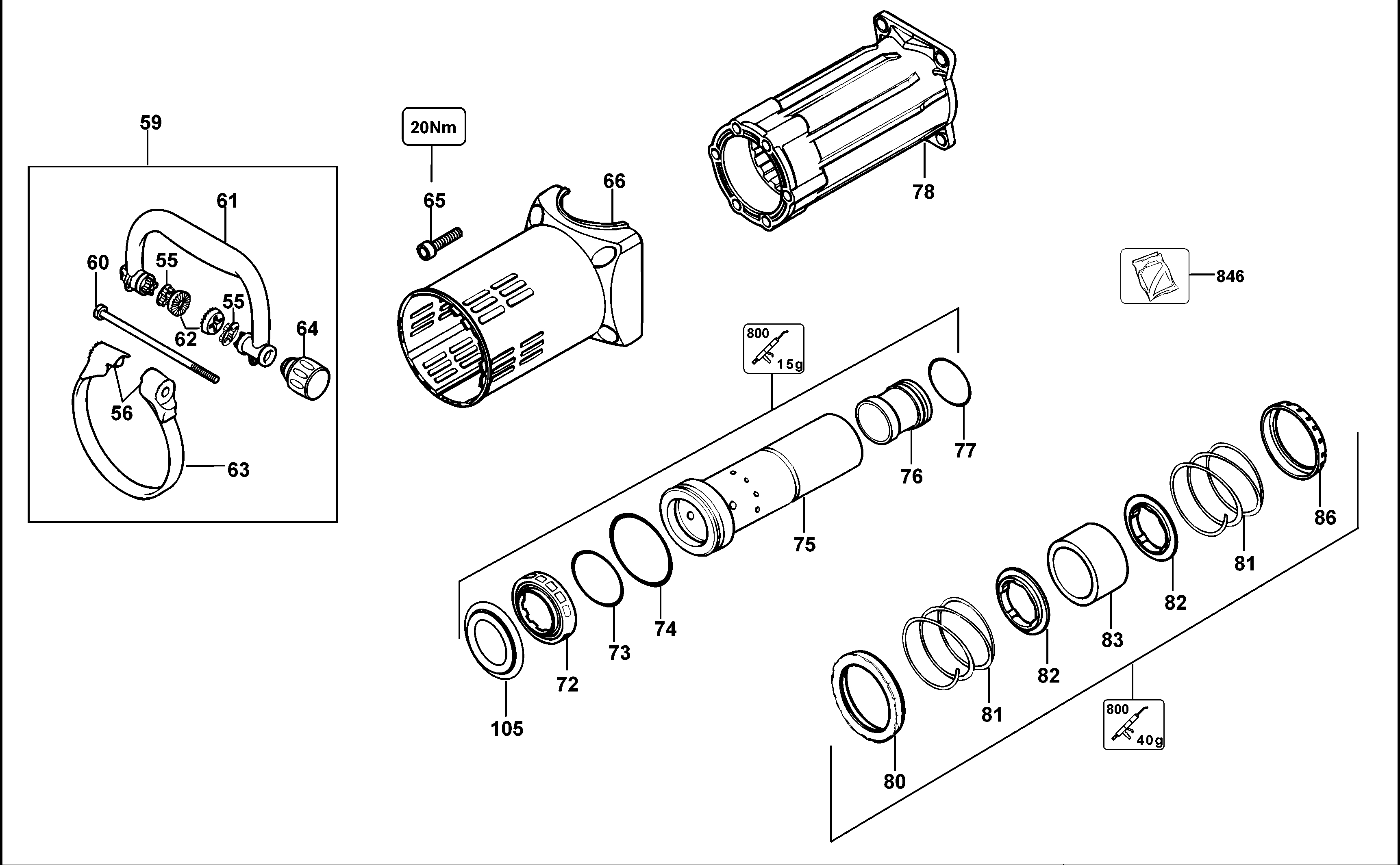

D25902K DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579837-03 | 1 | ARMATURE 120V | LX | |||
| 2 | 579827-05 | 1 | FIELD SA 115V | LX |  |
||
| 3 | 1007719-01 | 1 | BRUSH HOLDER SA | 120v | LX | |
|
| 4 | 590191-00 | 1 | SLEEVE INSULATING | LX | |
||
| 5 | 577745-00 | 1 | BEARING | LX | |
||
| 7 | 1007800-00 | 1 | SEAL | LX | |
||
| 8 | 1005550-03 | 1 | BRUSH PAIR 115V | LX | |
||
| 9 | 487377-00 | 2 | BRUSH SPRING | LX | |
||
| 10 | N542569 | 1 | FAN SA | LX | |
||
| 10 | N542569 | 1 | FAN SA | LX | |
||
| 11 | 324119-02 | 1 | SCREW | LX | |
||
| 12 | 1005637-00 | 2 | SPRING COMPRESSION | LX | |
||
| 13 | 1005640-00 | 1 | HOUSING HANDLE | LX | |
||
| 14 | 1005643-00 | 2 | BELLOWS | LX | |
||
| 15 | 1005672-00 | 2 | SCREW | LX | |
||
| 16 | 1005646-00 | 2 | TUBE GUIDE | LX | |
||
| 17 | 1005644-00 | 2 | STOP | LX | |
||
| 18 | 487326-03 | 1 | LEAD & SOCKET SA | LX | |
||
| 19 | N571294 | 1 | PLATE | HANDLE PLATE BLACK | LX | |
|
| 20 | 1005496-01 | 2 | GUIDE BUSH | LX | |
||
| 21 | N572223 | 1 | CARRIER | LX | |
||
| 22 | N485854 | 1 | SWITCH | LX | |
||
| 22 | N485854 | 1 | SWITCH | LX | |
||
| 23 | 1005645-00 | 1 | ROD | LX | |
||
| 24 | 1005641-00 | 1 | HANDLE COVER | LX | |
||
| 25 | 821070 | 1 | CORD CLAMP | LX | |
||
| 26 | 330065-08 | 7 | SCREW | M4x18 T20 | LX | |
|
| 27 | 1005942-00 | 2 | SLEEVE BEARING | LX | |
||
| 28 | 323091-01 | 1 | CORD PROTECTOR | LX | |
||
| 29 | 582319-24 | 1 | CORDSET (M/PLUG) | LX | |
||
| 29 | 582319-45 | 1 | CORDSET | LX | |
||
| 30 | 1005642-00 | 1 | COVER GEARCASE | LX | |
||
| 31 | N345479 | 1 | BRIDGE | LX | |
||
| 32 | 487224-00 | 1 | SEAL | LX | |
||
| 33 | 330065-08 | 2 | SCREW | M4x18 T20 | LX | |
|
| 34 | 324821-04 | 1 | CIRCLIP | LX | |
||
| 35 | N570313 | 1 | BEARING | LX | |
||
| 36 | 487209-01 | 1 | SEAL | LX | |
||
| 37 | 324821-03 | 1 | CIRCLIP | LX | |
||
| 38 | N542565 | 1 | CON ROD | LX | |
||
| 38 | N542565 | 1 | CON ROD | LX | |
||
| 39 | 578452-00 | 1 | SPACER | LX | |
||
| 40 | 578451-00 | 1 | SPACER | LX | |
||
| 41 | 605040-26 | 2 | BEARING | LX | |
||
| 42 | 579782-00 | 1 | GEAR | LX | |
||
| 43 | 579783-00 | 1 | GEAR | LX | |
||
| 44 | 579772-00 | 1 | GEARCASE SA | LX | |
||
| 45 | 579839-00 | 1 | CRANKSHAFT | LX | |
||
| 46 | 576451-00 | 1 | RING | LX | |
||
| 47 | 487208-00 | 1 | PIN | LX | |
||
| 48 | 581656-00 | 2 | PIN | LX | |
||
| 49 | 487213-00 | 1 | O RING | LX | |
||
| 50 | 579774-00 | 1 | PISTON | LX | |
||
| 51 | 579779-01 | 1 | PISTON KIT | LX | |
||
| 52 | 323711-47 | 1 | O RING | LX | |
||
| 53 | N147097 | 1 | COVER SA | LX | |
||
| 54 | N325419 | 1 | ELECTRONIC 120V | LX | |
||
| 55 | 479319-00 | 1 | CLAMPING INSERT | LX | |
||
| 56 | 487284-00 | 2 | WASHER CLAMP | LX | |
||
| 57 | 1005666-00 | 1 | MOTOR COVER | LX | |
||
| 58 | 324007-11 | 23 | SCREW | M5 X 18 | LX | |
|
| 59 | 1007718-00 | 1 | SIDE HANDLE | LX | |
||
| 60 | 487343-00 | 1 | BOLT | LX | |
||
| 61 | 487277-00 | 1 | HANDLE | LX | |
||
| 62 | 479317-01 | 2 | WASHER LOCK | LX | |
||
| 63 | 487281-00 | 1 | CLAMP | LX | |
||
| 64 | 487291-00 | 1 | KNOB SA | LX | |
||
| 65 | 949886-32 | 4 | SCREW | LX | |
||
| 66 | 487282-00 | 1 | COVER HOUSING | LX | |||
| 67 | 579832-00 | 1 | BEAT PIECE | LX | |
||
| 68 | 487270-00 | 1 | BUSH | LX | |
||
| 69 | 496678-00 | 1 | DAMPER | LX | |
||
| 70 | 579786-00 | 1 | BUSH | LX | |
||
| 71 | 487298-00 | 1 | O RING | LX | |
||
| 72 | 496847-00 | 1 | BUSH | LX | |
||
| 73 | 487297-00 | 1 | O RING | LX | |
||
| 74 | 323711-41 | 2 | O RING | LX | |
||
| 75 | N075954 | 1 | CYLINDER | LX | |
||
| 76 | 579780-00 | 1 | RAM | LX | |
||
| 77 | 487296-00 | 1 | O RING | LX | |
||
| 78 | 579769-00 | 1 | HOUSING FRONT | LX | |
||
| 79 | 323711-55 | 1 | O RING | LX | |
||
| 80 | 487293-00 | 1 | SPRING GUIDE | LX | |
||
| 81 | 487247-00 | 2 | SPRING | LX | |
||
| 82 | 576488-00 | 2 | SPRING GUIDE | LX | |
||
| 83 | 579781-00 | 1 | COUNTERWEIGHT | LX | |
||
| 86 | 576489-00 | 1 | SPRING GUIDE | LX | |
||
| 87 | 487238-01 | 1 | SEAL | LX | |
||
| 88 | 487205-00 | 1 | RING | LX | |
||
| 89 | 487241-00 | 1 | WASHER | LX | |
||
| 90 | 487244-00 | 1 | RUBBER | LX | |
||
| 91 | 487236-00 | 1 | SLEEVE | LX | |
||
| 92 | 579784-00 | 1 | LOCKING RING | LX | |
||
| 93 | 487218-00 | 1 | SPRING | LX | |
||
| 94 | 487249-00 | 1 | BUSH | LX | |
||
| 95 | 489672-00 | 2 | KEY | LX | |
||
| 96 | 487240-00 | 1 | BUSHING | LX | |
||
| 97 | 487216-00 | 1 | SPRING | LX | |
||
| 98 | 487268-00 | 1 | SPRING GUIDE | LX | |
||
| 99 | 487289-00 | 1 | SPRING | LX | |
||
| 100 | N542567 | 1 | SLEEVE SA | LX | |
||
| 100 | N542567 | 1 | SLEEVE SA | LX | |
||
| 101 | 487237-00 | 1 | SLEEVE | LX | |
||
| 102 | 918825-02 | 6 | SCREW | LX | |
||
| 103 | 579778-00 | 1 | FLANGE | LX | |
||
| 104 | 323711-15 | 1 | O RING | LX | |
||
| 105 | 496677-00 | 1 | DAMPER | LX | |
||
| 107 | 579773-00 | 1 | SPINDLE SA | LX | |
||
| 108 | N014007 | 1 | SEAL | LX | |
||
| 109 | 487287-00 | 1 | O RING | LX | |
||
| 110 | 1007543-00 | 1 | BEARING BUSH | LX | |
||
| 112 | 487392-00 | 1 | LABEL | LX | |
||
| 120 | 330003-68 | 1 | BEARING | LX | |
||
| 130 | 330003-69 | 1 | BEARING | LX | |
||
| 800 | 578970-06 | 1 | GREASE 150 GMS | 145gms | LX | |
|
| 802 | 870889-02 | 1 | GREASE | LX | |
||
| 821 | N323701 | 1 | RATING LABEL | LX | |
||
| 826 | 487395-01 | 1 | LABEL | LX | |
||
| 836 | 559617-99 | 1 | S.T.SUPPORT JIG | Crank Gear removal. | LX | |
|
| 837 | 559618-99 | 1 | S.T.SUPPORT JIG | Motor assembly jig | LX | |
|
| 838 | 559621-99 | 1 | SERVICE TOOL | Armature brg tool | LX | |
|
| 840 | 559619-99 | 1 | S.T.CIRCLIP REMOVER | Snap ring assy tool. | LX | |
|
| 845 | 559620-99 | 1 | S.T.SEAL FITTING TOOL | Spindle seal tool | LX | |
|
| 846 | 1008773-00 | 1 | SERVICE KIT 120V | LX |  |
||
| 855 | 351087-01 | 1 | BIT | LX | |
||
| 861 | 487353-04 | 1 | KITBOX | LX | |
