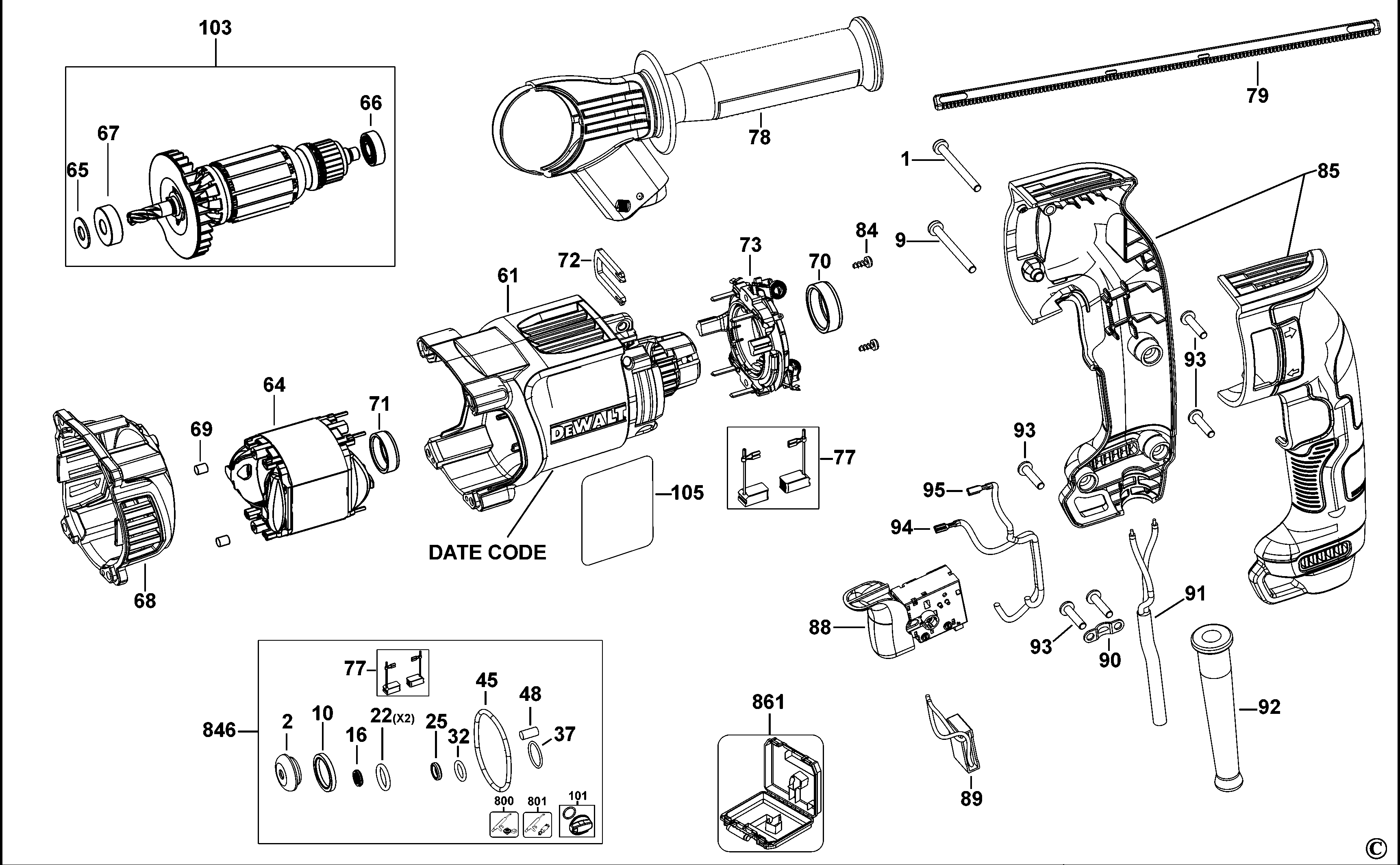

D25134 ROTARY HAMMER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N325879 | 1 | SCREW | GB |  |
||
| 2 | 323489-00 | 1 | CAP | GB | |
||
| 3 | 579212-00 | 1 | RING | GB | |
||
| 4 | N850185 | 1 | TUBE | GB | |
||
| 5 | 583890-00 | 1 | BALL | GB | |
||
| 6 | 578387-00 | 1 | WASHER | GB | |
||
| 7 | 871690 | 1 | SPRING | GB | |
||
| 9 | 330065-16 | 1 | SCREW | GB | |
||
| 10 | 577812-00 | 1 | SEAL | GB | |
||
| 11 | 577813-00 | 1 | BEARING NEEDLE | GB | |
||
| 13 | 577814-00 | 1 | WASHER | GB | |
||
| 15 | N560037 | 1 | BEARING & SEAL | GB |  |
||
| 16 | 577139-00 | 1 | SEAL | GB | |
||
| 17 | 577814-00 | 1 | WASHER | GB | |
||
| 18 | N322087 | 1 | SPRING | GB | |
||
| 19 | N417736 | 1 | LOCKING RING | GB | |
||
| 20 | N417740 | 1 | GEAR | GB | |
||
| 21 | 581836-00 | 1 | LOCKING RING | GB | |
||
| 22 | 577135-00 | 1 | O RING | GB | |
||
| 23 | 577130-00 | 1 | DAMPER | GB | |
||
| 24 | N403105 | 1 | BEAT PIECE | GB | |
||
| 25 | 580990-00 | 1 | O RING | GB | |
||
| 26 | N401306 | 1 | WASHER | GB | |
||
| 27 | N361759 | 1 | CLIP | GB | |
||
| 28 | N059509 | 1 | WASHER | GB | |
||
| 29 | N417747 | 1 | BEARING | GB | |
||
| 32 | 579699-00 | 1 | O RING | GB | |
||
| 33 | N417751 | 1 | PISTON | GB | |
||
| 34 | N325040 | 1 | WASHER | GB | |
||
| 35 | N325041 | 1 | BEARING SPINDLE | GB | |
||
| 36 | N495867 | 1 | HOUSING BEARING | GB | |
||
| 37 | N264673 | 1 | O RING | GB | |
||
| 38 | N418018 | 1 | INTERSHAFT SA | GB | |
||
| 44 | 1005844-00 | 1 | WASHER | GB | |
||
| 45 | N264672 | 1 | O RING | GB | |
||
| 47 | N417860 | 1 | GEAR | GB | |
||
| 48 | 1005812-00 | 1 | FELT | GB | |
||
| 49 | N445171 | 2 | SCREW | GB | |
||
| 50 | 324006-15 | 3 | SCREW | GB | |
||
| 51 | N323101 | 1 | PLATE | GB | |
||
| 52 | 1005795-00 | 1 | SPRING | GB | |
||
| 53 | N476832 | 4 | SCREW | GB | |
||
| 55 | N091381-00 | 1 | O RING | GB | |
||
| 61 | N481043 | 1 | HOUSING MOTOR | GB | |
||
| 64 | N484765 | 1 | FIELD 230V | 40MM HV | GB | |
|
| 65 | N245239 | 1 | WASHER | GB | |
||
| 66 | 605040-02 | 1 | BEARING | GB | |
||
| 67 | 330003-60 | 1 | BEARING | GB | |
||
| 68 | N344965 | 1 | BAFFLE | GB | |
||
| 69 | N012971 | 2 | RUBBER PAD | GB | |
||
| 70 | N442577 | 1 | RING | GB | |
||
| 70 | 1005856-00 | 1 | RING | GB | |
||
| 71 | N442578 | 1 | COVER BEARING | GB | |
||
| 71 | 1005865-00 | 1 | COVER BEARING | GB | |
||
| 72 | 1005894-00 | 1 | CLIP | GB | |
||
| 73 | N418033 | 1 | BRUSH HOLDER SA | GB | |
||
| 77 | N418039 | 1 | BRUSH PAIR 230V | EURO | GB | |
|
| 78 | 1008956-00 | 1 | HANDLE SIDE SA | GB | |
||
| 79 | 798846-02 | 1 | DEPTH STOP | GB | |
||
| 84 | N086775 | 1 | SCREW | GB | |
||
| 85 | N418013 | 1 | HANDLE SA | GB | |
||
| 88 | N364920 | 1 | SWITCH 240V | NON LOCK ON | GB | |
|
| 89 | 320842-19 | 1 | CAPACITOR | GB | |
||
| 90 | 821070 | 1 | CORD CLAMP | GB | |
||
| 91 | 582319-32 | 1 | CORDSET | GB | |
||
| 92 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 92 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 93 | 330065-08 | 5 | SCREW | M4x18 T20 | GB | |
|
| 94 | 1005879-00 | 1 | LEAD BLUE | GB | |
||
| 95 | 1005879-01 | 1 | LEAD RED | GB | |
||
| 101 | N417861 | 1 | SELECTOR SA | GB | |
||
| 102 | N418036 | 1 | RAM SA | GB | |
||
| 103 | N566901 | 1 | ARMATURE 230V | GB | |
||
| 104 | N417853 | 1 | COLLAR | GB | |
||
| 105 | N435431 | 1 | RATING PLATE | GB | GB | |
|
| 114 | N418051 | 1 | SPINDLE SA | GB | |
||
| 118 | N417733 | 1 | HOUSING FRONT | GB | |
||
| 119 | 577795-00 | 1 | RING | GB | |
||
| 131 | N403110 | 1 | SPINDLE LOCK | GB | |
||
| 134 | 583890-00 | 4 | BALL | GB | |
||
| 137 | N515033 | 1 | CIRCLIP | GB | |
||
| 137 | N091710 | 1 | CIRCLIP | GB | |
||
| 140 | N403111 | 1 | HOLDER TOOL | GB | |
||
| 145 | N403112 | 1 | SPINDLE | GB | |
||
| 146 | N403284 | 1 | SPINDLE SA | GB | |
||
| 147 | 582512-02 | 1 | CHUCK KEYLESS | GB | |
||
| 148 | 605256-02 | 1 | SCREW | GB | |
||
| 150 | N403113 | 1 | CHUCK & SPINDLE SA | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 836 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | GB | |
||
| 836 | 1003926-99 | 1 | S.T.INSERT | GB | |
||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 846 | N418457 | 1 | SERVICE KIT 230V | GB | |
||
| 861 | N440493 | 1 | KITBOX | TSTAK | GB | |
