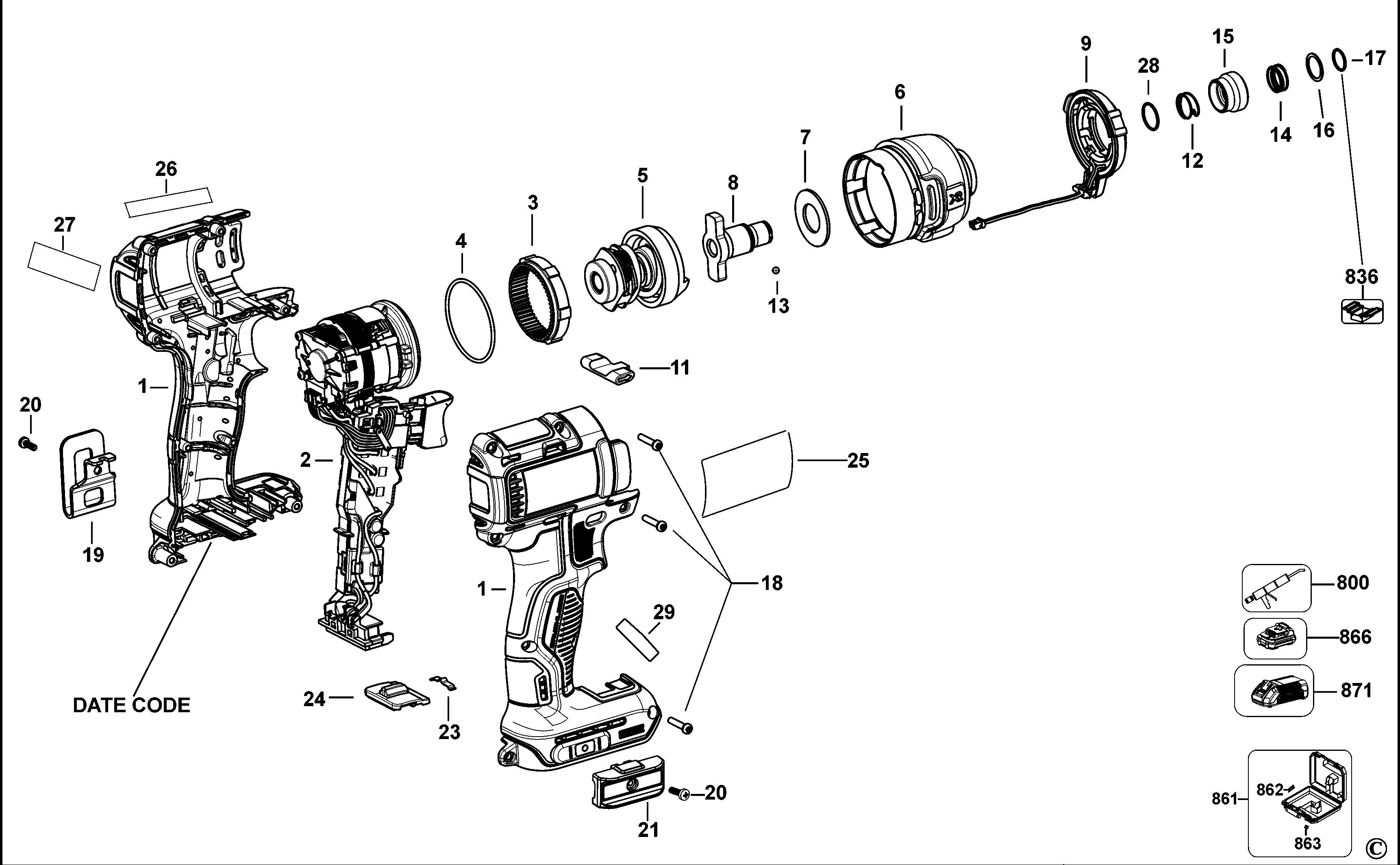

DCF887 IMPACT DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N425910 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N439264 | 1 | MOTOR & SWITCH SA | 18V | GB | ||
| 3 | N112877 | 1 | GEAR | GB | |
||
| 4 | N075339 | 1 | O RING | GB | |
||
| 5 | N439270 | 1 | IMPACTOR | GB | |
||
| 6 | N439271 | 1 | NOSE SA | GB | |
||
| 7 | 642883-00C | 1 | WASHER | GB | |
||
| 8 | N439275 | 1 | ANVIL ASSEMBLY | GB | |
||
| 9 | N424434 | 1 | LED LIGHT | GB | |
||
| 11 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 12 | N437890 | 1 | SPRING | GB | |
||
| 13 | N089668 | 1 | BALL STEEL | GB | |
||
| 14 | N019351 | 1 | SPRING | GB | |
||
| 15 | N612522 | 1 | SLEEVE | GB | |
||
| 16 | N016823 | 1 | WASHER | GB | |
||
| 17 | N421245 | 1 | RING | GB | |
||
| 18 | 682211-00 | 8 | SCREW | GB | |
||
| 19 | N086039 | 1 | HOOK | GB | |
||
| 20 | N042665 | 2 | SCREW | GB | |
||
| 21 | N095778 | 1 | HOLDER BIT | GB | |
||
| 23 | N087259 | 1 | DETENT | GB | |
||
| 24 | N046201 | 1 | SELECTOR | GB | |
||
| 25 | N792588 | 1 | RATING PLATE | EURO | GB | ||
| 26 | N237999 | 1 | LABEL | 18V | GB | |
|
| 27 | N298039 | 1 | LABEL | GB | |
||
| 28 | N424032 | 1 | RING | GB | |
||
| 29 | N514607 | 1 | LABEL | Label Sheet | GB | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 836 | 1003940-99 | 1 | S.T.CIRCLIP INSERTER | GB | |
||
| 861 | N442424 | 1 | KITBOX | GB |  |
||
| 861 | N442425 | 1 | KITBOX | GB | |
||
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | DCF887-D2 | GB | |
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCF887-P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
