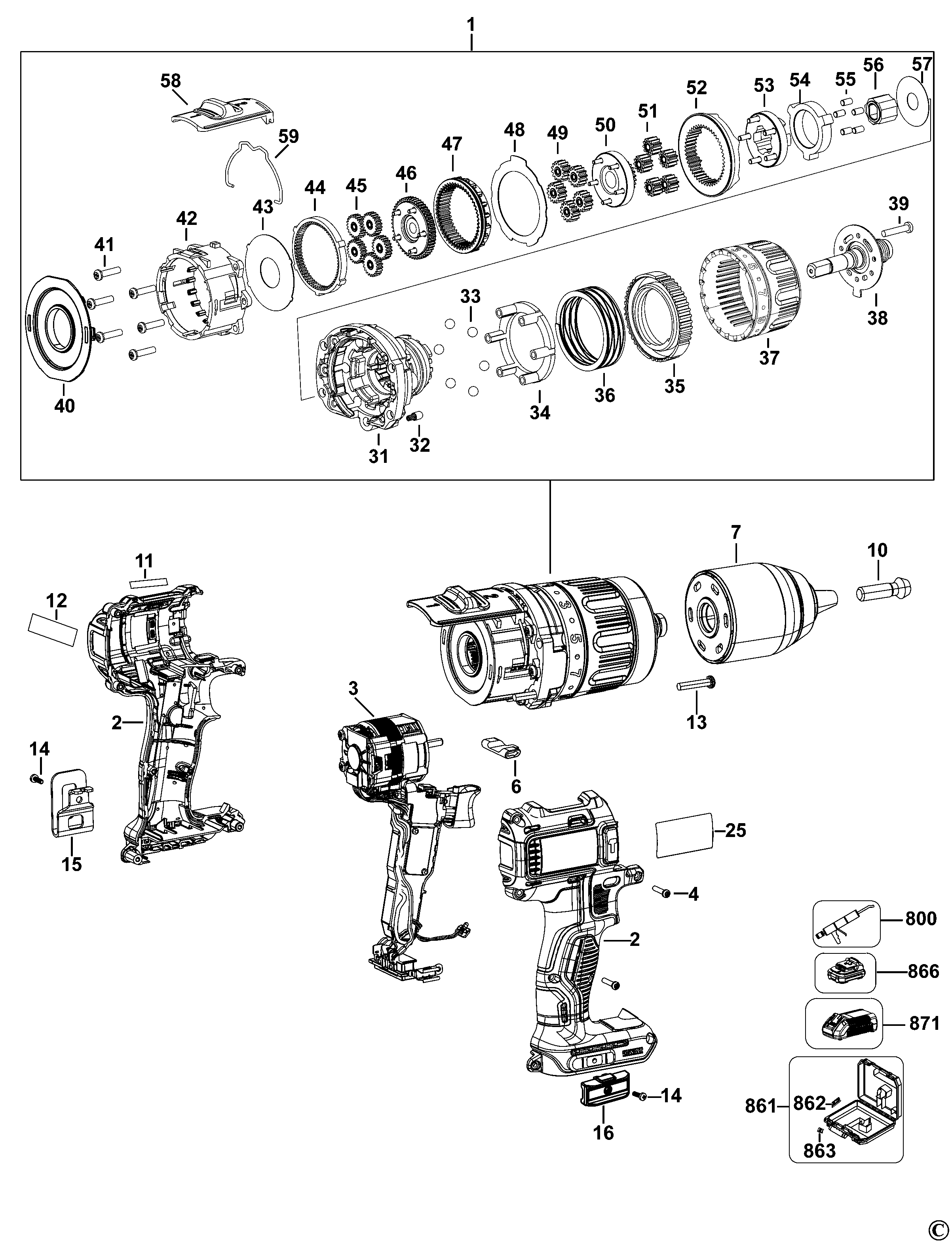

DCD790 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N287496 | 1 | TRANSMISSION SA | GB |  |
||
| 2 | N181495 | 1 | CLAMSHELL SET | 18V | GB | |
|
| 3 | N434176 | 1 | MOTOR & SWITCH SA | 18V SBS | GB | ||
| 4 | 682211-00 | 7 | SCREW | GB | |
||
| 6 | N079835 | 1 | ACTUATOR FWD/REV | GB | |
||
| 7 | N485661 | 1 | CHUCK KEYLESS | GB | |
||
| 10 | N092854 | 1 | SCREW | GB | |
||
| 11 | N237999 | 1 | LABEL | 18V | GB | |
|
| 12 | N298039 | 1 | LABEL | GB | |
||
| 13 | N377990 | 4 | SCREW | GB | |
||
| 14 | N042665 | 2 | SCREW | GB | |
||
| 15 | N086039 | 1 | HOOK | GB | |
||
| 16 | N095778 | 1 | HOLDER BIT | GB | |
||
| 25 | N218572 | 1 | RATING PLATE | GB | |
||
| 31 | N299702 | 1 | GEARCASE SA | GB | |
||
| 32 | 326467-00 | 1 | DETENT | GB | |
||
| 33 | 386690-00 | 6 | BALL | STEEL, 5MM | GB | |
|
| 34 | N036370 | 1 | RING | GB | |
||
| 35 | N036372 | 1 | ADJUSTER TORQUE | GB | |
||
| 36 | N077956 | 1 | SPRING | GB | |
||
| 37 | N181496 | 1 | COLLAR | GB | |
||
| 38 | N110038 | 1 | SPINDLE SA | GB | |
||
| 39 | N039795 | 6 | SCREW | GB | |
||
| 40 | N148081 | 1 | ADAPTOR | GB | |
||
| 41 | N075506 | 6 | SCREW | GB | |
||
| 42 | N033869 | 1 | GEARCASE | GB | |
||
| 43 | N063567 | 1 | PLATE | GB | |
||
| 44 | N030988 | 1 | GEAR | 1ST RED | GB | |
|
| 45 | N030999 | 5 | GEAR | GB | |
||
| 46 | N124371 | 1 | CARRIER SA | GB | |
||
| 47 | N031079 | 1 | GEAR | GB | |
||
| 48 | N032409 | 1 | WASHER | GB | |
||
| 49 | N031080 | 5 | GEAR | GB | |
||
| 50 | N122400 | 1 | CARRIER SA | GB | |
||
| 51 | N031083 | 5 | GEAR | GB | |
||
| 52 | N078410 | 1 | GEAR | GB | |
||
| 53 | N122401 | 1 | CARRIER SA | GB | |
||
| 54 | N022985 | 1 | LOCKING RING | GB | |
||
| 55 | N093416 | 5 | ROLLER | GB | |
||
| 56 | N157720 | 1 | ANVIL ASSEMBLY | GB | |
||
| 56 | N157720 | 1 | ANVIL ASSEMBLY | GB | |
||
| 57 | N090435 | 1 | WASHER | GB | |
||
| 58 | N035051 | 1 | SELECTOR SA | GB | |
||
| 59 | N035441 | 1 | WIRE STEEL | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 861 | N312361 | 1 | KITBOX | D2 - T-STAK | DCD790D2 | GB |  |
| 861 | N197072 | 1 | KITBOX | GB | |
||
| 861 | N312360 | 1 | KITBOX | P2-M2-NT - T-STAK | DCD790M2-P2-NT | GB | |
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | DCD790D2 | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCD790M2 | GB | |
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCD790P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
