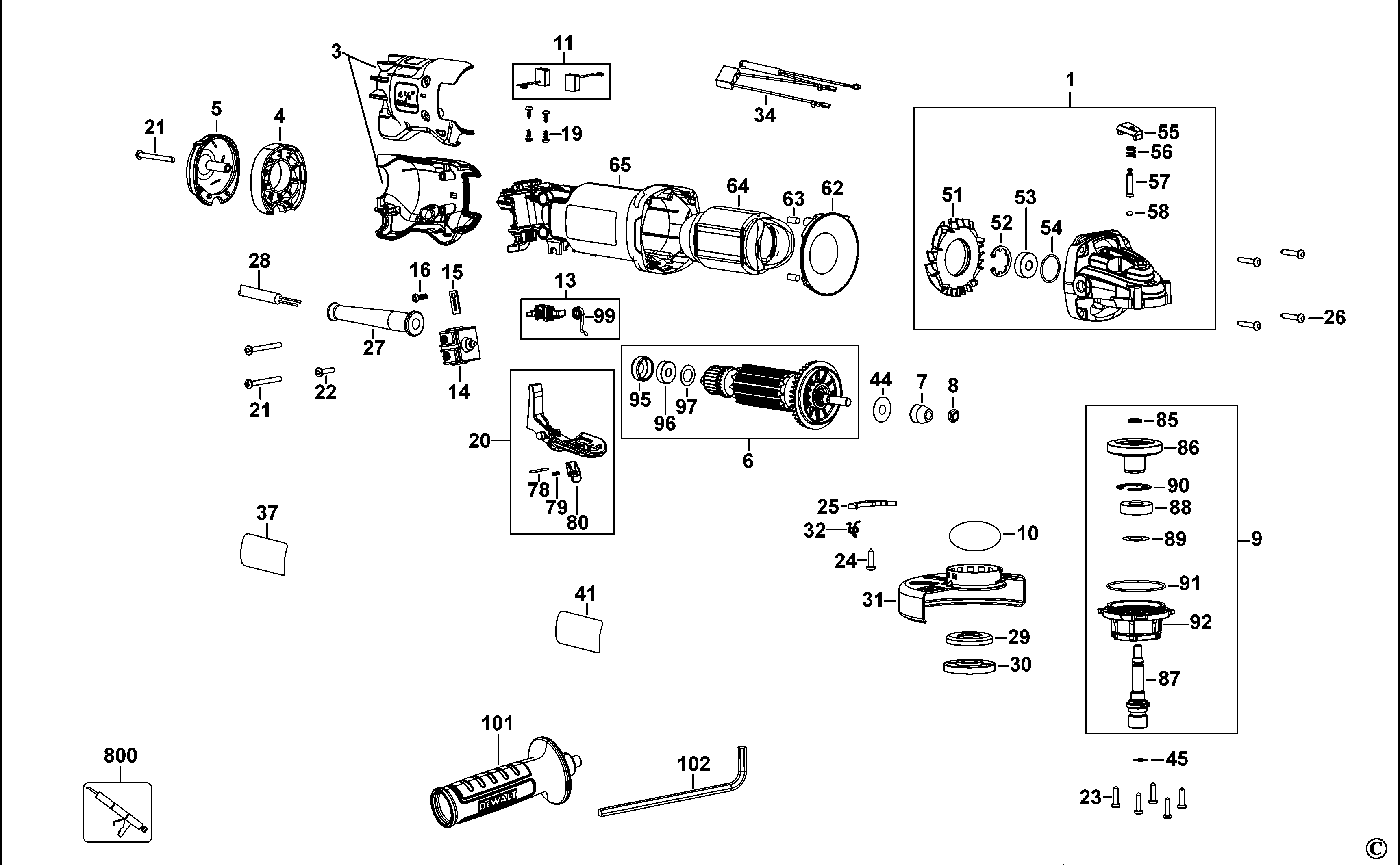

DWE4202 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N413331 | 1 | GEARCASE SA | GB |  |
||
| 3 | N393706 | 1 | HOUSING SA | GB | |
||
| 4 | N401671 | 1 | DUST PORT | GB | |||
| 5 | N400902 | 1 | END CAP | GB | |
||
| 6 | N421696 | 1 | ARMATURE 220/240V | GB | |||
| 7 | N375339 | 1 | PINION | 10T | GB | |
|
| 8 | N372039 | 1 | NUT | M7 | GB | |
|
| 9 | N421526 | 1 | SPINDLE SA | M14 | GB | |
|
| 10 | N355619 | 1 | O RING | 1.5x34 | GB | |
|
| 11 | N421362 | 1 | BRUSH PAIR 230V | EURO | GB | ||
| 13 | N413349 | 2 | BRUSHBOX SA | GB | |
||
| 14 | N396008 | 1 | SWITCH | GB | |
||
| 15 | 619328-00 | 1 | CORD CLAMP | GB | |
||
| 16 | 330065-06 | 1 | SCREW | GB | |
||
| 19 | 593478-00 | 4 | SCREW | M3 X 8 | GB |  |
|
| 20 | N413352 | 1 | PADDLE | GB | |
||
| 21 | N389438 | 3 | SCREW | M4x40 PLSTC THD FMG | GB | |
|
| 22 | 330065-08 | 1 | SCREW | M4x18 T20 | GB | |
|
| 23 | 330045-06 | 5 | SCREW | GB | |
||
| 24 | N297219 | 1 | SCREW | M4 | GB | |
|
| 25 | N136731 | 1 | LEVER | GB | |
||
| 26 | N371839 | 4 | SCREW | M4x22 PLSTC THDFMG | GB | |
|
| 27 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 27 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 28 | N382230 | 1 | CORDSET (M/PLUG) GB | GB | GB | ||
| 29 | 391969-00 | 1 | INNER FLANGE | GB | |
||
| 30 | N419748 | 1 | OUTER FLANGE | M14 | GB | |
|
| 31 | N377859 | 1 | GUARD | 115MM Typ 27 | GB | |
|
| 32 | N291619 | 1 | SPRING | GB | |
||
| 34 | N349959 | 1 | CAPACITOR | EMI | GB | |
|
| 37 | N400392 | 1 | BRAND LABEL | GB | |
||
| 41 | N409666 | 1 | RATING PLATE | GB | GB | |
|
| 44 | N213812 | 1 | WASHER | GB | |
||
| 45 | N420261 | 1 | O RING | GB | |
||
| 51 | N401958 | 1 | DEFLECTOR | GB | |
||
| 52 | N398877 | 1 | CIRCLIP | INTERNAL | GB | |
|
| 53 | N175104 | 1 | BEARING | GB | |
||
| 54 | N119639 | 1 | O RING | GB | |
||
| 55 | N278899 | 1 | BUTTON | SPINDLE | GB | |
|
| 56 | N263579 | 1 | SPRING | GB | |
||
| 57 | N481683 | 1 | LOCK PIN | GB | |
||
| 58 | N263699 | 1 | O RING | GB | |
||
| 62 | N265479 | 1 | BAFFLE | GB | |
||
| 63 | 949638-02 | 2 | DAMPER | GB | |
||
| 64 | N421357 | 1 | FIELD 230V | HV | GB | ||
| 65 | N369341 | 1 | FIELDCASE | GB | |
||
| 78 | 099204-14 | 1 | ROLL PIN | GB | |
||
| 79 | 150264-01 | 1 | SPRING | GB | |
||
| 80 | 397657-00 | 1 | LEVER LOCK-OFF | Lock Off | GB | |
|
| 85 | 444793-00 | 1 | CIRCLIP | GB | |
||
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | GB | |
|
| 87 | N163702 | 1 | SPINDLE | M14 | GB | |
|
| 88 | 605040-24 | 1 | BEARING | GB | |
||
| 89 | N400478 | 1 | WASHER | GB | |
||
| 90 | N389985 | 1 | RING | GB | |
||
| 91 | N307625 | 1 | O RING | GB | |
||
| 92 | N269901 | 1 | GEARCASE COVER | GB | |
||
| 95 | 641823-00 | 1 | SLEEVE | GB | |
||
| 96 | N130916 | 1 | BEARING | GB | |
||
| 97 | N324400 | 1 | WASHER | GB | |
||
| 99 | N273780 | 2 | SPRING | GB | |
||
| 101 | N382311 | 1 | SIDE HANDLE | GB | |
||
| 102 | N107295 | 1 | HEX KEY | 6 mm | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
