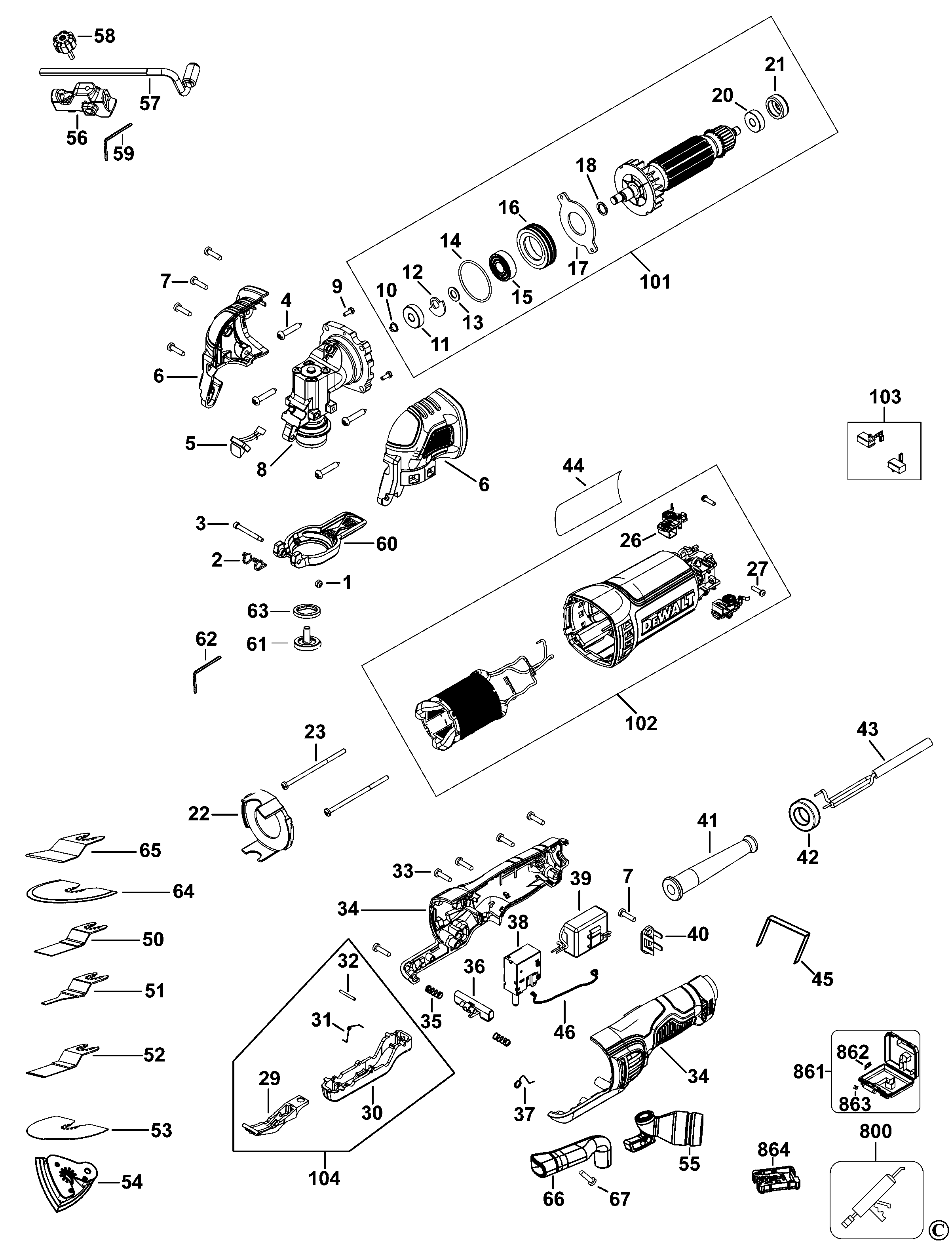

DWE315 MULTITOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N243985 | 1 | NUT | GB |  |
||
| 2 | N140357 | 1 | SPRING | GB | |
||
| 3 | N175484 | 1 | SCREW | GB | |
||
| 4 | 330065-09 | 4 | SCREW | GB | |
||
| 5 | N174364 | 1 | LED | GB | |
||
| 6 | N244602 | 1 | CLAMSHELL SA | GB | |
||
| 7 | 330019-03 | 5 | SCREW | GB | |
||
| 8 | N341719 | 1 | HEAD SA | GB | |
||
| 9 | 330045-43 | 2 | SCREW | GB | |
||
| 10 | N146423 | 1 | CLIP | GB | |
||
| 11 | N140406 | 1 | BEARING | GB | |
||
| 12 | N146420 | 1 | BALANCE WEIGHT | GB | |
||
| 13 | N146421 | 1 | WASHER | GB | |
||
| 14 | N150641 | 1 | O RING | GB | |
||
| 15 | N129813-03 | 1 | BEARING,BALL | GB | |
||
| 16 | N140388 | 1 | BOOT | GB | |
||
| 17 | N146419 | 1 | PLATE | GB | |
||
| 18 | 444793-00 | 1 | CIRCLIP | GB | |
||
| 20 | 605040-02 | 1 | BEARING | GB | |
||
| 21 | 641823-00 | 1 | SLEEVE | GB |  |
||
| 22 | N156660 | 1 | BAFFLE FAN | GB | |
||
| 23 | 330065-29 | 2 | SCREW | GB | |
||
| 26 | N174542 | 2 | BRUSH HOLDER SA | GB | |
||
| 27 | 593478-00 | 2 | SCREW | M3 X 8 | GB | |
|
| 29 | N158999 | 1 | TRIGGER | GB | |
||
| 30 | N213752 | 1 | TRIGGER | GB | |
||
| 31 | N230817 | 1 | SPRING | GB | |
||
| 32 | N230818 | 1 | PIN | GB | |
||
| 33 | 90611830 | 5 | SCREW | GB | |
||
| 34 | N244599 | 1 | HOUSING HANDLE | GB | |
||
| 35 | N157740 | 2 | SPRING | GB | |
||
| 36 | N157511 | 1 | LOCK BUTTON | GB | |
||
| 37 | N230816 | 1 | SPRING | GB | |
||
| 38 | N059508 | 1 | SWITCH VARIABLE | GB | |
||
| 39 | N175102 | 1 | PCB SA | GB | |
||
| 40 | 652147-00 | 1 | CORD CLAMP | GB | |||
| 41 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 41 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 42 | N292620 | 1 | RING | GB | |
||
| 43 | N235921 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 44 | N793202 | 1 | RATING PLATE | GB | GB | |
|
| 45 | N363619 | 1 | SHIELD | GB | |
||
| 46 | N225478 | 1 | LEADWIRE | GB | |
||
| 50 | N333599 | 1 | BLADE | GB | |
||
| 51 | N333619 | 1 | BLADE | GB | |
||
| 52 | N275319 | 1 | BLADE | GB | |
||
| 53 | N251926 | 1 | BLADE | GB | |
||
| 54 | N271240 | 1 | PLATEN | GB | |
||
| 55 | N277679 | 1 | DUST PORT | GB | |
||
| 56 | N275350 | 1 | BLOCK SA | GB | |
||
| 57 | N275341 | 1 | DEPTH STOP | GB | |
||
| 58 | N278801 | 1 | KNOB SA | GB | |
||
| 59 | N285879 | 1 | HEX KEY | GB | |
||
| 60 | N159295 | 1 | LEVER LOCK | GB | |
||
| 61 | N544197 | 1 | OUTER FLANGE | GB | |
||
| 62 | 90584745 | 1 | WRENCH SPECIAL | GB | |
||
| 63 | N440293 | 1 | FLANGE | GB | |
||
| 64 | N342939 | 1 | BLADE - CARBIDE | GB | |
||
| 65 | N251931 | 1 | BLADE - RIGID SCRAPER | GB | |
||
| 66 | N278060 | 1 | DUST PORT | GB | |
||
| 67 | N291362 | 1 | SCREW | GB | |
||
| 101 | N342740 | 1 | ARMATURE SA | GB | |
||
| 102 | N342739 | 1 | FIELDCASE SA | GB | |
||
| 103 | N343600 | 1 | BRUSH PAIR 230V | GB | |
||
| 104 | N213752 | 1 | TRIGGER | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 861 | N279261 | 1 | KITBOX | GB | |
||
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 864 | N278059 | 1 | INSERT | GB | |
