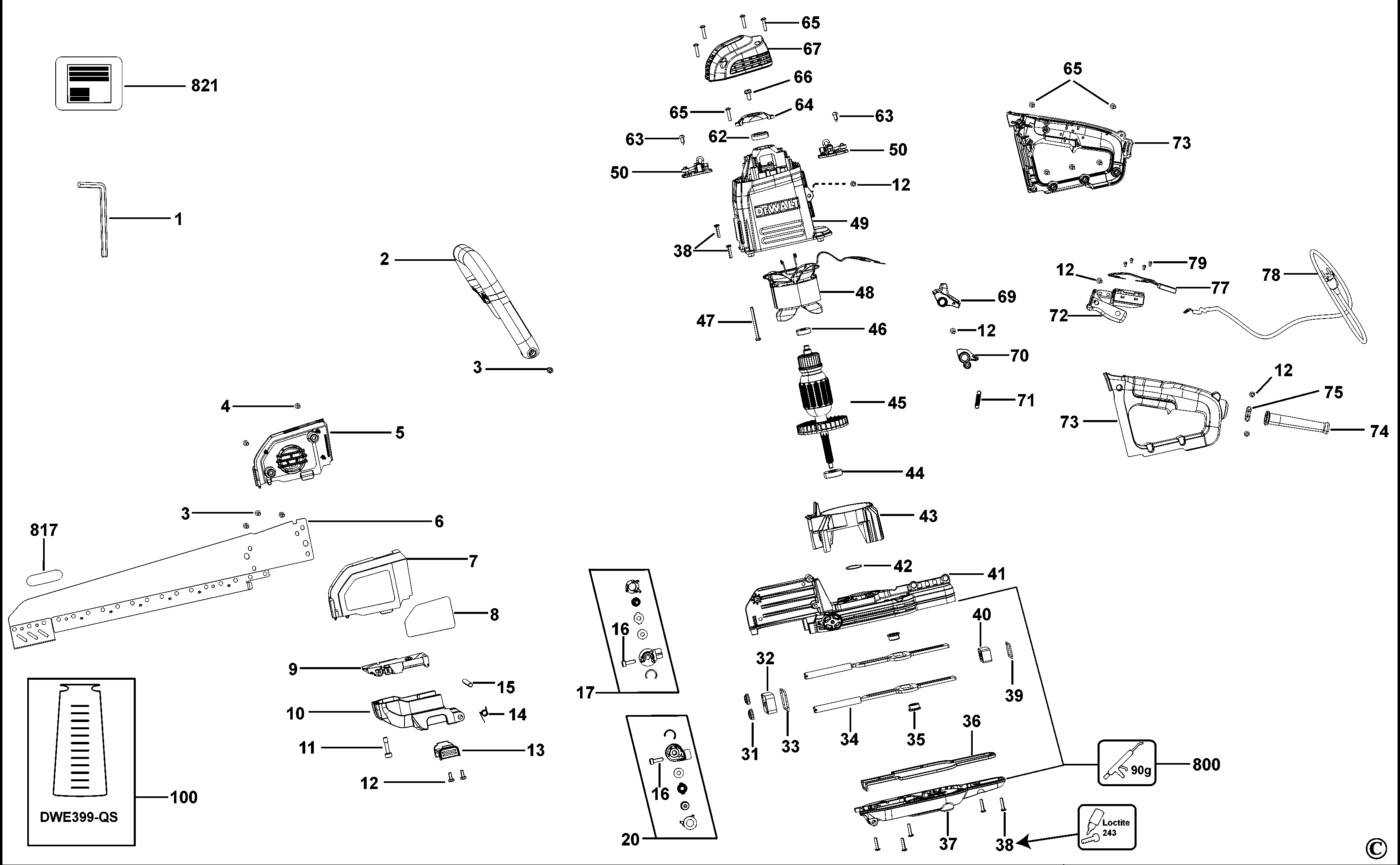

DWE399 UNIVERSAL SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 098000-11 | 1 | HEX KEY | GB |  |
||
| 2 | N097478 | 1 | LOOP HANDLE | GB | |
||
| 3 | 324007-11 | 4 | SCREW | M5 X 18 | GB | |
|
| 4 | 330019-21 | 2 | SCREW.TEMP | GB | |
||
| 5 | N507804 | 1 | COVER RH | GB | |
||
| 6 | N233859 | 1 | BAR | 17in | GB | |
|
| 7 | N507803 | 1 | COVER LH | GB | |
||
| 8 | N217152 | 1 | LABEL | GB | |
||
| 9 | N201132 | 1 | FUNNEL | GB | |
||
| 10 | N092157 | 1 | CAP | GB | |||
| 11 | N125628 | 1 | SCREW | Tension | GB | |
|
| 12 | 330065-06 | 7 | SCREW | GB | |
||
| 13 | N127049 | 1 | GRIP | GB | |
||
| 14 | N119853 | 1 | SPRING TORSION | GB | |
||
| 15 | N095820 | 1 | PIN | 6mm | GB | |
|
| 16 | N141827 | 2 | SCREW | M5 X 16 | GB | |
|
| 17 | N516826 | 1 | CLAMP SA RH | GB | |||
| 20 | N915018 | 1 | CLAMP SA LH | GB | |
||
| 20 | N516827 | 1 | CLAMP SA LH | GB | |||
| 31 | N093430 | 2 | SEAL | GB | |
||
| 32 | N077123 | 1 | BEARING | GB | |
||
| 33 | 323711-41 | 1 | O RING | GB | |
||
| 34 | N233863 | 2 | SHAFT | GB | |
||
| 35 | N233864 | 2 | BEARING SA | GB | |
||
| 36 | N093431 | 1 | SEAL | GB | |
||
| 37 | N233865 | 1 | GEARCASE COVER SA | GB | |
||
| 38 | 324007-11 | 9 | SCREW | M5 X 18 | GB | |
|
| 39 | 577744-00 | 1 | O RING | 25.5 X 2 | GB | |
|
| 40 | N077124 | 1 | BEARING | GB | |
||
| 41 | N233866 | 1 | GEARCASE SA | GB | |
||
| 42 | N165967 | 1 | O RING | 27.5 X 2.5 | GB | |
|
| 43 | N097710 | 1 | BAFFLE FAN | GB | |
||
| 44 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | GB | |
|
| 46 | 330003-60 | 1 | BEARING | GB | |
||
| 47 | 330065-21 | 2 | SCREW | GB | |
||
| 49 | N088950 | 1 | HOUSING MOTOR | GB | |
||
| 62 | 1007732-00 | 1 | SLEEVE | GB | |
||
| 64 | N114803 | 1 | HOUSING BEARING | GB | |
||
| 65 | 330065-08 | 11 | SCREW | M4x18 T20 | GB | |
|
| 66 | 324119-02 | 1 | SCREW | GB | |
||
| 67 | N089033 | 1 | END CAP | GB | |
||
| 69 | N092849 | 1 | SWITCH LOCK OFF | GB | |
||
| 70 | N113779 | 1 | CABLE GUIDE | GB | |
||
| 71 | N097616 | 1 | SPRING TORSION | GB | |
||
| 72 | N174721 | 1 | SWITCH | GB | |
||
| 73 | N454961 | 1 | HANDLE SA | GB | |
||
| 74 | 584090-00 | 1 | CORD PROTECTOR | GB | |||
| 75 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 79 | N194430 | 4 | SCREW | 6/32 x 4.7 | GB | |
|
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 817 | N381771 | 1 | LABEL | GB | |
