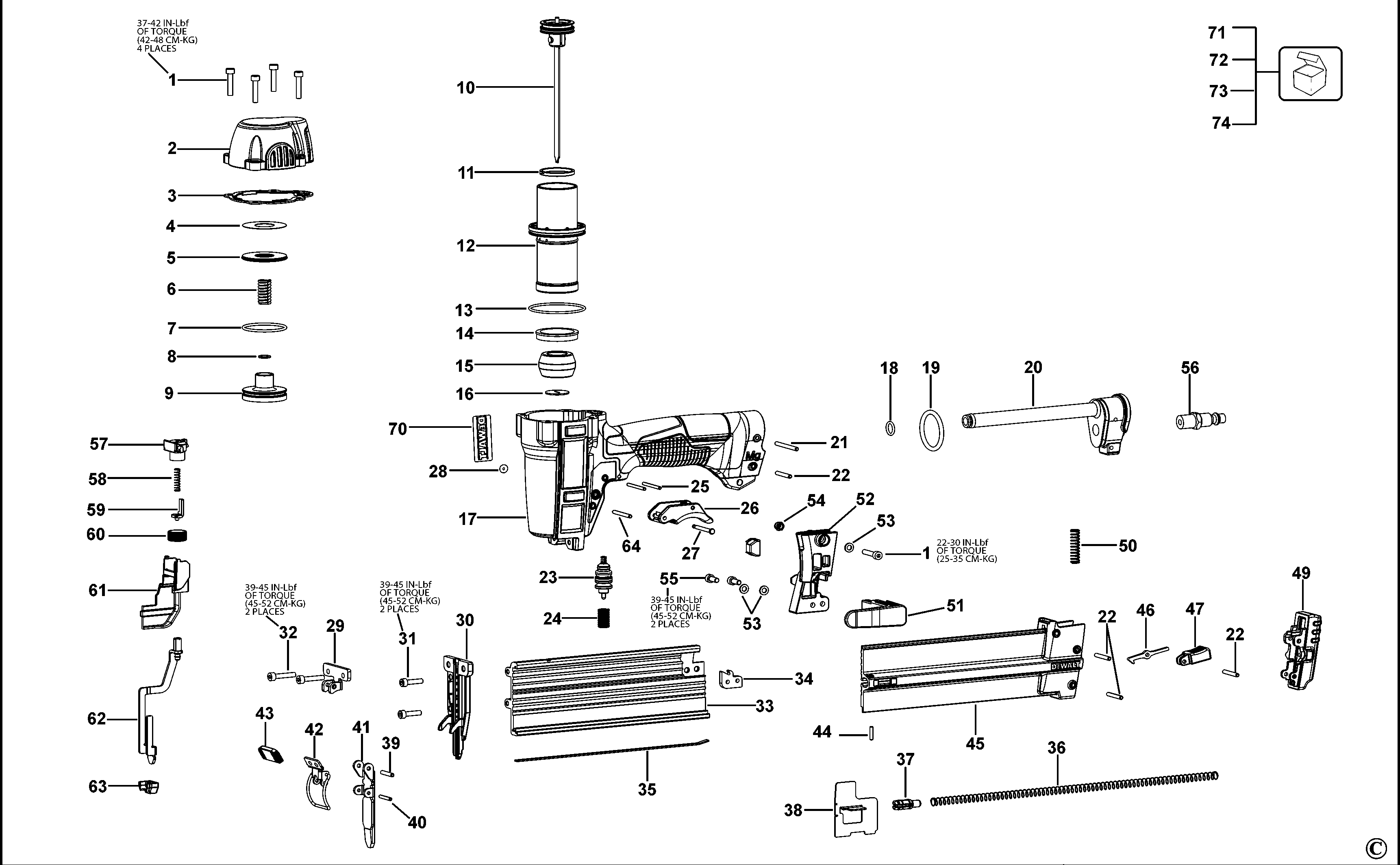

DPN1850 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 182237 | 1 | SCREW | XJ |  |
||
| 2 | 9R195614 | 1 | END CAP | XJ | |
||
| 3 | 9R195626 | 1 | GASKET | XJ | |
||
| 4 | 180445 | 1 | PLATE | XJ | |||
| 5 | 180446 | 1 | SEAL | XJ | |
||
| 6 | 180447 | 1 | SPRING | XJ | |
||
| 7 | 180448 | 1 | O RING | XJ | |
||
| 8 | 180449 | 1 | WASHER | XJ | |
||
| 9 | 180450-S | 1 | BODY | XJ | |
||
| 10 | 9R195283-K | 1 | DRIVER SA | XJ | |
||
| 11 | 180457 | 1 | PISTON RING | XJ | |||
| 12 | 9R195284 | 1 | CYLINDER | XJ | |
||
| 13 | 851483-S | 1 | O RING | XJ | |
||
| 14 | 180460 | 1 | SEAL | XJ | |
||
| 15 | 180461 | 1 | BUMPER | XJ | |
||
| 16 | 180462 | 1 | GUIDE | XJ | |||
| 17 | 9R195612 | 1 | FRAME | XJ | |
||
| 18 | MRG008819 | 1 | O RING | XJ | |
||
| 19 | 9R195332 | 1 | O RING | XJ | |
||
| 20 | 9R195281 | 1 | END CAP | XJ | |
||
| 21 | 9R195285 | 1 | SPIROL PIN | XJ | |
||
| 22 | 180503 | 1 | PIN | XJ | |
||
| 23 | 9R195308 | 1 | VALVE | XJ | |
||
| 24 | 9R195329 | 1 | SPRING | XJ | |
||
| 25 | 195327 | 1 | SPIROL PIN | XJ | |
||
| 26 | 9R195660 | 1 | TRIGGER | XJ | |
||
| 27 | 9R195317 | 1 | PIN | XJ | |
||
| 28 | 174073 | 1 | O RING | 2.05x2.62 | XJ | |
|
| 29 | 9R195345 | 1 | COVER | XJ | |
||
| 30 | 9R195294 | 1 | NOSE | XJ | |
||
| 31 | MSC4070-16 | 1 | SCREW | XJ | |
||
| 32 | N906076 | 1 | SCREW | XJ | |
||
| 33 | 9R195303 | 1 | MAGAZINE | XJ | |
||
| 34 | 180500 | 1 | BACKPLATE | XJ | |
||
| 35 | 180497 | 1 | GUIDE | XJ | |
||
| 36 | 180495 | 1 | SPRING | XJ |  |
||
| 37 | 9R195662 | 1 | ROLLER | XJ | |
||
| 38 | 9R195319 | 1 | PUSHER | XJ | |
||
| 39 | 107583 | 1 | SPIROL PIN | XJ | |
||
| 40 | MPG025018 | 1 | PIN | XJ | |
||
| 41 | 9R195339 | 1 | DOOR | XJ | |
||
| 42 | 9R195336 | 1 | PLATE SA | XJ | |
||
| 43 | 9R195736 | 1 | GRIP | XJ | |
||
| 44 | 9R184419 | 1 | PIN | XJ | |
||
| 45 | 9R195696 | 1 | MAGAZINE | XJ | |
||
| 47 | 9R195664 | 1 | COVER | XJ | |
||
| 49 | 9R195697 | 1 | END CAP | XJ | |
||
| 50 | 180502 | 1 | SPRING | XJ | |
||
| 51 | 9R195620 | 1 | HOOK | XJ | |
||
| 52 | 9R195618 | 1 | BRACKET | XJ | |
||
| 53 | 180504 | 1 | WASHER | ID 4.30 x OD 8.0 x 1.00 Black Oxide | XJ | ||
| 54 | MHE4070-100 | 1 | NUT | XJ | |
||
| 55 | MSC4070-10 | 1 | SCREW | XJ | |
||
| 56 | 159977 | 1 | ADAPTOR | XJ | |
||
| 57 | 180514 | 1 | GUIDE | XJ | |
||
| 58 | N906013 | 1 | SPRING | XJ | |
||
| 59 | N905944 | 1 | ARM | XJ | |
||
| 60 | 9R195663 | 1 | KNOB | XJ | |
||
| 61 | 9R195328 | 1 | GUIDE | XJ | |
||
| 62 | 9R195330 | 1 | TRIP SA | XJ | |
||
| 63 | 9R195661 | 1 | FOOT | XJ | |
||
| 64 | 174345 | 1 | PIN | XJ | |
||
| 70 | 9R195863 | 1 | BRAND LABEL | XJ | |
||
| 71 | DWFP12231-CTK | 1 | KIT | KIT, CONTACT TRIGGER | XJ | |
|
| 72 | DWFP12231-DK | 1 | KIT | KIT, DRIVER/BUMPER | XJ | |
|
| 73 | DWFP12231-TVK | 1 | VALVE KIT | KIT, TRIGGER VALVE | XJ | |
|
| 74 | DWFP12231-OK | 1 | KIT | KIT, OVERHAUL | XJ | |
