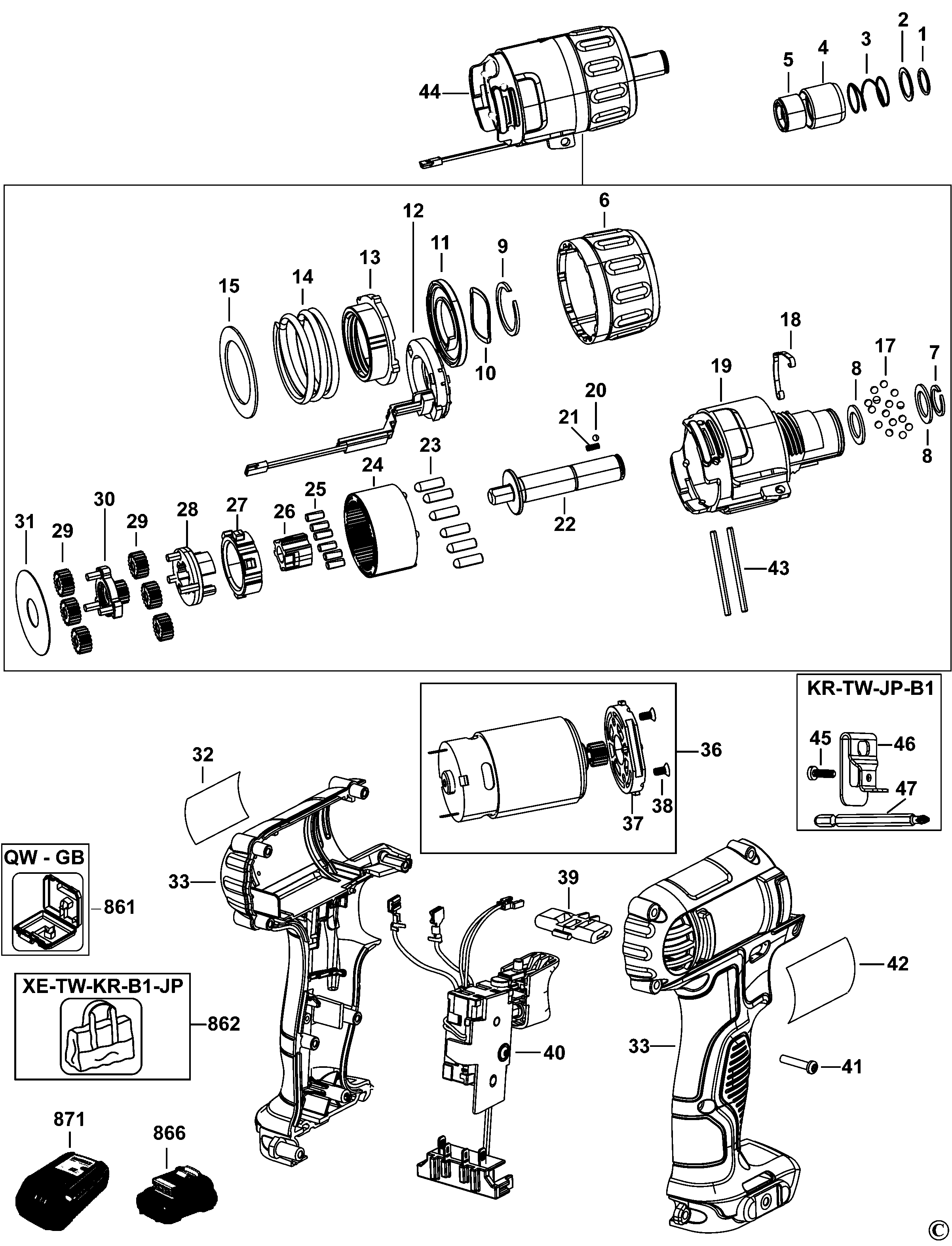

DCF610 SCREWDRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N055051 | 1 | RETAINER | GB |  |
||
| 2 | N032311 | 1 | WASHER | GB | |
||
| 3 | N020154 | 1 | SPRING | GB | |
||
| 4 | N020153 | 1 | SLEEVE | GB | |
||
| 5 | N025972 | 1 | SPACER | GB |  |
||
| 6 | N017246 | 1 | COLLAR | GB | |
||
| 7 | N035362 | 1 | RETAINER | GB | |
||
| 8 | N017233 | 2 | WASHER THRUST | GB | |
||
| 9 | N035361 | 1 | RETAINER | GB | |
||
| 10 | N017239 | 1 | WASHER SPECIAL | GB | |
||
| 11 | N017253 | 1 | COVER | GB | |
||
| 12 | N078519 | 1 | LED LIGHT | GB | |
||
| 13 | N026127 | 1 | ADJUSTER TORQUE | GB | |
||
| 14 | N017241 | 1 | SPRING | GB | |
||
| 15 | N025236 | 1 | WASHER | GB | |
||
| 17 | 389317-00 | 15 | BALL STEEL | GB | |
||
| 18 | N031003 | 1 | DETENT | GB | |
||
| 19 | N078520 | 1 | GEARCASE SA | GB | |
||
| 20 | N022764 | 1 | BALL STEEL | GB | |
||
| 21 | N020157 | 1 | SPRING | GB | |
||
| 22 | N078521 | 1 | SPINDLE SA | GB | |
||
| 23 | N041814 | 6 | PIN.CONICAL | GB | |
||
| 24 | N078522 | 1 | GEAR | GB | |
||
| 25 | N032223 | 6 | PIN | GB | |
||
| 26 | N032577 | 1 | ANVIL | GB | |
||
| 27 | 656987-00 | 1 | LOCKING RING | GB | |
||
| 28 | N078795 | 1 | CARRIER SA | GB | |
||
| 29 | N017243 | 6 | GEAR | GB | |
||
| 30 | N078794 | 1 | CARRIER SA | GB | |
||
| 31 | N017249 | 1 | PLATE | GB | |
||
| 32 | N127969 | 1 | BRAND LABEL | GB | |
||
| 33 | N029500 | 1 | CLAMSHELL SET | GB | |
||
| 36 | N168387 | 1 | MOTOR SA | GB | |
||
| 37 | N151241 | 1 | PLATE | GB | |
||
| 38 | N008721 | 2 | SCREW | GB | |
||
| 39 | N017247 | 1 | ACTUATOR FWD/REV | GB | |
||
| 40 | N168378 | 1 | SWITCH SA | GB | |
||
| 41 | 682211-00 | 8 | SCREW | GB | |
||
| 42 | N151323 | 1 | RATING PLATE | EURO | GB | |
|
| 43 | N030622 | 2 | PIN | GB | |
||
| 44 | N059224 | 1 | TRANSMISSION SA | GB | |
||
| 45 | N042665 | 1 | SCREW | GB | |
||
| 46 | N026657 | 1 | HOOK | GB | |
||
| 861 | N488394 | 1 | KITBOX | GB | |
||
| 866 | N394620 | 1 | BATTERY 10.8V - 2.0AH - 21.6WH | DCB127-XJ | DCF610S2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
