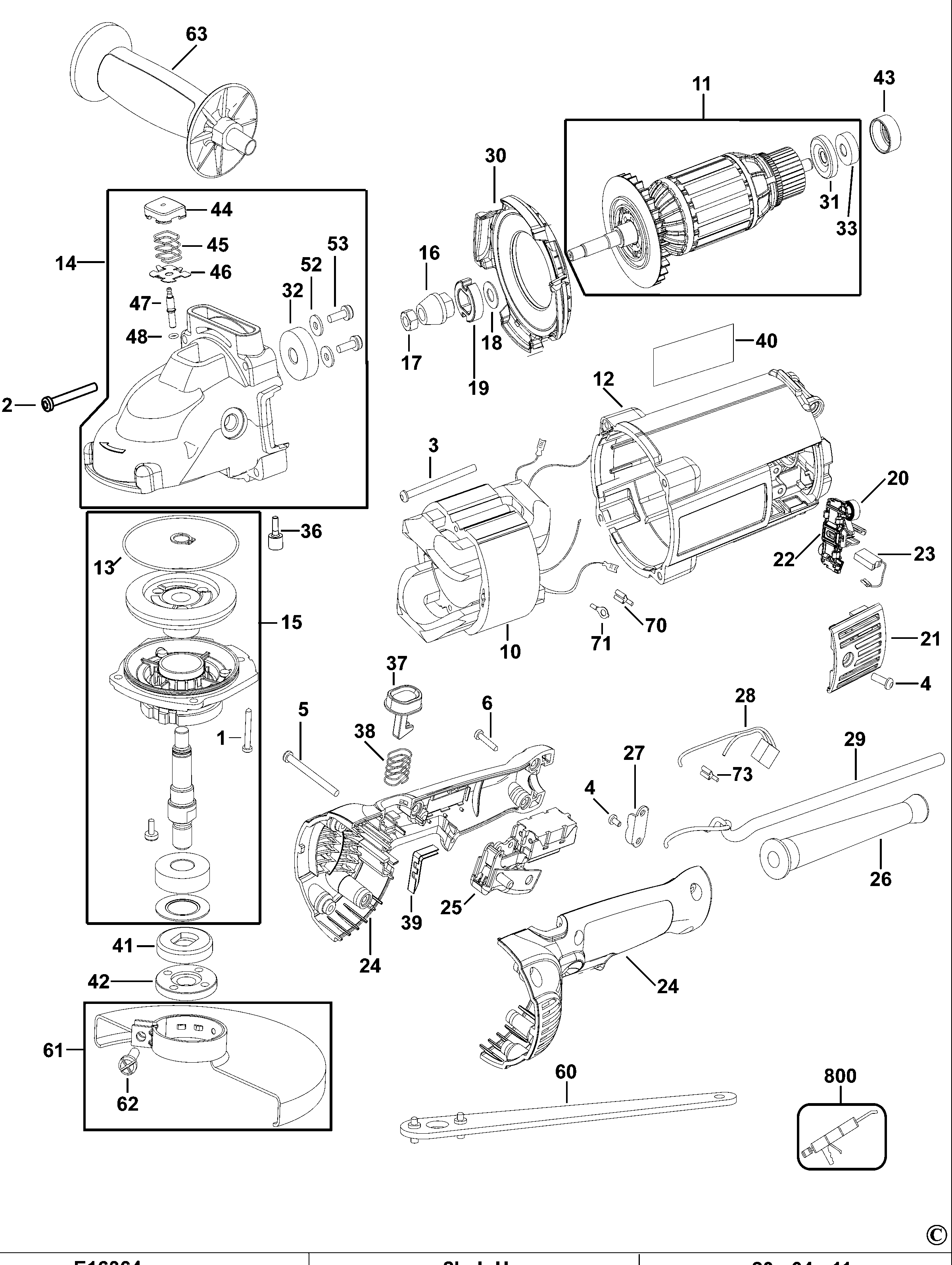

D28490 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 4 | SCREW | XJ |  |
||
| 2 | 330019-26 | 4 | SCREW | XJ | |
||
| 3 | 330019-19 | 2 | SCREW | XJ | |
||
| 4 | 330019-11 | 6 | SCREW | M4.55x13 T20 | XJ | |
|
| 5 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | XJ |  |
|
| 6 | 330019-32 | 4 | SCREW | XJ | |
||
| 12 | 393239-01 | 1 | FIELD CASE | XJ | |
||
| 13 | 397031-00 | 1 | O RING | XJ | |
||
| 14 | N074214 | 1 | GEARCASE SA | XJ | |
||
| 15 | N074213 | 1 | GEARCASE COVER SA | XJ | |
||
| 16 | 629729-00 | 1 | PINION | 6K | XJ | |
|
| 17 | 330015-03 | 1 | NUT | M8x1.25 | XJ | |
|
| 18 | 639681-00 | 1 | WASHER | PINION | XJ | |
|
| 19 | 632702-00 | 1 | COLLAR | XJ | |
||
| 20 | 609987-00 | 2 | BRUSH SPRING | XJ | |
||
| 21 | 394387-01 | 2 | BRUSH COVER | XJ | |
||
| 22 | 629976-00 | 2 | BRUSH HOLDER SA | XJ | |
||
| 26 | 604118-00 | 1 | CORD PROTECTOR | XJ | |
||
| 27 | 604119-00 | 1 | CORD CLAMP | XJ | |
||
| 30 | 631350-00 | 1 | BAFFLE | XJ | |
||
| 31 | 393238-00 | 1 | SHIELD | XJ | |
||
| 32 | N389509 | 1 | BEARING | XJ | |
||
| 33 | N110359 | 1 | BEARING | XJ | |
||
| 33 | N110359 | 1 | BEARING | XJ | |
||
| 36 | N033051 | 1 | SCREW | XJ | |
||
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 38 | 636502-00 | 1 | SPRING | XJ | |
||
| 39 | 641929-00 | 1 | COVER | XJ | |
||
| 41 | 403150-01 | 1 | INNER FLANGE | XJ | |
||
| 42 | 401678-05 | 1 | OUTER FLANGE | XJ | |
||
| 43 | 609970-00 | 1 | SLEEVE INSULATING | XJ | |
||
| 44 | 630553-00 | 1 | CAP | XJ | |
||
| 45 | 638328-00 | 1 | SPRING | XJ | |
||
| 46 | 635908-00 | 1 | RETAINER | XJ | |
||
| 47 | 634589-00 | 1 | PIN | XJ | |
||
| 48 | 750831 | 1 | O RING | XJ | |
||
| 52 | 640591-00 | 2 | WASHER | XJ | |
||
| 53 | 330045-67 | 2 | SCREW | XJ | |
||
| 60 | 635261-00 | 1 | WRENCH PIN | XJ | |
||
| 61 | N036839 | 1 | GUARD SA | KEYED | XJ | |
|
| 62 | 330024-23 | 1 | SCREW | M8x1.25x30 | XJ | |
|
| 63 | 651858-01 | 1 | SIDE HANDLE | XJ | |
||
| 70 | 612273-00 | 2 | TERMINAL | XJ | |
||
| 71 | 610057-00 | 2 | TERMINAL | RING | XJ | |
|
| 73 | 053650-00 | 1 | TERMINAL | XJ | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
