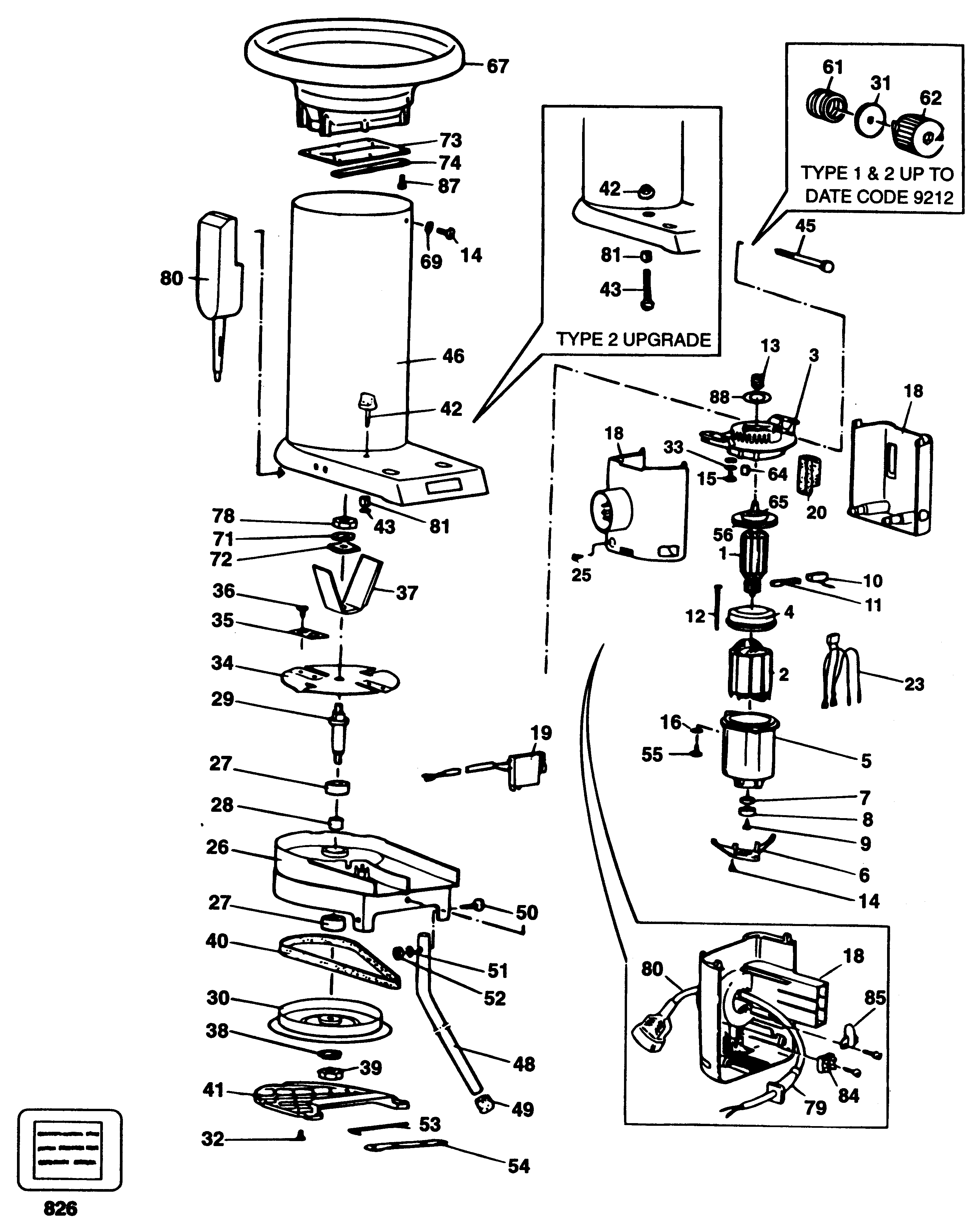

GA100 GARDEN SHREDDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 879693-49 | 1 | ARMATURE | GB |  |
||
| 2 | 373007-13 | 1 | FIELD 230V | GB (INTERLOCK) | GB | |
|
| 2 | 373007-13 | 1 | FIELD 230V | GB (NON-INTERLOCK) | GB | |
|
| 2 | 373007-13 | 1 | FIELD 230V | GB (INTERLOCK) | GB | |
|
| 2 | 373007-13 | 1 | FIELD 230V | GB (NON-INTERLOCK) | GB | |
|
| 3 | 871650 | 1 | FLANGE | GB | |
||
| 4 | 916128 | 1 | BAFFLE FAN | GB | |
||
| 5 | 871575 | 1 | HOUSING | GB | |
||
| 6 | 871576 | 1 | COVER | GB | |
||
| 7 | 330003-19 | 1 | BEARING | GB (NON-INTERLOCK) | GB |  |
|
| 7 | 330003-31 | 1 | BEARING | GB (INTERLOCK) | GB | |
|
| 8 | 911897 | 1 | HOLDER | GB | |
||
| 9 | 911276 | 1 | SCREW | GB | |
||
| 10 | 878750 | 2 | BRUSH HOLDER | GB | |
||
| 11 | 914633 | 2 | BRUSH | GB | |
||
| 12 | 916231 | 2 | SCREW | GB | |
||
| 13 | 324429-00 | 1 | PULLEY | TY 3 | GB | |
|
| 13 | 324429-00 | 1 | PULLEY | TY 2 (FROM DC 9212) | GB | |
|
| 14 | 323259 | 2 | SCREW | GB | |
||
| 15 | 911530 | 4 | SCREW | GB | |
||
| 16 | 330016-01 | 1 | WASHER | GB | |
||
| 18 | 325159-00 | 1 | HOUSING SA | GB (INTERLOCK) | GB | |
|
| 20 | 918485 | 1 | CAP | GB | |
||
| 23 | 321393 | 1 | CAPACITOR SA | GB | |
||
| 25 | 322121 | 4 | SCREW | GB | |
||
| 26 | 874404-49 | 1 | SUPPORT | GB | |
||
| 27 | 330003-30 | 2 | BEARING | GB | |
||
| 28 | 879238 | 1 | BUSH | GB | |
||
| 29 | 874945 | 1 | SHAFT | GB | |
||
| 30 | 325500-00 | 1 | PULLEY | GB | |
||
| 31 | 874474 | 1 | WASHER | TY 1 | GB | |
|
| 31 | 874474 | 1 | WASHER | TY 2 (UP TO DC 9211) | GB | |
|
| 32 | 911126 | 2 | SCREW | GB | |
||
| 33 | 911389 | 4 | WASHER | GB | |
||
| 34 | 568672-00 | 1 | BLADE CARRIER | GB | |
||
| 35 | 918338 | 2 | KNIFE | GB | |
||
| 36 | 568698-00 | 4 | SCREW | GB | |
||
| 37 | 918224 | 1 | BLADE | GB | |
||
| 38 | 911542 | 1 | WASHER SPRING | GB | |
||
| 39 | 911509 | 1 | NUT LH | GB | |
||
| 40 | 324983-00 | 1 | BELT TOOTHED | TY 3 | GB | |
|
| 40 | 324983-00 | 1 | BELT TOOTHED | TY 2 (FROM DC 9212) | GB | |
|
| 41 | 918480 | 1 | PLATE | GB | |
||
| 42 | 885628 | 1 | NUT | TYPE 2 UPGRADE | GB | |
|
| 42 | 875838 | 1 | KNOB | GB (INTERLOCK) | GB | |
|
| 43 | 911387 | 1 | SCREW.TEMP | TYPE 2 UPGRADE | GB | |
|
| 43 | 875895 | 1 | SEAL | GB (INTERLOCK) | GB | |
|
| 45 | 874472 | 1 | SCREW | TY 1 | GB | |
|
| 45 | 874472 | 1 | SCREW | TY 2 (UP TO DC 9211) | GB | |
|
| 45 | 325203-00 | 1 | SCREW.TEMP | TY 3 | GB | |
|
| 45 | 325203-00 | 1 | SCREW.TEMP | TY 2 (FROM DC 9212) | GB | |
|
| 46 | 323295-49 | 1 | HOUSING SA | GB (INTERLOCK) | GB | |
|
| 48 | 323299-49 | 3 | LEG SA | GB | |
||
| 49 | 918226 | 3 | CAP | GB | |
||
| 50 | 911283 | 3 | SCREW | GB | |
||
| 51 | 911285 | 3 | CIRCLIP | GB | |
||
| 52 | 911018 | 3 | NUT | GB | |
||
| 53 | 807043 | 1 | WRENCH | 4mm | GB | |
|
| 54 | 874933 | 1 | WRENCH | GB | |
||
| 55 | 911195 | 3 | SCREW | GB | |
||
| 56 | 918909 | 1 | FAN | GB | |
||
| 61 | 916951 | 1 | SPRING | TY 1 | GB | |
|
| 61 | 916951 | 1 | SPRING | TY 2 (UP TO DC 9211) | GB | |
|
| 62 | 874473 | 1 | BUSH | WHITE, 4.5IN | TY 1 | GB | |
| 62 | 874473 | 1 | BUSH | WHITE, 4.5IN | TY 2 (UP TO DC 9211) | GB | |
| 64 | 916010 | 1 | BUMPER | GB | |
||
| 65 | 577745-00 | 1 | BEARING | GB | |
||
| 67 | 322287 | 1 | TUBE | GB | |
||
| 69 | 330016-01 | 2 | WASHER | GB | |
||
| 71 | 874930 | 1 | WASHER | GB | |
||
| 72 | 874927 | 1 | WASHER | GB | |
||
| 73 | 874415 | 1 | FLAP | GB | |
||
| 74 | 874416 | 2 | CLAMP | GB | |
||
| 78 | 874929 | 1 | NUT | GB | |
||
| 79 | 910178 | 1 | CORD PROTECTOR | GB (NON-INTERLOCK) | GB | |
|
| 80 | 330048-52 | 1 | CORDSET (SPLASH) | GB (NON-INTERLOCK) | GB | |
|
| 87 | 894748 | 6 | O RING | GB | |
||
| 88 | 324981-00 | 1 | WASHER | TY 3 | GB | |
|
| 88 | 324981-00 | 1 | WASHER | TY 2 (FROM DC 9212) | GB | |
|
| 100 | 844840 | 1 | COUPLER (SPLASH) | GB (INTERLOCK) | GB | |
|
| 100 | 844840 | 1 | COUPLER (SPLASH) | GB (NON-INTERLOCK) | GB | |
