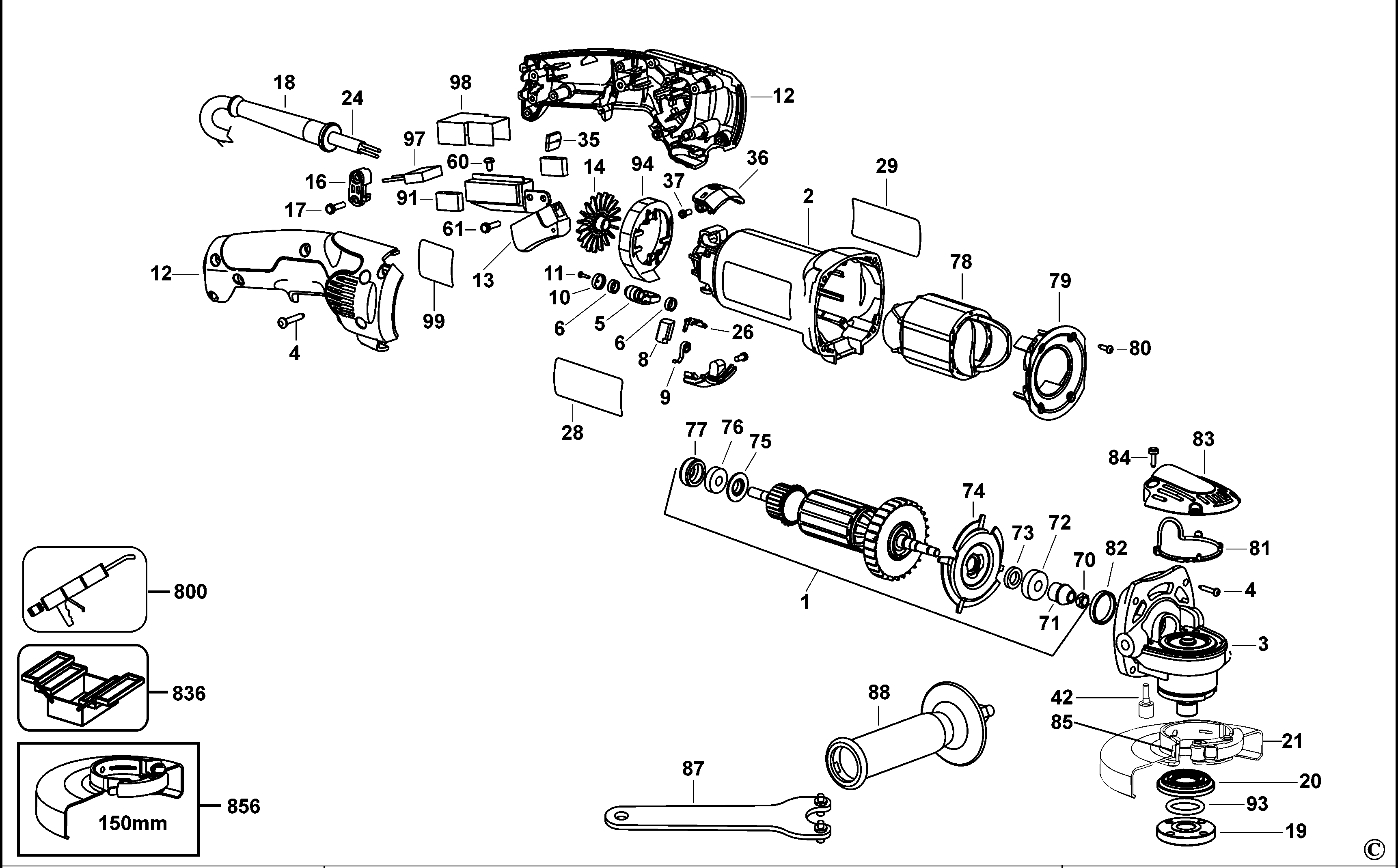

D28065 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N397997 | 1 | ARMATURE SA | PKG'D N397971 | LX |  |
|
| 2 | 632180-03 | 1 | FIELDCASE | LX | |
||
| 3 | N086309 | 1 | GEAR CASE SA | LX |  |
||
| 4 | 330065-31 | 11 | PLASTIC SCREW | LX | |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | LX | |
|
| 6 | 623592-00 | 4 | FELT SEAL | LX | |
||
| 8 | 650918-01 | 2 | BRUSH 120V | 120V POP OFF | LX | |
|
| 9 | 648613-00 | 2 | BRUSH SPRING | LX | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | LX | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | LX | |
|
| 12 | 647727-01 | 1 | HANDLE SA | Cad free | LX | |
|
| 13 | N470209 | 1 | SWITCH LOCK-ON | LX | |
||
| 14 | N055787 | 1 | SEPARATOR | Particle | LX | |
|
| 16 | 643889-00 | 1 | CORD CLAMP | LX | |
||
| 17 | 330019-03 | 1 | SCREW | LX | |
||
| 18 | N185751 | 1 | CORD PROTECTOR | LX | |
||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | LX | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | LX | |
||
| 21 | N039878 | 1 | GUARD SA | 125MM, KEYLESS | LX | |
|
| 24 | 562226-87 | 1 | CORDSET | LX | |
||
| 26 | 623593-00 | 2 | TERMINAL | LX | |
||
| 28 | N041569 | 1 | RATING PLATE | LX | |
||
| 29 | 628885-00 | 1 | BRAND LABEL | LX | |
||
| 35 | 646012-00 | 1 | FELT SEAL | LX | |
||
| 36 | 646940-01 | 2 | BRUSH COVER | LX | |||
| 37 | 648777-00 | 2 | SCREW | M3, MACHINE | LX | |
|
| 42 | N033051 | 1 | SCREW | LX | |
||
| 60 | 387746-00 | 4 | SCREW | M3.5x0.6x7.5 W/LOCKW | LX | |
|
| 61 | 330065-07 | 1 | SCREW | LX | |
||
| 70 | 604484-00 | 1 | NUT | LX | |
||
| 71 | 629797-00 | 1 | PINION | 9 TOOTH | LX | |
|
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | LX | |
|
| 73 | 623617-00 | 1 | FELT SEAL | LX | |
||
| 74 | N422242 | 1 | RETAINER | LX | |
||
| 75 | 623613-00 | 1 | WASHER | LX | |
||
| 76 | 605040-02 | 1 | BEARING | LX | |
||
| 77 | 641823-00 | 1 | SLEEVE | LX | |
||
| 78 | 627125-02 | 1 | FIELD 120V | 120V | LX | |
|
| 79 | 623572-00 | 1 | BAFFLE FAN | LX | |
||
| 80 | 330065-25 | 4 | SCREW | LX | |
||
| 81 | 632513-00 | 1 | GASKET | LX | |
||
| 82 | 611492-00 | 1 | SLEEVE | LX | |
||
| 83 | 627313-00 | 1 | GEARCASE COVER | LX | |
||
| 84 | 385676-01 | 4 | SCREW | LX | |
||
| 85 | 631609-03 | 1 | SCREW | LX | |
||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | LX | |
|
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | LX | |
|
| 91 | 620051-00 | 2 | PAD | LX | |
||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | LX | |
|
| 94 | 640723-00 | 1 | BAFFLE | LX | |
||
| 97 | N435948 | 1 | CAPACITOR | LX | |||
| 98 | 650937-00 | 1 | INSULATOR | LX | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | LX | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | LX |
