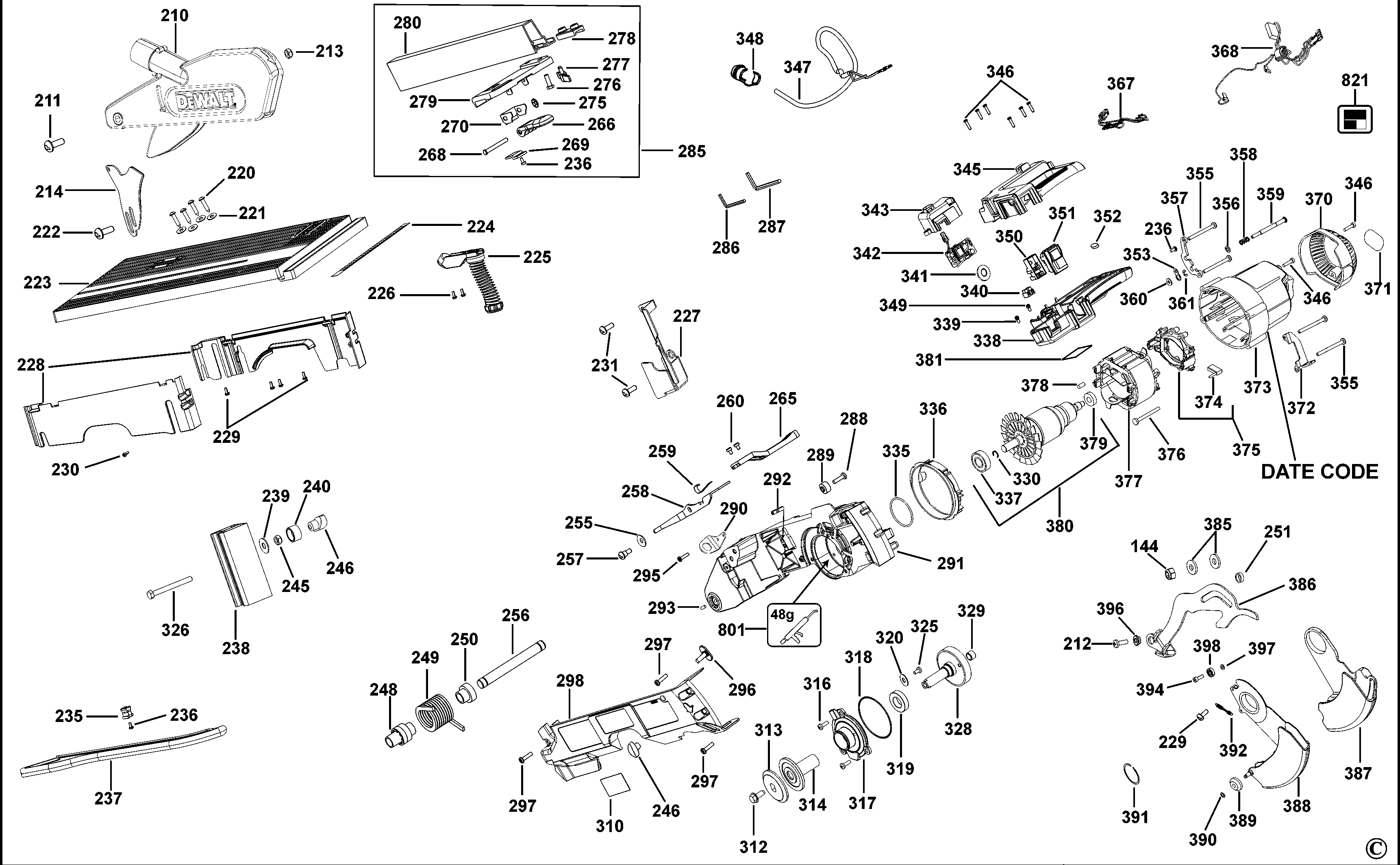

D27113 TABLE TOP MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 860085-19 | 1 | SCREW | GB |  |
||
| 102 | N140117 | 1 | BASE SA | GB | |
||
| 103 | 153612-00 | 4 | FOOT | GB | |
||
| 104 | 330045-05 | 1 | SCREW | GB | |
||
| 105 | N140118 | 1 | GUARD SA | GB | |
||
| 108 | 330045-23 | 4 | SCREW | GB | |
||
| 110 | N053752 | 1 | SPRING TORSION | GB | |
||
| 111 | 153639-00 | 1 | SCREW | GB | |
||
| 120 | N140119 | 1 | TRUNNION | GB | |
||
| 121 | 391346-00 | 2 | SCREW | GB | |
||
| 122 | N056425 | 1 | DUST PORT | GB | |
||
| 124 | 330045-14 | 1 | SCREW | GB | |
||
| 125 | 397080-00 | 1 | HANDLE | GB | |
||
| 126 | 397089-00 | 1 | NUT | GB | |
||
| 128 | 612008-00 | 1 | SCREW | GB | |
||
| 140 | N083191 | 2 | BUSH | GB | |
||
| 141 | N170479 | 1 | LOCKING PIN | GB | |
||
| 142 | 943030-00 | 1 | O RING | GB | |
||
| 144 | 860092-00 | 1 | NUT | GB | |
||
| 147 | 098105-03 | 4 | SCREW | GB | |
||
| 148 | N140120 | 1 | BACK FENCE | GB | |
||
| 149 | N140121 | 1 | FENCE | GB | |
||
| 161 | 653947-00 | 1 | KNOB | GB | |
||
| 162 | N065550 | 1 | SCALE | MITRE | GB | |
|
| 163 | 638875-00 | 1 | BOLT | GB | |
||
| 164 | N065549 | 1 | POINTER | GB | |
||
| 165 | 249233-00 | 2 | WASHER | GB | |
||
| 166 | 330045-05 | 2 | SCREW | GB | |
||
| 167 | 860092-05 | 1 | NUT | GB | |
||
| 168 | 613270-00 | 2 | WASHER | GB | |
||
| 169 | 153781-00 | 2 | WASHER | GB | |
||
| 170 | N140122 | 1 | CLAMP SA | GB | |
||
| 180 | 330045-06 | 2 | SCREW | GB | |
||
| 181 | N045946 | 1 | INSERT | GB | |
||
| 183 | 398693-00 | 1 | POINTER | GB | |
||
| 184 | 145439-10 | 1 | KNOB | GB | |
||
| 185 | 146733-00 | 1 | CLAMP | GB |  |
||
| 186 | 391357-00 | 1 | CLAMP | GB | |
||
| 187 | 330045-55 | 4 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 188 | 148611-00 | 1 | COVER | GB | |
||
| 189 | 146745-00 | 1 | SPRING | GB | |
||
| 190 | 330045-23 | 1 | SCREW | GB | |
||
| 191 | 604987-00 | 2 | SCREW | GB | |
||
| 192 | 391292-01 | 1 | DETENT | GB | |
||
| 193 | N140123 | 1 | TABLE ROTARY | GB | |
||
| 194 | 640146-00 | 2 | PAD | GB | |
||
| 195 | 860093-07 | 2 | SCREW | GB | |
||
| 196 | 147107-02 | 1 | KNOB LOWER | GB | |
||
| 197 | 630068-00 | 1 | SUPPORT | GB | |
||
| 198 | 330045-55 | 1 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 199 | 630085-00 | 1 | GRIP | GB | |
||
| 210 | N095523 | 1 | GUARD UPPER | GB | |
||
| 211 | 612282-00 | 1 | SCREW | GB | |
||
| 212 | 330045-23 | 3 | SCREW | GB | |
||
| 213 | 860083-15 | 1 | NUT | GB | |
||
| 214 | N095520 | 1 | RIVING KNIFE | GB | |
||
| 220 | 860084-24 | 4 | SCREW | GB | |
||
| 221 | 860074-02 | 4 | WASHER | GB | |
||
| 222 | 330045-32 | 2 | SCREW | M8x1.25x20 MTLTHDFMG | GB | |
|
| 223 | N114229 | 1 | TABLE | GB | |
||
| 224 | 637807-00 | 1 | SCALE | GB | |
||
| 225 | N142445 | 1 | LED LIGHT | GB | |
||
| 226 | 330045-55 | 2 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 227 | N052767 | 1 | GUARD REAR | GB | |
||
| 228 | N142446 | 1 | GUARD SA | GB | |
||
| 229 | 330045-05 | 5 | SCREW | GB | |
||
| 230 | 330013-02 | 2 | SCREW | GB | |
||
| 231 | 330045-55 | 2 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 235 | 391358-01 | 1 | HOLDER | GB | |
||
| 236 | 860094-02 | 3 | SCREW | GB | |
||
| 237 | 860610-01 | 1 | PUSHROD | GB | |
||
| 238 | N054742 | 1 | COLUMN | GB | |
||
| 239 | 153781-00 | 1 | WASHER | GB | |
||
| 240 | 606362-01 | 1 | BUSHING | GB | |
||
| 245 | 860092-05 | 1 | NUT | GB | |
||
| 246 | 941756-00 | 2 | KNOB | GB | |
||
| 248 | 639383-00 | 1 | SPACER | GB | |
||
| 249 | 633290-04 | 1 | SPRING TORSION | GB | |
||
| 250 | 642980-00 | 1 | SPACER | GB | |
||
| 251 | N144184 | 1 | FOLLOWER | GB | |
||
| 255 | 153655-00 | 1 | WASHER | GB | |
||
| 256 | 397128-00 | 1 | PIVOT SHAFT | GB | |
||
| 257 | 153639-00 | 1 | SCREW | GB | |
||
| 258 | 637193-00 | 1 | LEVER | GB | |
||
| 259 | 637289-00 | 1 | SPRING | GB | |
||
| 260 | 949894-02 | 2 | SCREW | GB | |
||
| 265 | 637338-00 | 1 | LEVER LOCK | GB | |
||
| 266 | 605794-00 | 1 | LEVER LOCK | GB | |
||
| 268 | 605795-00 | 1 | CLEVIS PIN | GB | |
||
| 269 | 605798-00 | 1 | POINTER | GB | |
||
| 270 | 605796-00 | 1 | BRACKET | GB | |
||
| 275 | 392948-00 | 1 | WASHER CLAMP | GB | |
||
| 276 | 612008-00 | 1 | SCREW | GB | |
||
| 277 | 862427-00 | 1 | KNOB | GB | |
||
| 278 | 637805-00 | 1 | PLATE | GB | |
||
| 279 | 634738-00 | 1 | BRACKET | GB | |
||
| 280 | 637806-00 | 1 | FENCE | GB | |
||
| 285 | 869231-04 | 1 | FENCE SA | GB | |
||
| 286 | 385567-03 | 1 | KEY | TX30 6.0mm | GB | |
|
| 287 | 385567-04 | 1 | KEY | T40 | GB | |
|
| 288 | 330045-33 | 1 | SCREW | GB | |
||
| 289 | 385756-01 | 1 | BUSH | GB | |
||
| 290 | 624195-01 | 1 | BRACKET | GB | |
||
| 291 | N142447 | 1 | ARM | GB | |
||
| 292 | N144183 | 1 | STUD | GB | |
||
| 293 | 150075-00 | 2 | SCREW | GB | |
||
| 295 | 330045-13 | 1 | SCREW | M5x0.8x10 MTL THDFMG | GB | |
|
| 296 | 625857-00 | 1 | SCREW.SPECIAL | GB | |
||
| 297 | 330045-15 | 3 | SCREW | GB | |
||
| 298 | N052443 | 1 | COVER | GB | |
||
| 310 | 641845-00 | 1 | BRAND LABEL | GB | |
||
| 312 | 647776-00 | 1 | BLADE BOLT | M8 X 20 LH T40 | GB | |
|
| 313 | 604765-00 | 1 | CLAMP OUTER | GB | |
||
| 314 | N186624 | 1 | INNER FLANGE SA | GB | |
||
| 316 | 330045-14 | 3 | SCREW | GB | |
||
| 317 | N052765 | 1 | GEARCASE COVER | GB | |
||
| 318 | 616979-01 | 1 | O RING | 72.76 x 1.78 | GB | |
|
| 319 | 330003-41 | 1 | BEARING | GB | |
||
| 320 | 939625-00 | 2 | WASHER | GB | |
||
| 325 | 330045-49 | 2 | SCREW | GB | |
||
| 326 | 949702-19 | 1 | SCREW | GB | |
||
| 328 | N142448 | 1 | GEAR & SPINDLE SA | GB | |
||
| 329 | 386780-00 | 1 | BEARING | GB | |
||
| 330 | 930098-00 | 1 | RETAINER | GB | |
||
| 335 | 696519-00 | 1 | RING | GB | |
||
| 336 | 391375-00 | 1 | BAFFLE FAN | GB | |
||
| 337 | 330003-13 | 1 | BEARING | GB | |
||
| 338 | N600857 | 1 | HANDLE SA | GB | |
||
| 339 | 330045-05 | 1 | SCREW | GB | |
||
| 340 | 326057-00 | 1 | TERMINAL BLOCK | GB | |
||
| 341 | 650889-00 | 1 | BUSHING | GB | |
||
| 342 | N142449 | 1 | SA POWER SUPPLY | GB | |
||
| 343 | N600857 | 1 | HANDLE SA | GB | |
||
| 345 | N600857 | 1 | HANDLE SA | GB | |
||
| 346 | 330019-13 | 10 | SCREW | M4X19 T20 | GB | |
|
| 347 | 330060-85 | 1 | CORDSET | GB | |
||
| 348 | 615851-00 | 1 | BUSHING | GB | |
||
| 349 | 330045-08 | 1 | SCREW | GB | |
||
| 350 | 868320-00 | 1 | COVER | GB | |
||
| 350 | 653767-00 | 1 | FELT | GB | |
||
| 351 | N060327 | 1 | SWITCH | GB | |
||
| 352 | 650855-00 | 1 | FELT | GB | |
||
| 353 | 393071-00 | 1 | PLATE | GB | |
||
| 355 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | GB | |
|
| 356 | 860073-07 | 1 | WASHER M6 | GB | |
||
| 357 | N052769 | 1 | BRACKET | GB | |
||
| 358 | 868082-00 | 1 | SPRING | GB | |
||
| 359 | 650846-00 | 1 | LOCK PIN | GB | |
||
| 360 | 653767-00 | 1 | FELT | GB | |
||
| 361 | 860322-00 | 1 | CIRCLIP | GB | |
||
| 367 | N102137 | 1 | SET OF LEAD WIRES | 230V | GB | |
|
| 368 | N141826 | 1 | CAPACITOR SA | GB | |
||
| 370 | 391933-00 | 1 | END CAP | GB | |
||
| 371 | 610722-00 | 1 | LABEL | GB | |||
| 372 | 650828-00 | 1 | BRACKET | GB | |
||
| 373 | 391317-00 | 1 | FIELDCASE | GB | |
||
| 374 | 659512-00 | 1 | BRUSH PAIR | GB | |
||
| 375 | N142440 | 1 | BRUSH HOLDER SA | GB | |||
| 376 | 330019-19 | 2 | SCREW | GB | |
||
| 377 | N142441 | 1 | FIELD 230V | TO DCODE WK46 2016 | GB | |
|
| 377 | 869446-00 | 1 | FIELD SA 230V | FROM DCODE WK46 2016 | GB | |
|
| 378 | 145312-00 | 2 | PLUG | GB | |
||
| 379 | N110359 | 1 | BEARING | GB | |
||
| 379 | N110359 | 1 | BEARING | GB | |
||
| 380 | N142443 | 1 | ARMATURE 230V | Inc 330,337,379 | GB | |
|
| 381 | N136387 | 1 | LABEL | XPS | GB | |
|
| 385 | N154416 | 2 | WASHER | GB | |
||
| 386 | N052766 | 1 | LINK | GB | |
||
| 387 | N045949 | 1 | GUARD | GB | |
||
| 388 | N045948 | 1 | GUARD | GB | |
||
| 389 | 146774-00 | 2 | ROLLER | GB | |
||
| 390 | 604728-00 | 2 | LOCKING RING | GB | |
||
| 391 | 629745-00 | 1 | CIRCLIP | GB | |
||
| 392 | N110617 | 1 | SPRING | GB | |
||
| 394 | 860093-10 | 1 | SCREW | GB | |
||
| 396 | 146740-02 | 1 | SLEEVE | GB | |
||
| 397 | 860073-01 | 1 | WASHER | GB | |
||
| 398 | 949719-04 | 1 | BEARING | GB | |
||
| 801 | 5140061-28 | 1 | GREASE | GB | |
||
| 821 | N225837 | 1 | RATING PLATE | GB | |
