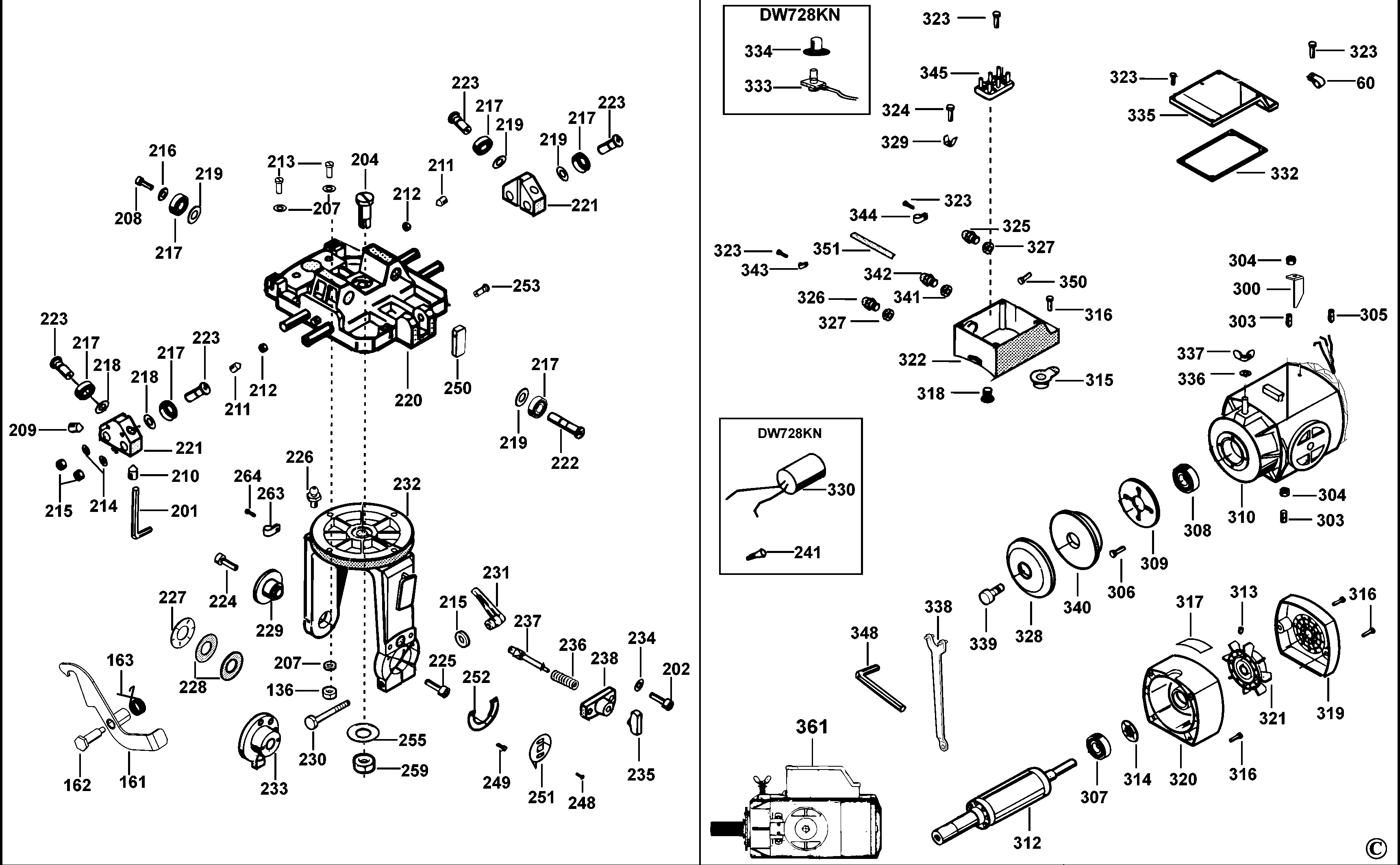

DW728KN RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 863929-00 | 1 | AUTO SAFETY RETURN | GB |  |
||
| 3 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 4 | 860098-05 | 1 | HEX KEY 8 MM | GB | |
||
| 5 | 860093-14 | 2 | SCREW | GB | |
||
| 6 | 860093-02 | 4 | SCREW | GB | |
||
| 7 | 860088-07 | 2 | SCREW | GB | |
||
| 8 | 949702-05 | 5 | SCREW | GB | |
||
| 9 | 949702-09 | 1 | BOLT | GB |  |
||
| 10 | 860083-06 | 5 | NUT | GB | |
||
| 11 | 860073-05 | 3 | WASHER | GB | |
||
| 12 | 860074-03 | 2 | WASHER | GB | |
||
| 13 | 860074-05 | 4 | WASHER | GB | |
||
| 14 | 949700-06 | 1 | CLIP | GB | |
||
| 15 | 33024 | 1 | PROTECTOR | GB | |
||
| 16 | 863900-00 | 2 | SCREW | GB | |
||
| 17 | 863901-00 | 1 | PROTECTOR | GB | |
||
| 18 | 863909-00 | 2 | INSERT | GB | |
||
| 19 | 860073-05 | 2 | WASHER | GB | |
||
| 20 | 860074-05 | 1 | WASHER | GB | |
||
| 21 | 862069-00 | 2 | HANDLE | GB | |
||
| 22 | 862047-00 | 1 | NUT | GB | |
||
| 23 | 862237-02 | 1 | COLUMN | GB | |
||
| 24 | 862241-00 | 1 | LATCH | GB | |
||
| 25 | N045687 | 1 | COLUMN | GB | |
||
| 26 | N045686 | 1 | ARM | GB | |
||
| 27 | 720959-00 | 2 | WASHER | GB | |
||
| 28 | 860301-00 | 2 | SCREW | GB | |
||
| 29 | 946469-00 | 2 | KNOB | GB | |
||
| 30 | 863724-00 | 1 | BRACKET | GB | |
||
| 31 | 860083-04 | 8 | NUT | GB | |
||
| 32 | 860786-00 | 1 | STOP RUBBER | GB | |
||
| 33 | 330036-08 | 1 | PIN | GB | |
||
| 34 | 949755-03 | 2 | BEARING | GB | |
||
| 35 | 863928-00 | 1 | WASHER | GB | |
||
| 36 | 863930-00 | 2 | NUT | GB | |
||
| 37 | 862015-00 | 1 | CAP | GB | |
||
| 38 | 865647-00 | 1 | SCREW | GB | |
||
| 39 | 860079-02 | 1 | CIRCLIP | GB | |
||
| 40 | 860018-00 | 1 | KNOB | GB | |
||
| 41 | 864655-01 | 1 | HANDLE SA | GB | |
||
| 42 | 860093-21 | 2 | SCREW | GB | |
||
| 43 | 860429-00 | 1 | BUMPER | GB | |
||
| 44 | 861112-00 | 1 | END CAP | GB | |
||
| 45 | 860238-00 | 1 | SCREW | GB | |
||
| 46 | 863912-00 | 1 | SUPPORT | GB | |
||
| 47 | N034448 | 1 | NAMEPLATE | GB | |
||
| 48 | 861738-02 | 1 | WARNING LABEL | GB | |
||
| 49 | 860073-00 | 4 | WASHER | GB | |
||
| 50 | 860074-01 | 2 | WASHER | GB | |
||
| 51 | 949700-05 | 1 | CLAMP | GB | |
||
| 52 | 860237-00 | 1 | POINTER | GB | |
||
| 55 | 863259-00 | 1 | PROTECTOR | GB | |
||
| 56 | 860093-05 | 1 | SCREW.TEMP | GB | |
||
| 57 | 860085-20 | 1 | SCREW | GB | |
||
| 58 | 860083-04 | 1 | NUT | GB | |
||
| 59 | 867190-01 | 1 | SPACER | GB | |
||
| 60 | 860843-01 | 2 | CLAMP | GB | |
||
| 61 | 860843-02 | 2 | BRACKET | GB | |
||
| 63 | 33612 | 1 | LOCK | GB | |||
| 64 | 869356-09 | 1 | STOP | GB | |
||
| 65 | 864655-01 | 1 | HANDLE SA | GB | |
||
| 66 | 864462-03 | 1 | ELEVATING SA | GB | |
||
| 67 | N034454 | 1 | WARNING LABEL | GB | |
||
| 68 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 69 | 862598-02 | 1 | LABEL | GB | |
||
| 71 | 330036-08 | 1 | PIN | GB | |
||
| 73 | 865856-00 | 1 | PLUG | GB | |
||
| 75 | 947322-01 | 1 | INLET | GB | |
||
| 76 | 947321-01 | 1 | NUT | GB | |
||
| 89 | N045582 | 1 | BRAKE | GB | |
||
| 92 | 868538-00 | 1 | CONTACT SA | 230v | GB | |
|
| 102 | 863866-05 | 4 | LEG | GB | |
||
| 103 | 942831-00 | 12 | SCREW | GB | |
||
| 104 | 860083-05 | 12 | NUT RH | GB | |
||
| 105 | 860074-04 | 21 | WASHER | GB | |
||
| 106 | 949882-01 | 1 | WRENCH 4 MM | GB | |
||
| 107 | 949752-01 | 1 | SPANNER | GB | |
||
| 108 | 949726-07 | 9 | NUT | GB | |
||
| 110 | 863880-00 | 9 | STUD | GB | |
||
| 111 | 863882-00 | 2 | SPACER | GB | |
||
| 112 | 866974-02 | 2 | KNOB | GB | |
||
| 113 | 863682-03 | 1 | BRACKET RH | GB | |
||
| 114 | 863683-03 | 1 | BRACKET LH | GB | |
||
| 115 | 863684-03 | 1 | BRACKET | GB | |
||
| 116 | N038256 | 1 | BASE | GB | |
||
| 123 | N036520 | 1 | SWITCHBOX & CABLE | GB | |
||
| 124 | N045584 | 1 | CABLE 1 PH | GB | |
||
| 125 | N045583 | 1 | CABLE 1 PH | GB | |
||
| 135 | 863426-04 | 1 | BRACKET | GB | |
||
| 136 | 860083-03 | 1 | NUT | GB | |
||
| 137 | 860074-02 | 1 | WASHER | GB | |
||
| 138 | 760992-00 | 1 | SCREW.TEMP | GB | |
||
| 142 | 861271-00 | 1 | CABLE | GB | |
||
| 144 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 145 | 860085-03 | 1 | BOLT | GB | |
||
| 147 | 863867-03 | 2 | BRACKET | GB | |
||
| 148 | 861238-02 | 1 | BRACKET LH | GB | |
||
| 149 | 861237-02 | 2 | BRACKET RH | GB | |
||
| 151 | 941602-00 | 3 | WASHER | GB | |
||
| 152 | 860085-04 | 3 | SCREW | GB | |
||
| 153 | N034822 | 1 | DUST COLLECTOR | GB | |
||
| 154 | N034815 | 1 | ELEMENT | R/H | GB | |
|
| 155 | N034816 | 1 | GUIDE | GB | |
||
| 156 | N032917 | 6 | PIN | GB | |
||
| 157 | N034814 | 1 | TABLE | R/H | GB | |
|
| 158 | 949703-09 | 15 | SCREW | GB | |
||
| 159 | 860073-03 | 15 | WASHER M8 | GB | |
||
| 160 | 860083-04 | 27 | NUT | GB | |
||
| 161 | N034823 | 1 | LEVER | GB | |
||
| 162 | N034670 | 1 | BOLT | GB | |
||
| 163 | N032405 | 1 | SPRING | GB | |
||
| 170 | N037575 | 1 | GUIDE | L/H | GB | |
|
| 171 | N034817 | 1 | TABLE CENTRE | GB | |
||
| 172 | N034811 | 1 | TABLE | L/H | GB | |
|
| 173 | N037576 | 1 | ELEMENT | L/H | GB | |
|
| 178 | 949701-12 | 1 | SCREW | GB | |
||
| 179 | 860089-39 | 2 | SCREW | GB | |
||
| 180 | N031178 | 1 | HANDLE | GB | |
||
| 181 | 860083-02 | 3 | NUT | GB | |
||
| 183 | 944590-00 | 1 | NUT | GB | |
||
| 184 | 949747-07 | 1 | GLAND | GB | |
||
| 185 | N032401 | 1 | LABEL | GB | |
||
| 186 | 949747-18 | 2 | CAP | GB | |
||
| 188 | 949747-18 | 1 | CAP | GB | |
||
| 201 | 938539-00 | 1 | KEY | GB | |
||
| 202 | 860093-02 | 2 | SCREW | GB | |
||
| 204 | N045688 | 1 | PIN | GB | |
||
| 207 | 860075-00 | 4 | WASHER | GB | |
||
| 208 | 760219-00 | 2 | SCREW | GB | |
||
| 209 | 860088-27 | 4 | SCREW | GB | |
||
| 210 | 949853-03 | 4 | SCREW | GB | |
||
| 211 | 860088-10 | 2 | PIN | GB | |
||
| 212 | 860083-03 | 2 | NUT | GB | |
||
| 213 | 941959-00 | 2 | BOLT | GB | |
||
| 214 | 860074-04 | 5 | WASHER | GB | |
||
| 215 | 860083-05 | 4 | NUT RH | GB | |
||
| 216 | 860073-14 | 1 | WASHER | GB | |
||
| 217 | 861721-07 | 8 | BEARING | GB | |
||
| 218 | 863971-00 | 4 | WASHER | GB | |
||
| 219 | 860226-02 | 4 | WASHER | GB | |
||
| 220 | N045690 | 1 | ROLLER HEAD SA | GB | |
||
| 221 | 862259-90 | 2 | BRACKET | GB | |
||
| 222 | 862380-00 | 2 | SHAFT | GB | |
||
| 223 | 863969-00 | 4 | SHAFT | GB | |
||
| 224 | 949886-06 | 1 | SCREW | GB | |
||
| 225 | 949886-07 | 1 | SCREW | GB | |
||
| 226 | 860650-01 | 1 | NIPPLE | GB | |
||
| 227 | 863989-00 | 1 | WASHER | GB | |
||
| 228 | 863991-00 | 1 | WASHER | GB | |
||
| 229 | 862261-90 | 1 | TRUNNION | GB | |
||
| 230 | 949702-04 | 1 | SCREW | GB | |
||
| 231 | 942518-00 | 1 | LOCK HANDLE | GB | |
||
| 232 | N045689 | 1 | YOKE | GB | |
||
| 233 | 862260-90 | 1 | TRUNNION | GB | |
||
| 234 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 235 | 946469-00 | 1 | KNOB | GB | |
||
| 236 | 860112-11 | 1 | SPRING | GB | |
||
| 237 | 863977-00 | 1 | PIN | GB | |
||
| 238 | 860835-01 | 1 | SUPPORT | GB | |
||
| 241 | 861233-01 | 5 | CONNECTOR | GB | |
||
| 248 | 860238-04 | 2 | SCREW | GB | |
||
| 249 | 860205-06 | 2 | SCREW | GB | |
||
| 250 | N037691 | 1 | CLAMP | GB | |
||
| 251 | 862721-01 | 1 | POINTER | GB | |
||
| 252 | 860829-00 | 1 | POINTER | GB | |
||
| 253 | 98104-16 | 1 | SCREW | GB | |
||
| 255 | N039458 | 1 | WASHER | GB | |
||
| 257 | N031511 | 1 | BUTTON START | GB | |
||
| 258 | N031510 | 1 | CONTACT | GB | |
||
| 259 | N034810 | 1 | NUT | GB | |
||
| 263 | 860843-01 | 1 | CLAMP | GB | |
||
| 264 | 860094-03 | 1 | SCREW | GB | |
||
| 300 | N034825 | 1 | STOP | GB | |
||
| 303 | 860088-10 | 2 | PIN | GB | |
||
| 304 | 860083-03 | 2 | NUT | GB | |
||
| 305 | 941880-00 | 1 | SCREW | GB | |
||
| 306 | 949889-02 | 4 | SCREW | GB | |
||
| 307 | 868768-07 | 1 | BEARING | GB | |
||
| 308 | 868768-11 | 1 | BEARING | GB | |
||
| 309 | 862003-00 | 1 | FLANGE | GB | |
||
| 310 | 868423-04 | 1 | STATOR 1 PH | GB | |
||
| 312 | 868420-02 | 1 | ROTOR 1 PH | GB | |
||
| 313 | 860088-27 | 1 | SCREW | GB | |
||
| 314 | 860080-02 | 1 | RING | GB | |
||
| 315 | 863410-01 | 1 | GASKET | GB | |
||
| 316 | 949870-04 | 7 | SCREW | GB | |
||
| 317 | 863503-00 | 1 | LABEL | GB | |
||
| 318 | 944653-00 | 1 | GROMMET | GB | |
||
| 319 | 862124-01 | 1 | END CAP | GB | |
||
| 320 | 862165-00 | 1 | COVER | GB | |
||
| 321 | 862126-00 | 1 | FAN | GB | |
||
| 322 | 862217-92 | 1 | HOUSING | GB | |
||
| 323 | 860094-03 | 4 | SCREW | GB | |
||
| 326 | 949747-18 | 1 | CAP | GB | |
||
| 327 | 944590-00 | 2 | NUT | GB | |
||
| 328 | N071379 | 1 | OUTER FLANGE | >182011 | >272010 | GB | |
|
| 328 | N413359 | 1 | FLANGE SET SA | GB | |
||
| 329 | 944650-00 | 1 | WASHER SPRING | GB | |
||
| 330 | 944455-01 | 1 | CONDENSOR | GB | |
||
| 332 | 863716-00 | 1 | GASKET | GB | |
||
| 333 | 860692-03 | 1 | PROTECTOR | GB | |
||
| 334 | 863112-00 | 1 | CAP | GB | |
||
| 335 | 862219-00 | 1 | COVER | GB | |
||
| 336 | 860074-04 | 1 | WASHER | GB | |
||
| 337 | 949758-02 | 1 | NUT | GB | |
||
| 338 | 938733 | 1 | WRENCH PIN | GB | |
||
| 339 | N034818 | 1 | BOLT | GB | |
||
| 340 | N071378 | 1 | INNER FLANGE | >272010 | GB | |
|
| 340 | N413359 | 1 | FLANGE SET SA | GB | |
||
| 341 | 944590-00 | 1 | NUT | GB | |
||
| 342 | 944654-00 | 1 | RETAINER | GB | |
||
| 343 | 123106-00 | 1 | STRAP | GB | |
||
| 344 | 860843-03 | 1 | STRAP | GB | |
||
| 345 | 946085-00 | 1 | CONNECTOR | GB | |
||
| 348 | N039459 | 1 | HEX. KEY 10 MM | GB | |
||
| 350 | 863259-00 | 1 | PROTECTOR | GB | |
||
| 351 | 949863-57 | 1 | CABLE | GB | |
||
| 361 | 868394-04 | 1 | MOTOR 1 PH | GB | |
||
| 401 | 864095-00 | 1 | TUBE EXTRACTION | GB | |
||
| 403 | 860083-04 | 2 | NUT | GB | |
||
| 404 | 249412-20 | 1 | SCREW | GB | |
||
| 406 | 860074-01 | 4 | WASHER | GB | |
||
| 407 | 860074-02 | 1 | WASHER | GB | |
||
| 408 | 860074-03 | 2 | WASHER | GB | |
||
| 409 | 943023-00 | 2 | SCREW | GB | |
||
| 411 | 760273-00 | 3 | SCREW | GB | |
||
| 412 | 760998-00 | 2 | SCREW | GB | |
||
| 413 | 860094-12 | 1 | SCREW | GB | |
||
| 416 | 863705-00 | 1 | BUSH | GB | |
||
| 417 | 863707-01 | 1 | BRACKET | GB | |
||
| 418 | 863708-00 | 1 | SQUARE | GB | |
||
| 420 | 863711-02 | 1 | PROTECTOR | GB | |
||
| 421 | 861222-00 | 1 | SPRING | GB | |
||
| 426 | 864053-00 | 4 | WASHER | GB | |
||
| 427 | 864054-00 | 2 | ROLLER | GB | |
||
| 429 | 863793-01 | 1 | SQUARE | GB | |
||
| 430 | N036977 | 1 | GUARD | GB | |
||
| 432 | 869325-00 | 1 | LOWER GUARD SA | GB | |
||
| 433 | 863621-00 | 1 | GUARD | GB | |
||
| 434 | 863620-00 | 1 | BRACKET | GB | |
||
| 435 | 861840-00 | 1 | HANDLE | GB | |
||
| 436 | 860301-16 | 1 | SCREW | GB | |
||
| 437 | 941602-00 | 1 | WASHER | GB | |
||
| 444 | 862089-01 | 2 | LEVER | GB | |
||
| 445 | 861221-00 | 2 | SPRING | GB | |
