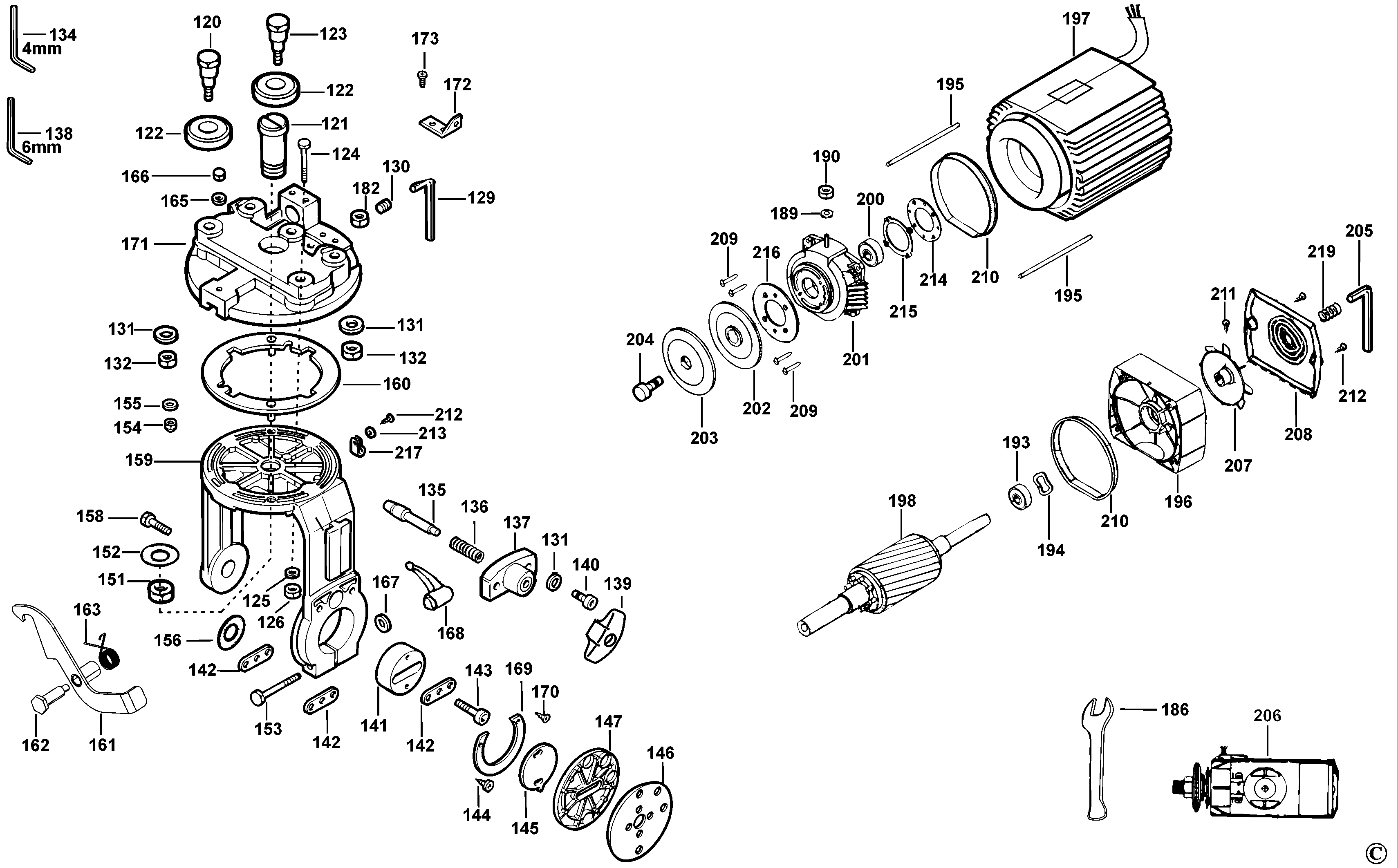

DW721KN RADIAL ARM SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860792-00 | 1 | KNOB SA | GB |  |
||
| 2 | 934401-00 | 1 | SCREW | GB | |
||
| 3 | 860093-06 | 2 | SCREW | GB | |
||
| 4 | 860073-06 | 1 | WASHER SPACER | GB | |
||
| 5 | 860784-00 | 1 | CAP | GB | |
||
| 6 | 860531-00 | 4 | SCREW | GB | |
||
| 7 | 860073-00 | 4 | WASHER | GB | |
||
| 8 | 860237-00 | 1 | POINTER | GB | |
||
| 9 | 860085-11 | 1 | SCREW | GB | |
||
| 10 | 863912-00 | 1 | SUPPORT | GB | |
||
| 11 | 860301-16 | 2 | SCREW | GB | |
||
| 12 | 863724-00 | 1 | BRACKET | GB | |
||
| 13 | 860074-03 | 2 | WASHER | GB | |
||
| 14 | 860093-14 | 2 | SCREW | GB | |
||
| 15 | 860083-03 | 2 | NUT | GB | |
||
| 17 | 864080-00 | 1 | BAR | GB |  |
||
| 18 | 864081-00 | 1 | TIP | GB | |
||
| 20 | 863929-00 | 1 | AUTO SAFETY RETURN | GB | |
||
| 21 | 863259-00 | 1 | PROTECTOR | GB | |
||
| 22 | N097868 | 1 | RATING PLATE | GB | |
||
| 23 | N045681 | 1 | ARM | GB | |
||
| 24 | 860429-00 | 1 | BUMPER | GB | |
||
| 25 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 26 | 860093-05 | 2 | SCREW.TEMP | GB | |
||
| 27 | 861111-01 | 1 | CAP | GB | |
||
| 28 | 861738-01 | 2 | BRAND LABEL | GB | |
||
| 29 | N045682 | 1 | COLUMN SA | GB | |
||
| 30 | 860791-00 | 1 | TUBE ELEVATING SA | GB | |
||
| 31 | 860083-04 | 8 | NUT | GB | |
||
| 32 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 33 | 860085-05 | 4 | SCREW | GB | |
||
| 34 | 860073-04 | 4 | WASHER | GB | |
||
| 35 | 860083-05 | 6 | NUT RH | GB | |
||
| 36 | 860085-02 | 2 | SCREW | GB | |
||
| 37 | 860909-03 | 1 | BASE SA | GB | |
||
| 38 | 860086-00 | 1 | SCREW | GB | |
||
| 39 | 860065-00 | 2 | SPACER | GB | |
||
| 40 | 860273-00 | 1 | SPACER LH | GB | |
||
| 41 | 860096-06 | 1 | PIN | GB | |
||
| 42 | 860831-90 | 1 | PINION | GB | |
||
| 43 | 860423-00 | 1 | WRENCH | GB | |
||
| 44 | 860232-00 | 2 | NUT | GB | |
||
| 45 | 860231-00 | 2 | SCREW | GB | |
||
| 46 | 864723-01 | 1 | LEVER | GB | |
||
| 47 | 860273-02 | 1 | SPACER RH | GB | |
||
| 48 | 867190-01 | 1 | SPACER | GB | |
||
| 49 | 860795-00 | 1 | LEVER | GB | |
||
| 50 | 860074-04 | 1 | WASHER | GB | |
||
| 51 | 861240-00 | 1 | LATCH | GB | |
||
| 52 | 860843-02 | 2 | BRACKET | GB | |
||
| 53 | 949853-11 | 2 | SCREW | GB | |||
| 54 | 860093-00 | 1 | SCREW | GB | |
||
| 55 | 860226-01 | 3 | WASHER | GB | |
||
| 56 | 860802-90 | 1 | WASHER | GB | |
||
| 58 | 720959-00 | 1 | WASHER | GB | |
||
| 61 | 949700-06 | 1 | CLIP | GB | |
||
| 62 | 949700-07 | 1 | STRAP | GB | |
||
| 63 | 863324-00 | 1 | PROTECTOR | GB | |
||
| 64 | 860238-03 | 2 | SCREW | GB | |
||
| 65 | 860074-01 | 2 | WASHER | GB | |
||
| 66 | 869356-09 | 1 | STOP | GB | |
||
| 67 | N034454 | 1 | WARNING LABEL | GB | |
||
| 68 | N032402 | 1 | DUST COLLECTOR | GB | |
||
| 69 | 941602-00 | 3 | WASHER | GB | |
||
| 70 | 860085-04 | 3 | SCREW | GB | |
||
| 71 | 330036-08 | 1 | PIN | GB | |
||
| 75 | N027622 | 1 | ELEMENT | L/H | GB | |
|
| 76 | N030449 | 1 | ELEMENT | R/H | GB | |
|
| 77 | N027624 | 1 | GUIDE | R/H | GB | |
|
| 78 | 860073-03 | 17 | WASHER M8 | GB | |
||
| 79 | N029923 | 1 | GUIDE | L/H | GB | |
|
| 80 | N027626 | 1 | TABLE | R/H | GB | |
|
| 81 | N027625 | 1 | TABLE | GB | |
||
| 82 | N032917 | 6 | PIN | GB | |
||
| 83 | 860083-14 | 19 | NUT | GB | |
||
| 84 | 860083-04 | 23 | NUT | GB | |
||
| 85 | 860074-03 | 23 | WASHER | GB | |
||
| 89 | 864078-00 | 2 | NUT | GB | |
||
| 90 | 869320-00 | 1 | BASE | GB | |
||
| 95 | N035392 | 2 | SCREW | GB | |
||
| 96 | 949703-09 | 17 | SCREW | GB | |
||
| 97 | N030068 | 1 | SUPPORT | GB | |
||
| 98 | N027627 | 1 | EXTENSION | GB | |
||
| 99 | N100723 | 1 | OVERLOAD PROTECTOR | GB | |
||
| 100 | 868459-00 | 3 | SCREW.SPECIAL | GB | |
||
| 101 | N034713 | 1 | TABLE SUPPORT | GB | |
||
| 102 | 863130-04 | 4 | SUPPORT BRACKET | GB | |
||
| 109 | N033664 | 1 | SUPPORT LH | GB | |
||
| 110 | 861278-00 | 1 | CABLE SA | GB | |
||
| 111 | 860094-06 | 2 | SCREW | GB | |
||
| 112 | 860083-02 | 2 | NUT | GB | |
||
| 113 | 860073-01 | 2 | WASHER | GB | |
||
| 114 | N098527 | 1 | SWITCH SA | GB | |
||
| 115 | N100301 | 1 | MOTOR CABLE | GB | |
||
| 120 | 760421-00 | 2 | SHAFT | GB | |
||
| 121 | N045683 | 1 | PIN | GB | |
||
| 122 | 860154-00 | 4 | BEARING | GB | |
||
| 123 | 760417-00 | 2 | SHAFT | GB | |
||
| 124 | 860093-20 | 1 | SCREW | GB | |
||
| 125 | 931429-00 | 1 | WASHER | GB | |
||
| 126 | 860083-03 | 1 | NUT | GB | |
||
| 129 | 938539-00 | 1 | KEY | GB | |
||
| 130 | 941880-00 | 2 | SCREW | GB | |
||
| 131 | 860074-03 | 6 | WASHER | GB | |
||
| 132 | 860083-08 | 4 | NUT | GB | |
||
| 134 | 949882-01 | 1 | WRENCH 4 MM | GB | |
||
| 135 | 863977-00 | 1 | PIN | GB | |
||
| 136 | 860112-11 | 2 | SPRING | GB | |
||
| 137 | 860835-00 | 1 | SUPPORT | GB | |
||
| 138 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 139 | 942453-00 | 1 | KNOB | GB | |
||
| 140 | 860093-00 | 2 | SCREW | GB | |
||
| 141 | 860119-01 | 1 | FRONT TRUNNION | GB | |
||
| 142 | 860120-00 | 3 | PLATE | GB | |
||
| 143 | 860093-00 | 3 | SCREW | GB | |
||
| 144 | 860531-00 | 2 | SCREW | GB | |
||
| 145 | 862721-01 | 1 | POINTER | GB | |
||
| 146 | N032399 | 1 | PLATE | GB | |
||
| 147 | 860827-00 | 1 | SHIELD | GB | |
||
| 151 | N032397 | 1 | NUT | GB | |
||
| 152 | N035393 | 1 | WASHER | GB | |
||
| 153 | 860086-11 | 1 | SCREW | GB | |
||
| 154 | 860092-00 | 2 | NUT | GB | |
||
| 155 | 720959-00 | 2 | WASHER | GB | |
||
| 156 | 864160-00 | 1 | DISC | GB | |
||
| 158 | 864058-00 | 1 | SCREW | GB | |
||
| 159 | N045684 | 1 | YOKE | GB | |
||
| 160 | 863157-00 | 1 | RING | GB | |
||
| 161 | N030650 | 1 | LEVER | GB | |
||
| 162 | N034670 | 1 | BOLT | GB | |
||
| 163 | N032405 | 1 | SPRING | GB | |
||
| 165 | 860073-01 | 1 | WASHER | GB | |
||
| 166 | 860092-03 | 1 | NUT M5 | GB | |
||
| 167 | 860074-03 | 1 | WASHER | GB | |
||
| 168 | 861840-03 | 1 | LEVER | GB | |
||
| 169 | 860829-00 | 1 | POINTER | GB | |
||
| 170 | 860205-06 | 2 | SCREW | GB | |
||
| 171 | N045685 | 1 | ROLLER HEAD | GB | |
||
| 172 | 863726-00 | 1 | BRACKET | GB | |
||
| 173 | 860094-02 | 2 | SCREW | GB | |
||
| 178 | 949701-12 | 1 | SCREW | GB | |
||
| 179 | 860089-39 | 2 | SCREW | GB | |
||
| 180 | N031178 | 1 | HANDLE | GB | |
||
| 181 | 860083-02 | 3 | NUT | GB | |
||
| 182 | 860083-12 | 2 | NUT M6 | GB | |
||
| 186 | 949751-07 | 1 | SPANNER 10-13MM | GB | |
||
| 189 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 190 | 860083-04 | 1 | NUT | GB | |
||
| 193 | 868768-07 | 1 | BEARING | GB | |
||
| 194 | 860080-02 | 1 | RING | GB | |
||
| 195 | 860446-01 | 4 | BOLT | GB | |
||
| 196 | 860701-04 | 1 | END CAP | GB | |
||
| 197 | 868401-01 | 1 | STATOR SA 230V | GB | |
||
| 198 | N037012 | 1 | ROTOR 1 PH | GB | |
||
| 200 | 868768-10 | 1 | BEARING | GB | |
||
| 201 | 862162-00 | 1 | HOUSING | GB | |
||
| 202 | N071376 | 1 | INNER FLANGE | GB | |
||
| 203 | N071377 | 1 | OUTER FLANGE | GB | |
||
| 204 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | GB | |
|
| 205 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 206 | N106004 | 1 | MOTOR SA | GB | |
||
| 207 | 945841-00 | 1 | FAN | GB | |
||
| 208 | N027614 | 1 | END CAP | GB | |
||
| 209 | 860538-00 | 4 | SCREW | GB | |
||
| 210 | 860718-00 | 2 | SEAL | GB | |
||
| 211 | 860088-25 | 1 | SCREW | GB | |
||
| 212 | 860094-01 | 2 | SCREW | GB | |
||
| 213 | 933652-00 | 1 | WASHER | GB | |
||
| 214 | 123302-01 | 1 | CAP | GB | |
||
| 215 | 863878-00 | 1 | GASKET | GB | |
||
| 216 | 864085-01 | 1 | PLATE | GB | |
||
| 217 | 860843-01 | 1 | CLAMP | GB | |
||
| 219 | 869246-00 | 1 | SPRING | GB | |
||
| 231 | 860094-03 | 4 | SCREW | GB | |
||
| 233 | N033752 | 1 | NUT | GB | |
||
| 234 | 868961-00 | 1 | COVER | GB | |
||
| 235 | 949747-07 | 1 | GLAND | GB | |
||
| 236 | 949747-18 | 1 | CAP | GB | |
||
| 237 | 944590-00 | 2 | NUT | GB | |
||
| 238 | N032403 | 1 | LEAD | GB | |
||
| 240 | 868963-00 | 1 | GROMMET | GB | |
||
| 241 | 944652-00 | 1 | GROMMET | GB | |
||
| 242 | 868965-01 | 1 | RETAINER | GB | |
||
| 243 | N036361 | 1 | HOUSING | GB | |
||
| 244 | 949772-50 | 1 | CAPACITOR | 30uF | GB | |
|
| 245 | 861257-00 | 7 | CONNECTOR | GB | |
||
| 246 | 868962-00 | 1 | GASKET | GB | |
||
| 247 | 868965-00 | 1 | NUT | GB | |
||
| 248 | 860094-00 | 1 | SCREW.TEMP | GB | |
||
| 249 | 860094-02 | 1 | SCREW | GB | |
||
| 250 | 933652-00 | 1 | WASHER | GB | |
||
| 253 | 860084-04 | 4 | SCREW | GB | |
||
| 254 | 947322-01 | 1 | INLET | GB | |
||
| 256 | N032401 | 1 | LABEL | GB | |
||
| 257 | N031511 | 1 | BUTTON START | GB | |
||
| 258 | N031510 | 1 | CONTACT | GB | |
||
| 272 | 869125-00 | 1 | LABEL | GB | |
||
| 274 | 864095-00 | 1 | TUBE EXTRACTION | GB | |
||
| 275 | N032220 | 1 | BRACKET | GB | |
||
| 276 | 860074-01 | 4 | WASHER | GB | |
||
| 279 | 943023-00 | 3 | SCREW | GB | |
||
| 280 | 863707-01 | 1 | BRACKET | GB | |
||
| 281 | 760998-00 | 2 | SCREW | GB | |
||
| 282 | 249412-20 | 2 | SCREW | GB | |
||
| 283 | 864053-00 | 4 | WASHER | GB | |
||
| 284 | 860301-16 | 1 | SCREW | GB | |
||
| 287 | 860083-03 | 2 | NUT | GB | |
||
| 290 | 860085-09 | 1 | SCREW.TEMP | GB | |
||
| 292 | 863705-00 | 1 | BUSH | GB | |
||
| 293 | 864054-00 | 2 | ROLLER | GB | |
||
| 303 | 949891-01 | 1 | SCREW.TEMP | GB | |
||
| 304 | 861221-00 | 2 | SPRING | GB | |
||
| 306 | 861239-00 | 1 | SPRING | GB | |
||
| 307 | 860076-04 | 1 | WASHER | GB | |
||
| 309 | N032412 | 1 | GUARD | GB | |
||
| 310 | 863773-02 | 1 | PROTECTOR | GB | |
||
| 311 | 862426-00 | 1 | GUARD | GB | |
||
| 312 | 862082-01 | 2 | LEVER | GB | |
||
| 315 | 863205-02 | 1 | BRACKET | GB | |
||
| 316 | 863437-00 | 1 | BRACKET | GB | |
||
| 319 | 869235-00 | 1 | SPANNER BOX | GB | |
||
| 320 | 860073-01 | 2 | WASHER | GB | |
||
| 401 | 860009-09 | 4 | CROSSBAR LONG | GB | |
||
| 402 | 860008-00 | 4 | LEG | GB | |
||
| 403 | 860083-04 | 24 | NUT | GB | |
||
| 404 | 860073-03 | 48 | WASHER M8 | GB | |
||
| 405 | 860085-04 | 24 | SCREW | GB | |
||
| 846 | N045264 | 1 | GUARD | GB | |
