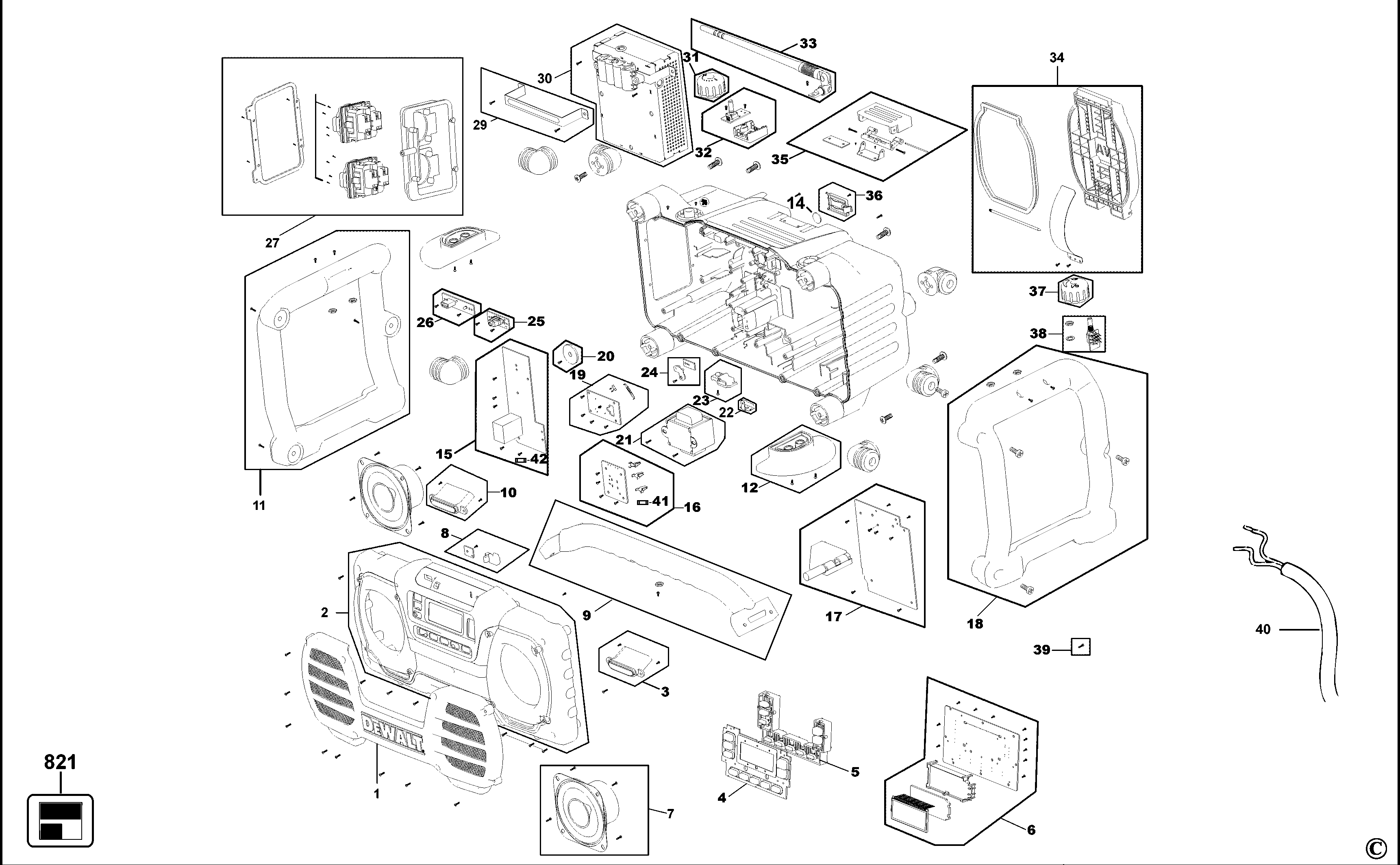

DC013 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140072-39 | 1 | GRILL | LX |  |
||
| 2 | 1004503-00 | 1 | COVER | LX | |
||
| 3 | 5140072-40 | 1 | DUCT | Duct Port Right | LX | |
|
| 4 | 5140072-09 | 1 | RUBBER PAD | Function Button Cvr. | LX | |
|
| 5 | 5140072-10 | 1 | CONTROL PANEL | Function Buttons | LX | |
|
| 6 | 1004503-01 | 1 | PCB CONTROLLER | TO D-CODE 201134 | LX | |
|
| 6 | 1004682-04 | 1 | CONTROLLER SA | FROM D-CODE 201134 | LX | |
|
| 7 | 5140072-11 | 2 | SPEAKER | LX | |
||
| 8 | 1004503-16 | 1 | COVER SA | LX | |
||
| 9 | 5140072-42 | 1 | HANDLE SA | LX | |
||
| 10 | 5140072-43 | 1 | DUCT | Duct Port Left | LX | |
|
| 11 | 1004503-02 | 1 | PROTECTOR | LH | LX | |
|
| 12 | 5140072-45 | 1 | CLIP CABLE | LX | |
||
| 14 | 5140112-26 | 1 | BATTERY | LX |  |
||
| 15 | 1004503-03 | 1 | PCB SA | Power | TO D-CODE 201134 | LX | |
| 15 | 1004682-00 | 1 | PCB SA | EURO | FROM D-CODE 201134 | LX | |
| 16 | 5140072-04 | 1 | PCB | Battery Conn. PCB | TO DCODE 201112 | LX | |
| 16 | 5140113-36 | 1 | PCB | CHARGING PCBA | FROM D-CODE 201134 | LX | |
| 17 | 5140113-34 | 1 | PCB SA | MAIN&TUNER PCBA | FROM D-CODE 201134 | LX | |
| 17 | 5140072-02 | 1 | PCB SA | Main PCB assembly | TO D-CODE 201134 | LX | |
| 18 | 1004503-04 | 1 | PROTECTOR | RH | LX | |
|
| 19 | 5140072-03 | 1 | PCB | Coin Battery PCB | TO D-CODE 201134 | LX | |
| 19 | 5140113-35 | 1 | PCB SA | COINCELL BATTRY PCBA | FROM D-CODE 201134 | LX | |
| 20 | 5140072-54 | 1 | RETAINER | PCB retainer | LX | |
|
| 21 | 1004503-06 | 1 | TRANSFORMER | LX | LX | |
|
| 22 | 5140072-48 | 1 | PLATE | Antenna plate | LX | |
|
| 23 | 5140072-49 | 1 | BRACKET | Power PCB bracket | LX | |
|
| 24 | 5140072-50 | 1 | BRACKET | LX | |
||
| 25 | 1004503-07 | 1 | PCB | Aux | TO D-CODE 201134 | LX | |
| 25 | 1004682-02 | 1 | PCB SA | AUX IN | FROM D-CODE 201134 | LX | |
| 26 | 1004682-03 | 1 | PCB SA | LED | FROM D-CODE 201134 | LX | |
| 26 | 1004503-08 | 1 | PCB | LED/USB | TO D-CODE 201134 | LX | |
| 27 | 1004503-13 | 1 | SOCKET SA | 115V | LX | |
|
| 29 | 5140072-28 | 1 | BRACKET | Charger mount | LX | |
|
| 30 | 1004503-15 | 1 | CHARGER SA | 115V | LX | |
|
| 31 | 5140072-30 | 1 | KNOB | LX | |
||
| 32 | 5140072-36 | 1 | PCB | TO D-CODE 201134 | LX | |
|
| 32 | 5140113-40 | 1 | PCB SA | TUNING KNOB PCBA | FROM D-CODE 201134 | LX | |
| 33 | 5140019-28 | 1 | ANTENNA | FM ANT ASSY | LX | |
|
| 34 | 5140072-34 | 1 | DOOR | LX | |
||
| 35 | 5140019-23 | 1 | LATCH | LX | |
||
| 36 | 5140072-51 | 1 | BUTTON | LX | |
||
| 37 | 5140072-32 | 1 | KNOB | LX | |
||
| 38 | 5140113-41 | 1 | CONTROL SA | VOLUME PCBA | FROM D-CODE 201134 | LX | |
| 38 | 5140072-37 | 1 | CONTROL SA | TO D-CODE 201134 | LX | |
|
| 39 | 5140072-53 | 1 | SCREW | Package of 10 | LX | |
|
| 40 | 1004503-20 | 1 | CORDSET | LX | LX | |
|
| 41 | 1004503-21 | 1 | FUSE | 4A-250V | LX | |
|
| 42 | 5140019-17 | 1 | FUSE | 1.6A 250V T218 | LX | |
|
| 821 | N036422 | 1 | RATING PLATE | LX | LX | |
