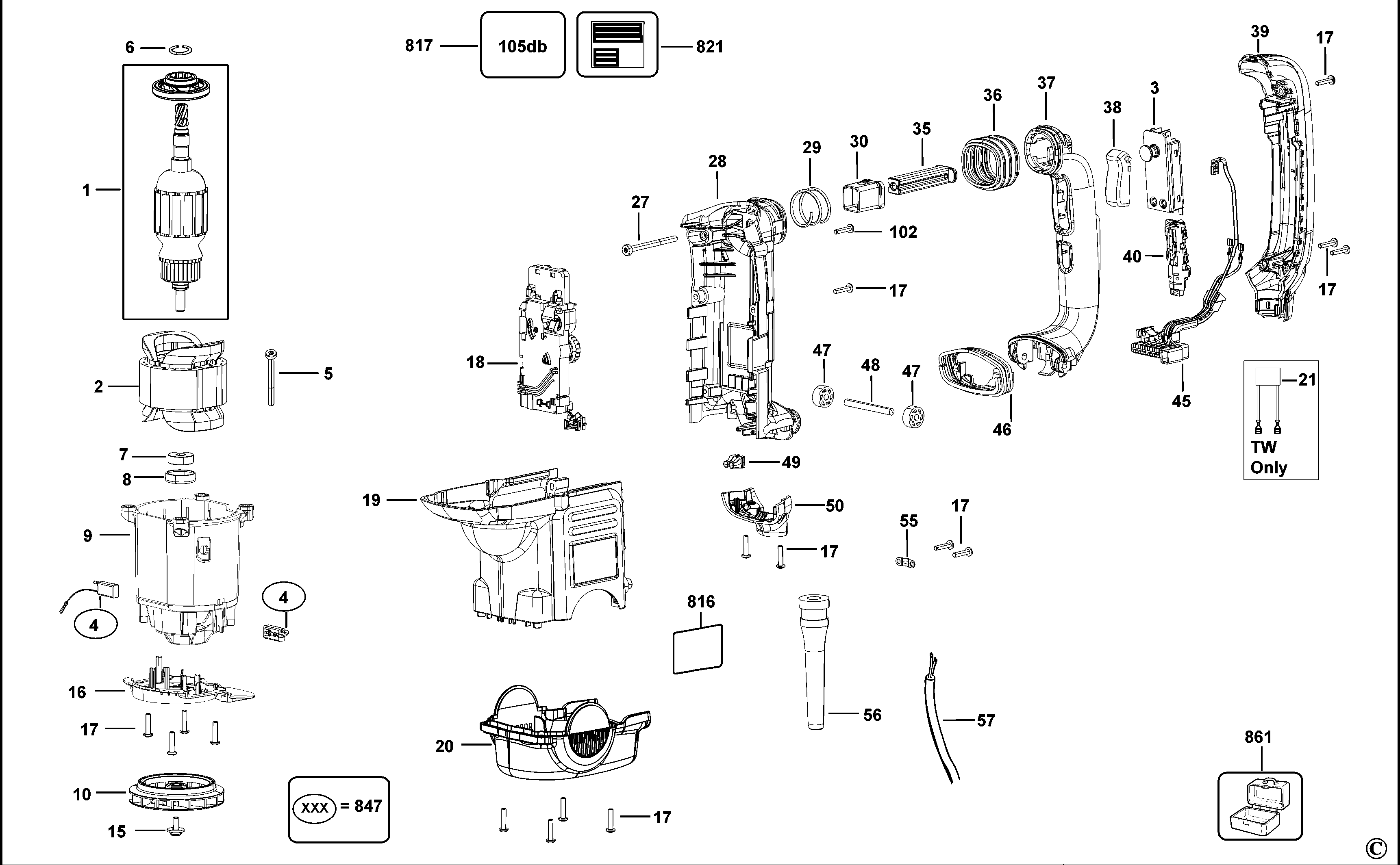

D25711K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 489252-00 | 1 | ARMATURE 120V | LX |  |
||
| 2 | 489255-00 | 1 | FIELD 115V | LX | |
||
| 3 | 581070-00 | 1 | SWITCH | LX | |
||
| 4 | 489257-00 | 1 | BRUSH PAIR 115V | LX | |
||
| 5 | 330019-30 | 2 | SCREW | LX | |
||
| 6 | 577746-00 | 1 | RING | LX | |
||
| 7 | 577745-00 | 1 | BEARING | LX | |
||
| 8 | 590191-00 | 1 | SLEEVE INSULATING | LX | |
||
| 9 | N053063-02 | 1 | HOUSING MOTOR | LX |  |
||
| 10 | N542569 | 1 | FAN SA | LX | |
||
| 10 | N542569 | 1 | FAN SA | LX | |
||
| 15 | 324119-02 | 1 | SCREW | LX | |
||
| 16 | N029959 | 1 | BAFFLE FAN | LX | |
||
| 17 | 330065-08 | 19 | SCREW | M4x18 T20 | LX | |
|
| 18 | N053976 | 1 | GACC MODULE 115V | LX | |
||
| 19 | N022762-00 | 1 | MOTOR COVER | LX | |
||
| 20 | N027971 | 1 | END CAP | LX | |
||
| 27 | 1005672-00 | 1 | SCREW | LX | |
||
| 28 | N026163-01 | 1 | SUPPORT PLATE | LX | |
||
| 29 | 1007569-00 | 1 | SPRING | LX | |
||
| 30 | 1007567-00 | 1 | BUSH | LX | |
||
| 35 | 1007566-00 | 1 | STOP | LX | |
||
| 36 | 1007565-00 | 1 | BELLOWS | LX | |
||
| 37 | 1006579-00 | 1 | SWITCH HANDLE | LX | |
||
| 38 | 587114-01 | 1 | TRIGGER | LX | |
||
| 39 | 1006580-00 | 1 | HANDLE COVER | LX | |
||
| 40 | N019514 | 1 | TRIGGER LOCK-ON | LX | |
||
| 45 | N037180 | 1 | SET OF LEAD WIRES | LX | |
||
| 46 | 1008678-00 | 1 | BELLOWS | LX | |
||
| 47 | N038214 | 2 | BUSH | LX | |
||
| 48 | N062047 | 1 | PIN | LX | |
||
| 49 | N030728 | 1 | LENS | LX | |
||
| 50 | 1008391-00 | 1 | COVER | LX | |
||
| 55 | 821070 | 1 | CORD CLAMP | LX | |
||
| 56 | 323091-01 | 1 | CORD PROTECTOR | LX | |
||
| 57 | 324438-90 | 1 | CORDSET | LX | LX | |
|
| 58 | 324007-11 | 4 | SCREW | M5 X 18 | LX | |
|
| 100 | 326467-00 | 1 | DETENT | LX | |
||
| 101 | N019533 | 1 | MICRO SWITCH | LX | |
||
| 102 | 324007-11 | 18 | SCREW | M5 X 18 | LX | |
|
| 103 | 488067-00 | 1 | FILTER | LX | |
||
| 104 | N027968 | 1 | COVER GEARCASE | LX | |
||
| 105 | 323711-56 | 1 | O RING | LX | |
||
| 106 | 323711-48 | 1 | O RING | LX | |
||
| 107 | 586032-00 | 1 | ECCENTRIC | LX | |
||
| 108 | 323395-32 | 2 | SPRING | LX | |
||
| 109 | N027969 | 1 | SLIDER | LX | |
||
| 110 | 586038-00 | 1 | SELECTOR | LX | |
||
| 111 | 585168-00 | 1 | COVER-TOP | LX | |
||
| 112 | N079389 | 1 | PISTON KIT | >352010 | LX | |
|
| 113 | N027970 | 1 | RETAINER | LX | |
||
| 116 | N029957 | 1 | CLIP | LX | |
||
| 117 | 584703-00 | 1 | O RING | LX | |
||
| 118 | N513280 | 1 | CRANKSHAFT | <352010 | LX | |
|
| 118 | N090947 | 1 | CRANKSHAFT | >352010 | LX | |
|
| 119 | 323711-26 | 1 | O RING | LX | |
||
| 120 | N079379 | 1 | HOUSING SA | LX | |
||
| 130 | 577744-07 | 1 | O RING | LX | |
||
| 131 | 586034-00 | 1 | SLIDER | LX | |
||
| 132 | N079394 | 1 | CYLINDER SA | LX | |
||
| 135 | 584715-00 | 1 | BUSH | LX | |
||
| 136 | 584706-00 | 1 | O RING | LX | |
||
| 137 | 489180-00 | 1 | RAM | LX | |
||
| 139 | 478650-00 | 1 | BUSH | LX | |
||
| 140 | 584726-00 | 1 | SPRING | LX | |
||
| 150 | 489181-01 | 1 | SLEEVE | LX | |
||
| 151 | N079396 | 1 | BEVEL GEAR | LX | |
||
| 152 | 479974-00 | 1 | SPACER | LX | |
||
| 153 | 488688-00 | 1 | GEAR | LX | |
||
| 154 | 577745-02 | 1 | BEARING,BALL | LX | |
||
| 155 | 586301-00 | 1 | BEARING,NEEDLE | LX | |
||
| 156 | 489239-00 | 1 | BEARING BRASS BUSH | LX | |
||
| 157 | 586022-00 | 1 | SEAL | LX | |
||
| 158 | 330003-39 | 1 | BEARING | LX | |
||
| 159 | 327141-08 | 1 | SEAL | LX | |
||
| 160 | N079387 | 1 | COVER GEARCASE | LX | |
||
| 165 | N079393 | 1 | CLUTCH SA | LX | |
||
| 200 | 487238-01 | 1 | SEAL | LX | |
||
| 201 | 487205-00 | 1 | RING | LX | |
||
| 202 | 487241-00 | 1 | WASHER | LX | |
||
| 203 | 487244-00 | 1 | RUBBER | LX | |
||
| 204 | 487236-00 | 1 | SLEEVE | LX | |
||
| 205 | 579784-00 | 1 | LOCKING RING | LX | |
||
| 206 | 487218-00 | 1 | SPRING | LX | |
||
| 207 | 489672-00 | 2 | KEY | LX | |
||
| 208 | 487249-00 | 1 | BUSH | LX | |
||
| 209 | 590377-00 | 1 | GUIDE BUSH | LX | |
||
| 210 | 487216-00 | 1 | SPRING | LX | |
||
| 220 | 584696-00 | 1 | GUIDE | LX | |
||
| 221 | 585167-01 | 1 | COVER | LX | |
||
| 223 | 949886-32 | 4 | SCREW | LX | |
||
| 224 | 327141-07 | 1 | LIP SEAL | LX | |
||
| 225 | 488679-00 | 1 | BEARING SET | LX | |
||
| 226 | 488787-00 | 1 | RING | LX | |
||
| 227 | 488678-00 | 1 | HOUSING FRONT | LX | |
||
| 228 | 589096-00 | 1 | BUSH | LX | |
||
| 229 | 589223-00 | 1 | DAMPER | LX | |
||
| 230 | 584727-00 | 1 | BUSH | LX | |
||
| 240 | 488546-00 | 1 | O RING | LX | |
||
| 250 | 488676-00 | 1 | SPINDLE SA | LX | |
||
| 251 | N014007 | 1 | SEAL | LX | |
||
| 252 | 1005597-00 | 1 | O RING | LX | |
||
| 253 | 488685-00 | 1 | BEARING | LX | |
||
| 254 | 488681-00 | 1 | BEAT PIECE | LX | |
||
| 255 | 488680-00 | 1 | WASHER | LX | |
||
| 256 | 496678-00 | 1 | DAMPER | LX | |
||
| 257 | 488686-00 | 1 | BUSH | LX | |
||
| 260 | N083965 | 1 | HANDLE SA | LX | |
||
| 261 | N021312 | 1 | CLAMPING INSERT | LX | |
||
| 262 | N114828 | 1 | HANDLE | LX | |
||
| 263 | 326553-00 | 1 | LOCKING RING | LX | |
||
| 264 | 479333-00 | 1 | CLAMP | LX | |
||
| 265 | 326552-00 | 1 | BUSH | LX | |
||
| 266 | N079374 | 1 | PIN | LX | |
||
| 800 | 578970-04 | 1 | GREASE | 80g | LX | |
|
| 816 | N061824 | 1 | BRAND LABEL | LX | |
||
| 817 | 487395-01 | 1 | LABEL | LX | |
||
| 821 | N049495 | 1 | RATING PLATE | LX | |
||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 837 | 559653-99 | 1 | S.T.BEARING EXTRACTOR | O Ring/Bush extracto | LX | |
|
| 838 | 559657-99 | 1 | S.T.BEARING EXTRACTOR | Bearing puller, assm | LX | |
|
| 840 | 559659-99 | 1 | S.T.SEAL FITTING TOOL | LX | |
||
| 845 | 559656-99 | 1 | S.T.SUPPORT JIG | LX | |
||
| 847 | N082645 | 1 | SERVICE KIT 120V | 7kg | LX | |
|
| 861 | N072214 | 1 | KITBOX | LX | |
