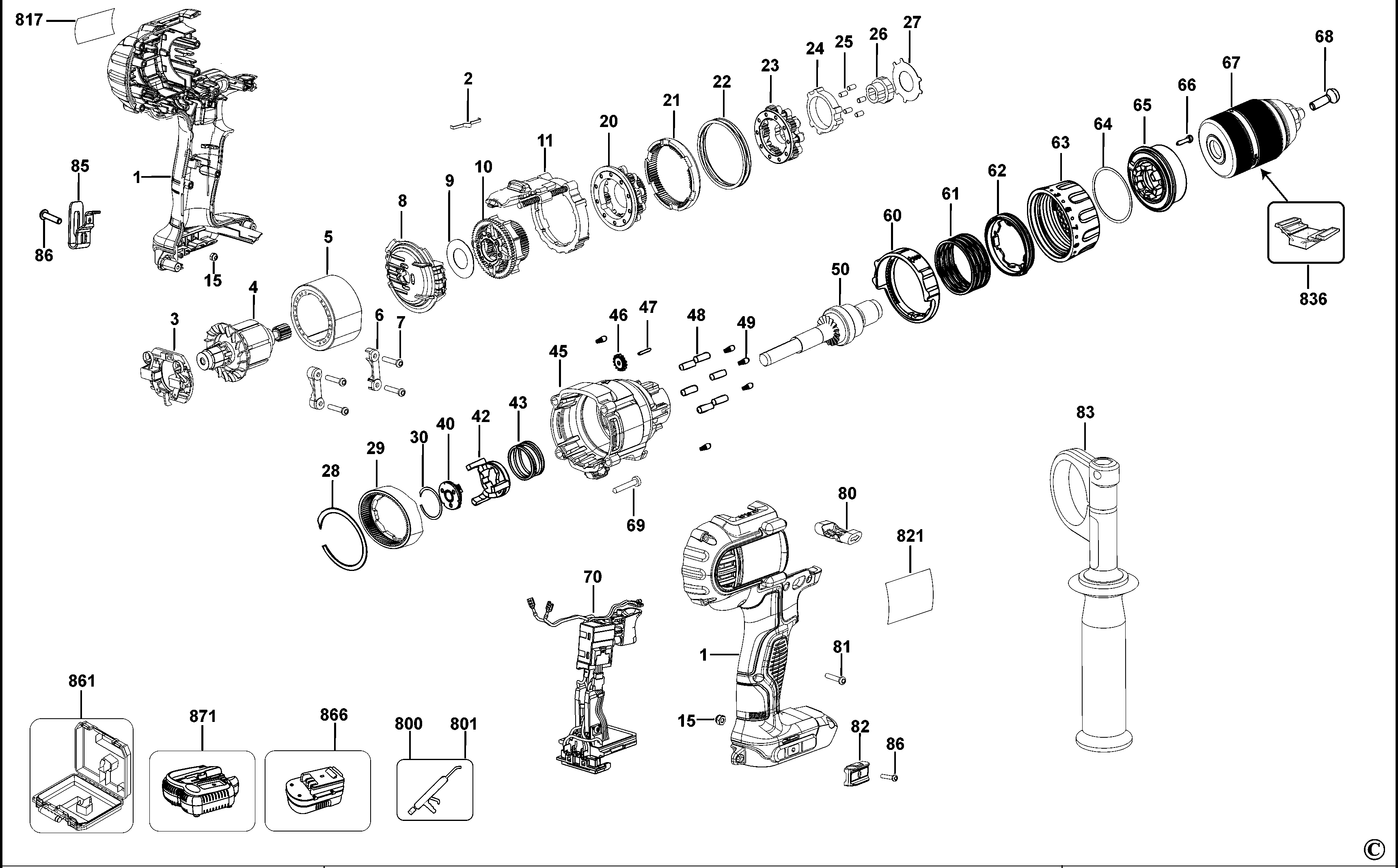

DCD931 CORDLESS DRILL Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N377758 | 1 | CLAMSHELL PAIR | EMI, WELD | GB |  |
|
| 2 | N014681 | 2 | LEAF SPRING | GB |  |
||
| 3 | N012060 | 1 | BRUSHPLATE | GB | |
||
| 4 | N268000 | 1 | ARMATURE SA | 14.4V | GB | |
|
| 5 | N012055 | 1 | MAGNET SA | GB | |
||
| 6 | N007948 | 2 | CLAMP | GB | |
||
| 7 | 330019-52 | 4 | SCREW | GB | |
||
| 8 | N142938 | 1 | BAFFLE | GB | |
||
| 9 | 654925-00 | 1 | WASHER | GB | |
||
| 10 | N016359 | 1 | GEAR SA | 1st | GB | |
|
| 11 | N016366 | 1 | SLIDER SA | GB | |
||
| 15 | 330021-11 | 2 | STOP NUT | GB | |
||
| 20 | N016360 | 1 | GEAR SA | 2nd | 2nd | GB | |
| 21 | N016367 | 1 | GEAR | 2nd | 2nd | GB | |
| 22 | N038862 | 1 | SPRING | GB | |||
| 23 | N016361 | 1 | GEAR SA | 3rd | GB | |
|
| 24 | N016370 | 1 | LOCKING RING | GB | |
||
| 25 | 654110-00 | 5 | ROLLER | GB | |
||
| 26 | N016365 | 1 | ANVIL | GB | |
||
| 27 | 652378-00 | 1 | PLATE | GB | |
||
| 28 | 650474-00 | 1 | SPRING CLIP | GB | |
||
| 29 | N016362 | 1 | GEAR | GB | |
||
| 30 | 650475-00 | 1 | CIRCLIP | GB | |
||
| 40 | N016368 | 1 | CAM | GB | |
||
| 42 | N080691 | 1 | LOCKING DEVICE | GB | |
||
| 43 | 650455-00 | 1 | SPRING | GB | |
||
| 45 | N107987 | 1 | GEARCASE | DD | GB | |
|
| 46 | N111054 | 1 | PINION | GB | |
||
| 47 | 629085-00 | 1 | PIN | GB | |
||
| 48 | 650471-00 | 6 | PIN | GB | |
||
| 49 | 326467-00 | 5 | DETENT | GB | |
||
| 50 | N012066 | 1 | SPINDLE SA | DD | GB | |
|
| 60 | 650415-00 | 1 | SELECTOR | GB | |
||
| 61 | 655532-00 | 1 | SPRING | GB | |
||
| 62 | 652380-00 | 1 | NUT | GB | |
||
| 63 | 650459-00SV | 1 | COLLAR SA | GB | |
||
| 64 | N015955 | 1 | WASHER NYLON | GB | |
||
| 65 | 650491-00 | 1 | END CAP | GB | |
||
| 66 | 650418-00 | 3 | SCREW | GB | |
||
| 67 | N242399 | 1 | CHUCK KEYLESS | GB | |
||
| 68 | 605256-02 | 1 | SCREW | GB | |
||
| 69 | 330019-52 | 4 | SCREW | GB | |
||
| 70 | N384406 | 1 | SWITCH KIT | >182012 | GB | |
|
| 70 | N415291 | 1 | ELECTRONIC & SWITCH | 14.14V | <182012 | GB | |
| 80 | N091392 | 1 | ACTUATOR FWD/REV | GB | |
||
| 81 | 682211-00 | 13 | SCREW | GB | |
||
| 82 | N475326 | 1 | HOLDER BIT | GB | |
||
| 83 | N433408 | 1 | SIDE HANDLE | Length 234 mm | GB | |
|
| 85 | N086039 | 1 | HOOK | GB | |
||
| 86 | N042665 | 2 | SCREW | GB | |
||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 801 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
|
| 817 | N096997 | 1 | BRAND LABEL | GB | |
||
| 821 | N091290 | 1 | RATING PLATE | GB | |
||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 596004-99 | 1 | S.T.INSERT | GB | |
||
| 861 | N096816 | 1 | KITBOX | GB | |
||
| 866 | N394622 | 2 | BATTERY 14.4V - 5.0AH - 72WH | Li-Ion - DCB144-XJ | DCD931L2 | GB | |
| 866 | N195933 | 2 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCD931M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
