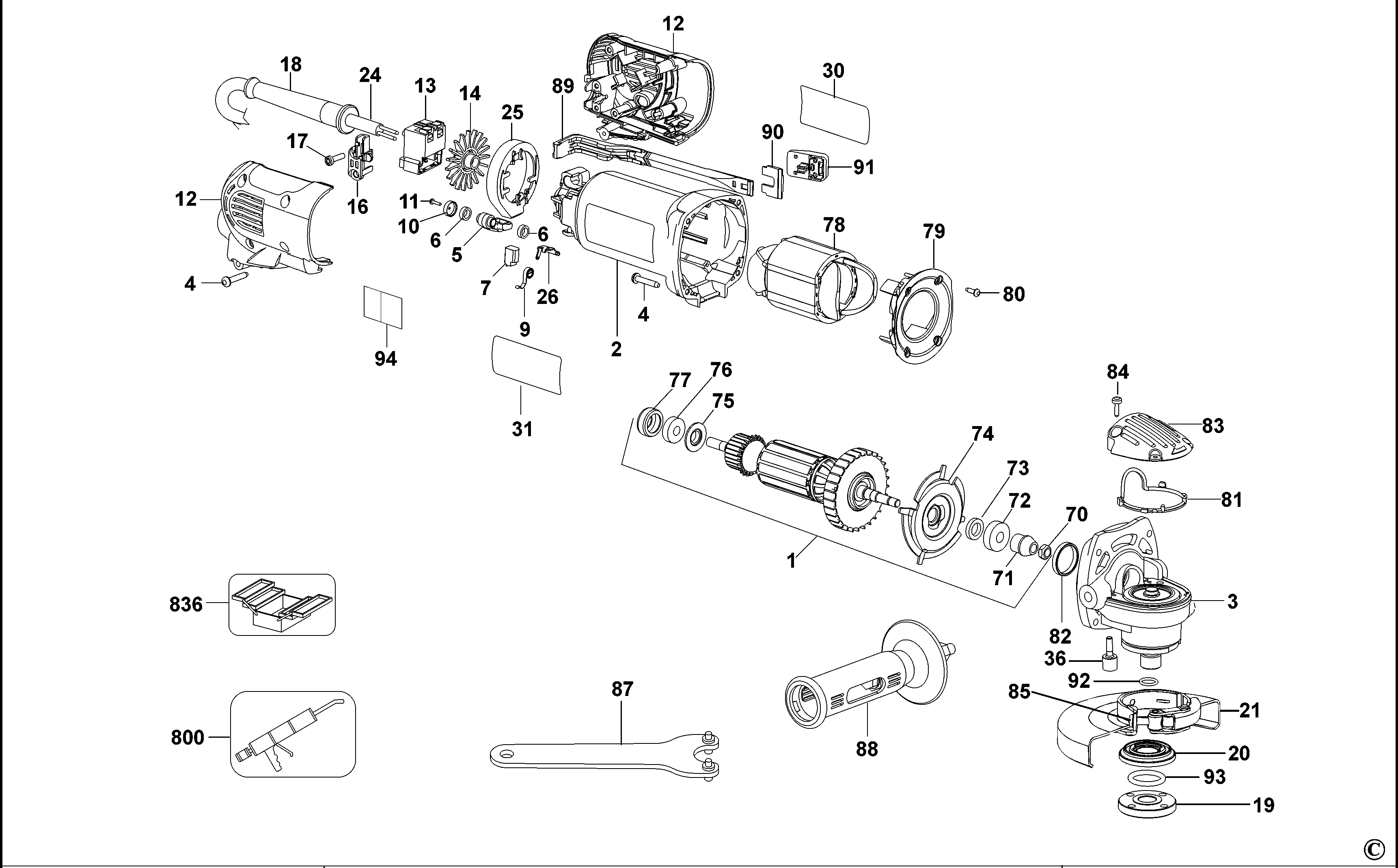

D28135 SMALL ANGLE GRINDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N398000 | 1 | ARMATURE SA | 230V | GB |  |
|
| 2 | 626992-02 | 1 | FIELDCASE | HP, SLIDER | GB | |
|
| 3 | N074220 | 1 | GEARCASE SA | GB | |
||
| 4 | 330065-31 | 9 | PLASTIC SCREW | GB | |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | GB | |
|
| 6 | 623592-00 | 4 | FELT SEAL | GB | |
||
| 7 | 1003857-00 | 1 | BRUSH PAIR 230V | 640491-03 x 2 | GB | |
|
| 9 | 636760-00 | 2 | BRUSH SPRING | GB | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | GB | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | GB | |
|
| 12 | 633013-01 | 1 | HANDLE SA | GB | |
||
| 13 | 945614-00 | 1 | SWITCH | GB | |
||
| 14 | N055787 | 1 | SEPARATOR | Particle | GB | |
|
| 16 | 639693-00 | 1 | CORD CLAMP | GB | |
||
| 17 | 330019-03 | 2 | SCREW | GB | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 18 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | GB | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | GB | |
||
| 21 | N039878 | 1 | GUARD SA | 125MM, KEYLESS | GB | |
|
| 24 | 562226-09 | 1 | CABLE | GB |  |
||
| 25 | 627283-00 | 1 | BAFFLE | GB | |
||
| 26 | 623593-00 | 2 | TERMINAL | GB | |
||
| 30 | 628885-00 | 1 | BRAND LABEL | GB | |
||
| 31 | N041515 | 1 | RATING PLATE | D28135-GB TY4 | GB | |
|
| 36 | N033051 | 1 | SCREW | GB | |
||
| 70 | 604484-00 | 1 | NUT | GB | |
||
| 71 | 627465-00 | 1 | PINION | 9 TOOTH | GB | |
|
| 72 | 605040-67 | 1 | BEARING | GB | |
||
| 73 | 623617-00 | 1 | FELT SEAL | GB | |
||
| 74 | N422242 | 1 | RETAINER | GB | |
||
| 75 | 623613-00 | 1 | WASHER | GB | |
||
| 76 | 605040-02 | 1 | BEARING | GB | |
||
| 77 | 641823-00 | 1 | SLEEVE | GB | |
||
| 78 | 627125-04 | 1 | FIELD 230V | 230V | GB | |
|
| 79 | 623572-00 | 1 | BAFFLE FAN | GB | |
||
| 80 | 330065-25 | 4 | SCREW | GB | |
||
| 81 | 632513-00 | 1 | GASKET | GB | |
||
| 82 | 611492-00 | 1 | SLEEVE | GB | |
||
| 83 | 627313-00 | 1 | GEARCASE COVER | GB | |
||
| 84 | 385676-01 | 4 | SCREW | GB | |
||
| 85 | 631609-03 | 1 | SCREW | GB | |
||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | GB | |
|
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | GB | |
|
| 89 | 627006-00 | 1 | LINK | GB | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | GB | |
|
| 91 | 623608-00 | 1 | BUTTON START | GB | |
||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | GB | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | GB | |
|
| 94 | 640416-00 | 1 | WARNING LABEL | GB | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | GB |
