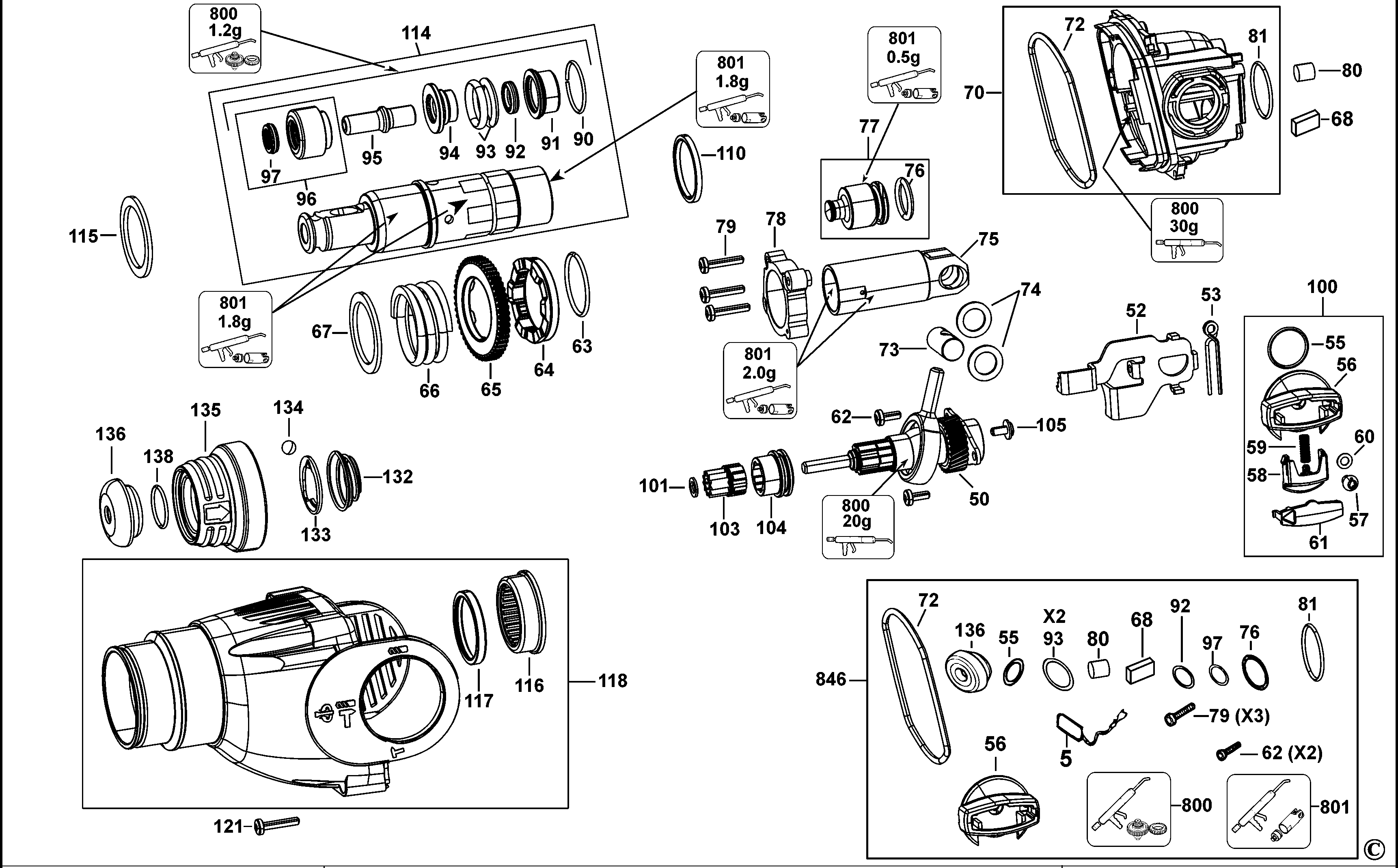

D25103K HAMMER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N081738 | 1 | ARMATURE 120V | 120V | LX |  |
|
| 2 | N081741 | 1 | FIELD 120V | 120V | LX | |
|
| 3 | 583748-05 | 1 | SWITCH 115V | LX |  |
||
| 4 | N028620 | 1 | BRUSH HOLDER SA | 120V | LX | |
|
| 5 | N058084 | 1 | BRUSH PAIR 115V | 115V | LX | |
|
| 6 | 320842-19 | 1 | CAPACITOR | LX | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | LX | |||
| 8 | 582319-34 | 1 | CORDSET | LX | |
||
| 12 | 584304-00 | 1 | LEAD WHITE | LX | |
||
| 13 | 584304-10 | 1 | LEAD BLUE | LX | |
||
| 14 | 584304-04 | 1 | LEAD BLACK | LX | |
||
| 15 | 584304-05 | 1 | LEAD VIOLET | LX | |
||
| 16 | 584304-08 | 1 | CHOKE LEAD RED | LX | |
||
| 17 | 584304-09 | 1 | CHOKE LEAD SA | Yellow | LX | |
|
| 18 | 930026-01 | 1 | BUMPER | LX | |
||
| 19 | 479818-00 | 1 | LEVER | LX | |
||
| 21 | 870052 | 1 | SLEEVE | LX | |
||
| 22 | 324006-14 | 2 | SCREW | LX | |
||
| 23 | 326519-05 | 4 | SCREW | LX | |
||
| 25 | 1005895-00 | 1 | BEARING | LX | |
||
| 29 | 584551-00 | 1 | INSERT | LX | |
||
| 31 | 577826-00 | 1 | BAFFLE FAN | LX | |
||
| 32 | 577810-03 | 1 | FIELDCASE | LX | |
||
| 34 | 479817-00 | 1 | HANDLE COVER | LX | |
||
| 35 | 330065-06 | 4 | SCREW | LX | |
||
| 36 | 821070 | 1 | CORD CLAMP | LX | |
||
| 37 | 330065-09 | 1 | SCREW | LX | |
||
| 40 | 330065-25 | 4 | SCREW | LX | |
||
| 50 | N402885 | 1 | INTERSHAFT SA | LX | |
||
| 52 | N029727 | 1 | PLATE | LX | |
||
| 53 | N042799 | 1 | SPRING | LX | |
||
| 55 | N104814 | 1 | LEVER SA | LX | |
||
| 56 | N104814 | 1 | LEVER SA | LX | |
||
| 57 | 330065-05 | 1 | SCREW | LX | |
||
| 58 | N034136 | 1 | LOCK BUTTON | LX | |
||
| 59 | N074923 | 1 | SPRING | LX | |
||
| 60 | 1005811-00 | 1 | SEAL | LX | |
||
| 61 | N034134 | 1 | COVER | LX | |
||
| 62 | 324006-14 | 2 | SCREW | LX | |
||
| 63 | 581836-00 | 1 | LOCKING RING | LX | |
||
| 64 | N076101 | 1 | RING | LX | |
||
| 65 | N076102 | 1 | GEAR | 52T 2D RED | LX | |
|
| 66 | N029717 | 1 | SPRING | LX | |
||
| 67 | 577814-00 | 1 | WASHER | LX | |
||
| 68 | N081515 | 1 | FELT | LX | |
||
| 70 | N081983 | 1 | HOUSING SA | LX | |
||
| 72 | 578229-00 | 1 | SEAL | LX | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | LX | |
||
| 74 | N074454 | 2 | WASHER | LX | |
||
| 75 | N081750 | 1 | PISTON | LX | |
||
| 76 | 579699-00 | 1 | O RING | LX | |
||
| 77 | N081751 | 1 | RAM SA | LX | |
||
| 78 | N029731 | 1 | BEARING BUSH | LX | |
||
| 79 | 324006-15 | 3 | SCREW | LX | |
||
| 80 | N038257 | 1 | FELT | LX | |
||
| 81 | N042496 | 1 | O RING | LX | |
||
| 90 | N361759 | 1 | CLIP | <2014-WK16 | LX | |
|
| 90 | 577793-00 | 1 | CLIP | >=2014-WK16 | LX | |
|
| 91 | 584426-00 | 1 | BUSH | LX | |
||
| 92 | 580990-00 | 1 | O RING | LX | |
||
| 93 | 577135-00 | 2 | O RING | LX | |
||
| 94 | 584425-00 | 1 | DAMPER | LX | |
||
| 95 | 584424-00 | 1 | BEAT PIECE | LX | |
||
| 96 | 584423-00 | 1 | BEARING & SEAL | LX | |
||
| 97 | 577139-00 | 1 | SEAL | LX | |
||
| 100 | N099541 | 1 | LEVER KIT | LX | |
||
| 101 | 1005844-00 | 1 | WASHER | LX | |
||
| 103 | N029726 | 1 | PINION GEAR | LX | |
||
| 104 | N029725 | 1 | COLLAR | LX | |
||
| 105 | 329794-00 | 1 | SCREW | LX | |
||
| 110 | N059509 | 1 | WASHER | LX | |
||
| 114 | N386323 | 1 | SPINDLE SA | >2014-WK16 | LX | |
|
| 114 | N386323 | 1 | SPINDLE SA | <=2014-WK16 | LX | |
|
| 115 | 577814-00 | 1 | WASHER | LX | |
||
| 116 | 577813-00 | 1 | BEARING NEEDLE | LX | |
||
| 117 | 577812-00 | 1 | SEAL | LX | |
||
| 118 | N081756 | 1 | HOUSING SA | LX | |
||
| 121 | 330019-81 | 4 | SCREW | LX | |
||
| 132 | 871690 | 1 | SPRING | LX | |
||
| 133 | 578387-00 | 1 | WASHER | LX | |
||
| 134 | 583890-00 | 1 | BALL | LX | |
||
| 135 | 493965-02 | 1 | TUBE | LX | |
||
| 136 | 323489-00 | 1 | CAP | LX | |
||
| 138 | 579212-00 | 1 | RING | LX | |
||
| 160 | N064581 | 1 | HANDLE SA | LX | |
||
| 170 | 798846-02 | 1 | DEPTH STOP | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | LX | |
|
| 817 | 496620-00 | 1 | LABEL | LX | |
||
| 821 | N074590 | 1 | RATING PLATE | LX | LX | |
|
| 830 | N074584 | 1 | BRAND LABEL | LX | |
||
| 836 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | LX | |
||
| 836 | 1003926-99 | 1 | S.T.INSERT | LX | |
||
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 846 | N104815 | 1 | SERVICE KIT 120V | 120V | LX | |
|
| 861 | N064862 | 1 | KITBOX | LX | |
