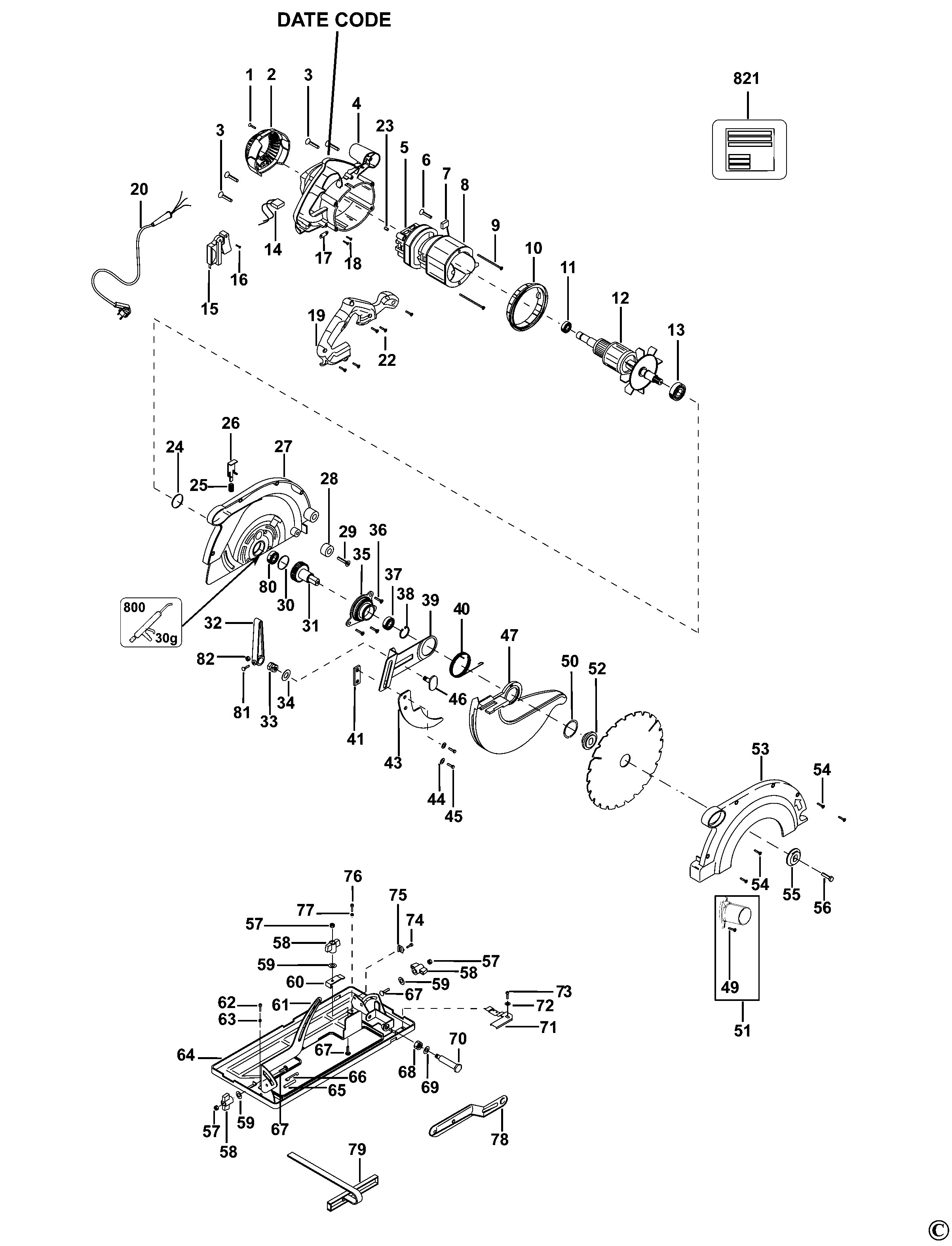

D23700 CIRCULAR SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330019-13 | 2 | SCREW | M4X19 T20 | LX |  |
|
| 2 | 391933-00 | 1 | END CAP | LX | |
||
| 3 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | LX | |
|
| 4 | N393404 | 1 | FIELD CASE | LX | |
||
| 5 | 389512-01 | 1 | BRUSH PLATE | LX | |
||
| 6 | 330019-13 | 2 | SCREW | M4X19 T20 | LX | |
|
| 7 | 381028-08 | 2 | BRUSH & LEAD | LX | |
||
| 8 | N231739 | 1 | FIELD 115V | TO DCODE WK46 2016 | LX | |
|
| 8 | 869442-00 | 1 | FIELD SA 115V | FROM DCODE WK46 2016 | LX | |
|
| 9 | 330019-19 | 2 | SCREW | LX | |
||
| 10 | 391375-00 | 1 | BAFFLE FAN | LX | |
||
| 11 | N110359 | 1 | BEARING | LX | |
||
| 11 | N110359 | 1 | BEARING | LX | |
||
| 12 | N394283 | 1 | ARMATURE 115V | LX | |
||
| 12 | N394283 | 1 | ARMATURE 115V | LX | |
||
| 13 | 330003-13 | 1 | BEARING | LX | |
||
| 14 | 628217-00 | 1 | CAPACITOR | LX | |
||
| 15 | 625425-00 | 1 | SWITCH | LX | |
||
| 16 | 330013-22 | 1 | SCREW | LX |  |
||
| 17 | 821070 | 1 | CORD CLAMP | LX | |
||
| 18 | 330013-22 | 2 | SCREW | LX | |
||
| 19 | N393405 | 1 | HANDLE | >462014 | LX | |
|
| 19 | N393405 | 1 | HANDLE | <462014 | LX | |
|
| 20 | 630421-02 | 1 | CORDSET | LX | |
||
| 22 | 330019-13 | 5 | SCREW | M4X19 T20 | LX | |
|
| 23 | 145312-00 | 1 | PLUG | LX | |
||
| 24 | 696519-00 | 1 | RING | LX | |
||
| 25 | 941586-00 | 1 | SPRING | LX | |
||
| 26 | 625854-00 | 1 | SPINDLE LOCK | LX | |
||
| 27 | N384927 | 1 | GUARD | LX | |
||
| 28 | 146753-00 | 1 | BUSHING | LX | |
||
| 29 | N409486 | 1 | SCREW | LX | |
||
| 29 | N409486 | 1 | SCREW | LX | |
||
| 30 | 616979-00 | 1 | O RING | LX | |
||
| 31 | 869219-05 | 1 | SPINDLE & GEAR SA | LX | |
||
| 32 | 931460-00 | 1 | LEVER | LX | |
||
| 33 | 931463-00 | 1 | NUT | LX | |
||
| 34 | 933168-00 | 2 | WASHER | LX | |
||
| 35 | 625421-00 | 1 | COVERPLATE | GEAR | LX | |
|
| 36 | 330045-14 | 3 | SCREW | LX | |
||
| 37 | 330003-74 | 1 | BEARING | LX | |
||
| 38 | 629746-00 | 1 | CIRCLIP | LX | |
||
| 39 | 625427-00 | 1 | ADJUSTER PLATE | LX | |
||
| 40 | N388721 | 1 | SPRING | <362014 | LX | |
|
| 41 | 931445-00 | 1 | SUPPORT | LX | |
||
| 43 | 625428-00 | 1 | RIVING KNIFE | LX | |
||
| 44 | 860074-02 | 2 | WASHER | LX | |
||
| 45 | 860085-15 | 2 | SCREW | LX | |
||
| 46 | N008397 | 1 | SCREW.SPECIAL | LX | |
||
| 47 | N390572 | 1 | GUARD LOWER | LX | |
||
| 49 | 330045-49 | 2 | SCREW | LX | |
||
| 50 | 629745-00 | 1 | CIRCLIP | LX | |
||
| 51 | N147704 | 1 | VACUUM ADAPTOR | Inc 49 x 2 | LX | |
|
| 52 | 145442-03 | 1 | WASHER INNER CLAMP | LX | |
||
| 53 | N013097 | 1 | GUARD COVER | LX | |
||
| 54 | 330045-15 | 4 | SCREW | LX | |
||
| 55 | 145446-00 | 1 | WASHER OUTER CLAMP | LX | |
||
| 56 | 145344-00 | 1 | SCREW.SPECIAL | LX | |
||
| 57 | 860083-03 | 3 | NUT | LX | |
||
| 58 | 931406-00 | 3 | NUT WING | LX | |
||
| 59 | 931407-00 | 3 | WASHER | LX | |
||
| 60 | 931484-00 | 1 | LOCK | LX | |
||
| 61 | 933415-00 | 1 | GUARD | LX | |
||
| 62 | 860089-18 | 1 | SCREW | LX | |
||
| 63 | 930224-00 | 1 | SCREW | LX | |
||
| 64 | 626663-00 | 1 | BASEPLATE | LX | |
||
| 65 | 931420-00 | 1 | PIN | LX | |
||
| 66 | 931419-00 | 1 | PIN | LX | |
||
| 67 | 931405-00 | 3 | SCREW | LX | |
||
| 68 | 931449-00 | 1 | NUT | LX | |
||
| 69 | 933168-00 | 1 | WASHER | LX | |
||
| 70 | 931447-00 | 1 | PIN | LX | |
||
| 71 | 931408-00 | 1 | POINTER | LX | |
||
| 72 | 933652-00 | 1 | WASHER | LX | |
||
| 73 | 949894-06 | 1 | SCREW | LX | |
||
| 74 | 860089-18 | 1 | SCREW | LX | |
||
| 75 | 933410-00 | 1 | INDICATOR | LX | |
||
| 76 | 860089-18 | 1 | SCREW | LX | |
||
| 77 | 930244-00 | 1 | NUT | LX | |
||
| 78 | 145378-01 | 1 | WRENCH | LX | |
||
| 79 | 931464-00 | 1 | FENCE | LX | |
||
| 80 | 135937-00 | 1 | BEARING | LX | |
||
| 81 | 930224-00 | 1 | SCREW | LX | |
||
| 82 | 860083-10 | 1 | NUT | LX | |
||
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 821 | N090953 | 1 | RATING PLATE | >012011 | LX | |
|
| 821 | N050363 | 1 | RATING PLATE | <012011 | LX | |
