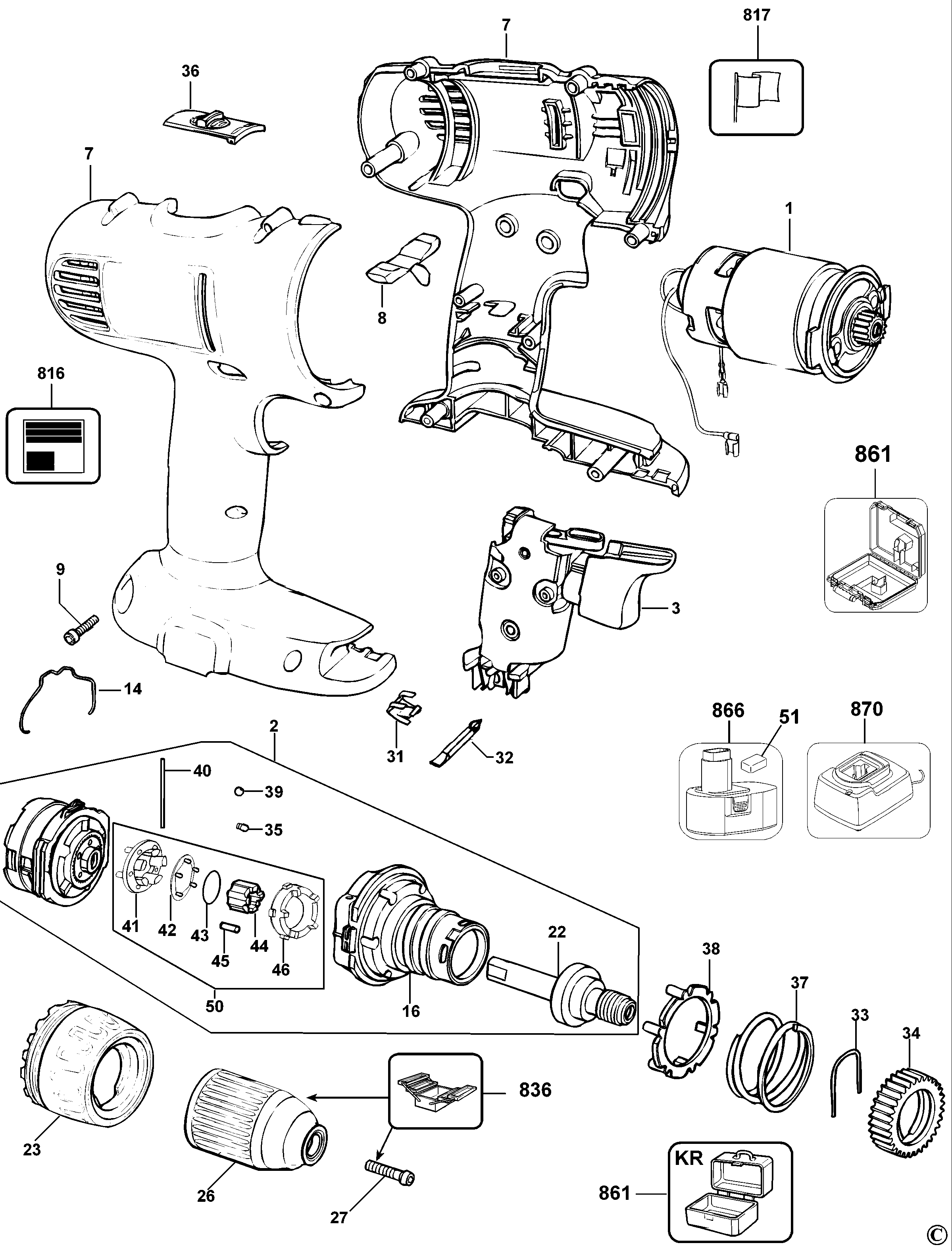

DC729K CORDLESS DRILL Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579731-02 | 1 | MOTOR & PINION | 18 volt | GB |  |
|
| 2 | 579730-01 | 1 | GEARBOX SA | GB | |
||
| 3 | 152274-15 | 1 | SWITCH | GB |  |
||
| 7 | 590261-00 | 1 | HOUSING PAIR | 18 volt | GB | |
|
| 8 | 623997-00 | 1 | SLIDER | GB | |
||
| 9 | 682211-00 | 8 | SCREW | GB | |
||
| 14 | 391896-00 | 1 | SPRING CLIP | GB | |
||
| 16 | 621215-00 | 1 | HOUSING | GB | |
||
| 22 | 590262-00 | 1 | SPINDLE SA | GB | |
||
| 23 | 618335-00 | 1 | COLLAR | GB | |
||
| 26 | 330075-60 | 1 | CHUCK 10MM | GB | |
||
| 27 | 605256-02 | 1 | SCREW | GB | |
||
| 31 | 148354-03 | 1 | HOLDER | GB | |
||
| 32 | 297757-02 | 1 | BIT PHILLIPS | GB | |
||
| 33 | 798959-00 | 1 | CLIP | GB | |
||
| 34 | 391911-00 | 1 | ADJUSTER | GB | |
||
| 35 | 326467-00 | 1 | DETENT | GB | |
||
| 36 | 392086-01SV | 1 | SLIDER SA | GB | |
||
| 37 | 391912-00 | 1 | SPRING | GB | |
||
| 38 | 397303-00 | 1 | PLATE | GB | |
||
| 39 | 386690-00 | 6 | BALL | STEEL, 5MM | GB | |
|
| 40 | 392094-00 | 2 | PIN | GB | |
||
| 41 | 394347-03 | 1 | CARRIER SA | GB | |
||
| 42 | 624164-00 | 1 | CAGE | GB | |
||
| 43 | 061145-00 | 1 | SEAL | GB | |
||
| 44 | 622041-00 | 1 | ANVIL | GB | |
||
| 45 | 330041-36 | 1 | PIN | GB | |
||
| 46 | 621211-00 | 1 | LOCK | GB | |
||
| 50 | 590263-00 | 1 | SPINDLE LOCK | GB | |
||
| 51 | 608522-00 | 1 | SAFETY CAP | GB | |
||
| 816 | N044729 | 1 | RATING PLATE | GB | |
||
| 817 | 395657-00 | 1 | BRAND LABEL | GB | |
||
| 836 | 559655-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 861 | 392088-01 | 1 | KIT BOX | GB | |||
| 866 | 1006623-00 | 1 | BATTERY 18V - 2.0AH - 36WH | DC729KA | GB | |
|
| 870 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
