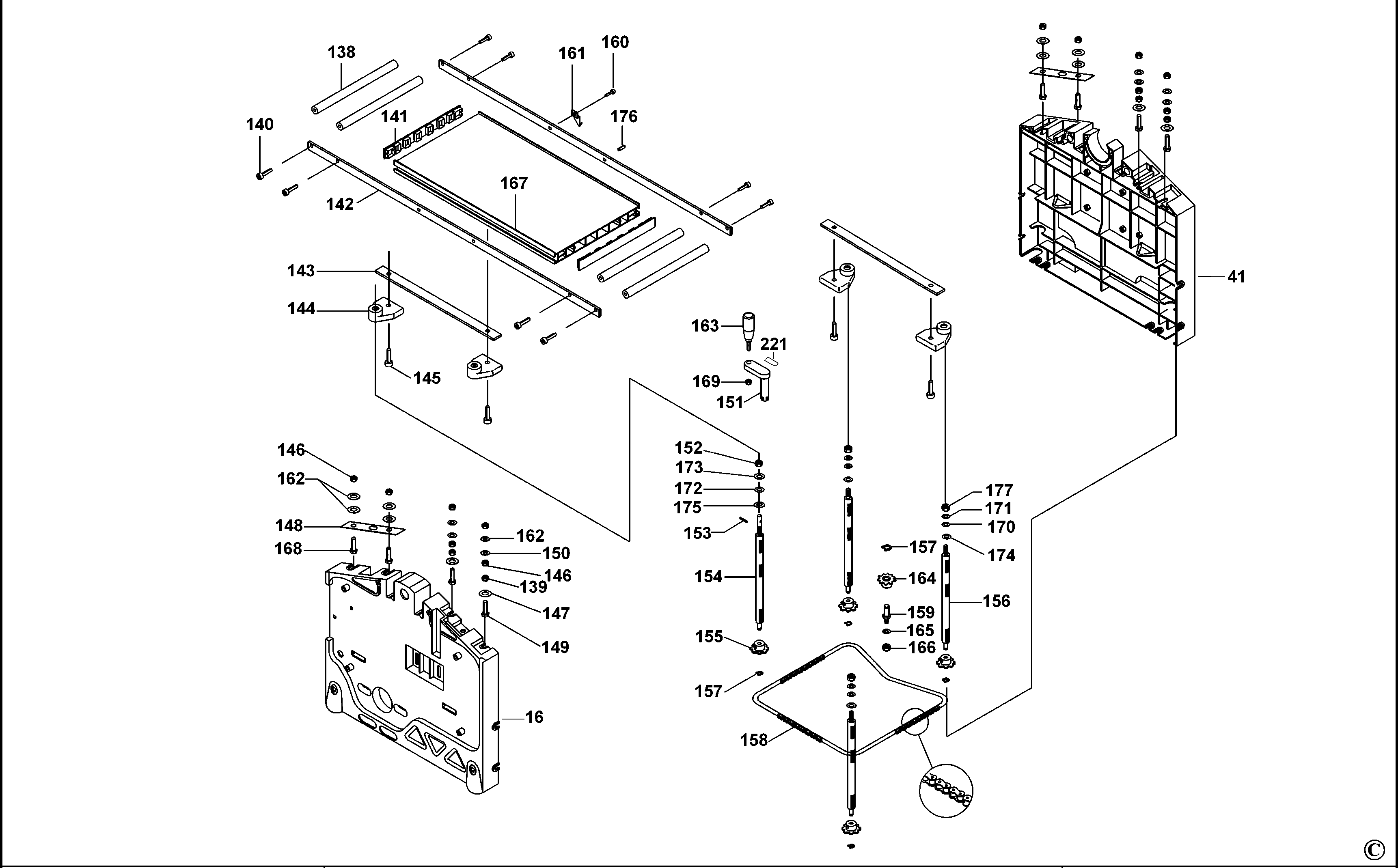

D27300 PLANER THICKNESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860084-07 | 6 | SCREW | 3.2 x 32 | GB |  |
|
| 2 | 868852-01 | 1 | COVER | GB | |
||
| 3 | 868850-00 | 2 | TABLE | GB | |
||
| 4 | 868855-00 | 4 | PLATE | GB |  |
||
| 5 | 860428-07 | 4 | SCREW | 3.2 x 32 | GB | |
|
| 6 | 868911-00 | 4 | SCREW | M6 x 12 | GB | |
|
| 7 | 860074-03 | 12 | WASHER | GB | |
||
| 8 | 868883-00 | 8 | SCREW.SPECIAL | M8 x 12 Torx | GB | |
|
| 9 | 860083-04 | 10 | NUT | GB | |
||
| 10 | 861475-00 | 2 | BEARING | GB | |
||
| 11 | 760242-00 | 4 | SCREW | M8 x 30 | GB | |
|
| 12 | 860074-02 | 2 | WASHER | GB | |
||
| 13 | 868859-00 | 1 | SUPPORT | GB | |
||
| 14 | 868851-01 | 2 | COVER | GB | |
||
| 15 | 868860-00 | 1 | SUPPORT | GB | |
||
| 16 | 868816-00 | 1 | FRAME LH | GB | |
||
| 17 | 860092-00 | 2 | NUT | GB | |
||
| 18 | 720959-00 | 6 | WASHER | GB | |
||
| 19 | 860083-03 | 2 | NUT | GB | |
||
| 20 | 942895-06 | 1 | KNOB | M6 x 32 | GB | |
|
| 21 | 865910-00 | 1 | SUPPORT | GB | |
||
| 22 | 865909-00 | 1 | GUARD | GB | |
||
| 23 | 860301-13 | 1 | SCREW | GB | |
||
| 24 | 860205-04 | 1 | SCREW | GB | |
||
| 25 | 868843-00 | 1 | TUBE | GB | |
||
| 26 | 860205-07 | 2 | SCREW | M6 x 15 | GB | |
|
| 27 | 868842-00 | 1 | TUBE | GB | |
||
| 28 | 861841-03 | 1 | LEVER | GB | |
||
| 29 | 860094-02 | 1 | SCREW | GB | |
||
| 30 | 868874-00 | 1 | INDEX | GB | |
||
| 31 | 868854-00 | 1 | SUPPORT | GB | |
||
| 32 | 868856-00 | 2 | GUIDE | GB | |
||
| 33 | 860658-01 | 1 | WASHER | GB | |
||
| 34 | 868873-00 | 1 | SCALE | GB | |
||
| 35 | 868857-00 | 1 | BAR | GB | |
||
| 36 | 868852-00 | 1 | COVER | GB | |
||
| 37 | 868885-00 | 1 | NUT | RING | GB | |
|
| 38 | 868858-00 | 1 | KNOB | GB | |
||
| 39 | 868876-01 | 1 | COVER | GB | |
||
| 40 | 868853-00 | 1 | SUPPORT | GB | |
||
| 41 | 868811-00 | 1 | SIDE | GB | |
||
| 42 | 868849-00 | 1 | FENCE | GB | |
||
| 43 | 868876-00 | 1 | COVER | GB | |
||
| 44 | 860301-01 | 1 | SCREW | GB | |
||
| 45 | 868841-00 | 1 | FLANGE | GB | |
||
| 46 | 868887-00 | 1 | COVER | GB | |
||
| 47 | 860094-03 | 1 | SCREW | GB | |
||
| 48 | 860093-11 | 2 | SCREW | GB | |
||
| 49 | 860092-01 | 3 | NUT | GB | |
||
| 50 | 941602-00 | 3 | WASHER | GB | |
||
| 51 | 868846-00 | 1 | SHAFT | GB | |
||
| 52 | 868844-00 | 1 | SLIDE | GB | |
||
| 53 | 861840-03 | 2 | LEVER | GB | |
||
| 54 | 868847-00 | 1 | SPACER | GB | |
||
| 55 | 760219-00 | 4 | SCREW | GB | |
||
| 56 | 868845-01 | 1 | SQUARE | GB | |
||
| 57 | 868848-00 | 2 | PLATE | GB | |
||
| 58 | 868845-00 | 1 | 1BLOCK | GB | |
||
| 59 | 860085-09 | 1 | SCREW.TEMP | GB | |
||
| 60 | 860083-12 | 2 | NUT M6 | GB | |
||
| 61 | 868910-00 | 1 | SCREW | GB | |
||
| 62 | 868882-00 | 1 | LABEL | GB | |
||
| 63 | 860093-08 | 1 | SCREW | GB | |
||
| 64 | 860092-03 | 1 | NUT M5 | GB | |
||
| 65 | 868867-00 | 1 | DUST EXTRACTOR | GB | |
||
| 66 | 868824-00 | 1 | NAMEPLATE | GB | |
||
| 67 | 868822-00 | 2 | BAR | GB | |
||
| 68 | 868862-01 | 1 | COVER | GB | |
||
| 69 | 860094-06 | 4 | SCREW | GB | |
||
| 70 | 860083-14 | 4 | NUT | GB | |
||
| 71 | 860078-02 | 4 | WASHER | GB | |
||
| 72 | 941614-00 | 4 | FOOT | GB | |
||
| 73 | 860073-03 | 14 | WASHER M8 | GB | |
||
| 74 | 949886-16 | 8 | SCREW | GB | |
||
| 75 | 861073-00 | 4 | FOOT | GB | |
||
| 76 | 868864-00 | 4 | LEG | GB | |
||
| 77 | 941756-00 | 4 | KNOB | GB | |
||
| 78 | 860301-18 | 4 | SCREW | M8 x 45 | GB | |
|
| 79 | 860085-29 | 2 | SCREW | GB | |
||
| 80 | 868875-00 | 1 | WHEEL SUPPORT | GB | |
||
| 81 | 868866-00 | 2 | AXLE | GB | |
||
| 82 | 868865-00 | 2 | WHEEL | GB | |
||
| 83 | 868875-01 | 1 | WHEEL SUPPORT | GB | |
||
| 84 | 868871-00 | 1 | SCALE | GB | |
||
| 85 | 760271-01 | 4 | SCREW | GB | |
||
| 86 | 868823-00 | 1 | PLATE | GB | |
||
| 87 | 868863-00 | 1 | BRAND LABEL | GB | |
||
| 89 | 860074-03 | 4 | WASHER | GB | |
||
| 90 | 860083-04 | 4 | NUT | GB | |
||
| 91 | 868835-00 | 1 | STUD | GB | |
||
| 92 | 932302-00 | 4 | WASHER | GB | |
||
| 93 | 123219-00 | 2 | BUSH | GB | |
||
| 94 | 123316-01 | 1 | PULLEY | GB | |
||
| 95 | 860079-02 | 2 | CIRCLIP | GB | |
||
| 96 | 868830-01 | 1 | CHAIN | GB | |
||
| 97 | 868755-00 | 1 | SPRING | GB | |
||
| 98 | 860753-00 | 1 | CHAIN STRETCHER | GB | |
||
| 99 | 869468-00 | 2 | BLADE PAIR | GB | |
||
| 100 | 868870-00 | 1 | WHEEL | GB | |
||
| 101 | 868834-00 | 1 | STUD | GB | |
||
| 102 | 868833-00 | 1 | PLATE | GB | |
||
| 103 | 941602-00 | 2 | WASHER | GB | |
||
| 104 | 860083-04 | 2 | NUT | GB | |
||
| 105 | 868838-00 | 1 | BELT | GB | |
||
| 106 | 868837-00 | 1 | BELT | GB | |
||
| 107 | 932293-00 | 1 | WASHER | GB | |
||
| 108 | 860155-08 | 2 | BEARING | GB | |
||
| 109 | 865526-01 | 2 | WEDGE SA | GB | |
||
| 110 | 949703-10 | 8 | SCREW | GB | |
||
| 111 | 863644-00 | 4 | SCREW | GB | |
||
| 112 | 868892-00 | 1 | CUTTER BLOCK SA | GB | |
||
| 113 | 860093-15 | 2 | SCREW | GB | |
||
| 114 | 863658-00 | 4 | BLOCK | GB | |
||
| 115 | 123232-00 | 2 | SPRING | GB | |
||
| 116 | 942043-00 | 4 | SCREW | GB | |
||
| 117 | 860074-03 | 4 | WASHER | GB | |
||
| 118 | 941563-00 | 4 | NUT | GB | |
||
| 119 | 860226-02 | 4 | WASHER | GB | |
||
| 120 | 868868-00 | 1 | ROLLER | GB | |
||
| 121 | 868869-00 | 1 | ROLLER | GB | |
||
| 122 | 860282-03 | 2 | SPROCKET | GB | |
||
| 123 | 868884-00 | 32 | ANTI KICK BACK | GB | |
||
| 124 | 860073-05 | 51 | WASHER | GB | |
||
| 125 | 868819-00 | 1 | BAR | GB | |
||
| 126 | 868818-00 | 1 | BAR | GB | |
||
| 127 | 123233-00 | 2 | SPRING | GB | |
||
| 128 | 949886-16 | 2 | SCREW | GB | |
||
| 129 | 932285-00 | 1 | WASHER | GB | |
||
| 130 | 949751-07 | 1 | SPANNER 10-13MM | GB | |
||
| 131 | 943271-00 | 1 | HEX KEY 2.5 MM | GB | |
||
| 132 | 949882-01 | 1 | WRENCH 4 MM | GB | |
||
| 133 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 134 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 135 | 860610-01 | 1 | PUSHROD | GB | |
||
| 136 | 863648-00 | 1 | GAUGE | GB | |
||
| 137 | 868820-00 | 1 | BAR FENCE | GB | |
||
| 138 | 868828-00 | 4 | ROLLER | GB | |
||
| 139 | 860083-14 | 4 | NUT | GB | |
||
| 140 | 860085-13 | 8 | SCREW | GB | |
||
| 141 | 868886-00 | 2 | COVER | GB | |
||
| 142 | 868827-00 | 2 | BRACKET | GB | |
||
| 143 | 868829-00 | 2 | BRACKET | GB | |
||
| 144 | 868814-00 | 4 | SUPPORT | GB | |
||
| 145 | 860093-14 | 4 | SCREW | GB | |
||
| 146 | 860083-04 | 12 | NUT | GB | |
||
| 147 | 941602-00 | 4 | WASHER | GB | |
||
| 148 | 868861-00 | 2 | PLATE | GB | |
||
| 149 | 860085-29 | 4 | SCREW | GB | |
||
| 150 | 949876-19 | 4 | WASHER | GB | |
||
| 151 | 868821-00 | 1 | HANDLE | GB | |
||
| 152 | 860092-06 | 1 | NUT | GB | |
||
| 153 | 860096-07 | 1 | COTTER PIN | GB | |
||
| 154 | 868817-00 | 1 | SPINDLE | GB | |
||
| 155 | 860282-02 | 4 | PINION | GB | |
||
| 156 | 868812-00 | 3 | SPINDLE | GB | |
||
| 157 | 911392-00 | 5 | CIRCLIP | GB | |
||
| 158 | 868830-00 | 1 | CHAIN | GB | |
||
| 159 | 868813-00 | 1 | PIN | GB | |
||
| 160 | 943023-00 | 1 | SCREW | GB | |
||
| 161 | 868872-00 | 1 | POINTER | GB | |
||
| 162 | 860074-03 | 12 | WASHER | GB | |
||
| 163 | 868881-00 | 1 | HANDLE | GB | |
||
| 164 | 865774-00 | 1 | PINION | GB | |
||
| 165 | 860075-00 | 1 | WASHER | GB | |
||
| 166 | 860083-12 | 1 | NUT M6 | GB | |
||
| 167 | 868825-00 | 1 | TABLE | GB | |
||
| 168 | 860085-27 | 4 | SCREW | GB | |
||
| 169 | 860092-00 | 1 | NUT | GB | |
||
| 170 | 861475-00 | 3 | BEARING | GB | |
||
| 171 | 860286-00 | 3 | WASHER | GB | |
||
| 172 | 932227-00 | 1 | BEARING | GB | |
||
| 173 | 868815-00 | 1 | WASHER | GB | |
||
| 174 | 931892-00 | 3 | WASHER | GB | |
||
| 175 | 932302-00 | 1 | WASHER | GB | |
||
| 176 | 949743-02 | 4 | SCREW | M8 x 14mm | GB | |
|
| 177 | 860092-01 | 3 | NUT | GB | |
||
| 178 | 868880-00 | 1 | SWITCHBOX | GB | |
||
| 179 | 868913-00 | 1 | COVERPLATE 3PH | 3 Ph - XS | GB | |
|
| 180 | 868242-03 | 1 | CONTACT | GB | |
||
| 181 | 868878-01 | 1 | OVERLOAD PROTECTOR 3 PHASE | 3 Ph - XS | GB | |
|
| 181 | 868878-00 | 1 | OVERLOAD PROTECTOR | 1Ph | GB | |
|
| 182 | 860084-21 | 2 | SCREW | GB | |
||
| 183 | 868877-01 | 1 | MOTOR CABLE 3 PHASE | 3Ph | GB | |
|
| 183 | 868877-00 | 1 | MOTOR CABLE | GB | |
||
| 184 | 868879-01 | 1 | CABLE 1 PH | GB | |
||
| 185 | 868810-01 | 1 | SWITCHBOX & CABLE | GB | |
||
| 185 | 868810-02 | 1 | SWITCHBOX & CABLE 3 PHASE | 3 PHASE | GB | |
|
| 186 | 868802-00 | 1 | ARBOR | GB | |
||
| 187 | 860155-08 | 1 | BEARING | GB | |
||
| 188 | 868425-07 | 1 | ROTOR | GB | |
||
| 189 | 868541-06 | 1 | STATOR SA 230V | GB | |
||
| 190 | 861721-00 | 1 | BEARING | GB | |
||
| 191 | 860080-00 | 1 | RING | GB | |
||
| 192 | 868801-00 | 1 | COVER | GB | |
||
| 193 | 860446-02 | 4 | BOLT | GB | |
||
| 194 | 861718-00 | 1 | FAN | GB | |
||
| 195 | 868805-00 | 1 | END CAP | GB | |
||
| 196 | 868807-00 | 1 | BOX | GB | |
||
| 197 | 860084-04 | 7 | SCREW | GB | |
||
| 198 | 949772-50 | 1 | CAPACITOR | 30uF | GB | |
|
| 199 | 860468-02 | 1 | CONNECTOR | GB | |
||
| 200 | 868809-00 | 1 | CLAMP | GB | |
||
| 201 | 868808-00 | 1 | CLAMP | GB | |
||
| 202 | 860094-02 | 5 | SCREW | GB | |
||
| 203 | 868806-00 | 1 | GASKET | GB | |
||
| 204 | 868387-15 | 1 | MOTOR 230V | GB | |
||
| 204 | 868387-16 | 1 | MOTOR 3 PH | XS | GB | |
|
| 205 | 860539-01 | 1 | KEY | GB | |
||
| 206 | 861068-00 | 2 | WASHER | GB | |
||
| 207 | 868832-00 | 1 | PULLEY | GB | |
||
| 208 | 861983-01 | 1 | WASHER | GB | |
||
| 209 | 860093-15 | 1 | SCREW | GB | |
||
| 210 | 945848-00 | 1 | CLIP | GB | |
||
| 211 | 868831-00 | 1 | GLAND | GB | |
||
| 212 | 949876-19 | 2 | WASHER | GB | |
||
| 213 | 860093-07 | 2 | SCREW | GB | |
||
| 214 | 860094-03 | 5 | SCREW | GB | |
||
| 215 | 868879-02 | 1 | CABLE 3 PH | 3Ph - XS | GB | |
|
| 216 | 860637-00 | 1 | PLUG 3 PHASE | GB | |
||
| 217 | 868879-04 | 1 | CABLE & PLUG 3 PHASE | XS | GB | |
|
| 218 | 946085-00 | 1 | CONNECTOR | GB | |
||
| 219 | 933652-00 | 1 | WASHER | GB | |
||
| 220 | 868806-02 | 1 | GASKET | GB | |
||
| 221 | 868922-00 | 1 | LABEL | GB | |
||
| 222 | 868921-00 | 1 | LABEL | GB | |
