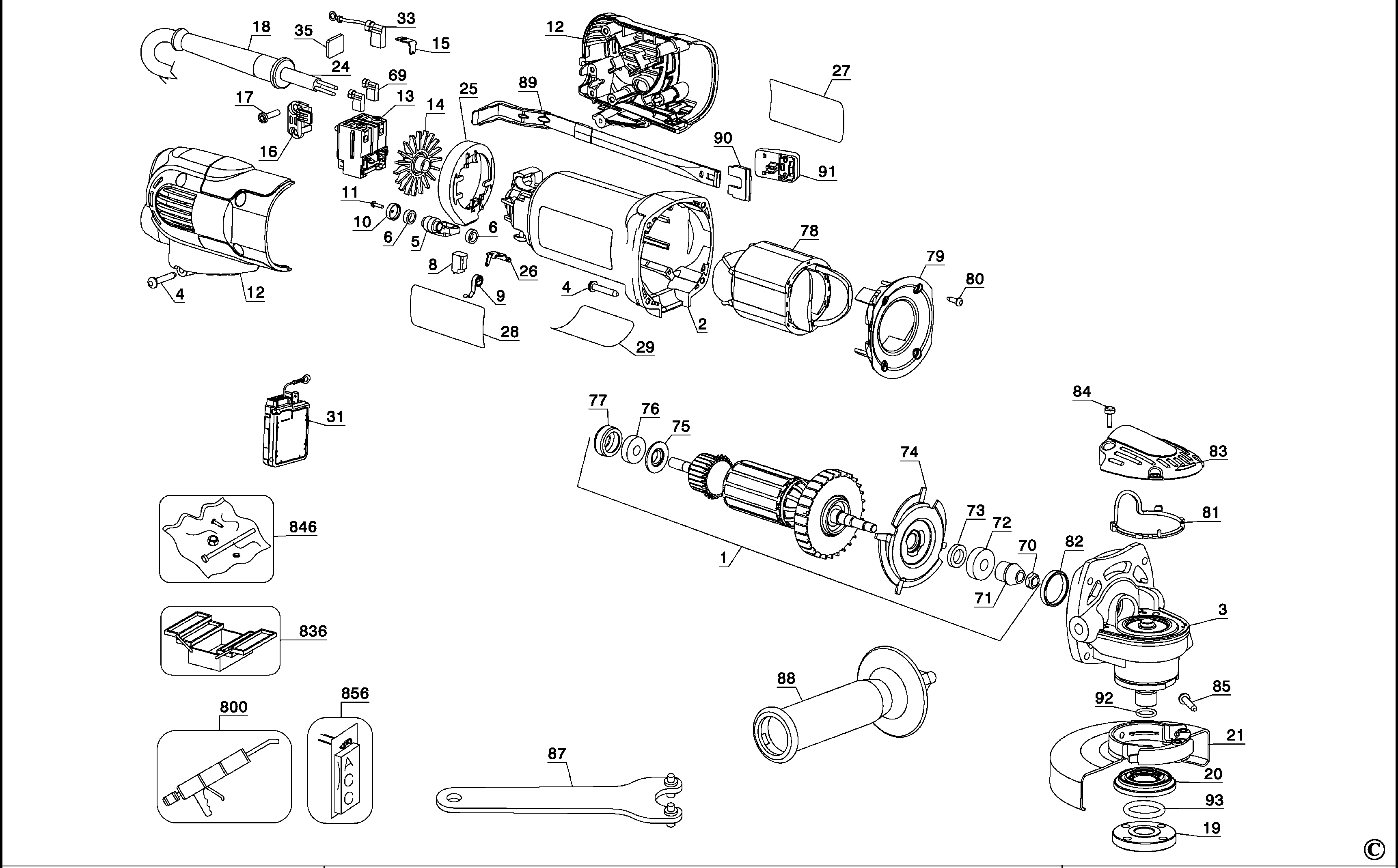

D28131 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 330065-31 | 9 | PLASTIC SCREW | XJ |  |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | XJ | |
|
| 6 | 623592-00 | 4 | FELT SEAL | XJ | |
||
| 8 | 650917-01 | 2 | BRUSH | 120V POP OFF | XJ | |
|
| 9 | 636760-00 | 2 | BRUSH SPRING | XJ | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | XJ | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | XJ | |
|
| 13 | 945614-01 | 1 | SWITCH | XJ | |
||
| 14 | N055787 | 1 | SEPARATOR | Particle | XJ | |
|
| 15 | 634599-00 | 1 | TERMINAL | XJ | |
||
| 16 | 628398-00 | 1 | CORD CLAMP | XJ | |
||
| 17 | 330019-03 | 2 | SCREW | XJ | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 18 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | XJ | |
||
| 21 | 397661-02 | 1 | GUARD SA | 5 IN (125MM) | XJ | |
|
| 25 | 627283-00 | 1 | BAFFLE | XJ | |
||
| 26 | 623593-00 | 2 | TERMINAL | XJ | |
||
| 27 | 628885-00 | 1 | BRAND LABEL | XJ | |
||
| 29 | 626891-00 | 1 | WARNING LABEL | XJ |  |
||
| 33 | 631028-00 | 1 | LEAD SA | RED, 80mm, 18GA | XJ | |
|
| 35 | 633391-00 | 1 | SEAL | TERMINAL | XJ | |
|
| 70 | 604484-00 | 1 | NUT | XJ | |
||
| 71 | 627465-00 | 1 | PINION | 9 TOOTH | XJ | |
|
| 72 | 330003-60 | 1 | BEARING | XJ | |
||
| 73 | 623617-00 | 1 | FELT SEAL | XJ | |
||
| 74 | N422242 | 1 | RETAINER | XJ | |
||
| 75 | 623613-00 | 1 | WASHER | XJ | |
||
| 76 | 605040-02 | 1 | BEARING | XJ | |
||
| 77 | 641823-00 | 1 | SLEEVE | XJ | |
||
| 78 | 627125-01 | 1 | FIELD 115V | 115/120V | XJ | |
|
| 79 | 623572-00 | 1 | BAFFLE FAN | XJ | |
||
| 80 | 330065-25 | 4 | SCREW | XJ | |
||
| 81 | 632513-00 | 1 | GASKET | XJ | |
||
| 82 | 611492-00 | 1 | SLEEVE | XJ | |
||
| 83 | 627313-00 | 1 | GEARCASE COVER | XJ | |
||
| 84 | 385676-01 | 4 | SCREW | XJ | |
||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XJ | |
|
| 87 | 401680-00 | 1 | WRENCH | XJ | |
||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | XJ | |
|
| 89 | 627001-00 | 1 | LINK | XJ | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | XJ | |
|
| 91 | 623608-00 | 1 | BUTTON START | XJ | |
||
| 92 | 633044-00 | 1 | O RING | 10.82x1.78 | XJ | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | XJ | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | XJ |
