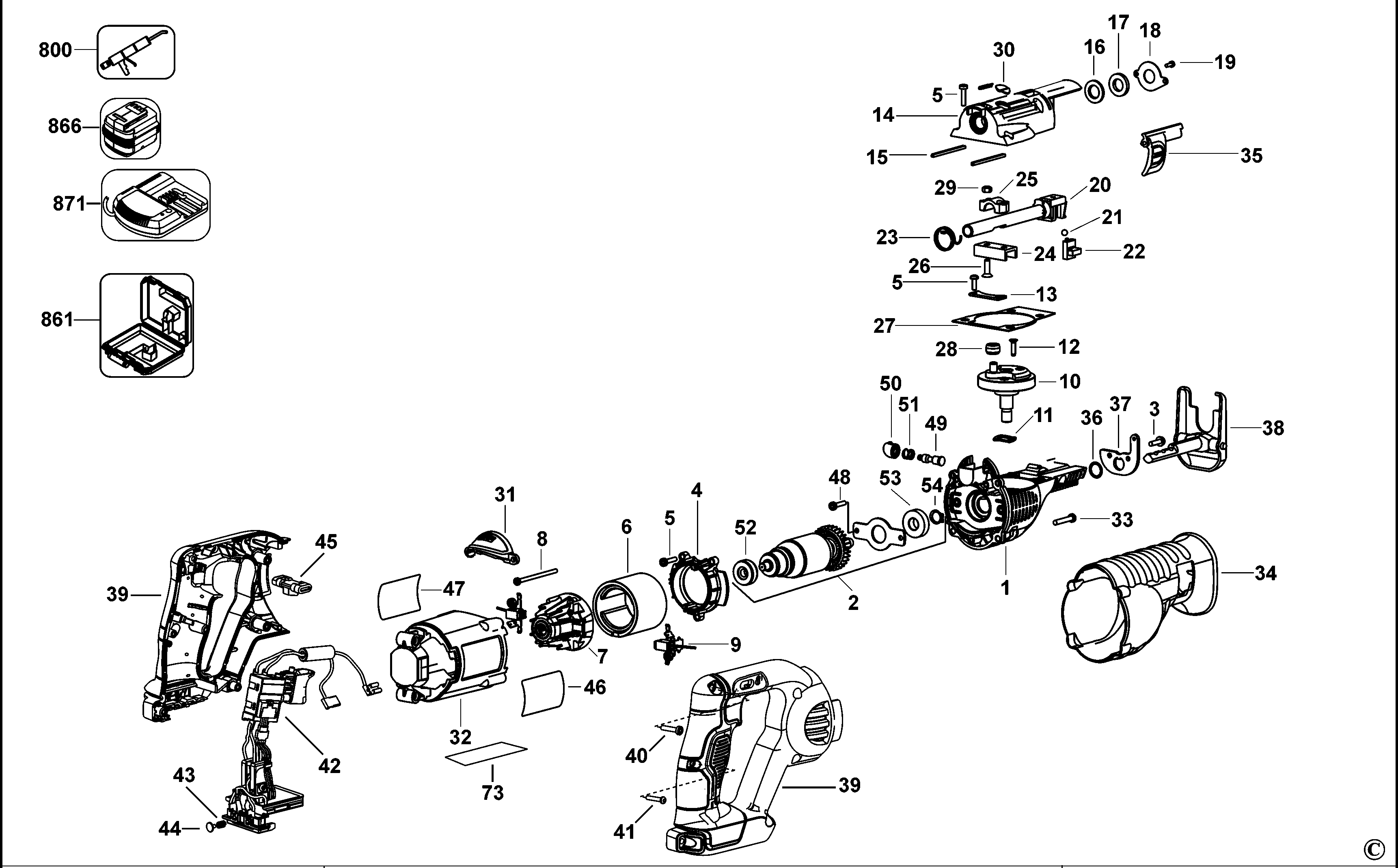

DCS380 CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613138-00SV | 1 | GEARCASE SA | INCL.49,50,51 | GB |  |
|
| 2 | 617376-00SV | 1 | ARMATURE SA | GB |  |
||
| 3 | 142940-00 | 2 | SCREW | GB | |
||
| 4 | 613137-00 | 1 | BAFFLE FAN | GB | |
||
| 5 | 613619-00 | 9 | SCREW | GB | |
||
| 6 | 611202-00SV | 1 | MAGNET | GB | |
||
| 7 | N171820 | 1 | SUPPORT BEARING | GB | |
||
| 8 | 330019-25 | 2 | SCREW | GB | |
||
| 9 | 610126-00 | 2 | BRUSHBOX SA | GB | |
||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | GB | |
||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | GB | |
||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | GB | |
||
| 11 | 619618-00 | 1 | WASHER SPECIAL | GB | |
||
| 12 | 622484-00 | 3 | SCREW | M4x16 THD FMG | GB | |
|
| 13 | 621173-00 | 1 | SUPPORT PLATE | GB | |
||
| 14 | N027851SV | 1 | GEARCASE COVER | GB | |
||
| 15 | 621979-00 | 2 | STRIP | GB | |
||
| 16 | 618733-00 | 1 | SEAL | GB | |
||
| 17 | 618477-00 | 1 | FELT SEAL | GB | |
||
| 18 | N020720 | 1 | COVERPLATE | GB | |
||
| 19 | 330045-43 | 1 | SCREW | GB | |
||
| 20 | N026647 | 1 | SHAFT SA | GB | |
||
| 21 | 000903-00 | 1 | BALL | GB | |
||
| 22 | 622647-00 | 1 | SLIDER | GB | |
||
| 23 | 622659-00 | 1 | SPRING TORSION | GB | |
||
| 24 | N026647 | 1 | SHAFT SA | GB | |
||
| 25 | 617000-00 | 1 | SADDLE | GB | |
||
| 26 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | GB | |
|
| 27 | N063272 | 1 | GASKET | GB | |
||
| 28 | N021857 | 1 | BEARING | GB | |
||
| 29 | 622485-00 | 2 | LOCK NUT | GB | |
||
| 30 | 621927-00 | 2 | COVER | GB | |
||
| 31 | N030977 | 1 | INSERT | GB | |
||
| 32 | 613143-01 | 1 | HOUSING MOTOR | GB | |
||
| 33 | 330019-45 | 4 | SCREW | GB | |
||
| 34 | N084697 | 1 | BOOT | GB | |
||
| 35 | N093438SV | 1 | LEVER LOCK | GB | |
||
| 36 | 050049-00 | 1 | RING | GB | |
||
| 37 | 617008-00 | 1 | BRACKET | GB | |
||
| 38 | 623511-00SV | 1 | SHOE SA | GB | |
||
| 39 | N347382 | 1 | HANDLE SA | GB | |
||
| 40 | 90611830 | 6 | SCREW | GB | |
||
| 41 | 682211-00 | 1 | SCREW | GB | |
||
| 42 | N413819 | 1 | SWITCH SA | DCS380 4P58 EMI | PRE EMI | GB | |
| 43 | N102647 | 1 | SPRING | GB | |
||
| 44 | N122099 | 1 | BLOCK | GB | |
||
| 45 | N060864 | 1 | BUTTON LOCK-OFF | GB | |
||
| 46 | N093227 | 1 | BRAND LABEL | GB | |
||
| 47 | N108565 | 1 | RATING PLATE | DCS380 (Euro) | GB | |
|
| 48 | 330045-45 | 2 | SCREW | GB | |
||
| 49 | 615983-00 | 1 | LOCK PIN | GB | |
||
| 50 | 617733-00 | 1 | CAP | GB | |
||
| 51 | 618427-00 | 1 | SPRING | GB | |
||
| 52 | 391032-00 | 1 | BEARING & SEAL | GB | |
||
| 53 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | GB | |
|
| 54 | 696060-00 | 1 | RETAINER | GB | |
||
| 73 | N105032 | 1 | WARNING LABEL | French/Spanish | GB | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 861 | N152704 | 1 | KITBOX | GB | |
||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCS380M2 | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCS380L2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
