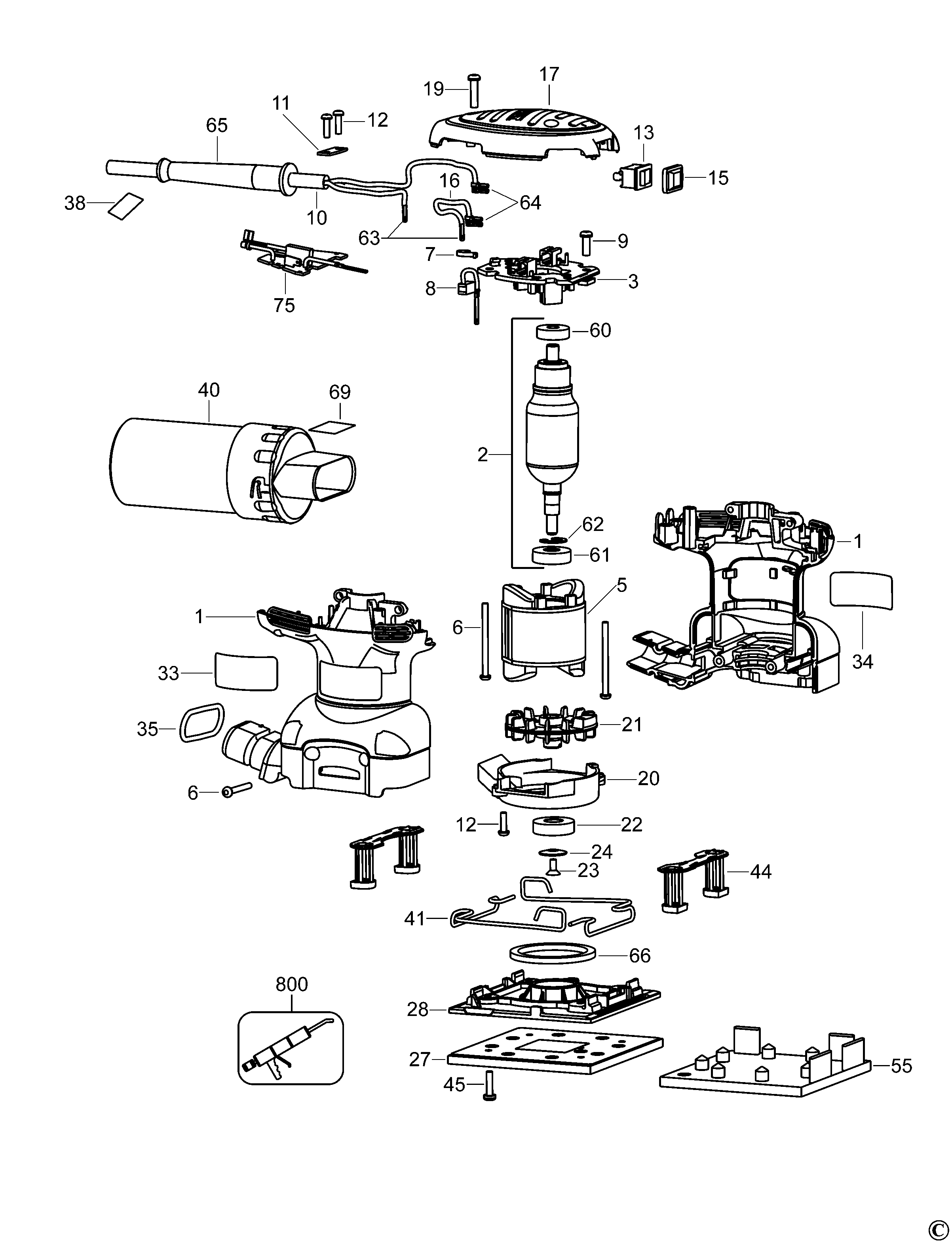

D26441 SANDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1006262-00 | 1 | CLAMSHELL SET | LX |  |
||
| 2 | 1006263-00 | 1 | ARMATURE 115V | inc 60, 61 | LX |  |
|
| 3 | 1006265-00 | 1 | BRUSH PLATE SA | LX | |
||
| 5 | 1006268-00 | 1 | FIELD SA 115V | LX | |
||
| 6 | 330019-13 | 4 | SCREW | M4X19 T20 | LX | |
|
| 7 | 445860-00 | 2 | BRUSH SPRING | LX | |
||
| 8 | 1006270-00 | 1 | BRUSH PAIR 115V | LX | |
||
| 9 | 330019-11 | 3 | SCREW | M4.55x13 T20 | LX | |
|
| 10 | 477438-02 | 1 | CORDSET | LX | |
||
| 11 | 329301-00 | 1 | CORD CLAMP | LX | |
||
| 12 | 330019-02 | 4 | SCREW | LX | |
||
| 13 | 656494-00 | 1 | SWITCH | LX | |
||
| 13 | 656494-00 | 1 | SWITCH | LX | |
||
| 15 | 144983-07 | 1 | COVER | LX | |
||
| 16 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | LX | ||
| 17 | 624281-01 | 1 | CAP | NON VS | LX | |
|
| 19 | 330019-09 | 2 | SCREW | M3.63x50 T15 | LX | |
|
| 20 | 627645-00 | 1 | BAFFLE FAN | LX | |
||
| 21 | 623655-01 | 1 | FAN | LX | |
||
| 22 | 330003-25 | 1 | BEARING | 12 x 28 x 8 - 6001RS | LX | |
|
| 23 | 098012-11 | 1 | SCREW | LX | |
||
| 24 | 582828-00 | 1 | WASHER | M5 x 4.5 x 1.5 Thk | LX | |
|
| 27 | 151284-02 | 1 | PAD VELCRO | LX | |
||
| 28 | N073798 | 1 | BASE | 1/4 SHEET | >462010 | LX | |
| 33 | 398399-00 | 1 | BRAND LABEL | LX | |
||
| 35 | 56194-00 | 1 | O RING | LX | |
||
| 38 | 624308-00 | 1 | WARNING LABEL | CORD WRAP | LX | |
|
| 40 | 624307-00 | 1 | DUSTBAG | INCL 69 | LX | |
|
| 41 | 151288-00 | 1 | CLAMP | LX | |
||
| 44 | N542568 | 2 | FOOT | LX | |
||
| 44 | N542568 | 2 | FOOT | LX | |
||
| 45 | 330045-06 | 4 | SCREW | LX | |
||
| 55 | 144954-00 | 1 | PUNCH | LX | |
||
| 60 | 605040-05 | 1 | BEARING | LX | |
||
| 61 | 330003-17 | 1 | BEARING | LX | |
||
| 62 | 151669-00 | 1 | CIRCLIP | LX | |
||
| 63 | 825209-00 | 2 | CONNECTOR | LX | |
||
| 64 | 445964-00 | 3 | TERMINAL | LX | |
||
| 65 | 403395-00 | 1 | CORD PROTECTOR | LX | |
||
| 66 | N100227 | 1 | SEAL | LX | |
||
| 69 | 624299-00 | 1 | WARNING LABEL | LX | |
||
| 75 | 1006272-00 | 1 | MODULE | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
