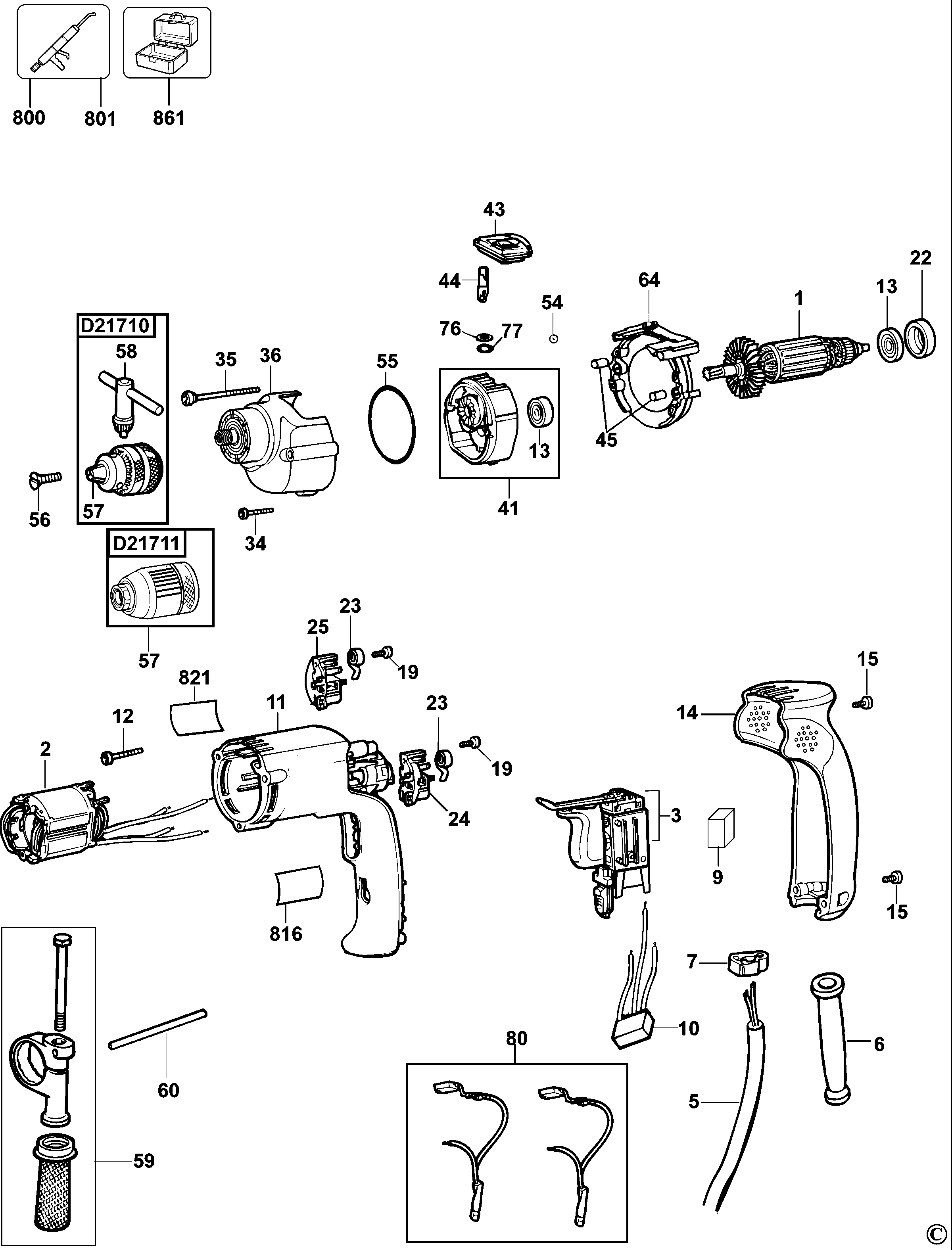

D21710 HAMMER DRILL Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495832-00 | 1 | ARMATURE SA | GB |  |
||
| 2 | 1007674-00 | 1 | FIELD SA | GB | |
||
| 3 | 616576-01 | 1 | SWITCH | GB | |
||
| 5 | 562226-58 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 7 | 603255-00 | 1 | CORD CLAMP | GB |  |
||
| 9 | 930026-01 | 1 | BUMPER | GB | |
||
| 10 | 496516-00 | 1 | CAPACITOR | GB | |
||
| 11 | 1007793-00 | 1 | FIELDCASE | GB | |
||
| 12 | 496932-00 | 2 | SCREW | GB | |||
| 13 | 605040-55 | 2 | BEARING 608 | GB | |
||
| 14 | 610140-00 | 1 | HANDLE COVER | GB | |
||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 19 | 330065-06 | 2 | SCREW | GB | |
||
| 22 | 389824-00 | 1 | BOOT | GB | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | GB | |
||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | GB | |
||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | GB | |||
| 34 | 330019-45 | 1 | SCREW | GB | |
||
| 35 | 330019-17 | 2 | SCREW | GB | |
||
| 36 | N063406 | 1 | HOUSING SA | GB | |||
| 41 | 584525-02 | 1 | GEARCASE SA | GB | |
||
| 43 | 590107-00 | 1 | SELECTOR SA | GB | |
||
| 44 | 946106-00 | 1 | PIN | GB | |
||
| 45 | 949638-02 | 2 | DAMPER | GB | |
||
| 54 | 000903-00 | 1 | BALL | GB | |
||
| 55 | 401847-00 | 1 | SEAL | GB | |
||
| 56 | 490910-00 | 1 | SCREW | GB | |
||
| 57 | 584925-02 | 1 | CHUCK 13MM | GB | |
||
| 58 | N022653 | 1 | CHUCK KEY | GB | |
||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | GB | |
||
| 60 | 940357-00 | 1 | DEPTH STOP | GB | |
||
| 64 | 585994-00 | 1 | BAFFLE FAN | GB | |
||
| 76 | 050050-00 | 1 | RING | GB | |
||
| 77 | 176659-00 | 1 | WASHER | GB | |
||
| 80 | 578393-02 | 1 | BRUSH KIT 230V | GB | |
||
| 800 | 429911-00 | 1 | GREASE 40 GMS | GB | |
||
| 801 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 821 | 1008747-00 | 1 | RATING PLATE | GB | |
