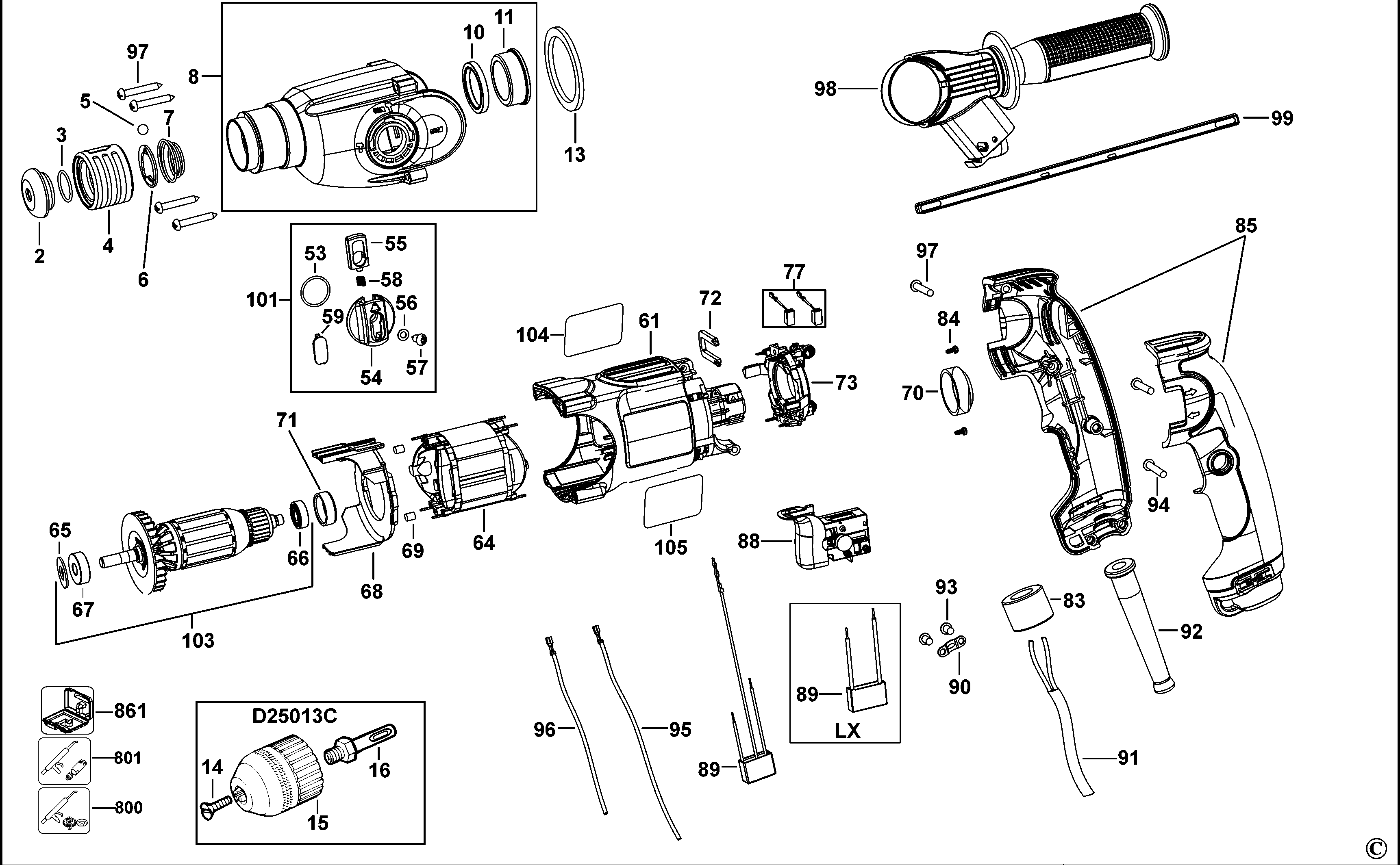

D25013K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 323489-00 | 1 | CAP | GB |  |
||
| 3 | 579212-00 | 1 | RING | GB | |
||
| 4 | 1005813-00 | 1 | COLLAR | GB | |
||
| 5 | 583890-00 | 1 | BALL | GB | |
||
| 6 | 578387-00 | 1 | WASHER | GB | |
||
| 7 | 871690 | 1 | SPRING | GB | |
||
| 8 | N031763 | 1 | HOUSING GEAR SA | GB | |
||
| 10 | 327141-06 | 1 | SEAL | GB | |
||
| 11 | N020023 | 1 | BEARING SPINDLE | GB | |
||
| 13 | 589350-00 | 1 | WASHER | GB | |
||
| 14 | 945013-00 | 1 | SCREW | D25013C | GB | |
|
| 15 | 582512-02 | 1 | CHUCK KEYLESS | D25013C | GB | |
|
| 16 | 352065 | 1 | ADAPTOR | D25013C | GB | |
|
| 17 | 589350-00 | 1 | WASHER | GB | |
||
| 18 | 589346-00 | 1 | SPRING | GB | |
||
| 19 | N031765 | 1 | RING | GB | |||
| 20 | N031766 | 1 | GEAR | GB |  |
||
| 21 | 323762-02 | 1 | CIRCLIP | GB | |
||
| 22 | 1005809-00 | 1 | O RING | GB | |
||
| 23 | N470388 | 1 | TUBE GUIDE | GB | |
||
| 24 | N031767 | 1 | BEAT PIECE | GB | |
||
| 25 | 1005808-00 | 1 | RING | GB | |
||
| 26 | 327087-00 | 1 | WASHER | GB | |
||
| 27 | 323762-07 | 1 | RING | >=2014-WK16 | GB | |
|
| 27 | N294259 | 1 | RING | <2014-WK16 | GB | |
|
| 28 | 1005837-00 | 1 | RING | GB | |
||
| 29 | N031768 | 1 | BEARING | GB | |
||
| 30 | N399611 | 1 | FELT | GB | |
||
| 32 | 577168-00 | 1 | O RING | GB | |
||
| 33 | N031769 | 1 | PISTON | GB | |
||
| 34 | 1005842-00 | 1 | WASHER | GB | |
||
| 35 | 1005843-00 | 1 | BOLT | GB | |
||
| 36 | N407630 | 1 | HOUSING BEARING | GB | |
||
| 37 | 1005810-00 | 1 | O RING | GB | |
||
| 38 | N031514 | 1 | INTERSHAFT SA | GB | |
||
| 44 | 1005844-00 | 1 | WASHER | GB | |
||
| 45 | 1005807-00 | 1 | SEAL | GB | |
||
| 46 | N031771 | 1 | COLLAR | GB | |||
| 47 | N031772 | 1 | GEAR | GB | |
||
| 48 | 1005812-00 | 1 | FELT | GB | |
||
| 49 | 324006-14 | 2 | SCREW | GB | |
||
| 50 | 324006-15 | 3 | SCREW | GB | |
||
| 51 | 1005796-00 | 1 | SELECTOR FORK | GB | |
||
| 52 | 1005795-00 | 1 | SPRING | GB | |
||
| 53 | 1005821-00 | 1 | O RING | GB | |
||
| 54 | 1005822-00 | 1 | SELECTOR | GB | |
||
| 55 | 1005823-00 | 1 | BUTTON | GB | |
||
| 56 | 1005811-00 | 1 | SEAL | GB | |
||
| 57 | 330065-05 | 1 | SCREW | GB | |
||
| 58 | 1005824-00 | 1 | SPRING | GB | |
||
| 59 | 1005825-00 | 1 | CAP | GB | |
||
| 61 | 1005866-00 | 1 | HOUSING MOTOR | GB | |
||
| 64 | N032579 | 1 | FIELD SA 230V | GB | |
||
| 65 | N245239 | 1 | WASHER | GB | |
||
| 66 | 1005895-00 | 1 | BEARING | GB | |
||
| 67 | 330003-60 | 1 | BEARING | GB | |
||
| 68 | 1005869-00 | 1 | BAFFLE FAN | GB | |
||
| 69 | N012971 | 2 | RUBBER PAD | GB | |
||
| 70 | 1005856-00 | 1 | RING | GB | |
||
| 71 | 1005865-00 | 1 | COVER BEARING | GB | |
||
| 72 | 1005894-00 | 1 | CLIP | GB | |
||
| 73 | N031773 | 1 | BRUSH HOLDER SA | GB | |
||
| 77 | N090737 | 1 | BRUSH PAIR 230V | EURO | GB | |
|
| 83 | 388414-01 | 1 | BUSH | GB | |
||
| 84 | 330065-35 | 2 | SCREW | GB | |
||
| 85 | N031775 | 1 | CLAMSHELL SET | GB | |
||
| 88 | N166238 | 1 | SWITCH LOCK-ON | from wk46 2012 | GB | |
|
| 88 | N031776 | 1 | SWITCH LOCK-ON | to wk46 2012 | GB | |
|
| 89 | 1005873-00 | 1 | CAPACITOR 220V | GB | |
||
| 90 | 821070 | 1 | CORD CLAMP | GB | |
||
| 91 | 1005756-00 | 1 | CORDSET | GB | GB | |
|
| 92 | 403395-00 | 1 | CORD PROTECTOR | GB | |
||
| 93 | 330065-06 | 4 | SCREW | GB | |
||
| 94 | 330065-09 | 2 | SCREW | GB | |
||
| 95 | 1005879-01 | 1 | LEAD RED | GB | |
||
| 96 | 1005879-00 | 1 | LEAD BLUE | GB | |
||
| 97 | 330065-28 | 5 | SCREW | GB | |
||
| 98 | 1005896-00 | 1 | SIDE HANDLE | GB | |
||
| 99 | 798846-02 | 1 | DEPTH STOP | GB | |
||
| 100 | N385791 | 1 | SPINDLE SA | <2014-WK16 | GB | |
|
| 100 | N385791 | 1 | SPINDLE SA | >=2014-WK16 | GB | |
|
| 101 | N031515 | 1 | SELECTOR SA | GB | |
||
| 102 | N031513 | 1 | RAM SA | GB | |
||
| 103 | N404429 | 1 | ARMATURE SA | GB | |
||
| 104 | 1005770-00 | 1 | RATING PLATE | GB | GB | |
|
| 105 | 1005767-00 | 1 | BRAND LABEL | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 836 | 596008-99 | 1 | S.T.CIRCLIP INSERTER | GB | |
||
| 836 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 846 | N032833 | 1 | SERVICE KIT 230V | GB | |
||
| 861 | 1005857-00 | 1 | KITBOX | GB | |
