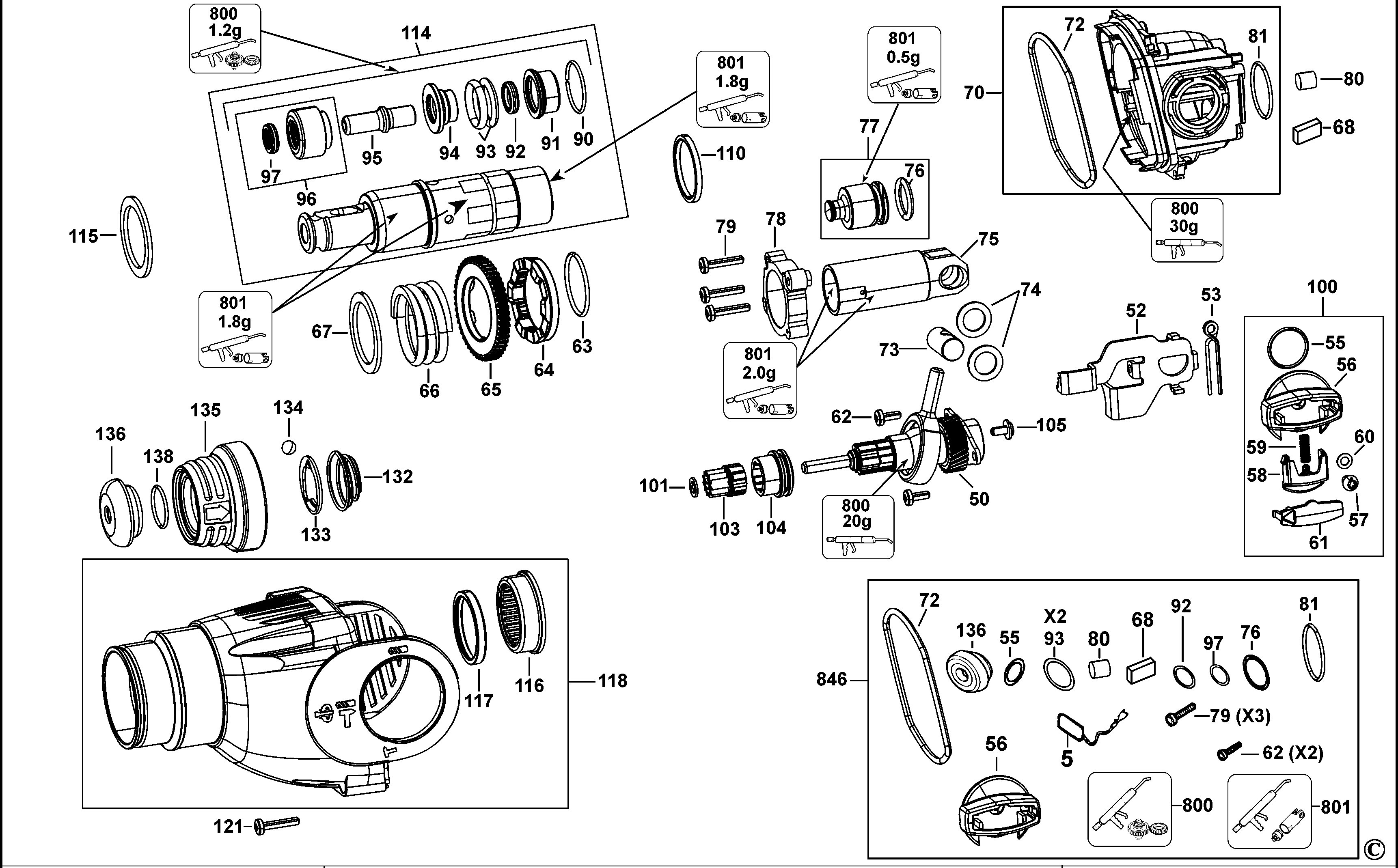

D25223K ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N076031 | 1 | ARMATURE SA | 115V | LX |  |
|
| 2 | 496247-00 | 1 | FIELD 120V | LX |  |
||
| 3 | 1006749-01 | 1 | SWITCH | LX | |
||
| 4 | N028620 | 2 | BRUSH HOLDER SA | 120V | LX | |
|
| 5 | N058084 | 1 | BRUSH PAIR 115V | 115V | LX | |
|
| 6 | 1007502-00 | 1 | GUIDE BUSH | LX | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | LX | |||
| 8 | 582319-43 | 1 | CORDSET | LX | |
||
| 9 | 330065-09 | 4 | SCREW | LX | |
||
| 10 | 320842-19 | 1 | CAPACITOR | LX | |
||
| 12 | 330065-13 | 2 | SCREW | LX | |
||
| 13 | 1006421-00 | 2 | SPRING | LX | |
||
| 14 | 1006418-00 | 1 | BELLOWS | LX | |
||
| 15 | 1007508-00 | 1 | BEARING HOLDER | LX | |
||
| 16 | 324119-04 | 1 | SCREW | M5 X 70 | LX | |
|
| 17 | 1005646-00 | 1 | TUBE GUIDE | LX | |
||
| 18 | 930026-01 | 1 | BUMPER | LX | |
||
| 19 | 1006423-00 | 1 | LEVER | LX | |||
| 20 | 1007503-00 | 1 | STOP NUT | LX | |
||
| 21 | 870052 | 1 | SLEEVE | LX | |
||
| 22 | 324006-14 | 2 | SCREW | LX | |
||
| 23 | 326519-03 | 4 | SCREW | LX | |
||
| 24 | 582144-00 | 1 | BAFFLE | LX | |
||
| 25 | 1005895-00 | 1 | BEARING | LX | |
||
| 29 | 584551-00 | 1 | INSERT | LX | |
||
| 30 | 1007092-00 | 1 | HOUSING MOTOR | LX | |
||
| 31 | 1007135-00 | 1 | HOUSING HANDLE | LX | |
||
| 32 | 1007136-00 | 1 | HANDLE | LX | |
||
| 34 | 1007137-00 | 1 | HANDLE COVER | LX | |
||
| 35 | 330065-08 | 2 | SCREW | M4x18 T20 | LX | |
|
| 36 | 821070 | 1 | CORD CLAMP | LX | |
||
| 37 | 330065-08 | 1 | SCREW | M4x18 T20 | LX | |
|
| 40 | 330065-25 | 4 | SCREW | LX | |
||
| 41 | N031250 | 1 | SET OF LEAD WIRES | LX | |
||
| 42 | 1007890-00 | 1 | BELLOWS | LX | |
||
| 43 | 1008355-00 | 1 | DAMPER | LX | |
||
| 44 | 1007869-00 | 1 | AXLE | LX | |
||
| 50 | N076098 | 1 | INTERSHAFT SA | LX | |
||
| 52 | N029727 | 1 | PLATE | LX | |
||
| 53 | N042799 | 1 | SPRING | LX | |
||
| 55 | N104814 | 1 | LEVER SA | LX | |
||
| 56 | N104814 | 1 | LEVER SA | LX | |
||
| 57 | 330065-05 | 1 | SCREW | LX | |
||
| 58 | N034136 | 1 | LOCK BUTTON | LX | |
||
| 59 | N074923 | 1 | SPRING | LX | |
||
| 60 | 1005811-00 | 1 | SEAL | LX | |
||
| 61 | N034134 | 1 | COVER | LX | |
||
| 62 | 324006-14 | 2 | SCREW | LX | |
||
| 63 | 581836-00 | 1 | LOCKING RING | LX | |
||
| 64 | N076101 | 1 | RING | LX | |
||
| 65 | N076102 | 1 | GEAR | 52T 2D RED | LX | |
|
| 66 | N029717 | 1 | SPRING | LX | |
||
| 67 | 577814-00 | 1 | WASHER | LX | |
||
| 68 | N081515 | 1 | FELT | LX | |
||
| 70 | N076103 | 1 | GEARCASE SA | 3 MODE | LX | |
|
| 72 | 578229-00 | 1 | SEAL | LX | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | LX | |
||
| 74 | 577802-00 | 2 | WASHER SHIM | LX | |
||
| 75 | 496246-00 | 1 | PISTON | LX | |
||
| 76 | 579699-00 | 1 | O RING | LX | |
||
| 77 | 496245-00 | 1 | RAM | LX | |
||
| 78 | N029731 | 1 | BEARING BUSH | LX | |
||
| 79 | 324006-15 | 3 | SCREW | LX | |
||
| 80 | N038257 | 1 | FELT | LX | |
||
| 81 | N042496 | 1 | O RING | LX | |
||
| 90 | 577793-00 | 1 | CLIP | LX | |
||
| 91 | 584426-00 | 1 | BUSH | LX | |
||
| 92 | 580990-00 | 1 | O RING | LX | |
||
| 93 | 577135-00 | 2 | O RING | LX | |
||
| 94 | 584425-00 | 1 | DAMPER | LX | |
||
| 95 | 584424-00 | 1 | BEAT PIECE | LX | |
||
| 96 | 584423-00 | 1 | BEARING & SEAL | LX | |
||
| 97 | 577139-00 | 1 | SEAL | LX | |
||
| 100 | N099541 | 1 | LEVER KIT | LX | |
||
| 101 | 1005844-00 | 1 | WASHER | LX | |
||
| 103 | N029726 | 1 | PINION GEAR | LX | |
||
| 104 | N029725 | 1 | COLLAR | LX | |
||
| 105 | 329794-00 | 1 | SCREW | LX | |
||
| 110 | N059509 | 1 | WASHER | LX | |
||
| 114 | N076105 | 1 | SPINDLE SA | LX | |
||
| 115 | 577814-00 | 1 | WASHER | LX | |
||
| 116 | 577813-00 | 2 | BEARING NEEDLE | LX | |
||
| 117 | 577812-00 | 1 | SEAL | LX | |
||
| 118 | N076107 | 1 | GEARCASE SA | 3 MODE NQCC | LX | |
|
| 121 | 330019-81 | 4 | SCREW | LX | |
||
| 132 | 871690 | 1 | SPRING | LX | |
||
| 133 | 578387-00 | 1 | WASHER | LX | |
||
| 134 | 583890-00 | 1 | BALL | LX | |
||
| 135 | N774198 | 1 | TUBE SA | LX | |
||
| 135 | N774198 | 1 | TUBE SA | LX | |
||
| 136 | 323489-00 | 1 | CAP | LX | |
||
| 138 | 579212-00 | 1 | RING | LX | |
||
| 160 | 1008956-00 | 1 | HANDLE SIDE SA | LX | |
||
| 170 | 495699-00 | 1 | DEPTH STOP | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | LX | |
|
| 817 | 496620-00 | 1 | LABEL | LX | |
||
| 821 | N075053 | 1 | RATING PLATE | LX | |
||
| 836 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | LX | |
||
| 836 | 1003926-99 | 1 | S.T.INSERT | LX | |
||
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 846 | N104815 | 1 | SERVICE KIT 120V | 120V | LX | |
|
| 861 | N328939 | 1 | KITBOX | LX | |
